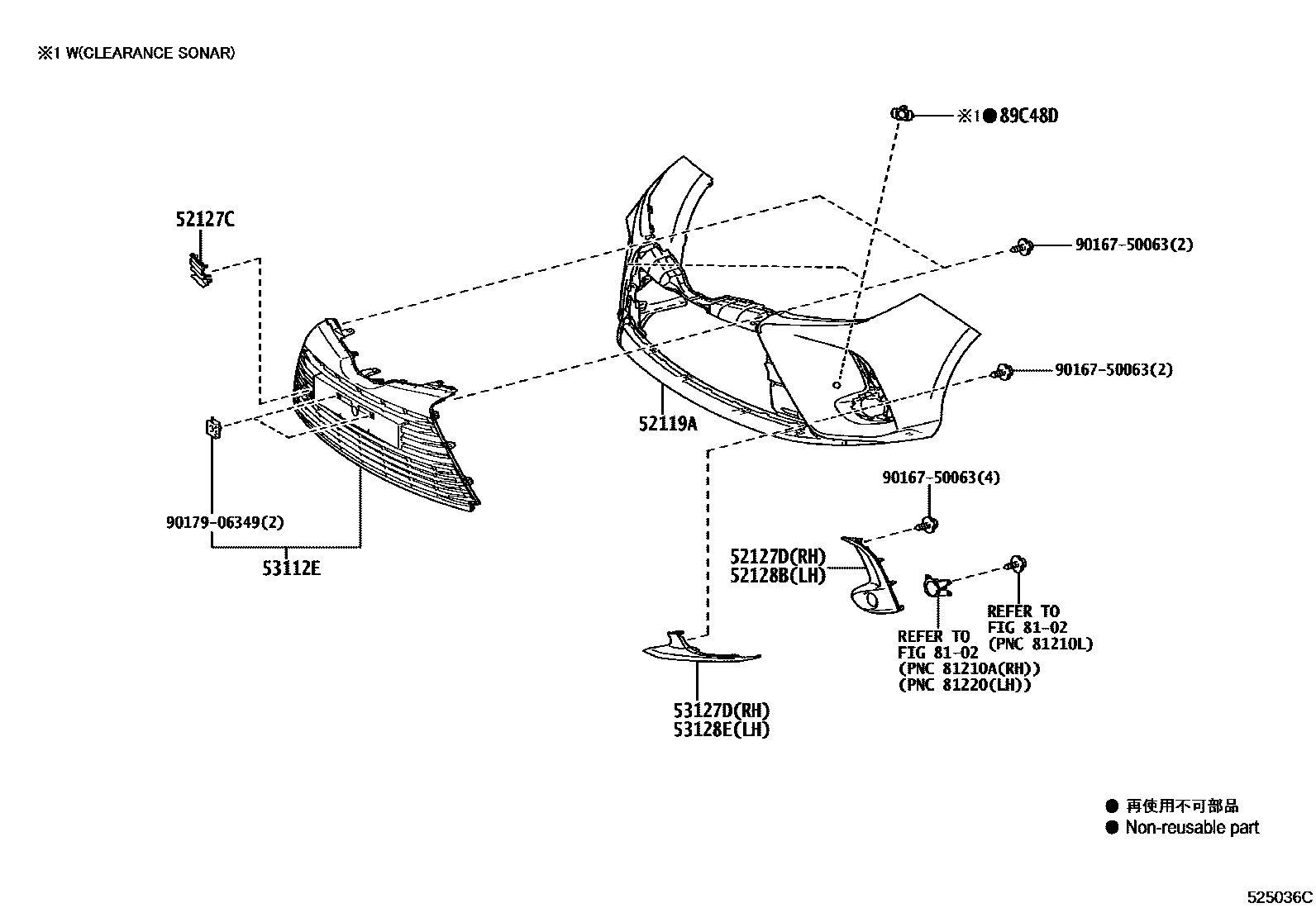

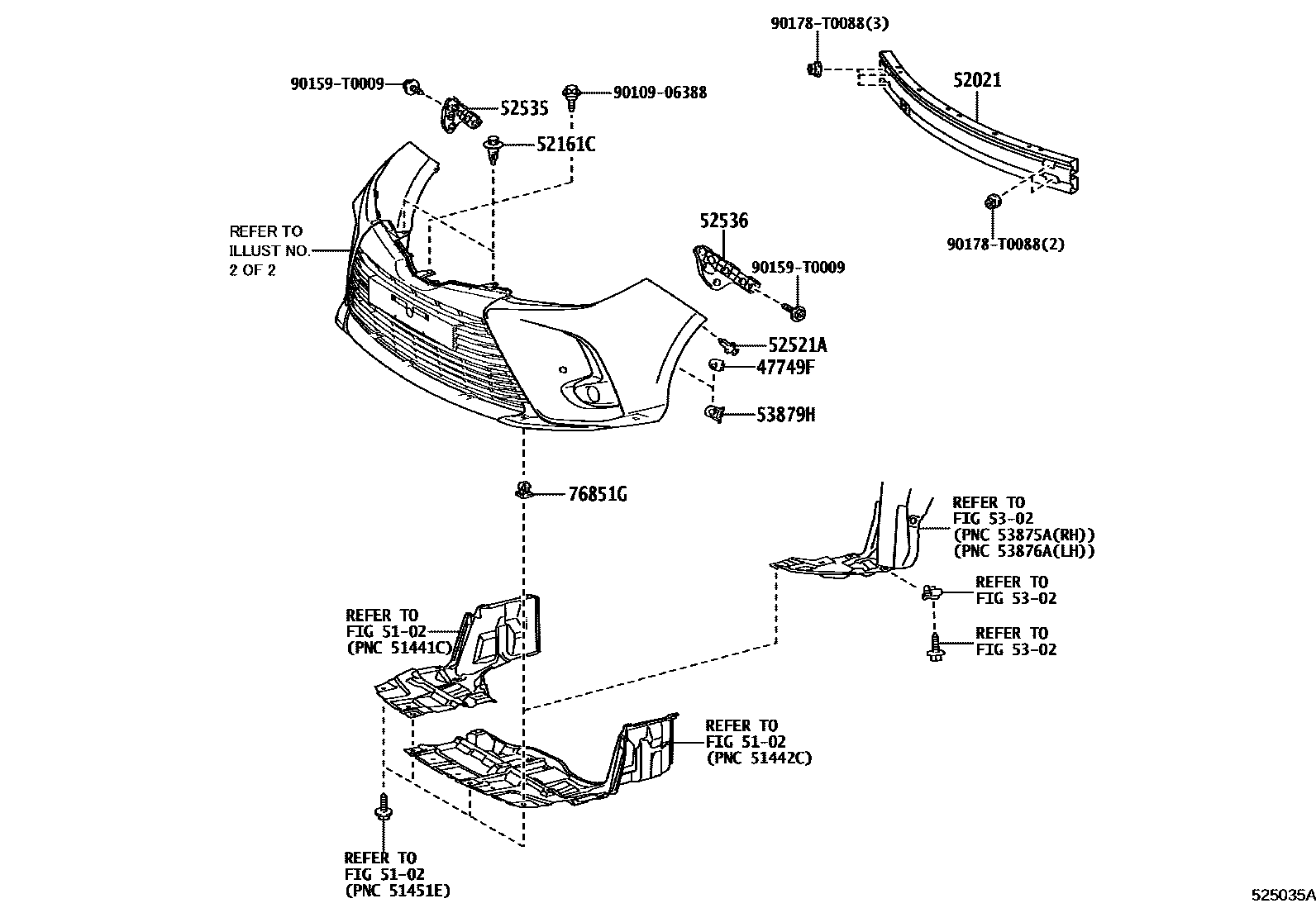

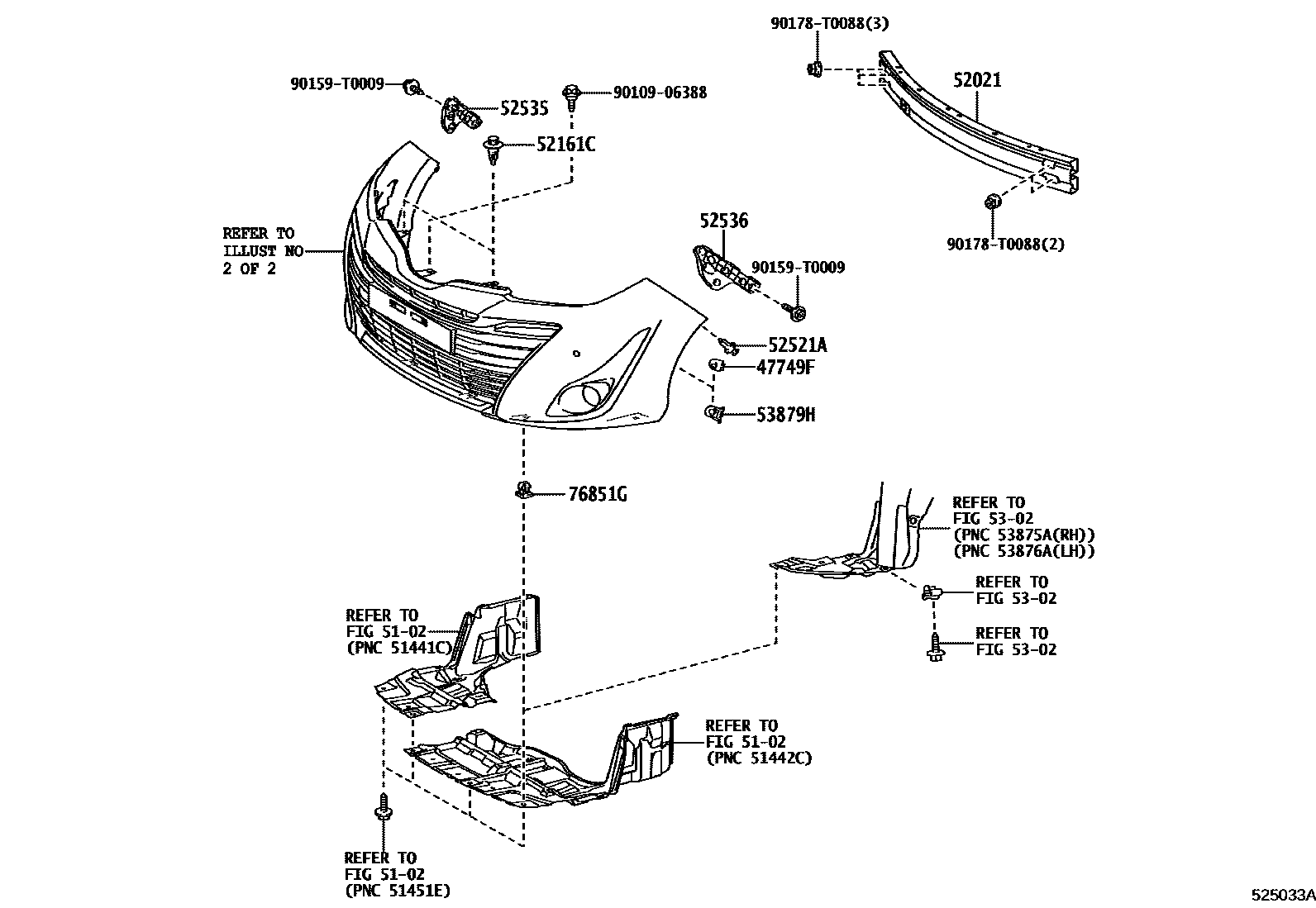

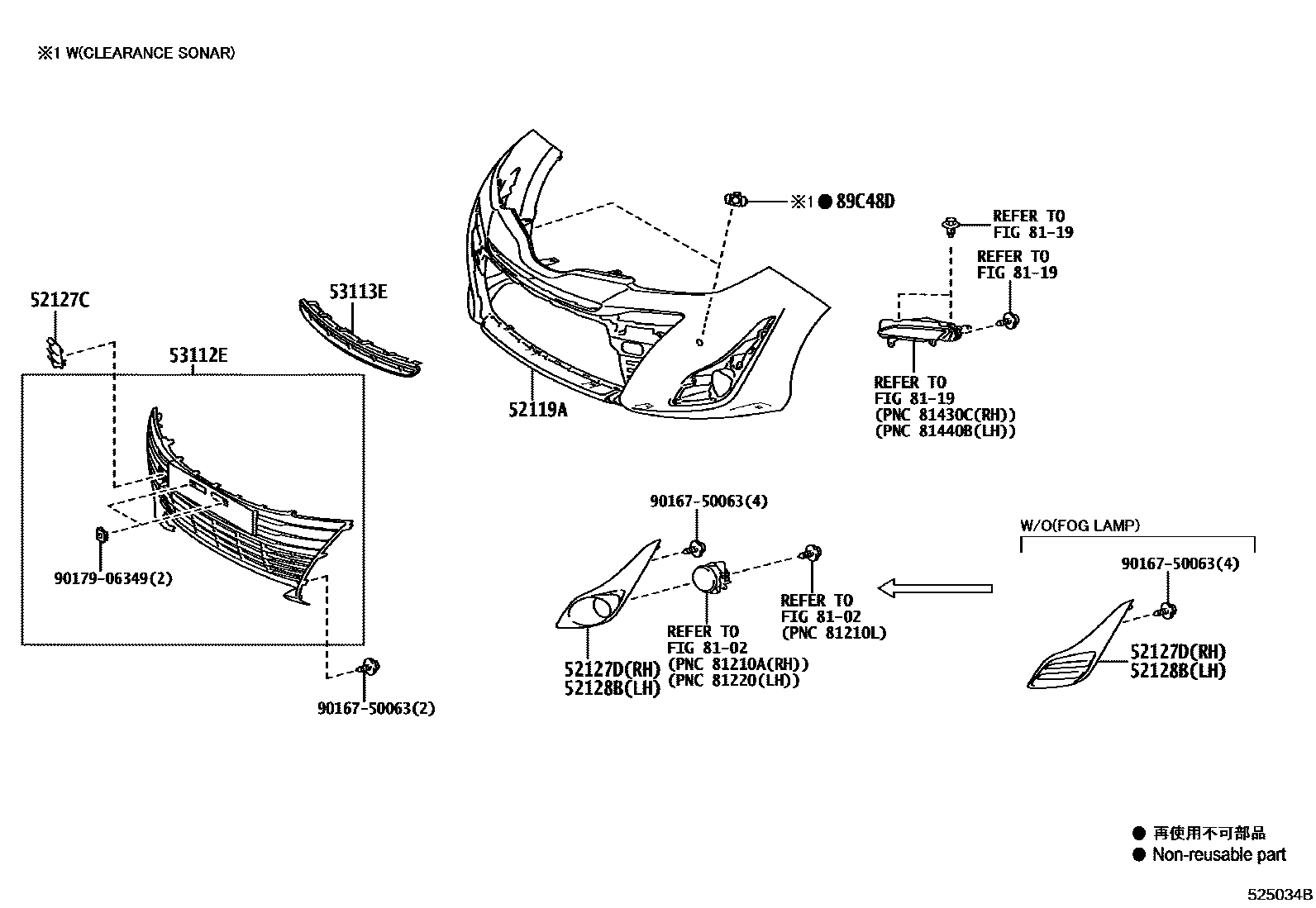

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D140 |
| 52119A | front bumper cover | 52119-0U938 · 52119-0U939 · 52119-YP932 · 52119-YP933 |
| 52127C | Front bumper hole cover | 52721-0D210 · 52721-0D220 · 52721-0D440 · 52721-0D450 · 52721-YP120 · 52721-YP190 · 52721-YP330 |
| 52127D | Front bumper right hole cover | 52127-0D700 · 52127-0D710 · 52127-0DA80 · 52127-0DA90 · 52127-0DB70 · 52127-YP390 |
| 52128B | Front bumper left hole cover | 52128-0D450 · 52128-0D460 · 52128-0D730 · 52128-0D740 · 52128-0D780 · 52128-YP390 |
| 52161C | front bumper insert | 52161-0K040 |
| 52521A | Clip (for front bumper mount) | 90467-05170 · 90467-T0047 |
| 52535 | Front bumper right side fixing bracket | 52535-0D230 |
| 52536 | Front bumper left fixed bracket | 52536-0D230 |
| 53112E | No. 1 radiator lower grille | 53112-0D560 · 53112-0D660 · 53112-0D670 · 53112-0D740 · 53112-YP350 · 53112-YP380 · 53112-YP660 |
| 53113E | No. 2 radiator lower grille | 53113-0D030 |
| 53127D | Lower right radiator grille | 53127-YP110 |
| 53128E | Lower left radiator grille | 53128-YP110 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 76851G | No. 1 screw seal | 90189-06237 · 90189-T0024 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-06110 · 89348-0D030 |
