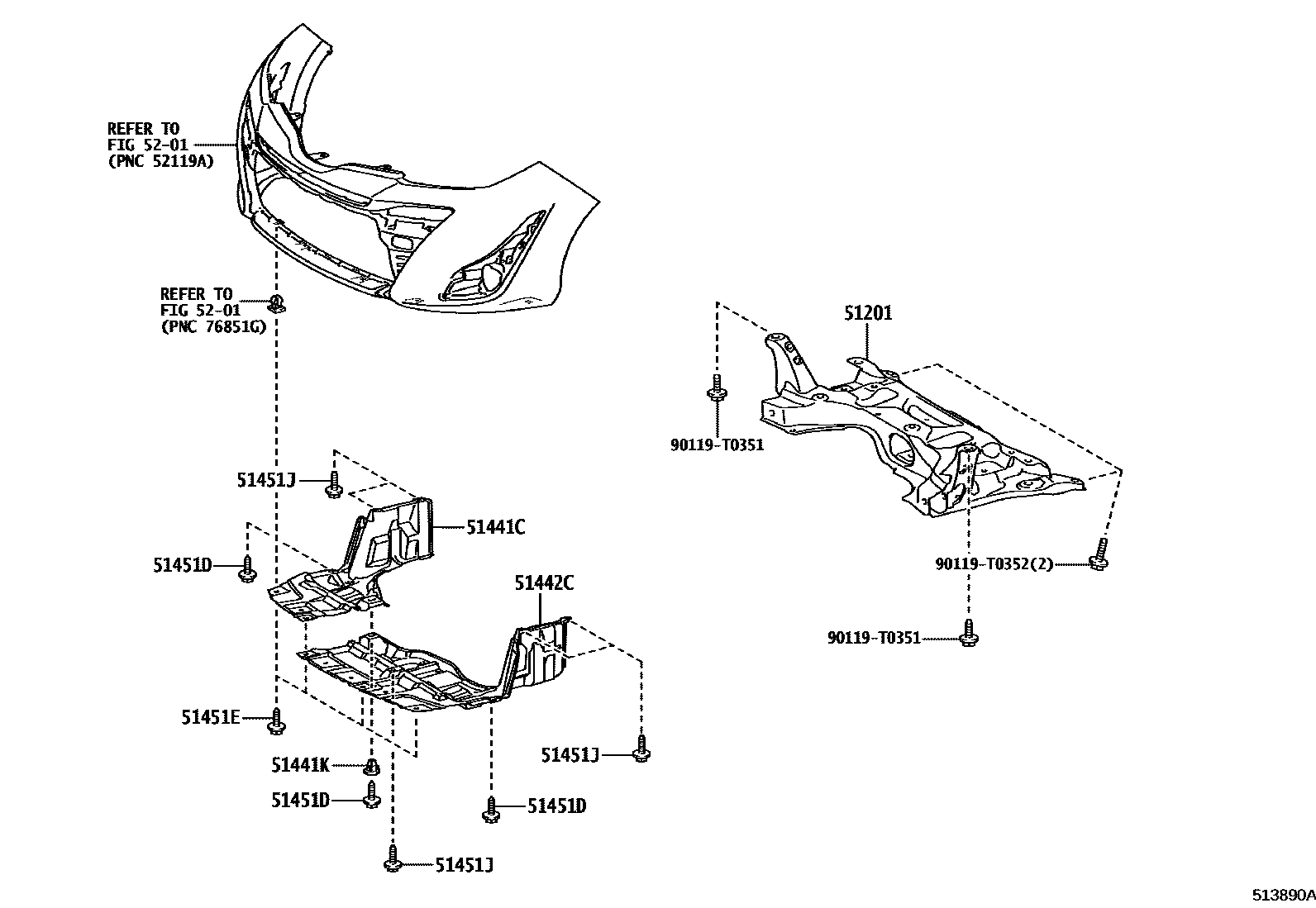

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D151 |
| 51441C | Engine right bottom cover | 51441-0D280 |
| 51441K | Gasket (for engine underhood) | 90189-06006 · 90189-T0022 |
| 51442C | Engine left bottom cover | 51442-0D170 |
| 51451D | Screw No. 1 | 90159-T0008 |
| 51451E | No. 2 screw | 90159-T0033 |
| 51451J | Bolt No. 1 | 90119-T0144 |
