Toyota YARIS Front Spring & Shock Absorber — Figure 4803

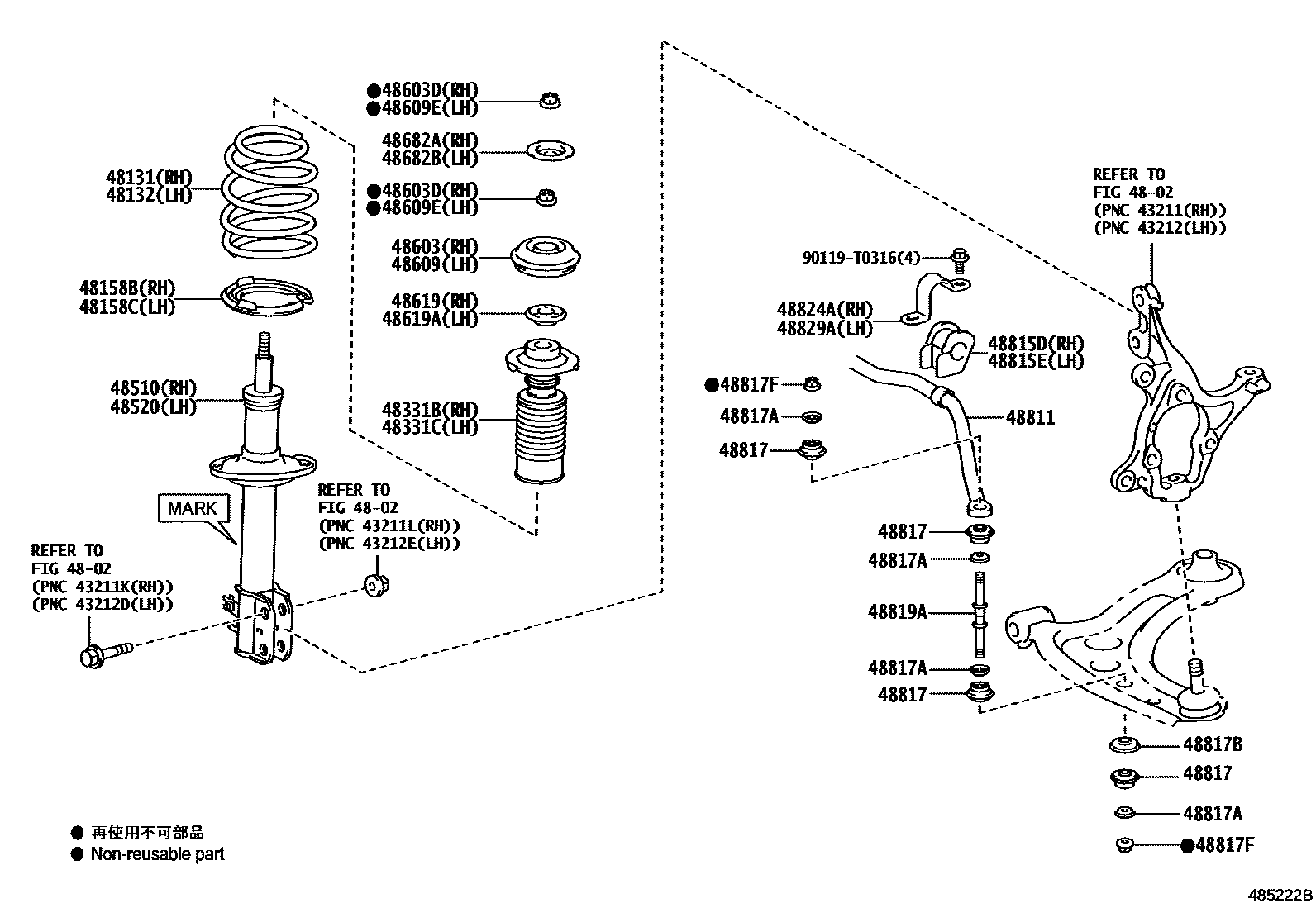

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0D870 · 48131-0D880 · 48131-0DF60 |
| 48132 | Left front coil spring | 48131-0D870 · 48131-0D880 · 48131-0DF60 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-0D080 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-0D080 |
| 48331B | Right front spring buffer block | 48304-0D240 |
| 48331C | Left front spring buffer block | 48304-0D240 |
| 48510 | Right front shock absorber assembly | 48510-0DD60 |
| 48520 | Left front shock absorber assembly | 48510-0DD60 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0D150 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0064 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0D150 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0064 |
| 48619 | Bearing installed on the right sliding column | 48619-52030 |
| 48619A | Bearing installed on the left sliding column | 48619-52030 |
| 48682A | No. 2 right front suspension support | 48682-0D200 |
| 48682B | No. 2 left front suspension support | 48682-0D200 |
| 48811 | front stabilizer bar | 48811-0D191 |
| 48815D | Right front stabilizer bar bushing | 48815-0D190 |
| 48815E | Left front stabilizer bar bushing | 48815-0D190 |
| 48817 | Front stabilizer bar cushion | 48817-52011 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02179 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02178 |
| 48817F | Nut (for front stabilizer bar) | 94182-10800 |
| 48819A | front stabilizer bar bolt | 48821-52040 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-0D030 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-0D030 |
