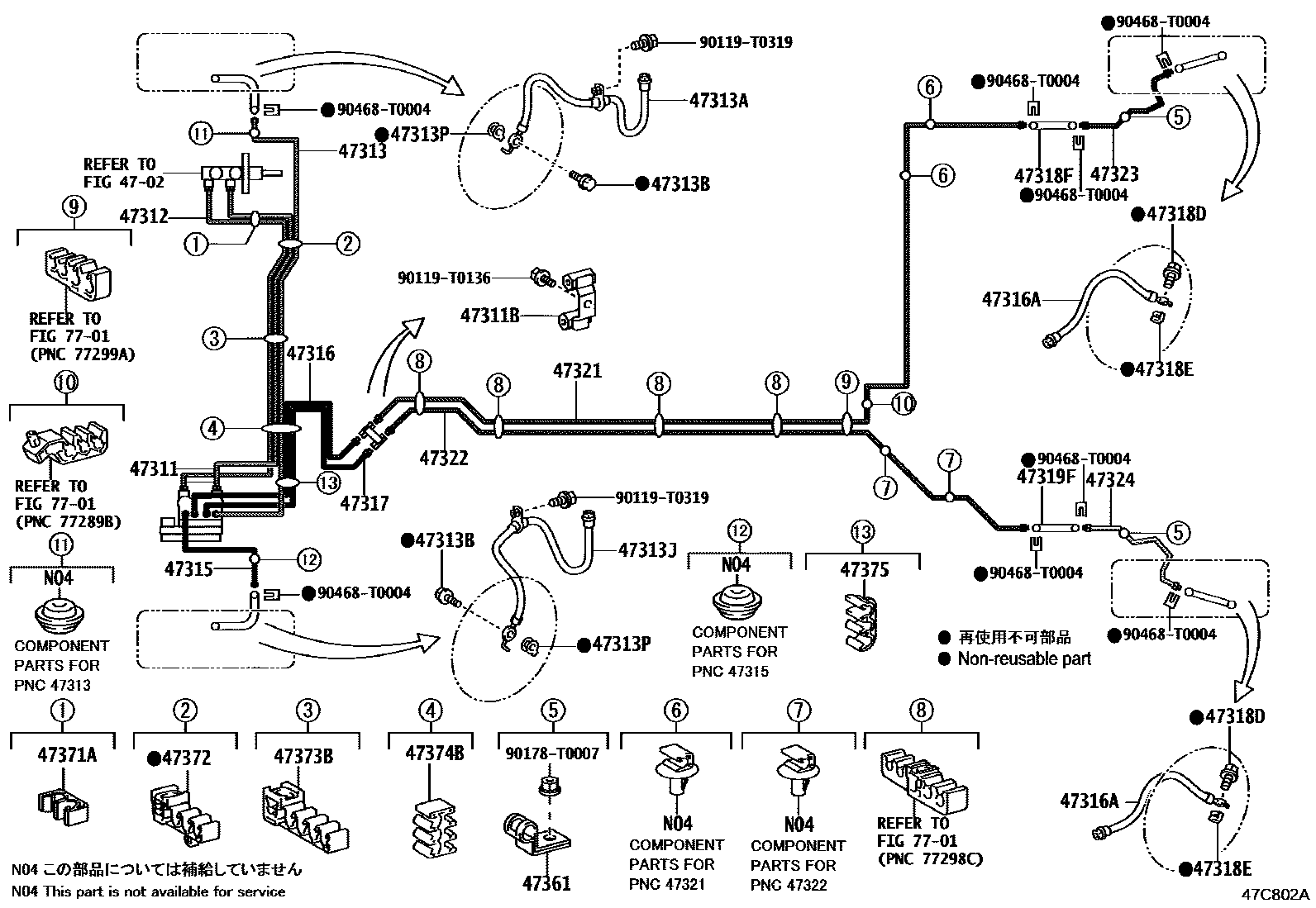

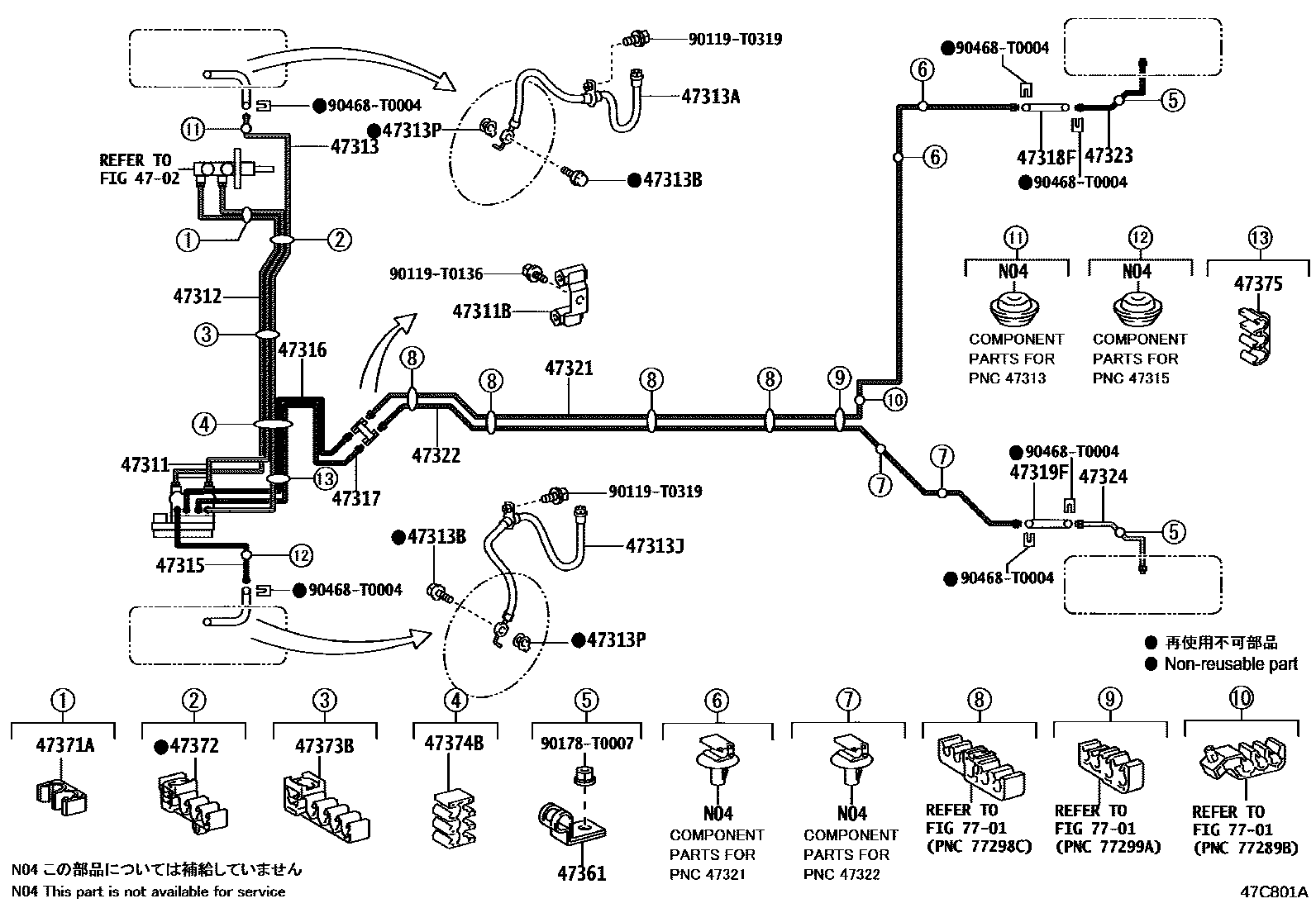

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

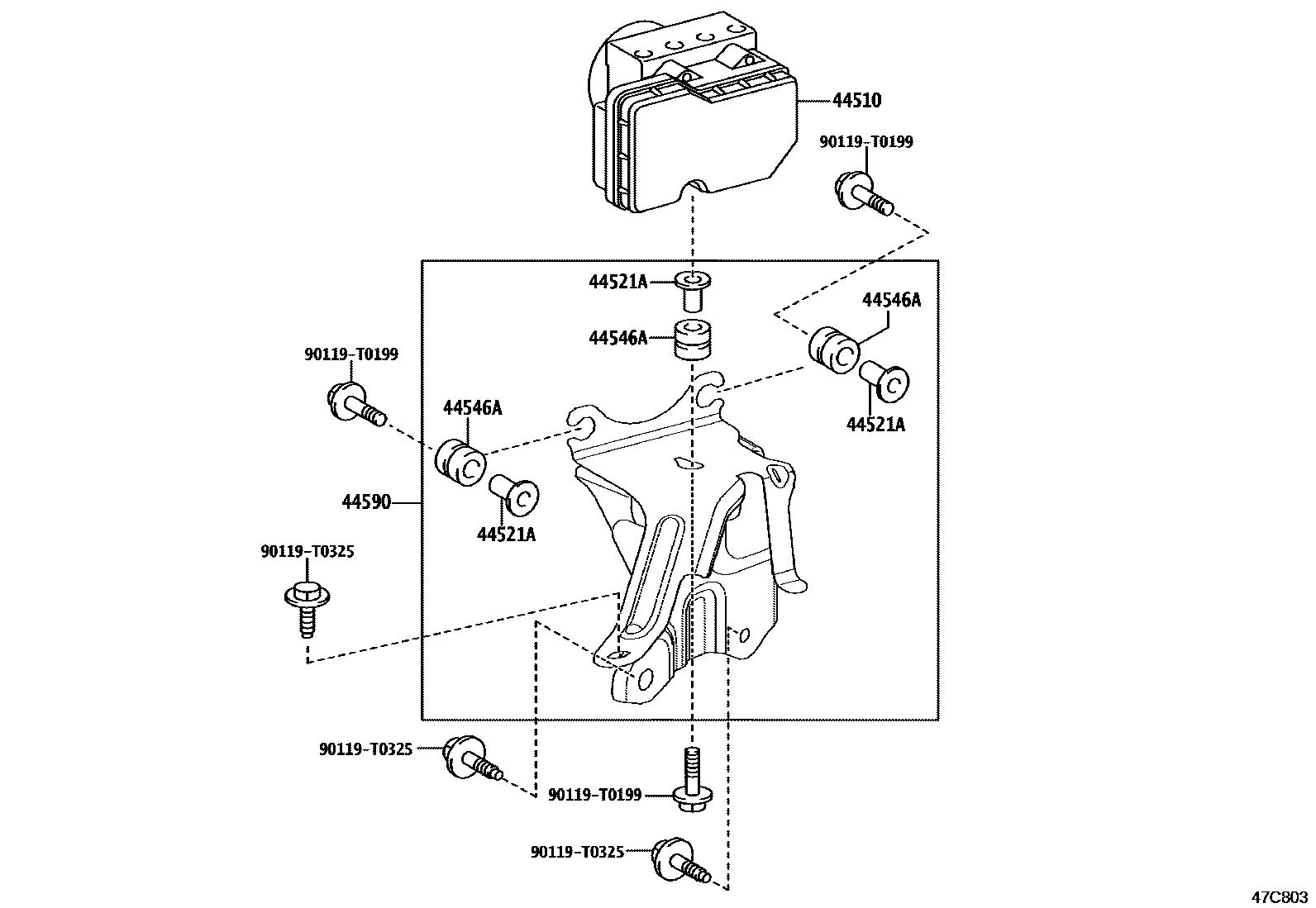

| 44510 | brake actuator assembly | 44050-0DE20 · 44050-0DE30 |
| 44521A | No. 1 brake actuator housing collar | 44521-0D010 |
| 44546A | Brake actuator bolt cushion | 44547-02050 |
| 44590 | Brake actuator bracket assembly | 44590-0D430 |
| 47311 | No. 1 front brake pipe | 47311-0DB20 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-0DA50 |
| 47313 | No. 3 front brake pipe | 47313-0D870 |
| 47313A | No. 1 front flexible hose | 90947-T2081 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2082 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-0D850 |
| 47316 | No. 6 front brake pipe | 47316-0D760 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-T2085 |
| 47317 | No. 7 front brake pipe | 47317-0D760 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2083 |
| 47319F | Left rear flexible hose | 90947-T2084 |
| 47321 | No. 1 rear brake pipe | 47321-0D370 |
| 47322 | No. 2 rear brake pipe | 47322-0D370 |
| 47323 | No. 3 rear brake pipe | 47323-0D230 · 47323-0D250 |
| 47324 | No. 4 rear brake pipe | 47324-0D230 · 47324-0D250 |
| 47361 | pipe clamp | 90461-T0006 |
| 47371A | No. 1 brake pipe clamp | 90464-00899 |
| 47372 | No. 2 brake pipe clamp | 90949-01D84 |
| 47373B | No. 3 brake pipe clamp | 90949-01D85 |
| 47374B | No. 4 brake pipe clamp | 90464-00925 |
| 47375 | No. 5 brake pipe clamp | 90464-00868 |
