Toyota YARIS 制动助力器和真空管 — Figure 4703

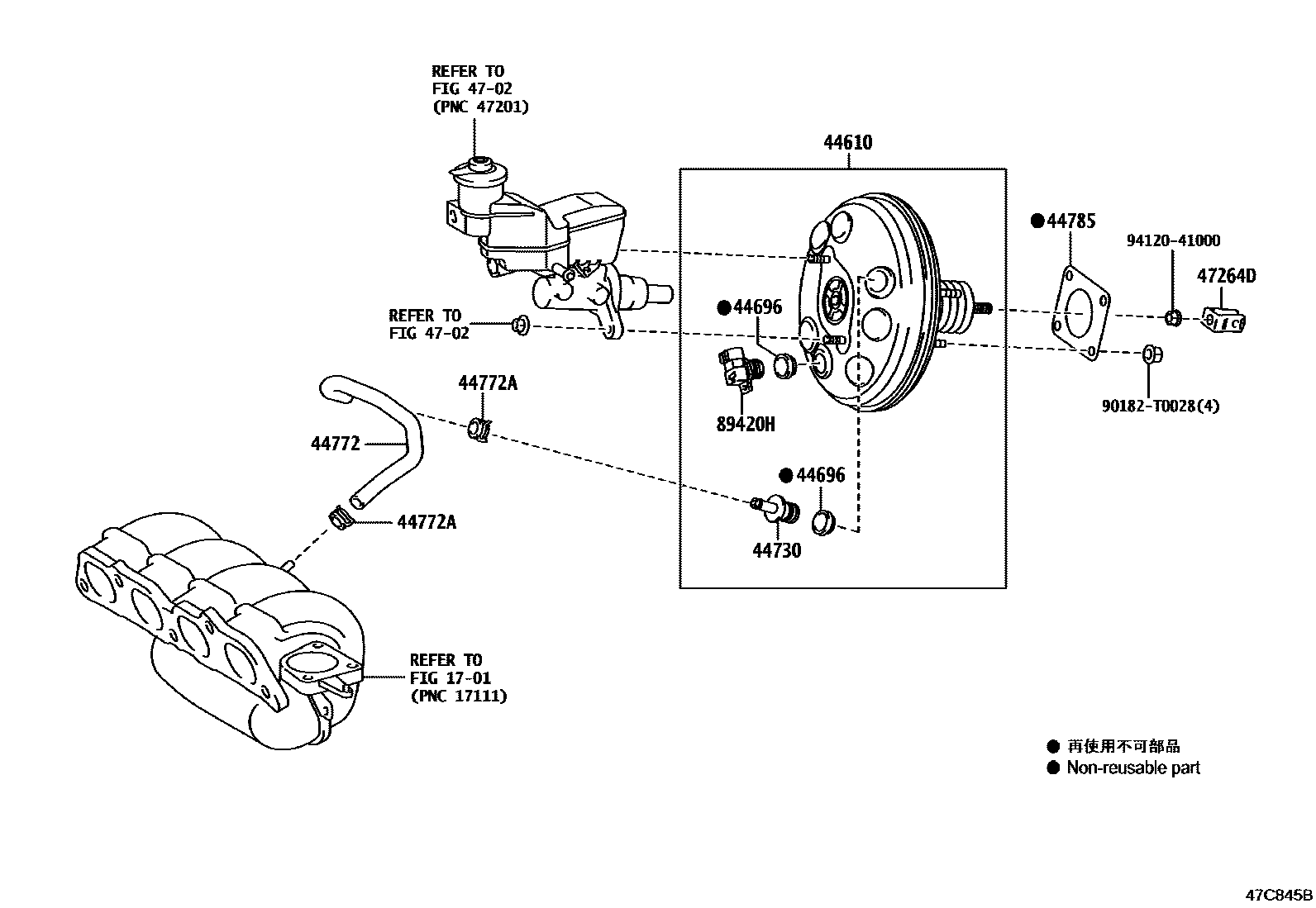

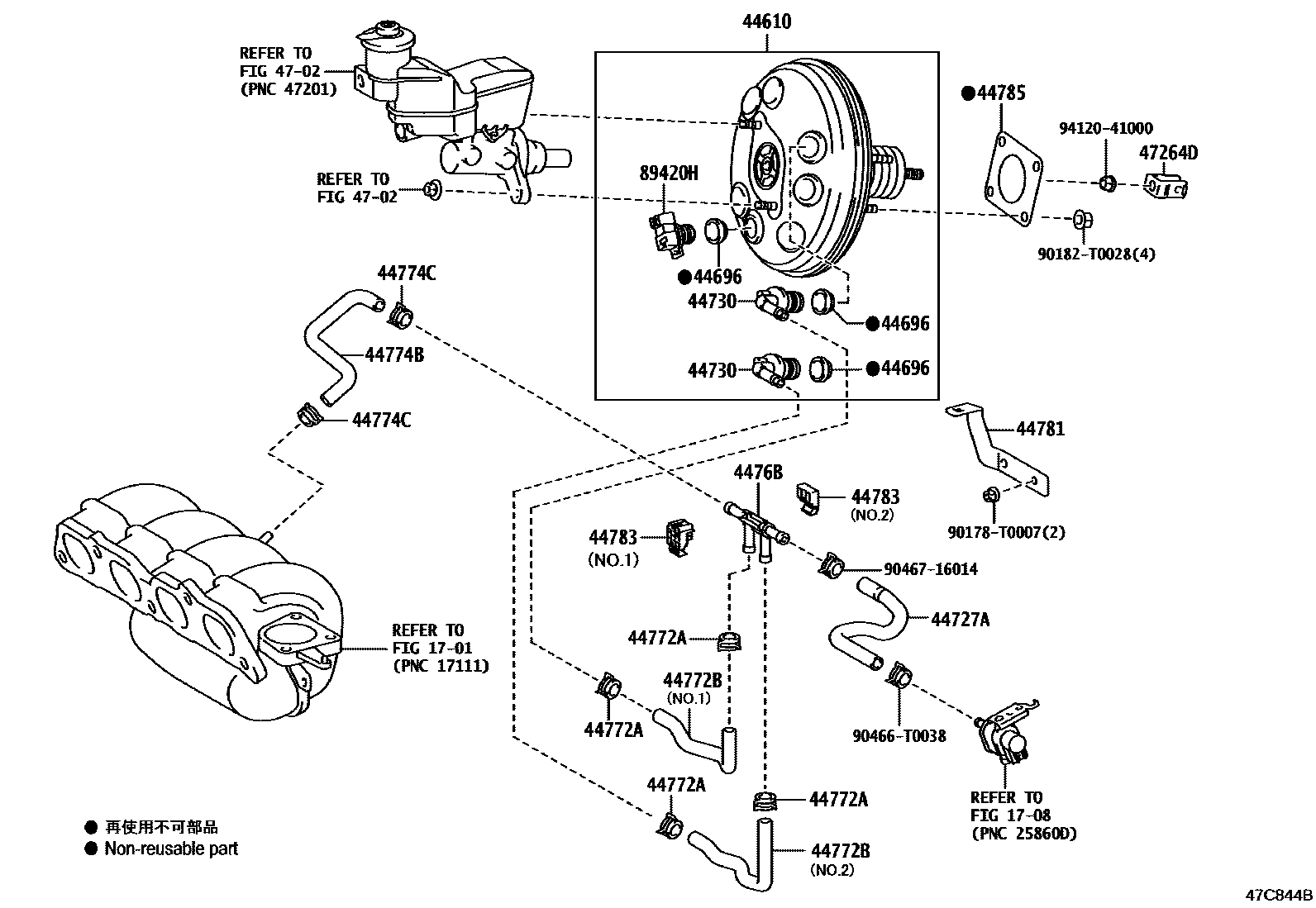

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0D680 · 44610-0D710 · 44610-0DB50 |
| 44696 | One-way valve seal | 90016-AT003 |
| 44727A | Air hose No. 2 | 17342-0Y070 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 · 44730-60070 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D410 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44772B | Hoses (check valve to brake booster) | 44772-0D430 · 44772-0D440 |
| 44774B | Hoses (joints to connector tubes) | 44774-0D190 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44781 | hose holder | 44781-0D120 |
| 44783 | Vacuum hose clamp | 44783-0D020 · 44783-0D030 |
| 44785 | brake booster pad | 44785-0D030 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0D040 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
