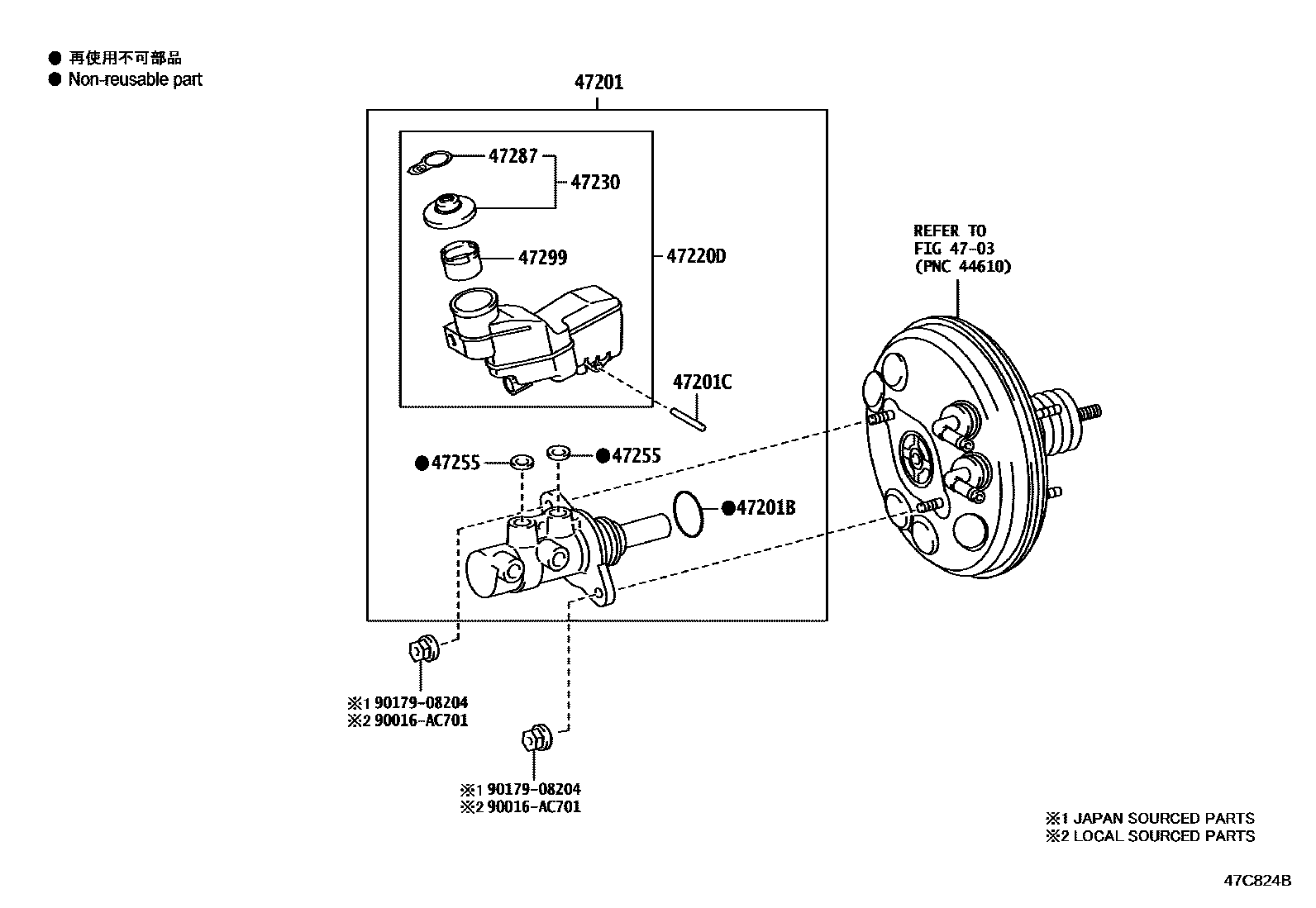

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-0D610 · 47201-0D620 · 47201-0D810 |
| 47201B | O-ring (for brake master cylinder) | 90016-AH903 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0D220 · 47220-0D230 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D221 |
| 47255 | Master pump reservoir seal | 90016-AT001 |
| 47287 | brake fluid information label | 47287-02360 |
| 47299 | Brake master cylinder reservoir filter | 47299-0K010 |
