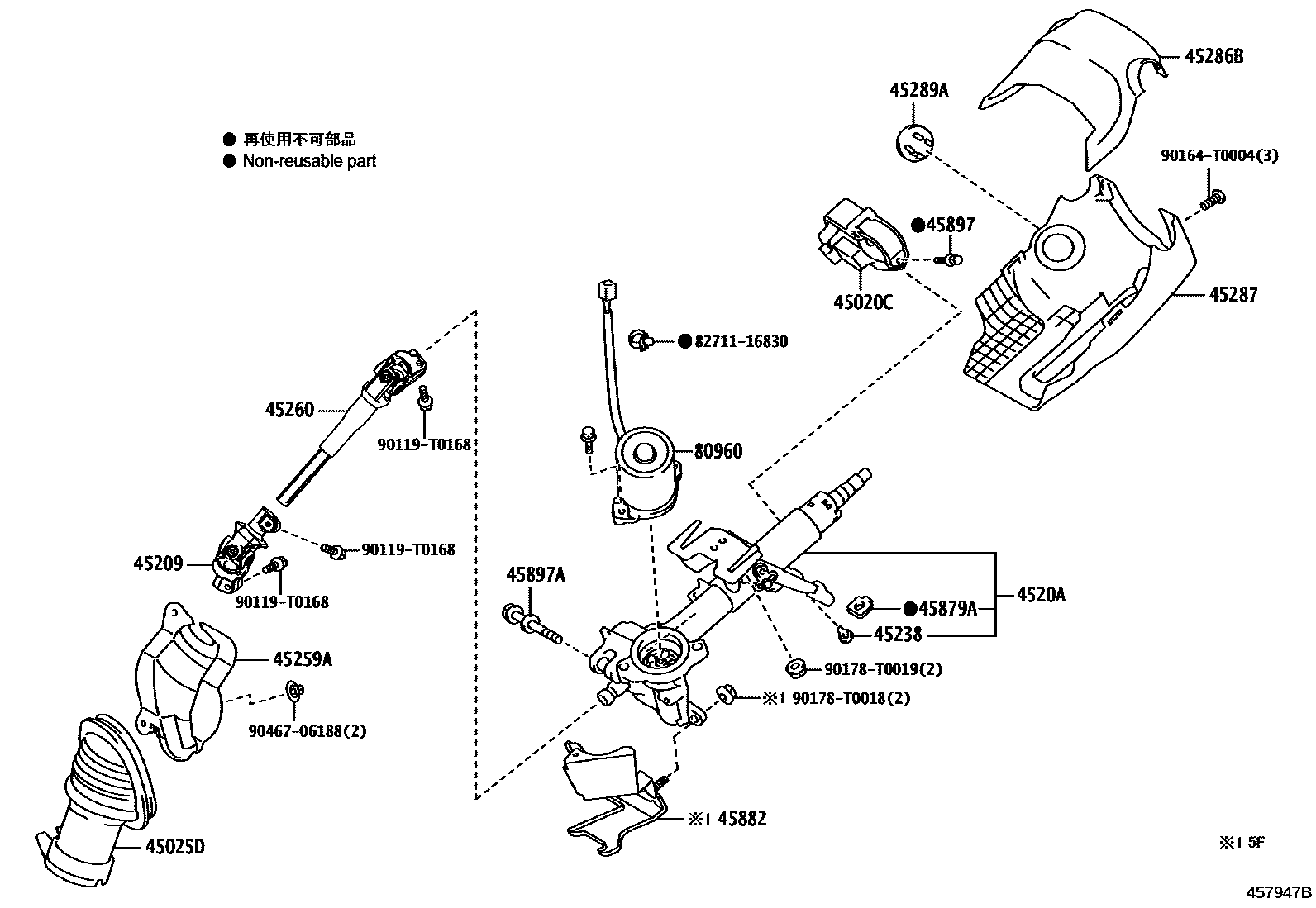

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-0K190 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0D241 |
| 45209 | Steering slip fork sub-assembly | 45209-0D090 |
| 4520A | Electric steering column sub-assembly | 4520A-0D451 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45259A | Steering column hole cover silencer plate | 45259-0D250 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-0D251 |
| 45879A | Separate enclosure | 45879-0D040 |
| 45882 | Steering column guard bracket | 45882-0D010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
| 80960 | Power steering motor assembly | 80960-0D360 |
