Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.

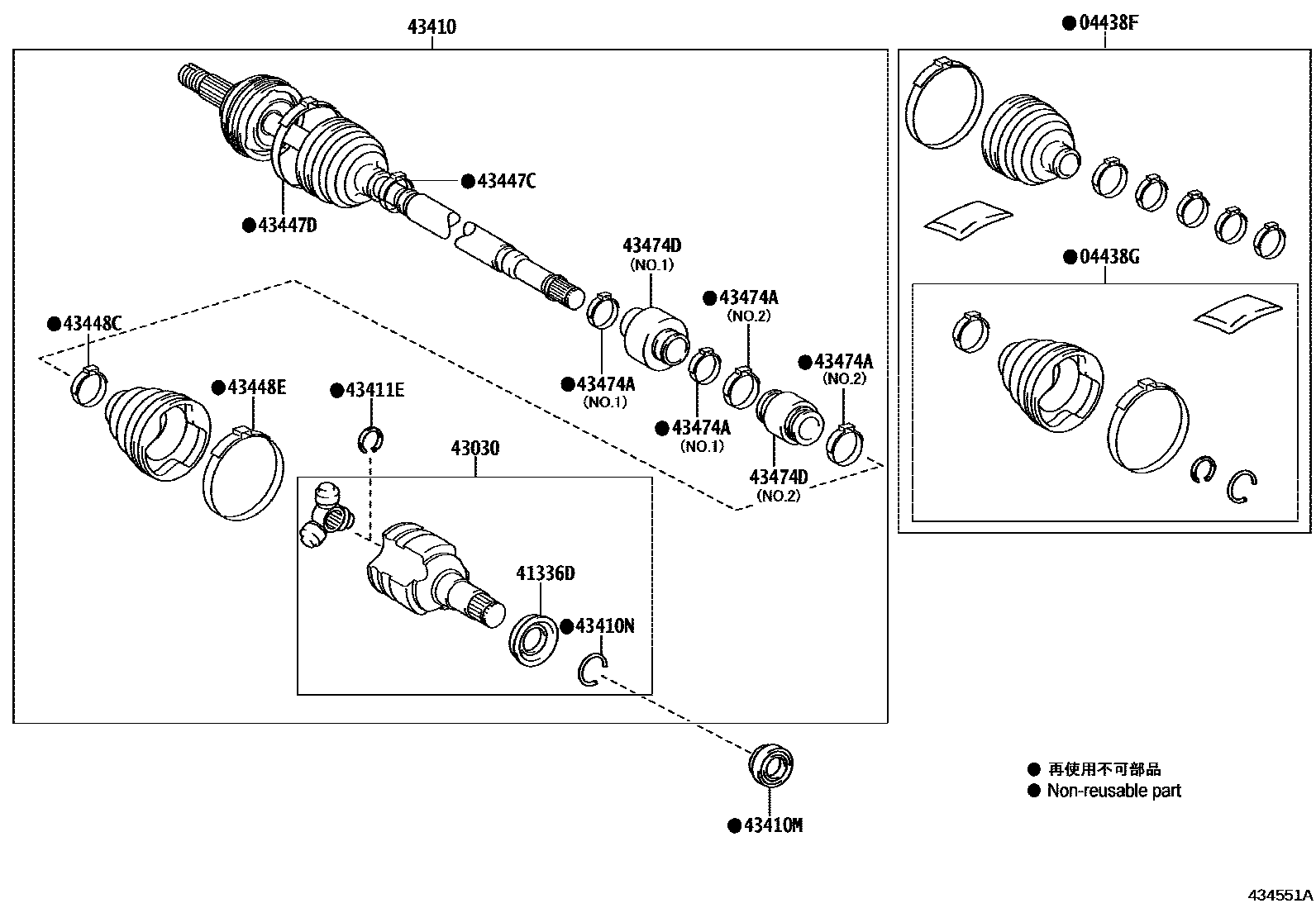

Toyota YARIS Front Drive Shaft EPC diagram — 434551A
Front Drive Shaft — 434551A (202012 – 999999)

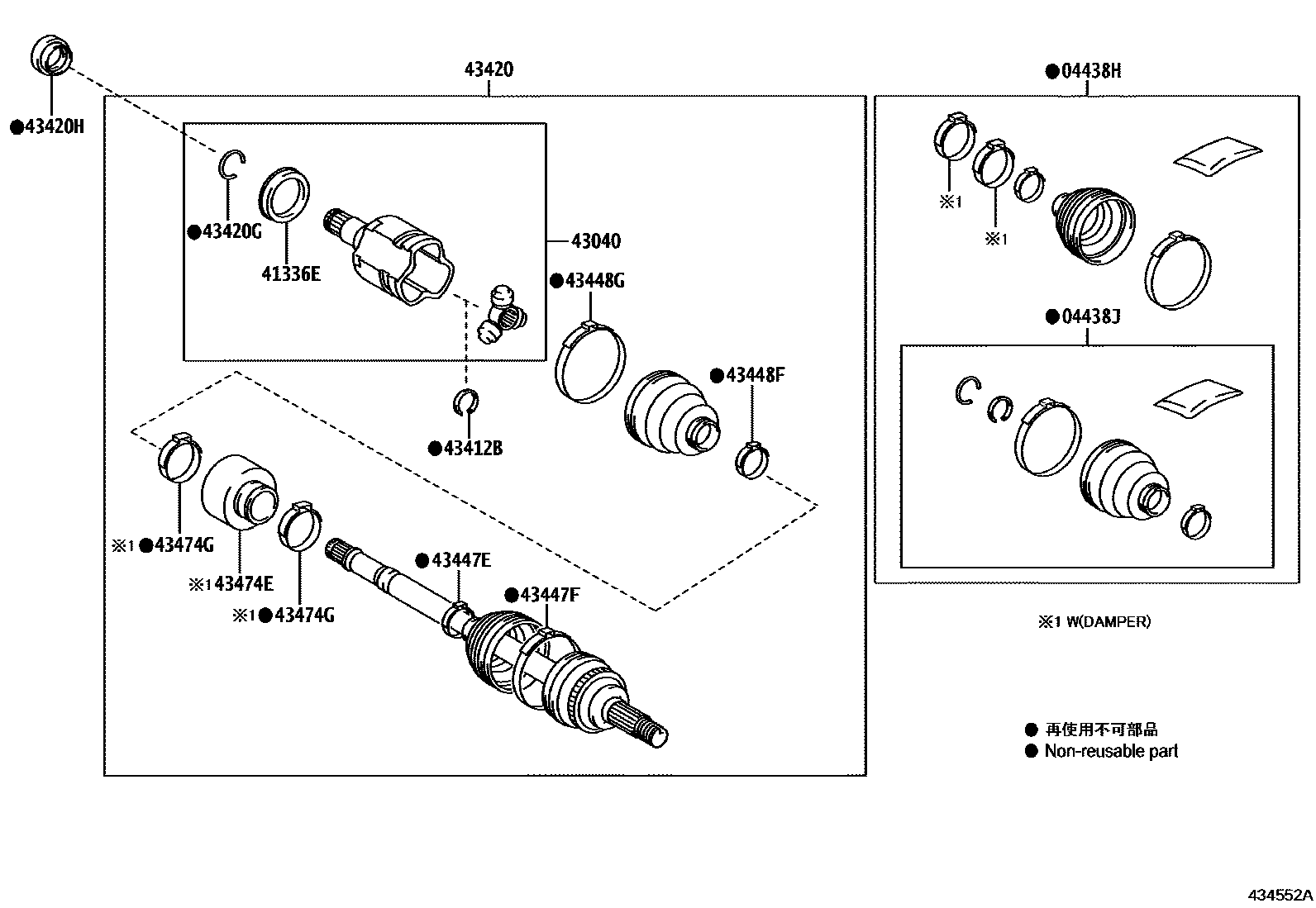

Toyota YARIS Front Drive Shaft EPC diagram — 434552A
Front Drive Shaft — 434552A (202012 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D351
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D250
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-0D331 · 04428-0D371
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0D250
41336DRight front driveshaft dust cover41336-0D120
41336ELeft front driveshaft dust cover41336-0D120
43030Right front drive shaft inner universal joint assembly43040-0D030
43040Left front drive shaft inner universal joint assembly43040-0D030
43410Right front driveshaft assembly43410-0D700
43410MFront drive shaft right oil seal90311-34050 · 90311-T0104
43410NHole snap ring (for right front driveshaft)43425-0D390
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-0D380
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-0D380
43420Left front drive shaft assembly43420-0D280 · 43420-0D560
43420GHole snap ring (for left front driveshaft)43425-0D390
43420HFront drive shaft left oil seal90311-34051 · 90311-34057 · 90311-T0103
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0DA70
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0DA80
43447EClamp (for left front axle outer universal joint dust cover)42345-0DA70
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0DA80
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0DA70
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0DA60
43448FClamp (for left front axle inner universal joint dust cover)42345-0DA70
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0DA60
43474AClamp (for securing driveshaft damper)42345-0DA50 · 42345-0DB40
43474DRight front driveshaft shock absorber43474-0D140 · 43474-0D290
43474ELeft front driveshaft shock absorber43474-0D300
43474GClamp (for left front driveshaft shock absorber)42345-0DB40
