Toyota YARIS 前桥壳和差速器 — Figure 4301

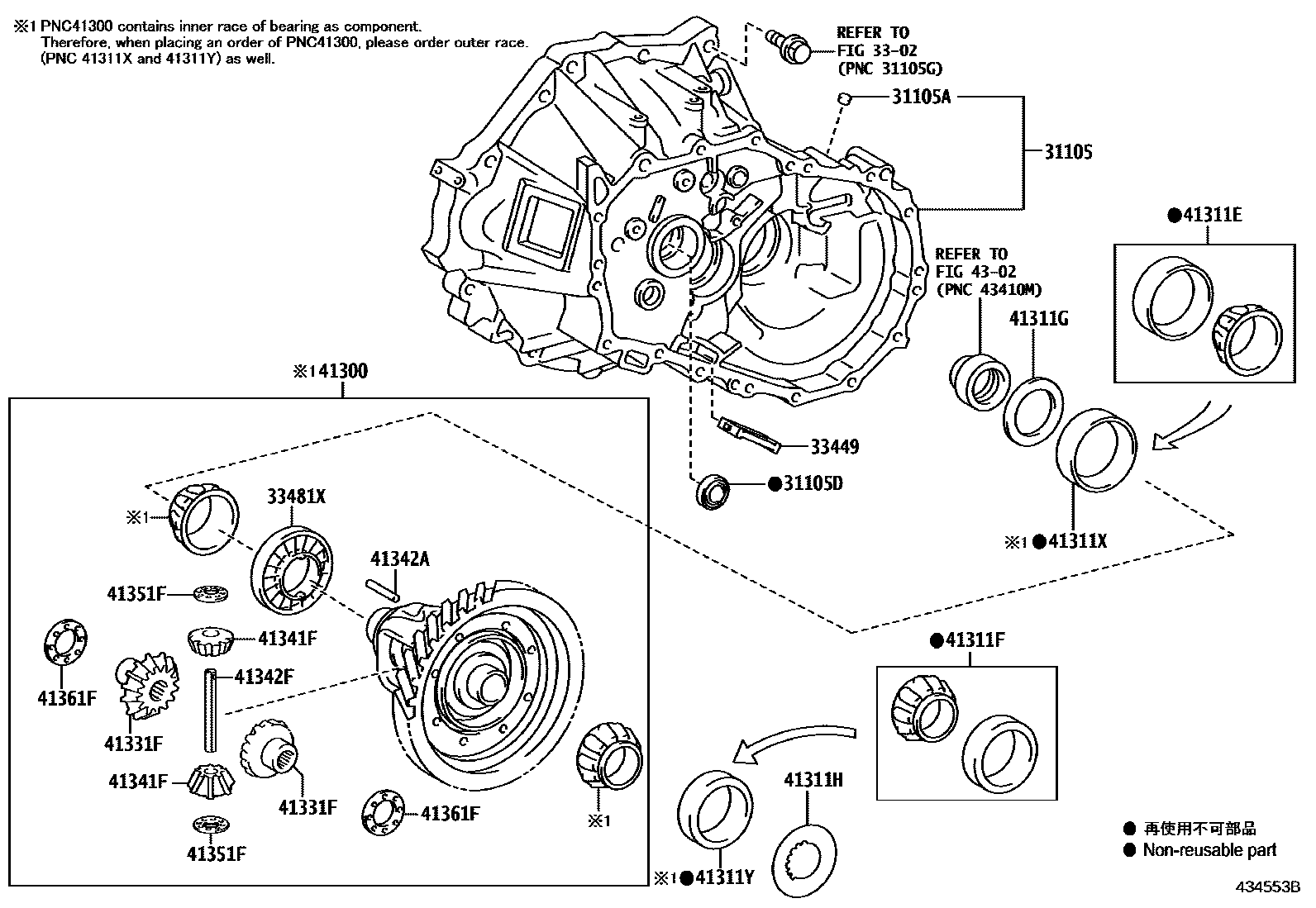

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-0D080 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-T0078 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481X | speedometer drive gear | 33481-12040 |
| 41300 | Front differential case assembly with ring gear | 41300-0D120 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-T0087 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-T0086 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-T0089 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-T0088 |
| 41331F | Front differential side gear | 41331-12011 |
| 41341F | Front differential planetary gear | 41341-12030 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D030 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
