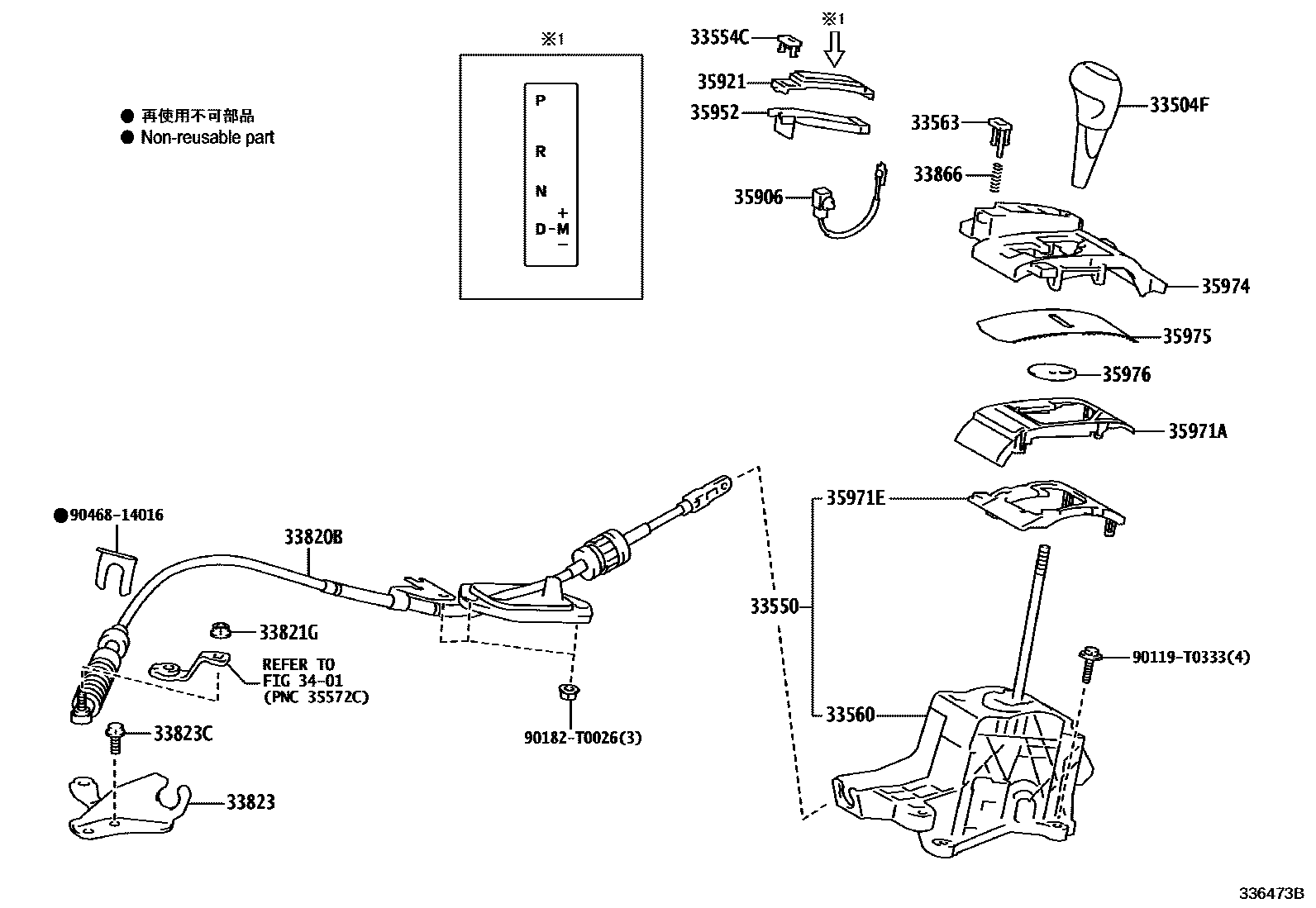

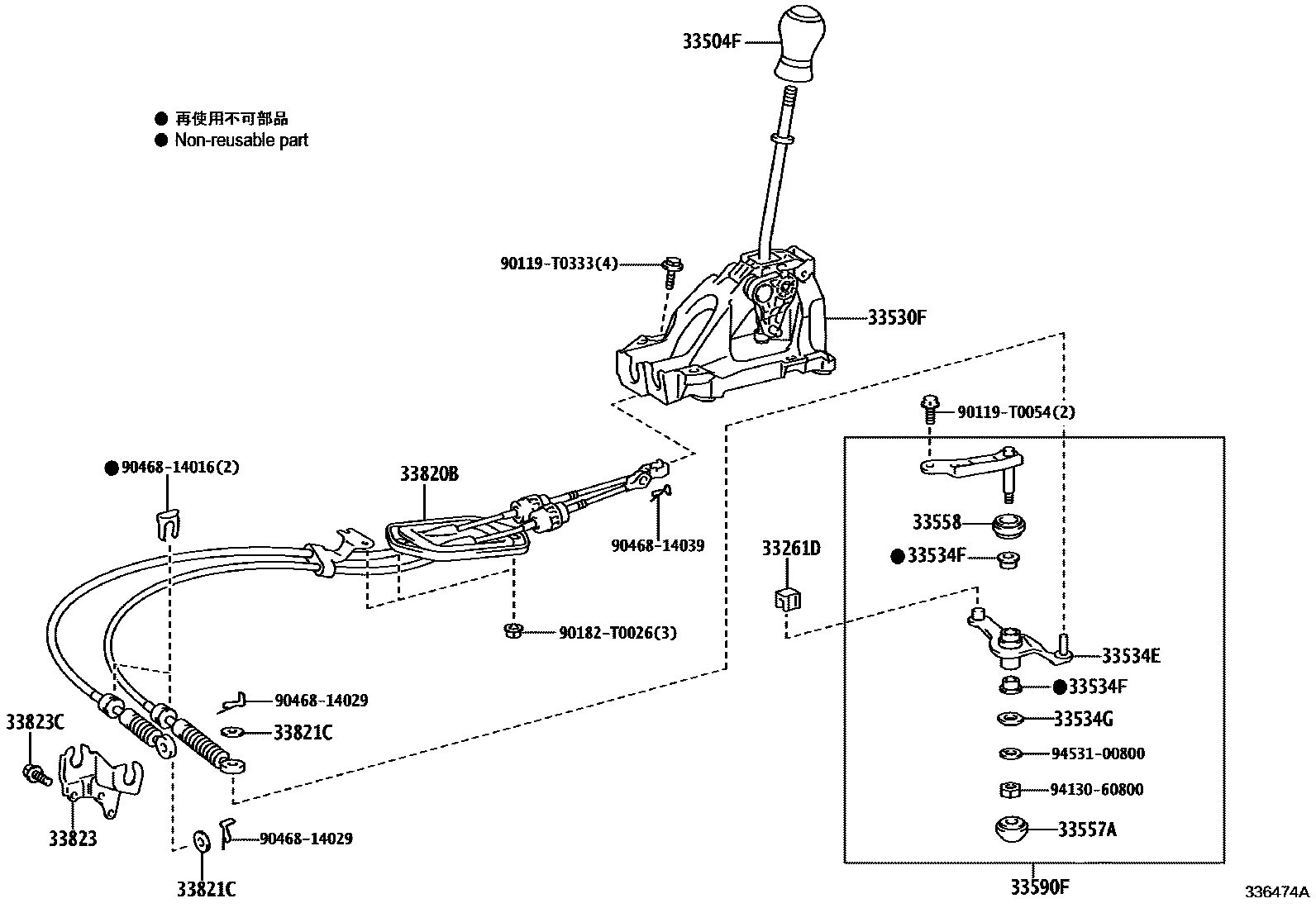

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D220 |
| 33534E | No. 2 gear selection right-angle lever | 33534-0D030 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550 | Transmission floor shift assembly | 33550-0D610 |
| 33554C | Shift lock release button cover | 33554-0D240 · 33554-0D360 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-0D160 |
| 33563 | Shift lock release button | 33563-0D140 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-0D030 |
| 33820B | Transmission control cable assembly | 33820-0D650 · 33820-0D660 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90080-17130 |
| 33823 | No. 1 transmission control cable bracket | 33524-0D170 · 33823-0D180 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0102 · 90119-T0412 |
| 33866 | Shift lock release spring | 33866-06030 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0D290 |
| 35921 | control position indicator board | 35921-0D160 |
| 35952 | Position indicator lampshade | 35952-0D030 |
| 35971A | Position indicator light upper shell | 35971-0D560 |
| 35971E | position indicator housing | 35971-0D580 |
| 35974 | Position indicator light lower shell | 35974-0D100 |
| 35975 | Slide cover (for position indicator light) | 35975-0D120 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D140 |
