Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

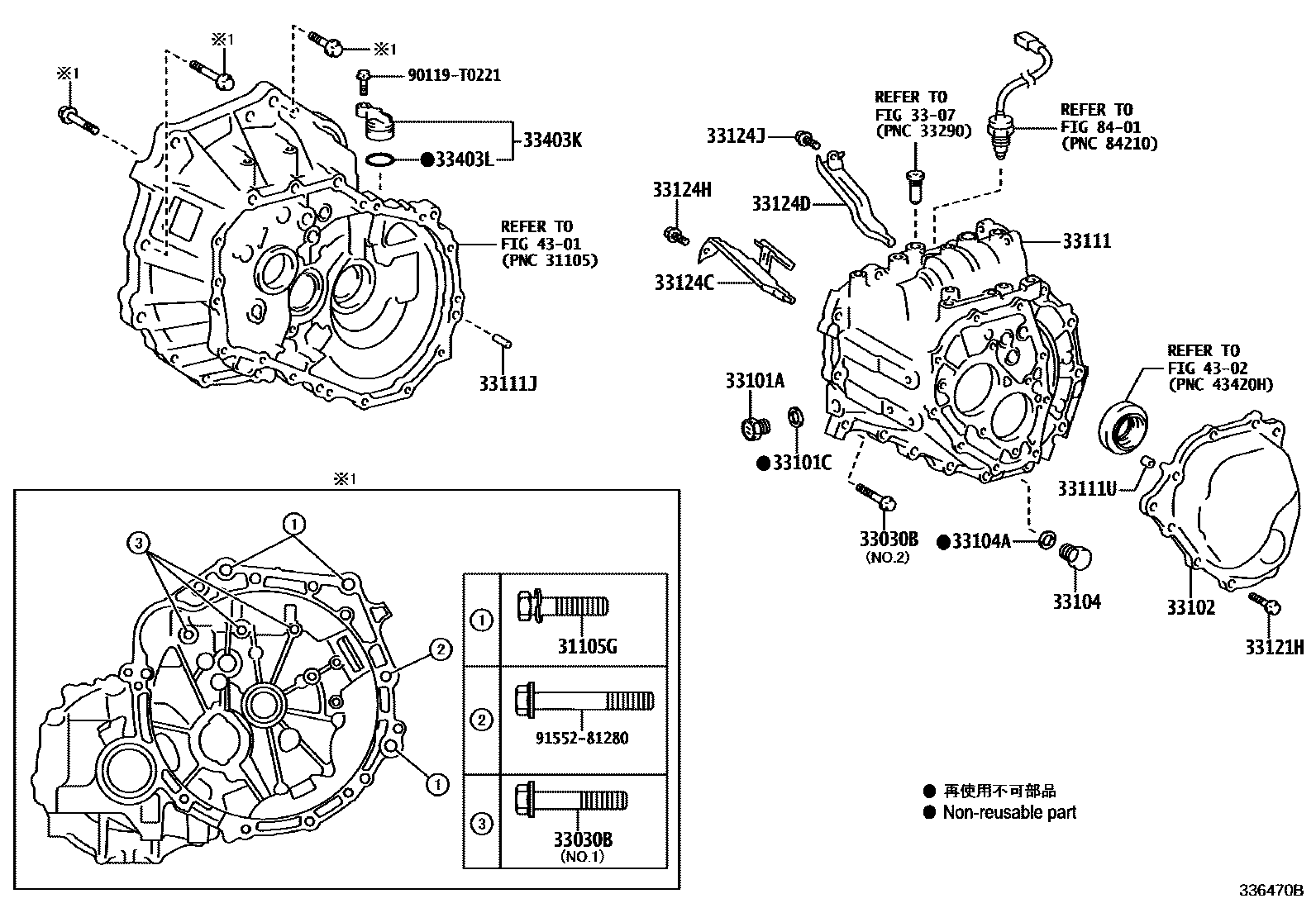

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90119-T0310 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-T0323 · 90105-T0325 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-T0021 |
| 33102 | Manual transmission cover sub-assembly | 33102-52021 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-T0021 |
| 33111 | Manual transmission housing | 33111-0D120 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-T0449 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-20050 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12021 |
| 33124H | Bolt (for oil collection pipe) | 90119-T0296 |
| 33124J | Bolts with washers | 90119-T0296 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-0D020 |
| 33403L | O-ring | 96711-24030 |
