Toyota YARIS vacuum tube — Figure 1708

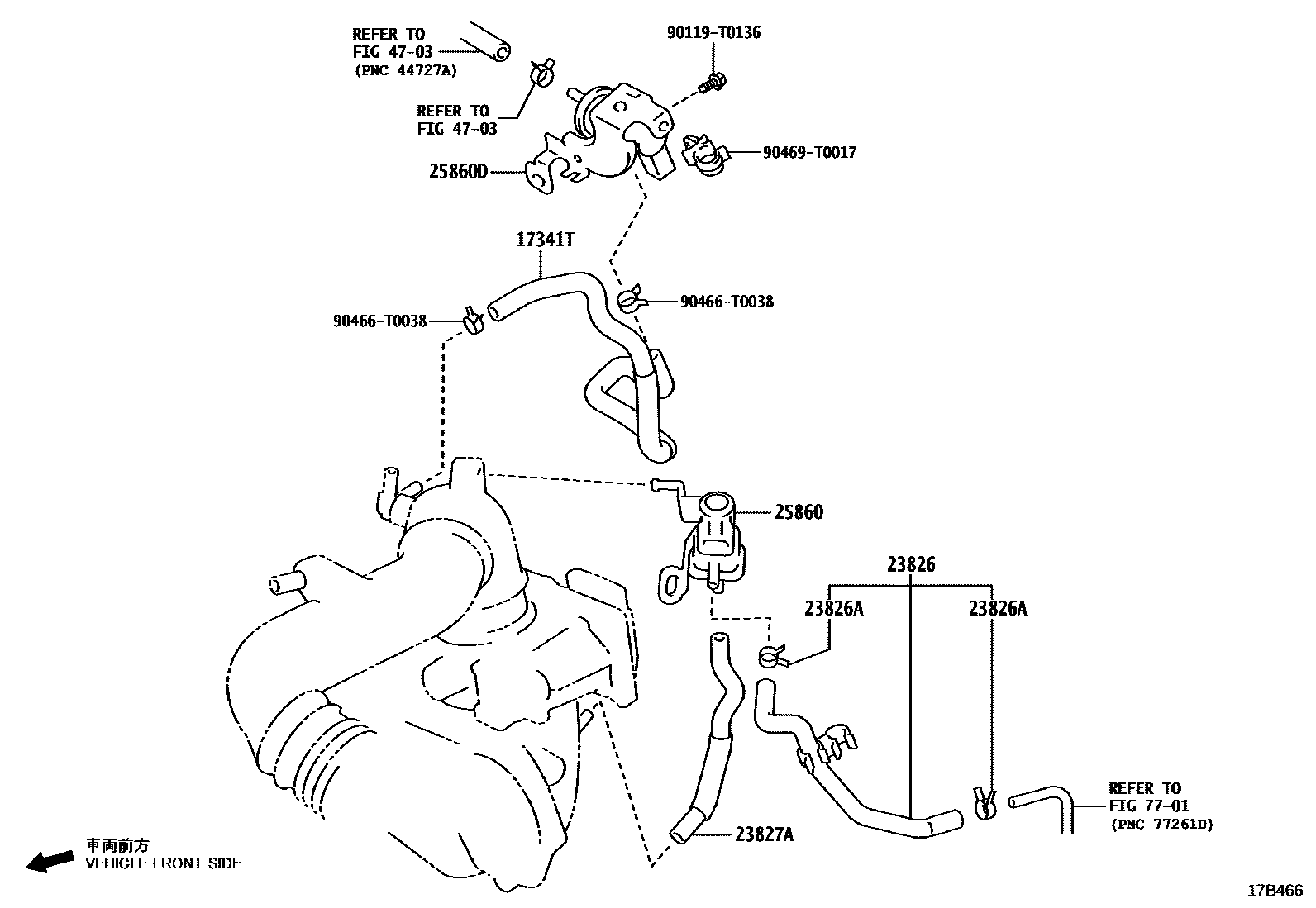

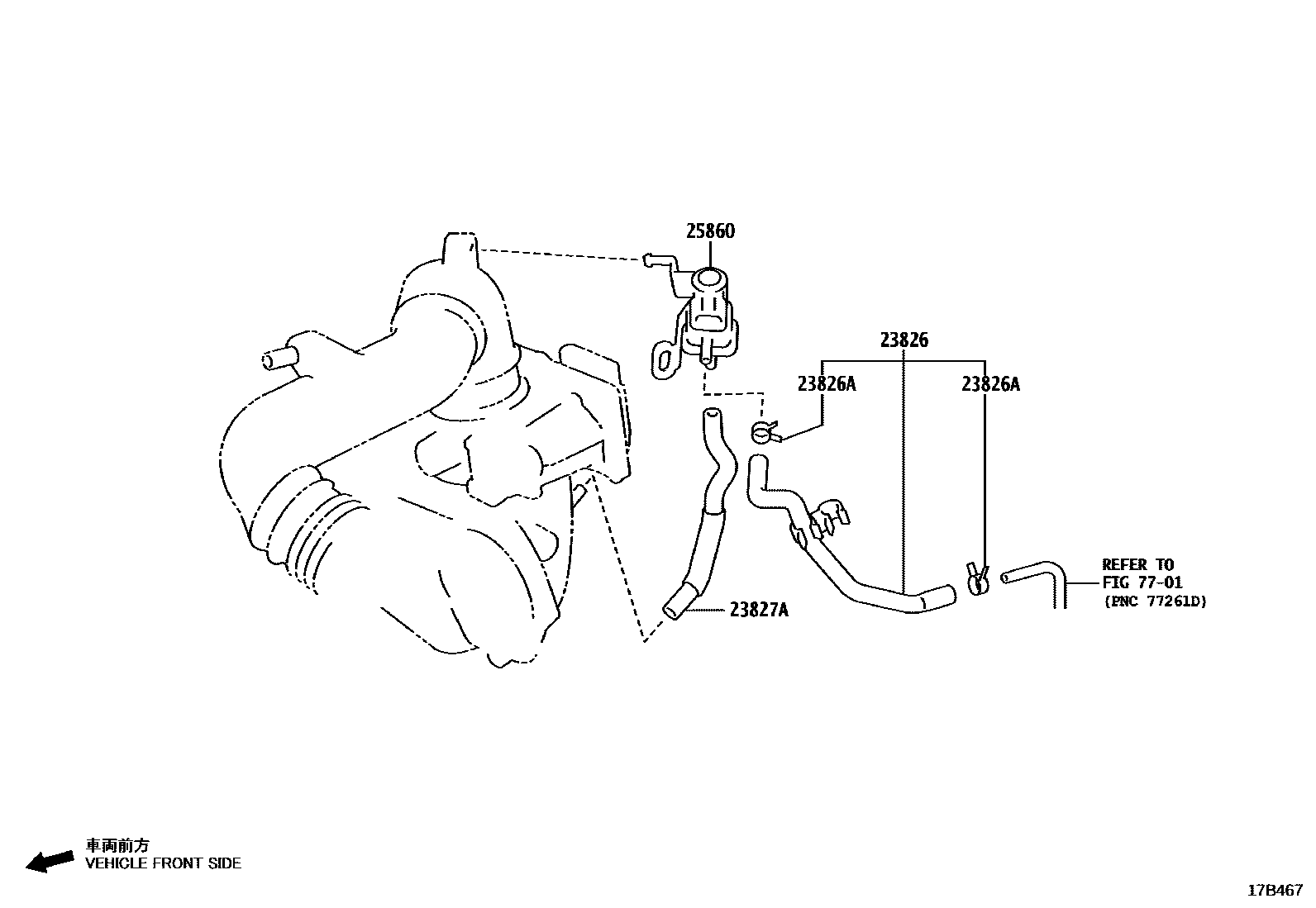

Toyota YARIS EPC diagram 1708, vacuum tube, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-0Y070 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0Y240 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0Y280 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0Y090 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-0Y040 |
