Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 5 PNC and OE references.

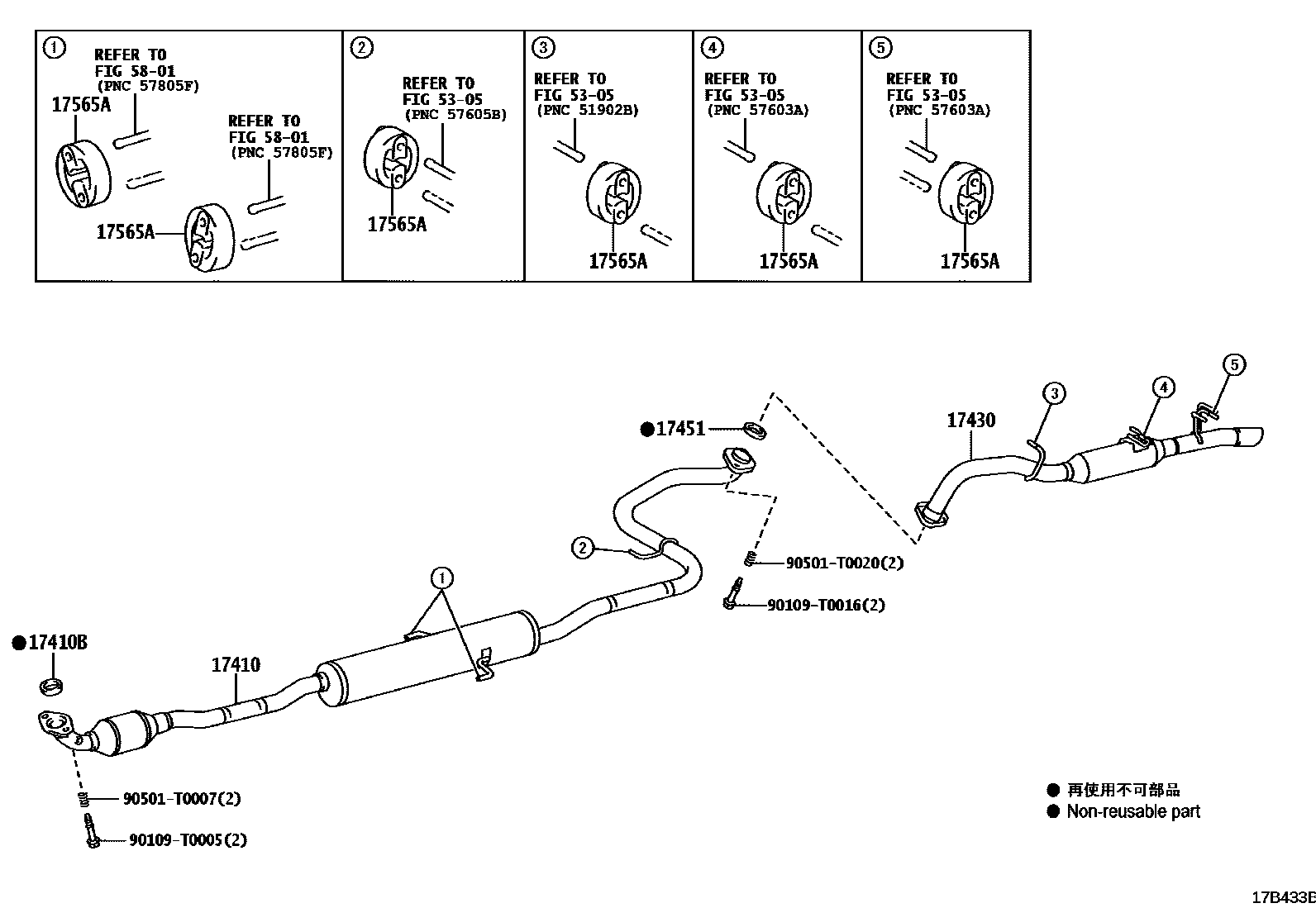

Toyota YARIS Exhaust Pipe EPC diagram — 17B433B
Exhaust Pipe — 17B433B (202012 – 999999)

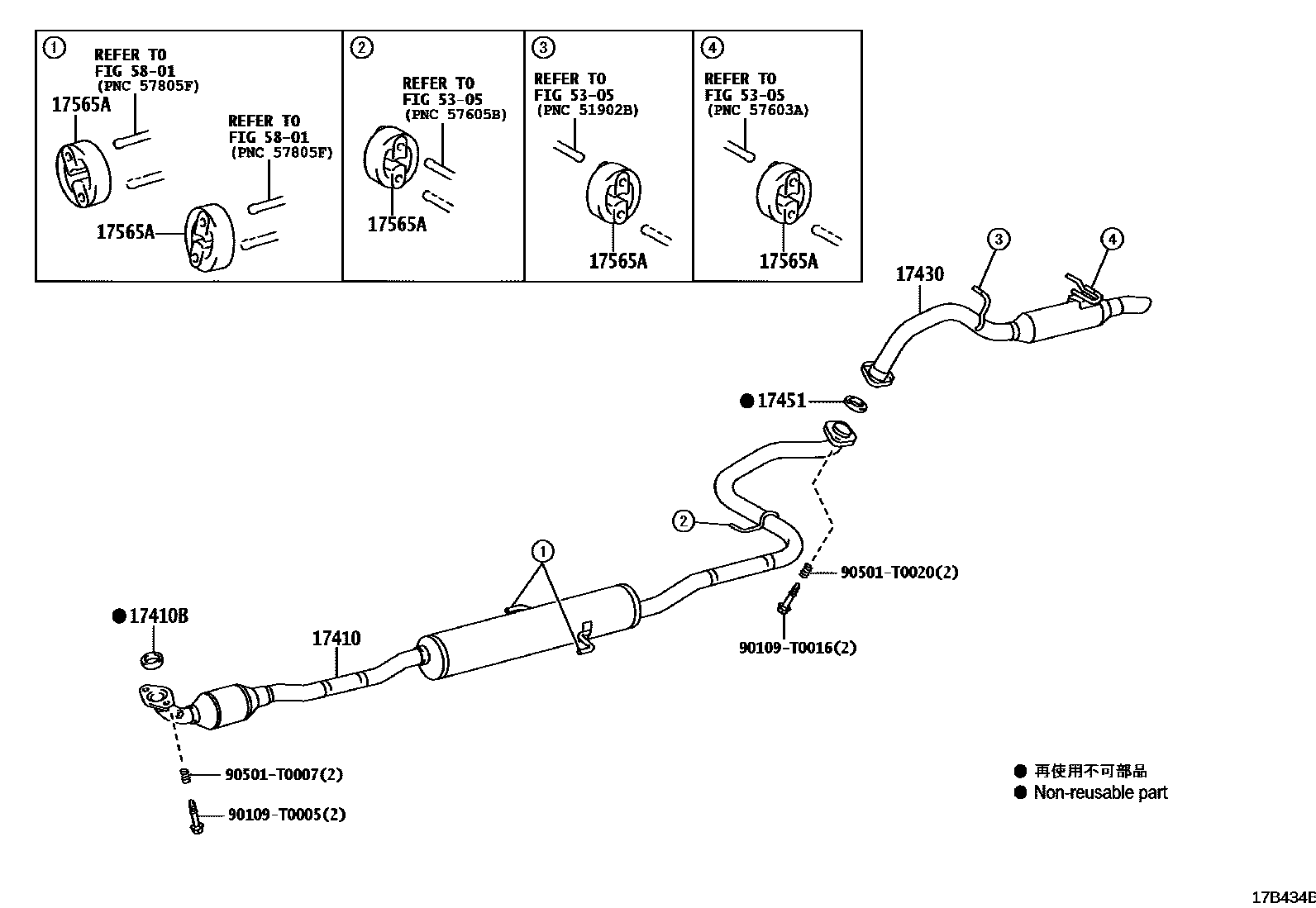

Toyota YARIS Exhaust Pipe EPC diagram — 17B434B
Exhaust Pipe — 17B434B (202012 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0Y532
17410BExhaust pipe gasket17451-0M020
17430Exhaust tailpipe assembly17430-0Y262 · 17430-0Y480
17451Exhaust pipe gasket17451-0M032
17565ANo. 4 exhaust pipe lifting lug17565-0M030
