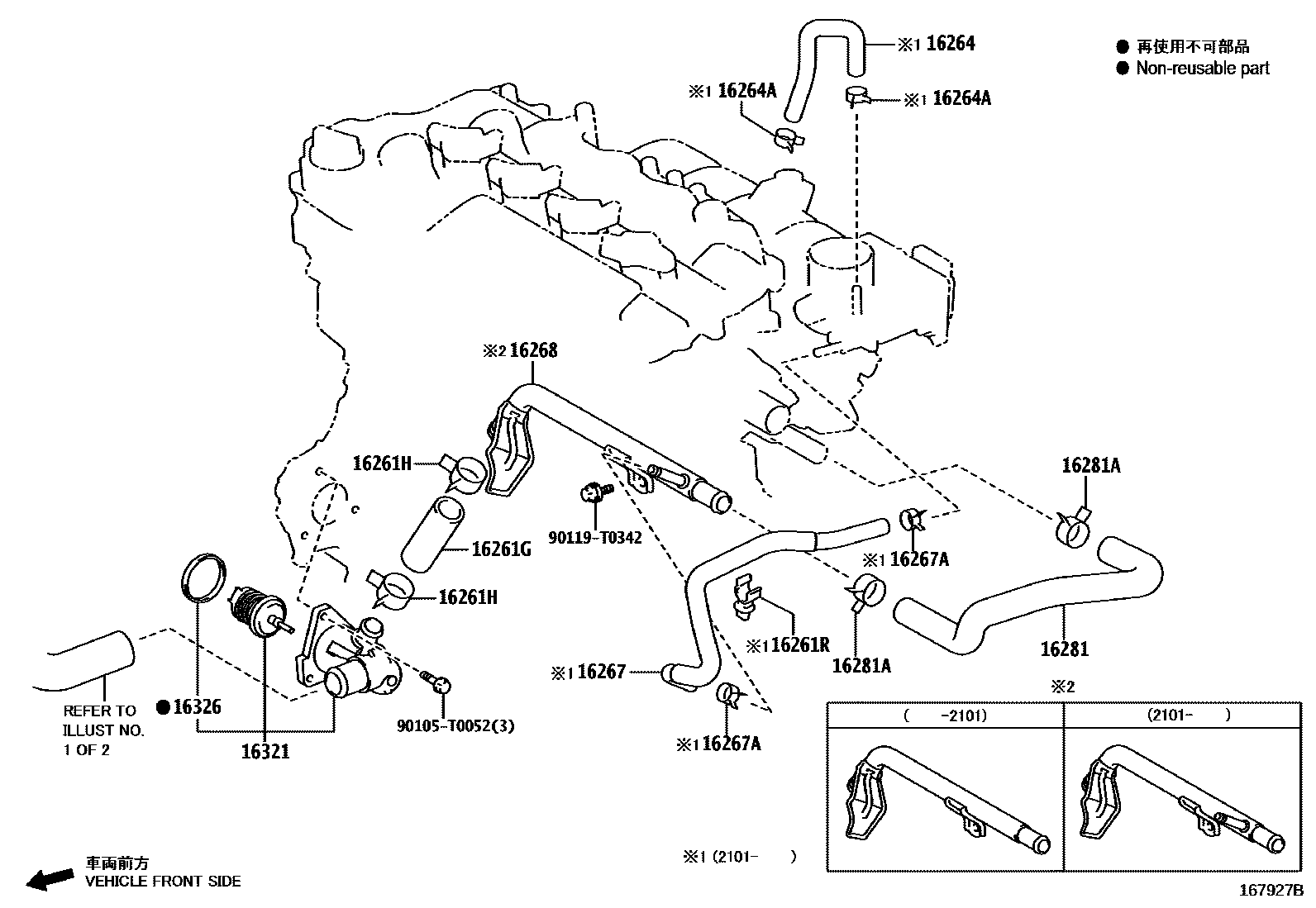

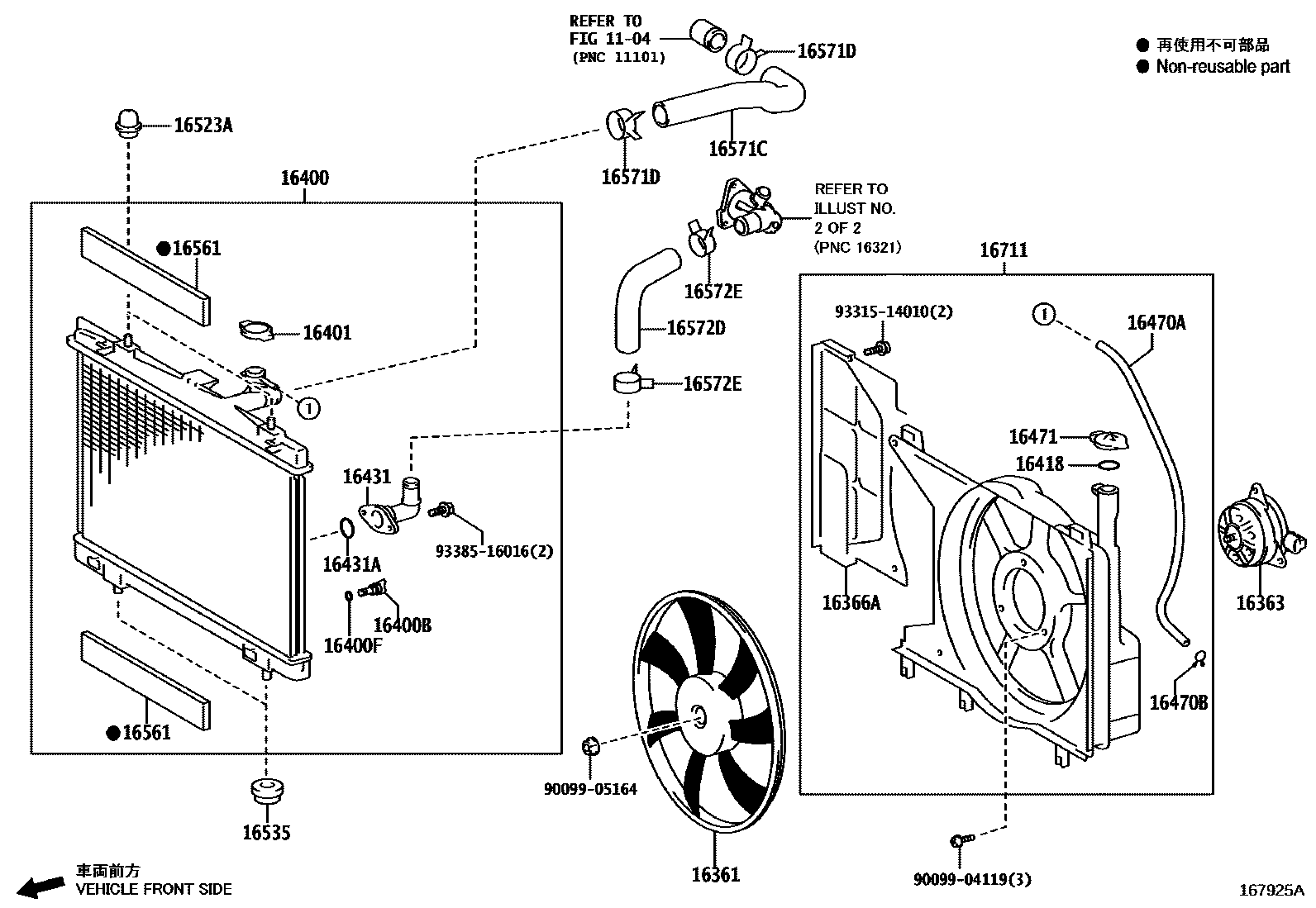

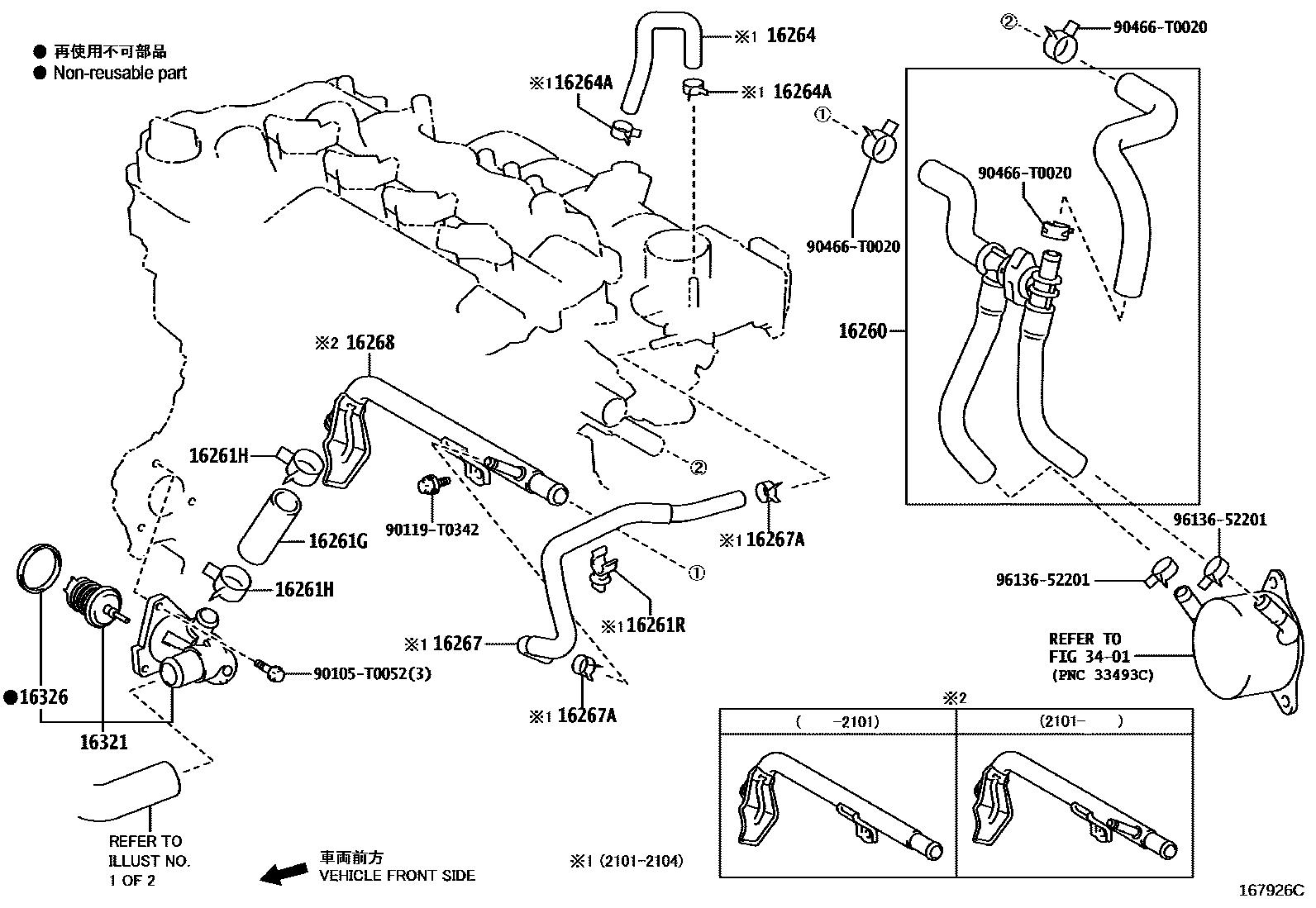

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16260 | Water bypass hose assembly | 16260-0Y140 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-BZ270 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90044-66054 |
| 16261R | Clip or clip (for water bypass hose) | 90469-T0014 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0Y080 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0015 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0Y030 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0015 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0Y130 · 16268-0Y160 · 16268-0Y180 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0Y070 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0020 |
| 16321 | water inlet | 16031-0Y010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0Y010 |
| 16361 | Fan | 16361-0M110 |
| 16363 | cooling fan motor | 16363-0Y050 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-0Y250 |
| 16400 | Radiator assembly | 16400-0Y200 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-0M010 |
| 16418 | Seals | 16476-0H060 |
| 16431 | Radiator water inlet | 16431-0Y190 |
| 16431A | O-ring (for radiator water inlet) | 16492-0Y200 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-0Y250 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16376-0Y050 |
| 16523A | Radiator bracket cushion | 16523-21030 |
| 16535 | Radiator lower support | 90480-22025 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0M060 |
| 16571C | Radiator hose No. 1 | 16571-0Y190 · 16571-0Y200 |
| 16571D | No. 1 radiator hose clip | 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-0Y190 |
| 16572E | No. 2 radiator hose clip | 96136-43901 |
| 16711 | fan cover | 16711-0Y170 |
