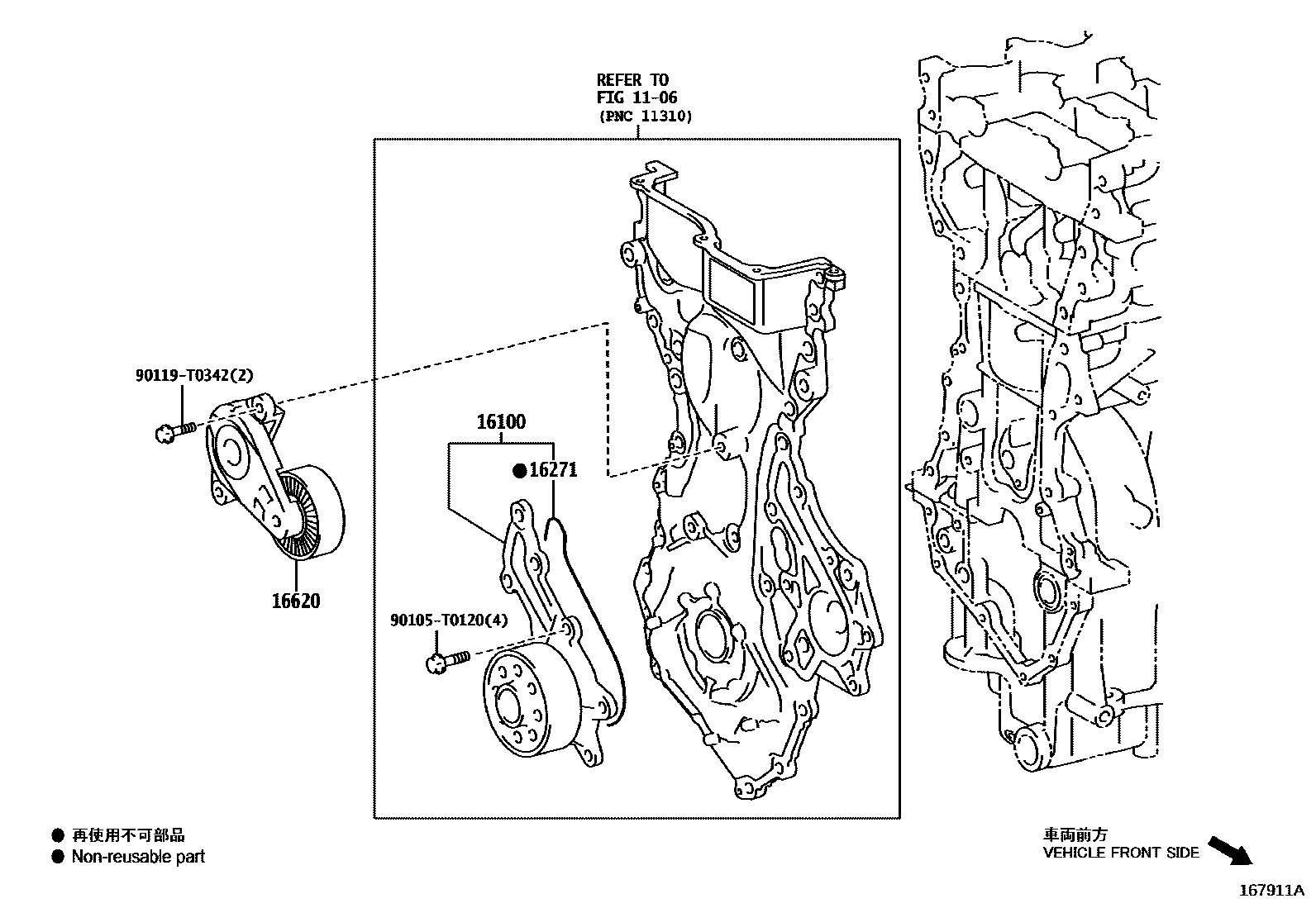

Toyota YARIS Water Pump — Figure 1601
Toyota YARIS EPC diagram 1601, Water Pump, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-B9490 |
| 16271 | water pump gasket | 16271-0Y030 |
| 16620 | Poly V-belt tensioner assembly | 16620-0Y043 · 16620-0Y044 |
