Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

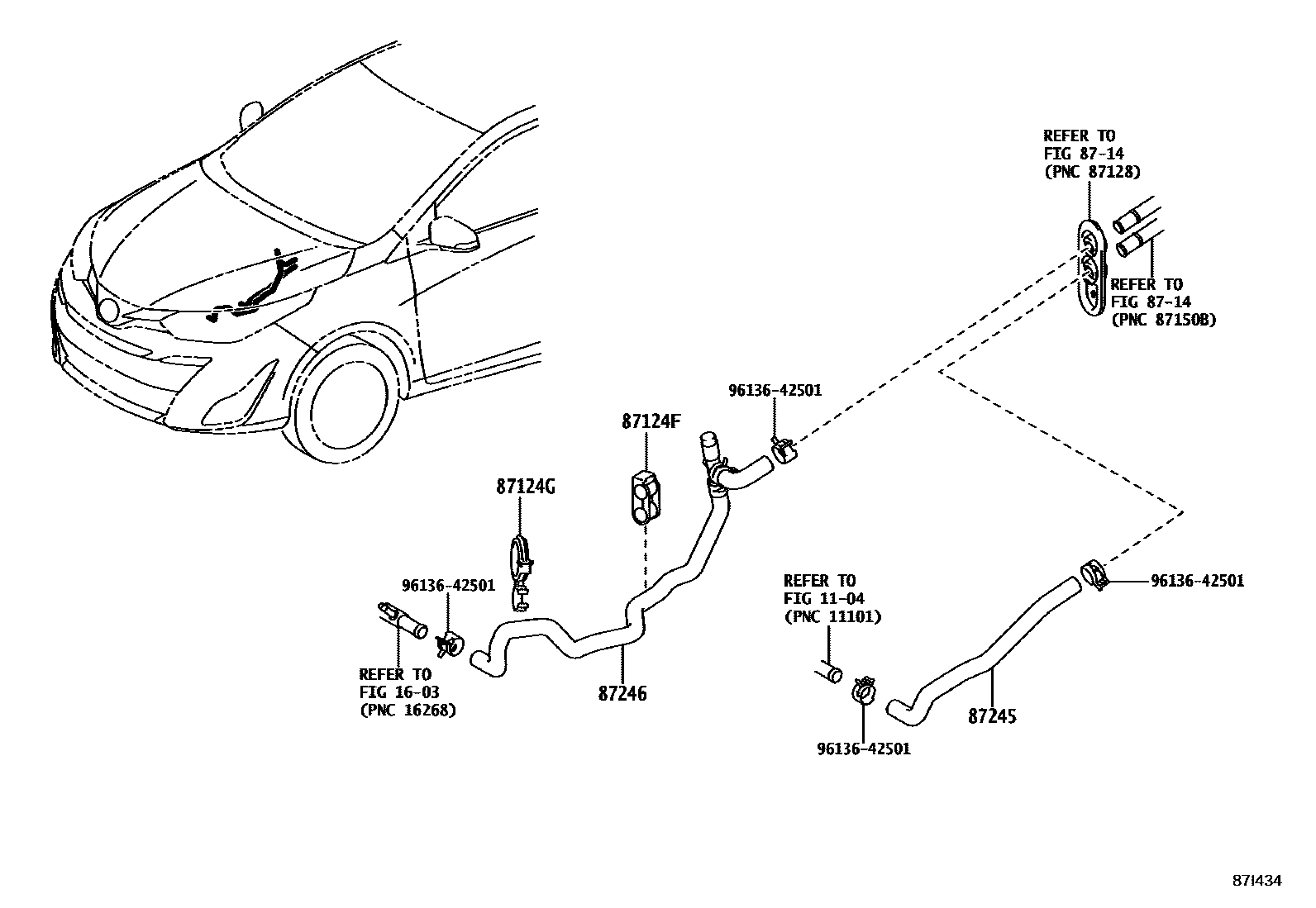

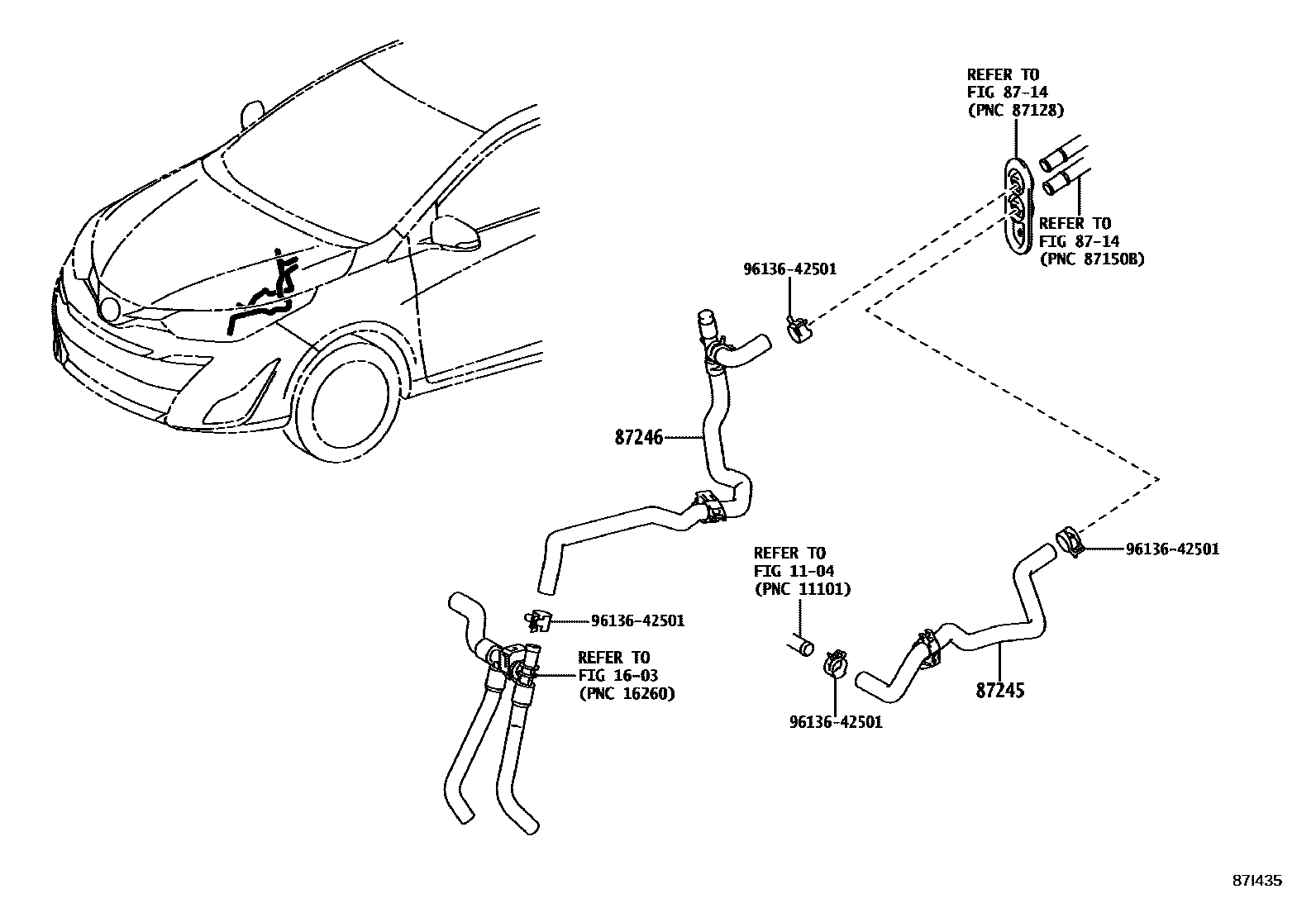

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124F | No. 1 heater hose clamp | 87124-0D550 |
| 87124G | No. 2 heater hose clamp | 87124-0D610 |
| 87245 | Heater water inlet hose | 87209-0D700 · 87245-0D760 |
| 87246 | Heater outlet hose | 87209-0D710 · 87209-0D740 |
