Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715

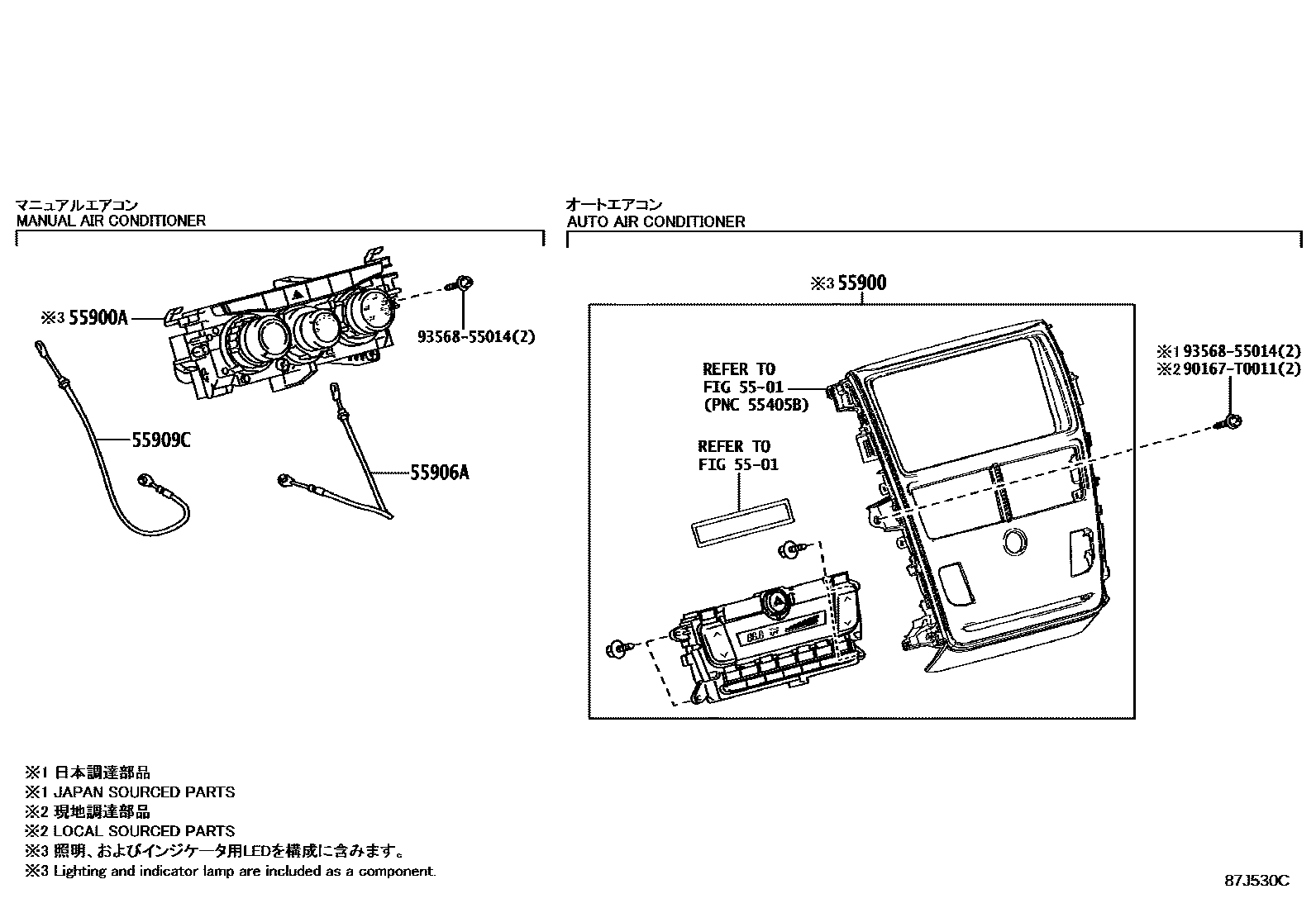

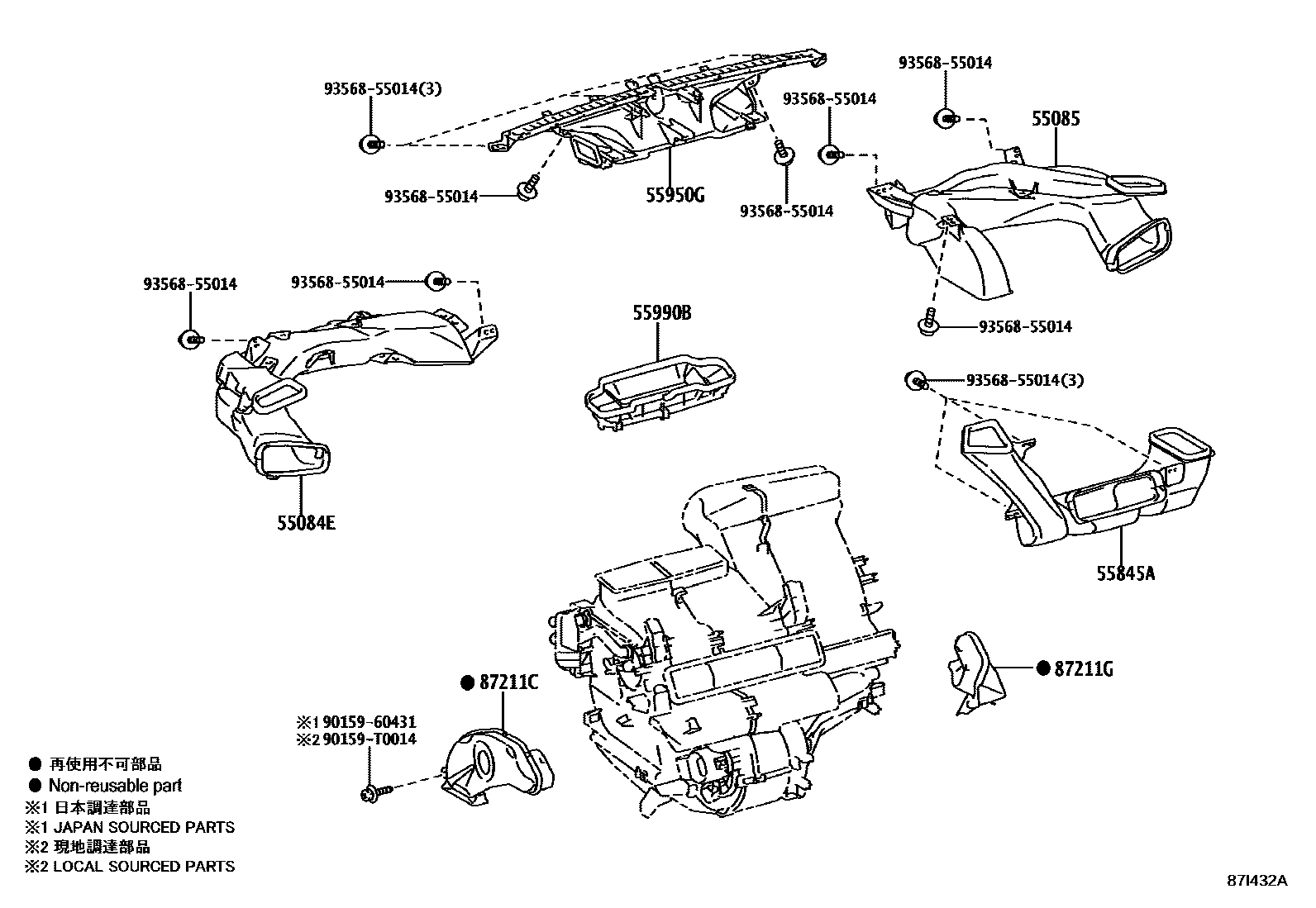

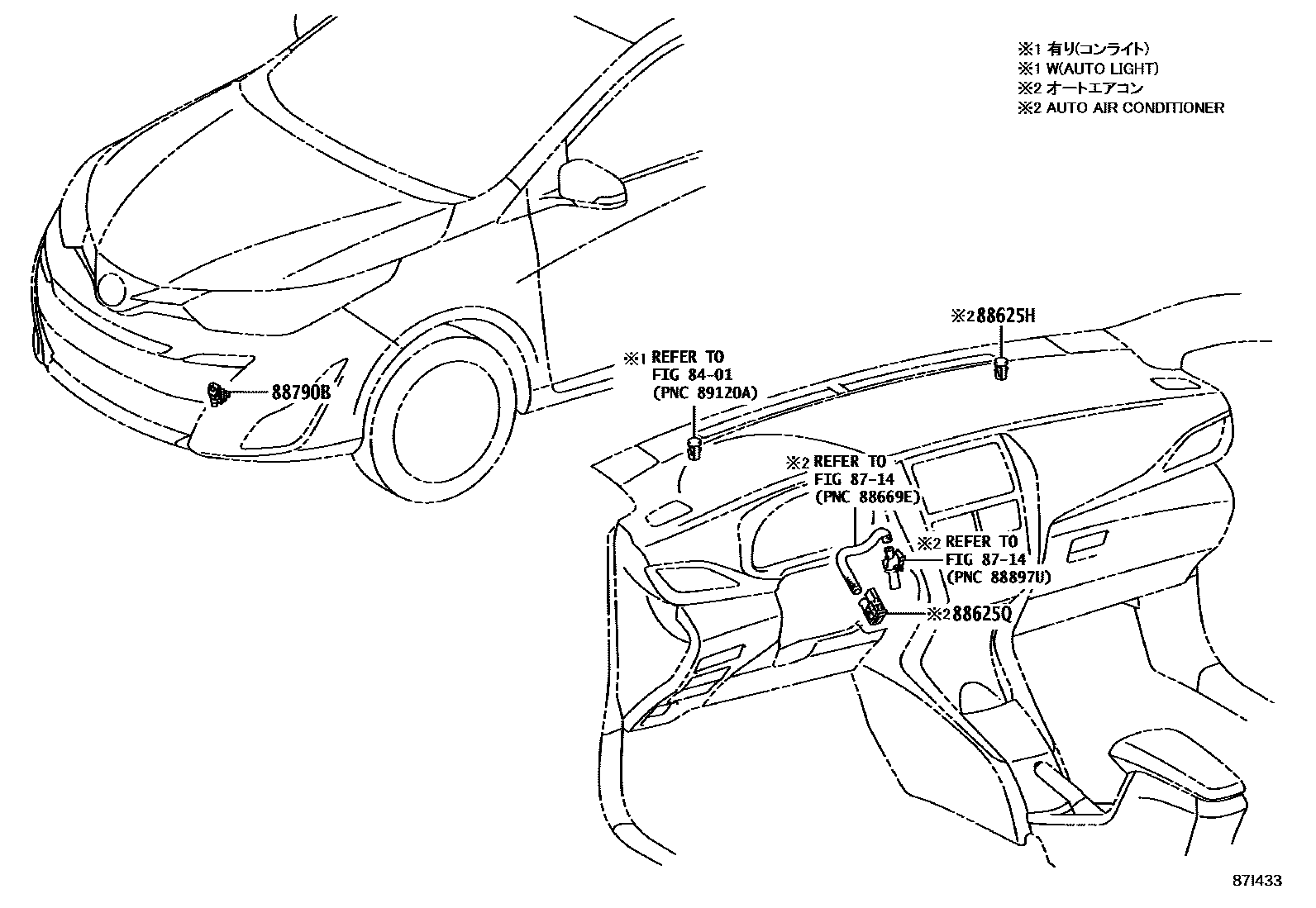

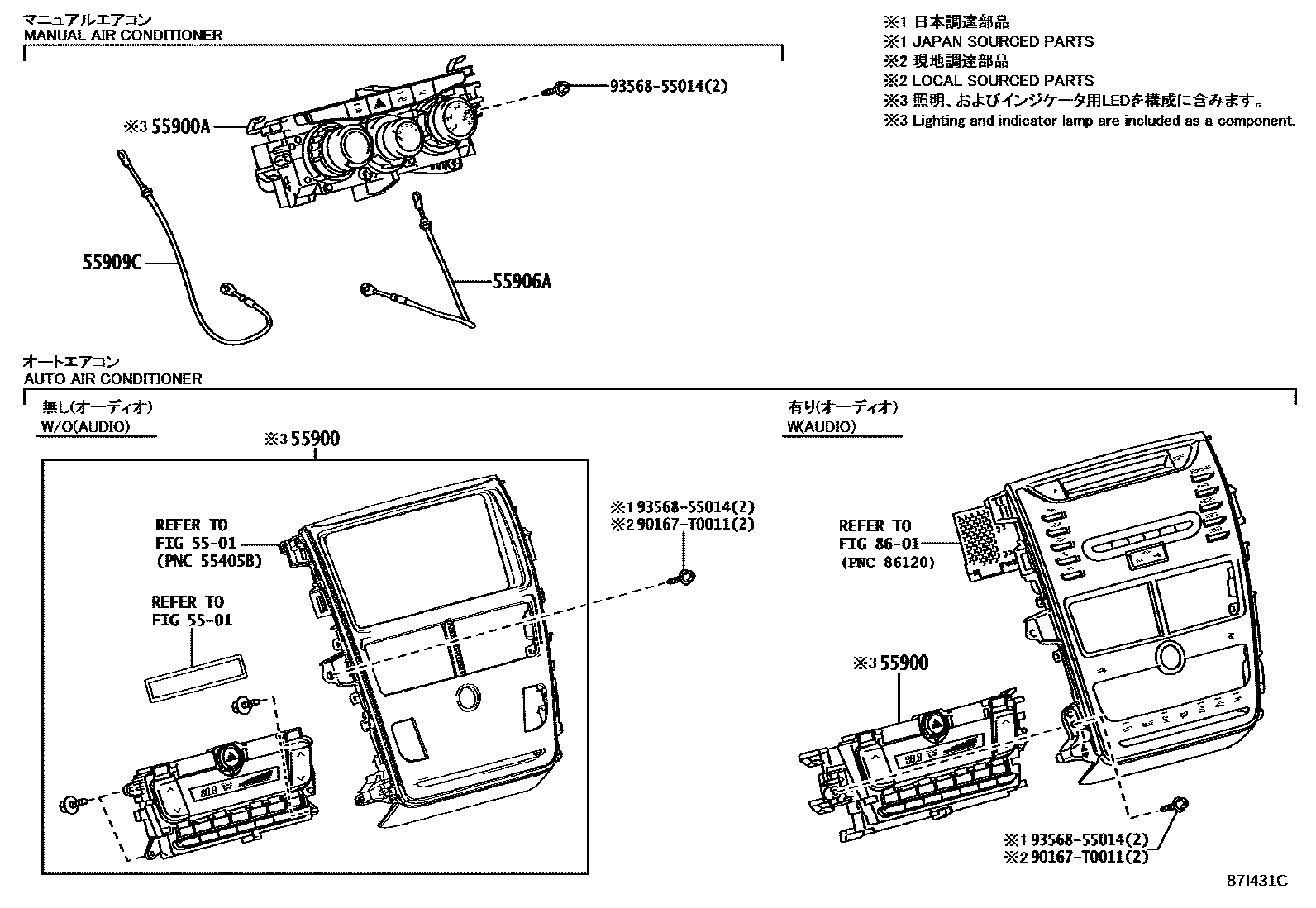

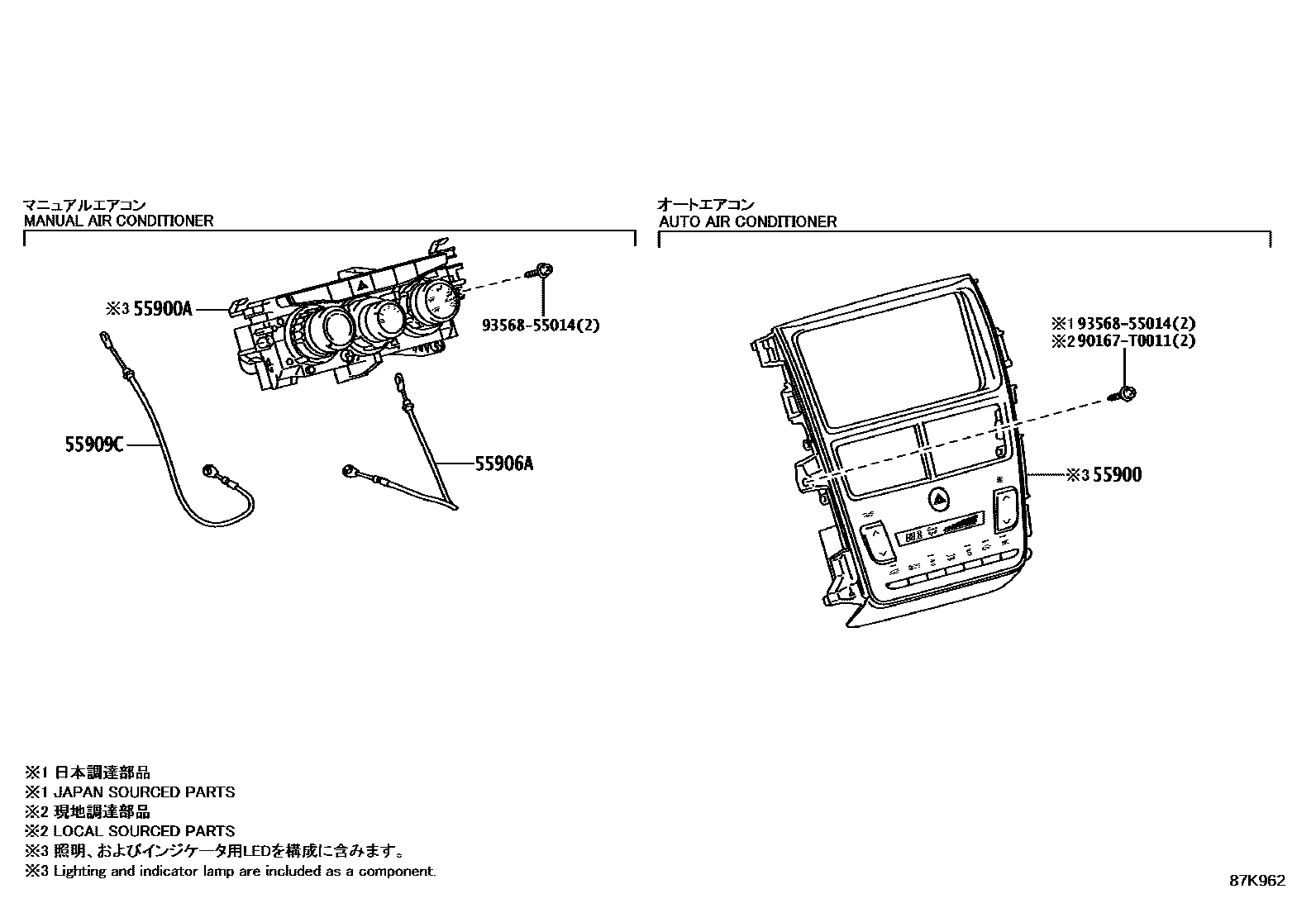

Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0D270 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0D220 |
| 55845A | Air duct No. 3 from heater to air regulator | 55870-0D100 |
| 55900 | Air conditioning control assembly | 55900-0DF50 · 55900-0DF71 · 55900-0DK20 |
| 55900A | Heater control and accessory assembly | 55900-0DE31 · 55900-0DE32 · 55900-0DE33 · 55900-0DG81 · 55900-0DG82 · 55900-0DJ50 · 55900-0DJ60 · 55900-0DK30 · 55900-0DK40 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0D231 · 55906-0D240 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0D201 · 55909-0D210 |
| 55950G | Defroster nozzle assembly | 55950-0D320 |
| 55990B | Lower defroster nozzle assembly | 55990-0D080 |
| 87211C | No. 4 air duct | 87211-0D530 |
| 87211G | No. 5 air duct | 87211-0D540 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-22131 · 88790-28100 |
