Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

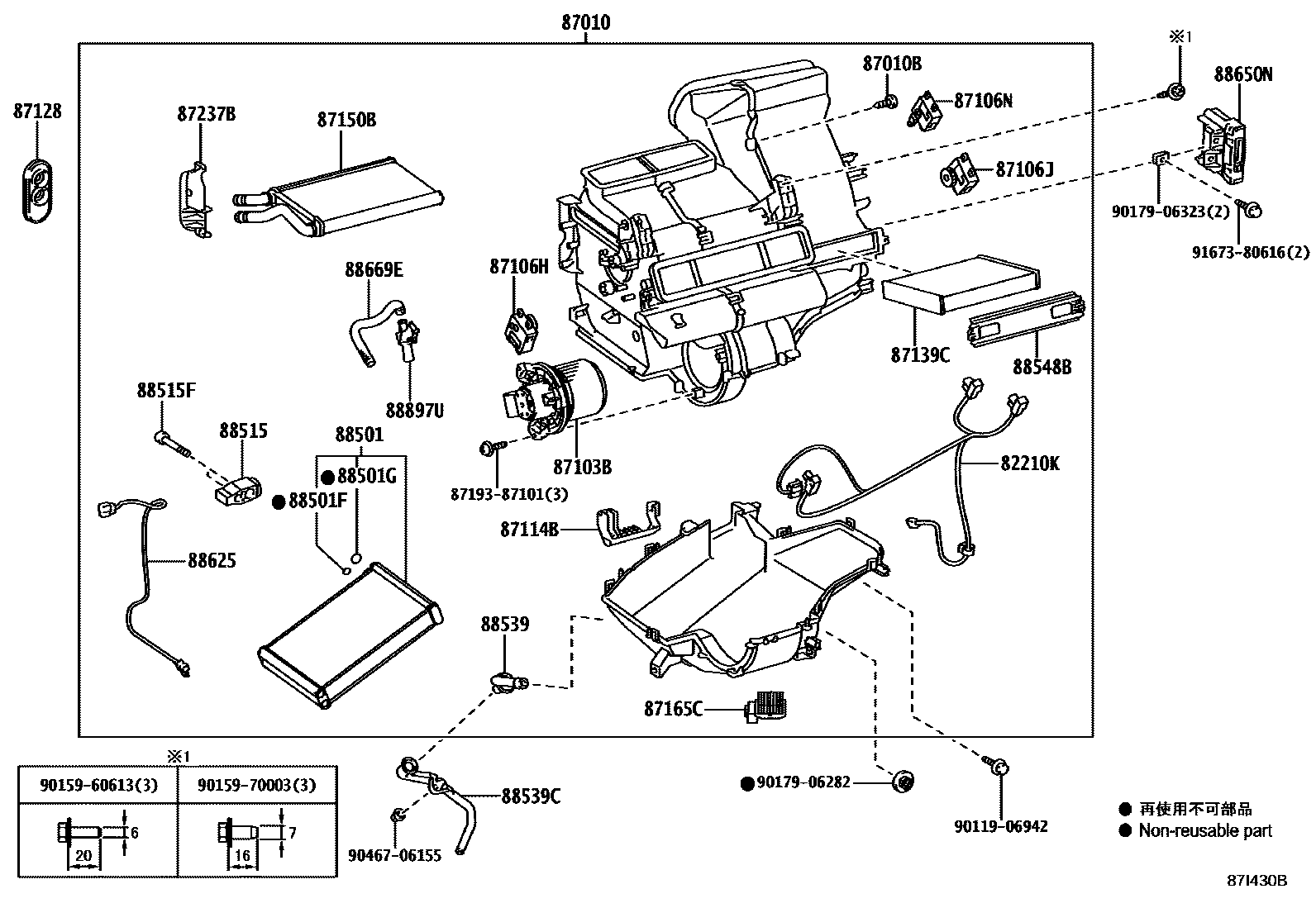

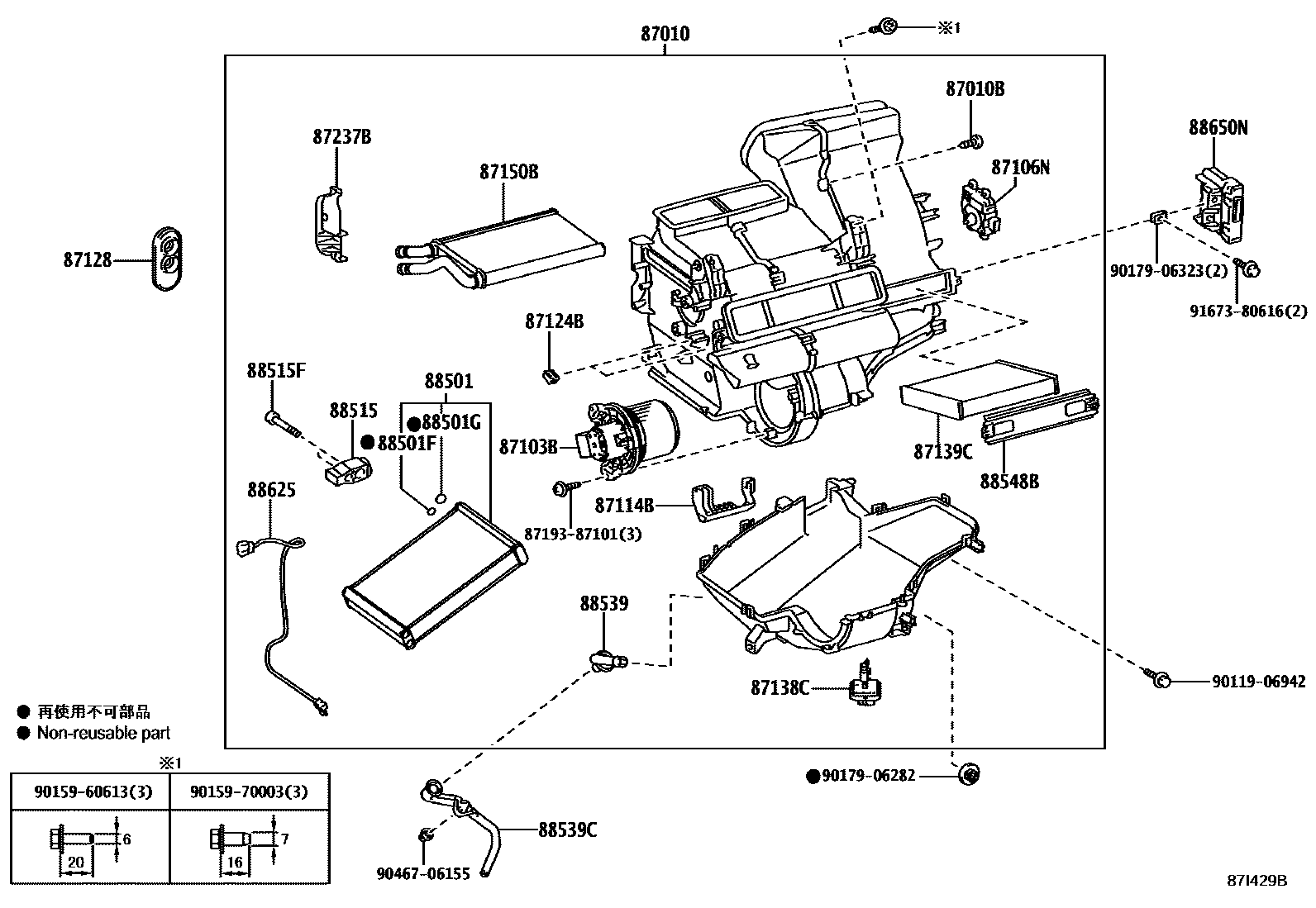

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0D110 |
| 87010 | Air conditioning unit assembly | 87010-0DG41 · 87010-0DG61 |
| 87010B | Screws (for air conditioning unit) | 90094-90426 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D450 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-0D310 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-0D310 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-0D320 · 87106-0D520 |
| 87114B | heater cover | 87114-0D080 |
| 87124B | heater clip | 87124-0D110 |
| 87128 | heater seal | 87128-0D220 |
| 87138C | Blower resistor | 87138-0D350 |
| 87139C | air purification filter | 87139-02150 · 87139-50100 |
| 87150B | Heater radiator assembly | 87150-0D210 |
| 87165C | Blower motor control device | 87165-0D200 |
| 87237B | Heater connection cover | 87237-0D120 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D460 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-0D630 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04630 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0D560 |
| 88539C | No. 2 cooler unit drain hose | 88539-0D160 |
| 88548B | air filter housing | 88548-0D260 |
| 88625 | Cooler No. 1 Thermistor | 88620-0D170 · 88620-0D360 |
| 88650N | Air conditioning amplifier assembly | 88650-0D870 · 88650-0D880 |
| 88669E | air hose | 87233-0D070 |
| 88897U | aspirator tube | 88897-0D080 |
