Toyota YARIS 后视镜 — Figure 8701

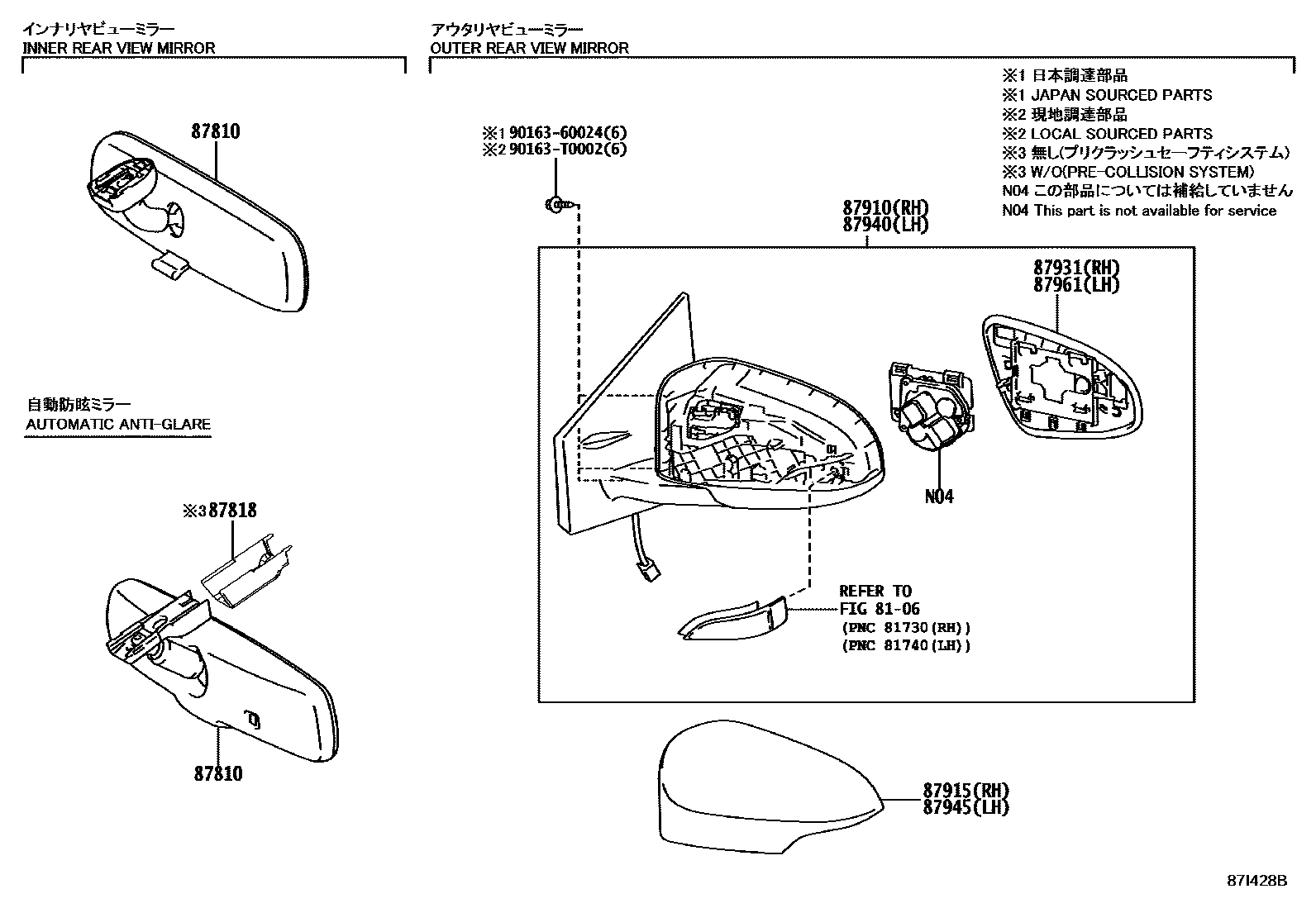

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02111 · 87810-02112 · 87810-02260 · 87810-0D120 · 87810-0W810 · 87810-0WM62 |
| 87818 | Interior rearview mirror cover | 87818-0W070 |
| 87910 | Right exterior rearview mirror assembly | 87910-0DD40 · 87910-0DE10 |
| 87915 | Right exterior rearview mirror cover | 87915-0D560 · 87915-0D580 · 87915-0D931 |
| 87931 | Right exterior rearview mirror | 87931-0DD40 |
| 87940 | Left exterior rearview mirror assembly | 87940-0DD40 · 87940-0DE10 |
| 87945 | Left exterior rearview mirror cap | 87945-0D560 · 87945-0D580 · 87945-0D930 |
| 87961 | Left exterior rearview mirror | 87961-0DD40 |
