Toyota YARIS 喇叭 — Figure 8611

Toyota YARIS EPC diagram 8611, 喇叭, with 1 images and 4 PNC and OE references.

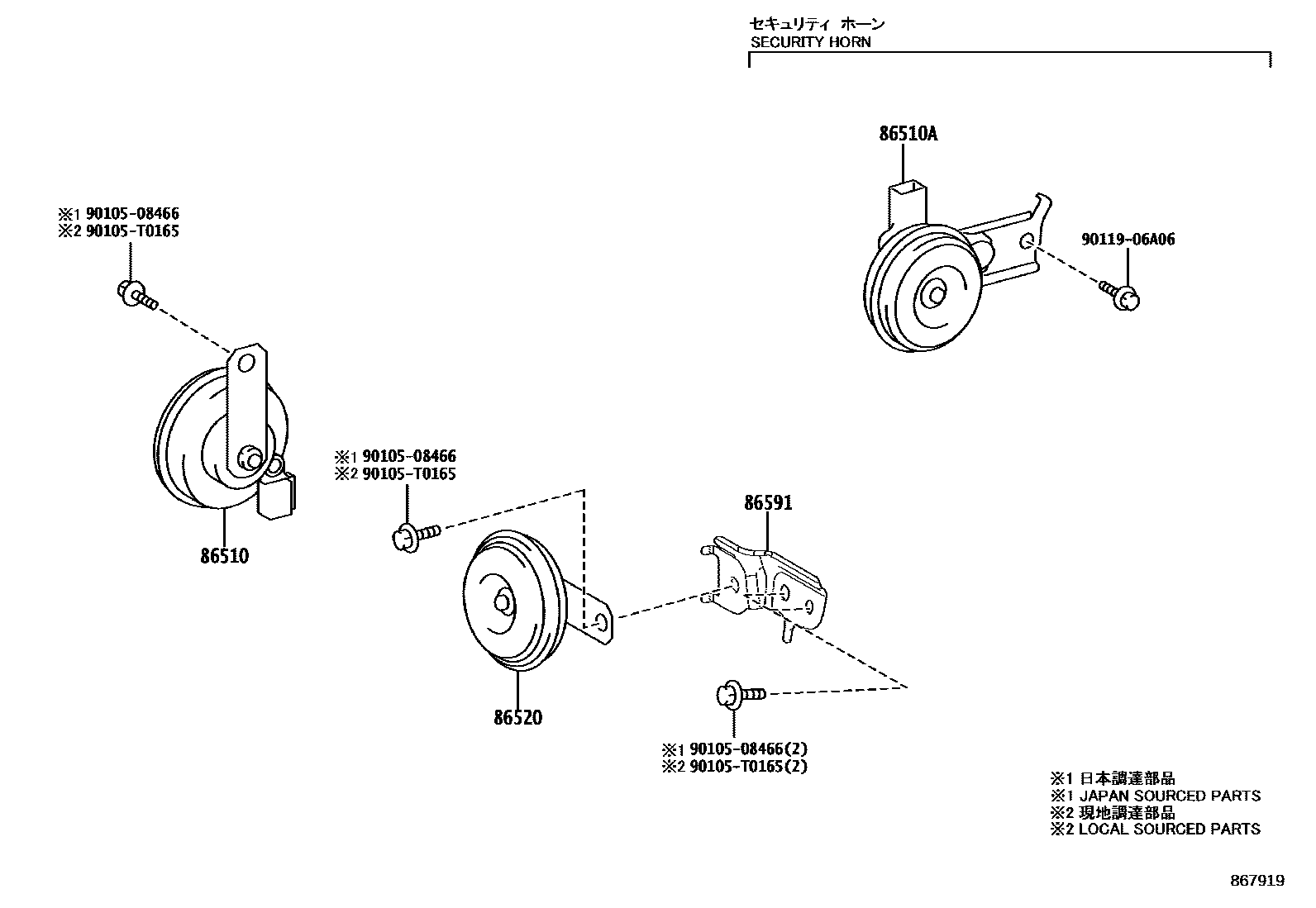

Toyota YARIS 喇叭 EPC diagram — 867919
喇叭 — 867919 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86500-02030 · 86500-0K030 · 86510-0K010
86510AAlarm horn assembly86560-0D061
86520Subwoofer assembly86500-0D060 · 86520-0D160
86591speaker bracket86591-0D060
