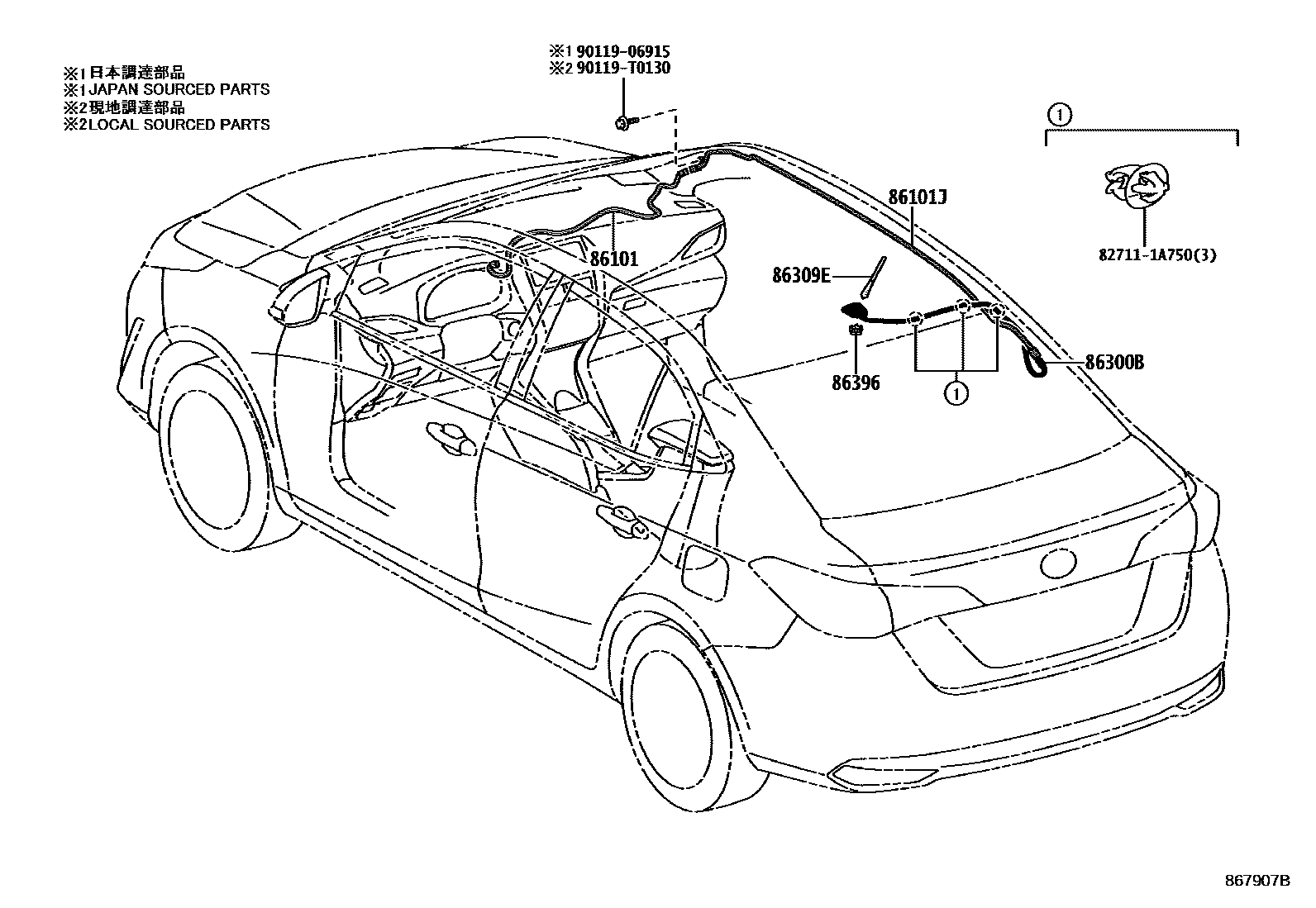

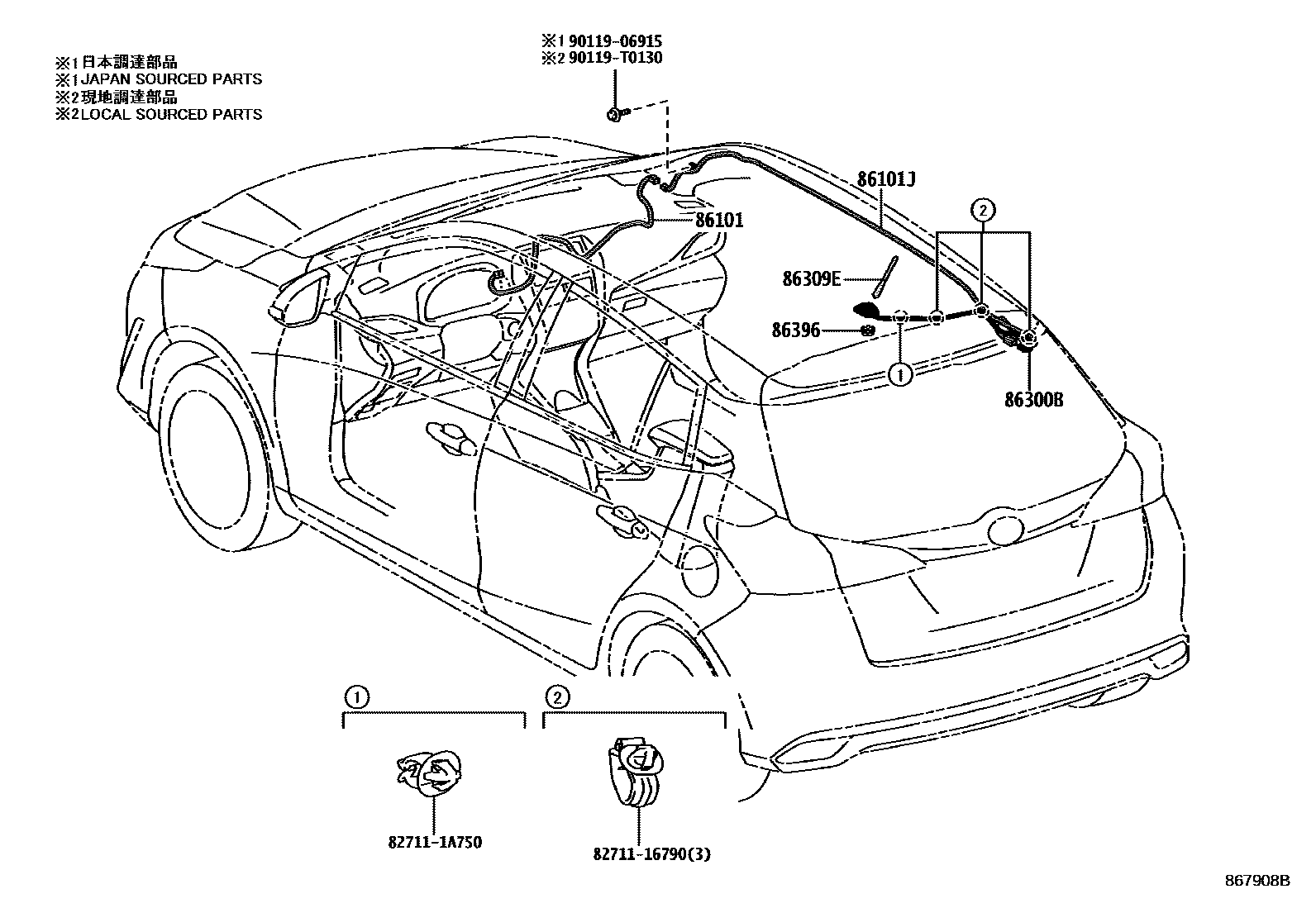

Toyota YARIS antenna — Figure 8604
Toyota YARIS EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0D600 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0D590 · 86101-0DA10 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0D400 · 86300-0D420 |
| 86309E | Roof antenna sub-assembly | 86309-0D220 |
| 86396 | Antenna nut | 86396-47010 |
