Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 6 PNC and OE references.

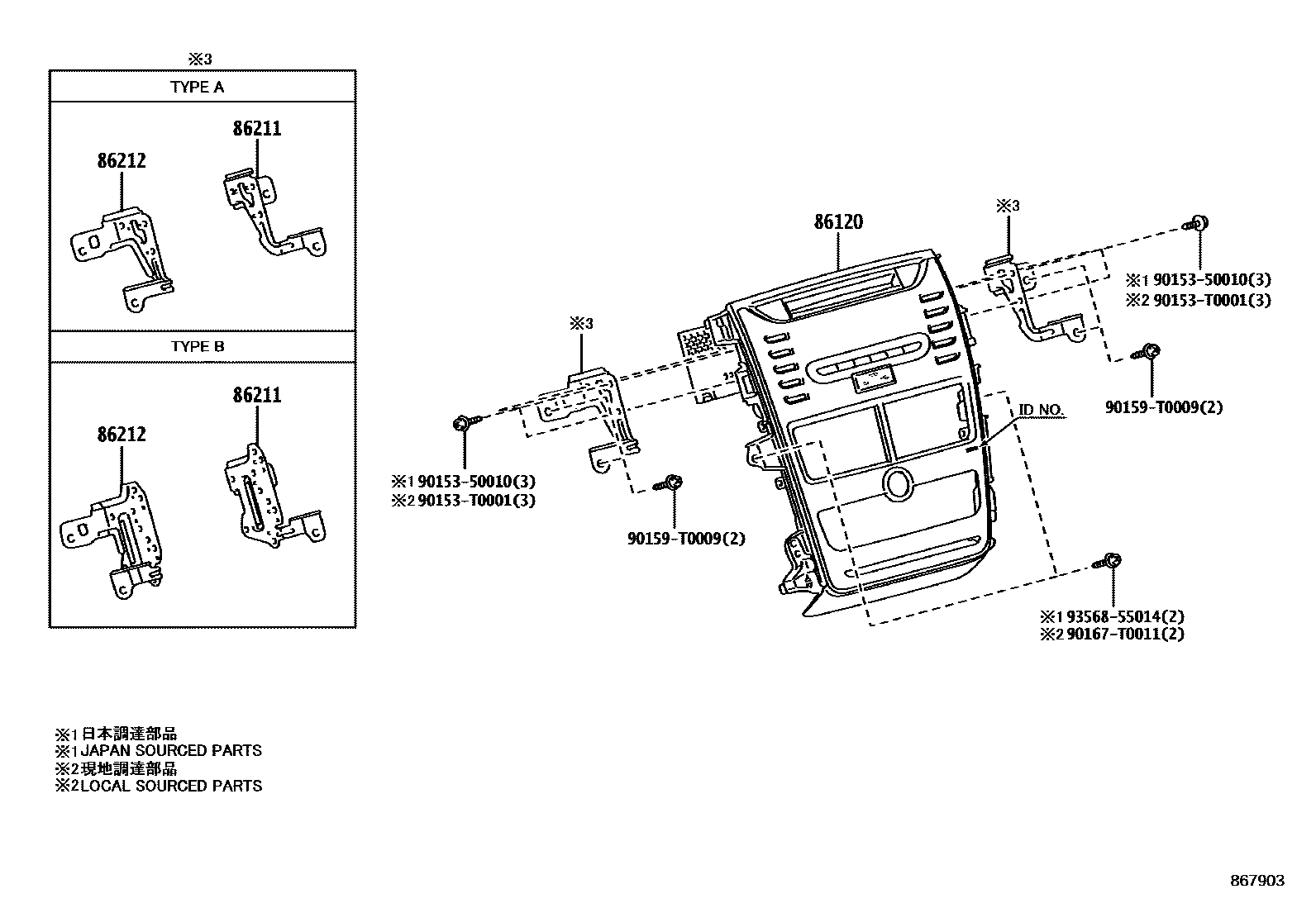

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 867903
收音机、放大器和冷凝器 — 867903 (201911 – 999999)

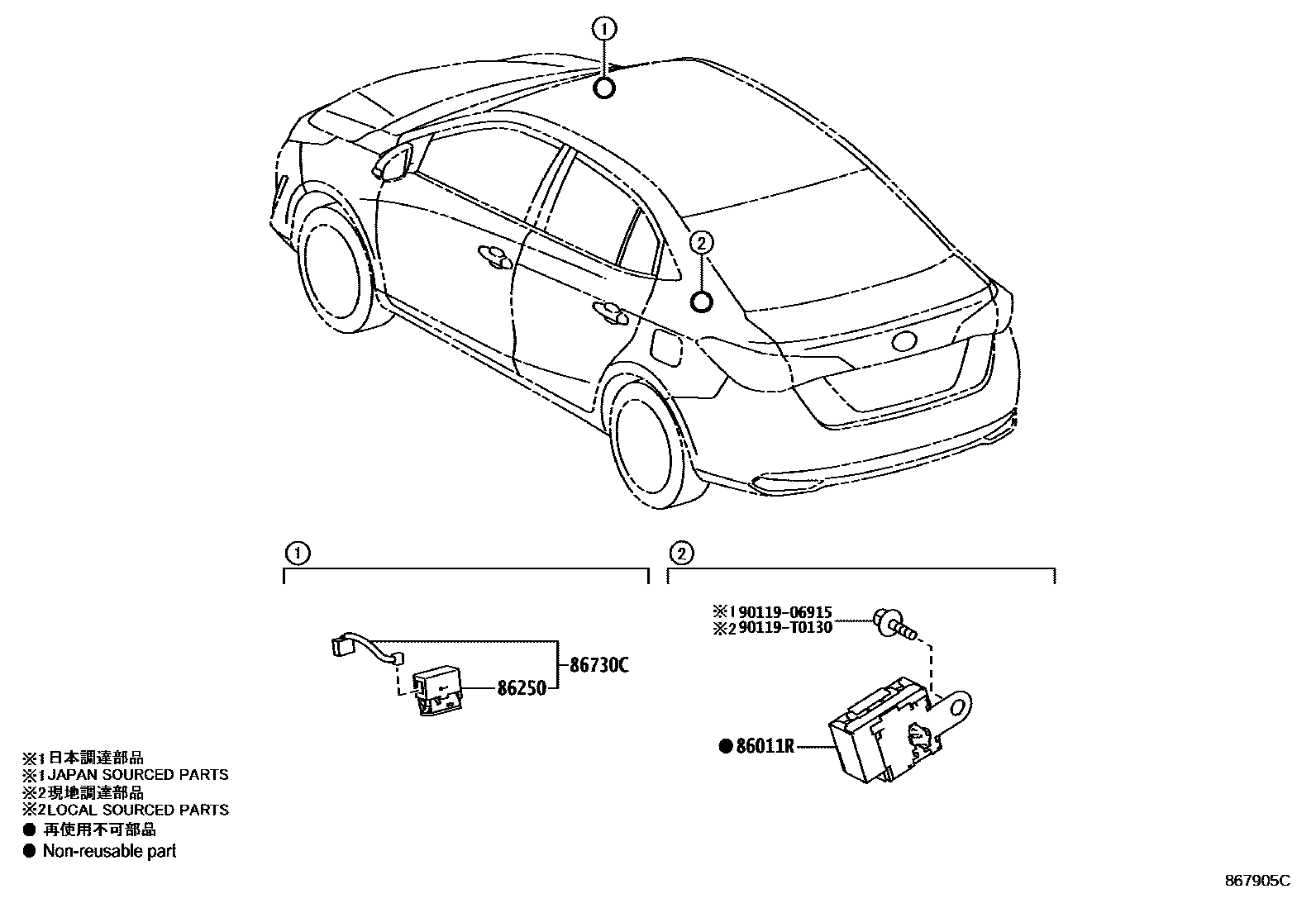

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 867905C
收音机、放大器和冷凝器 — 867905C (201911 – 999999)

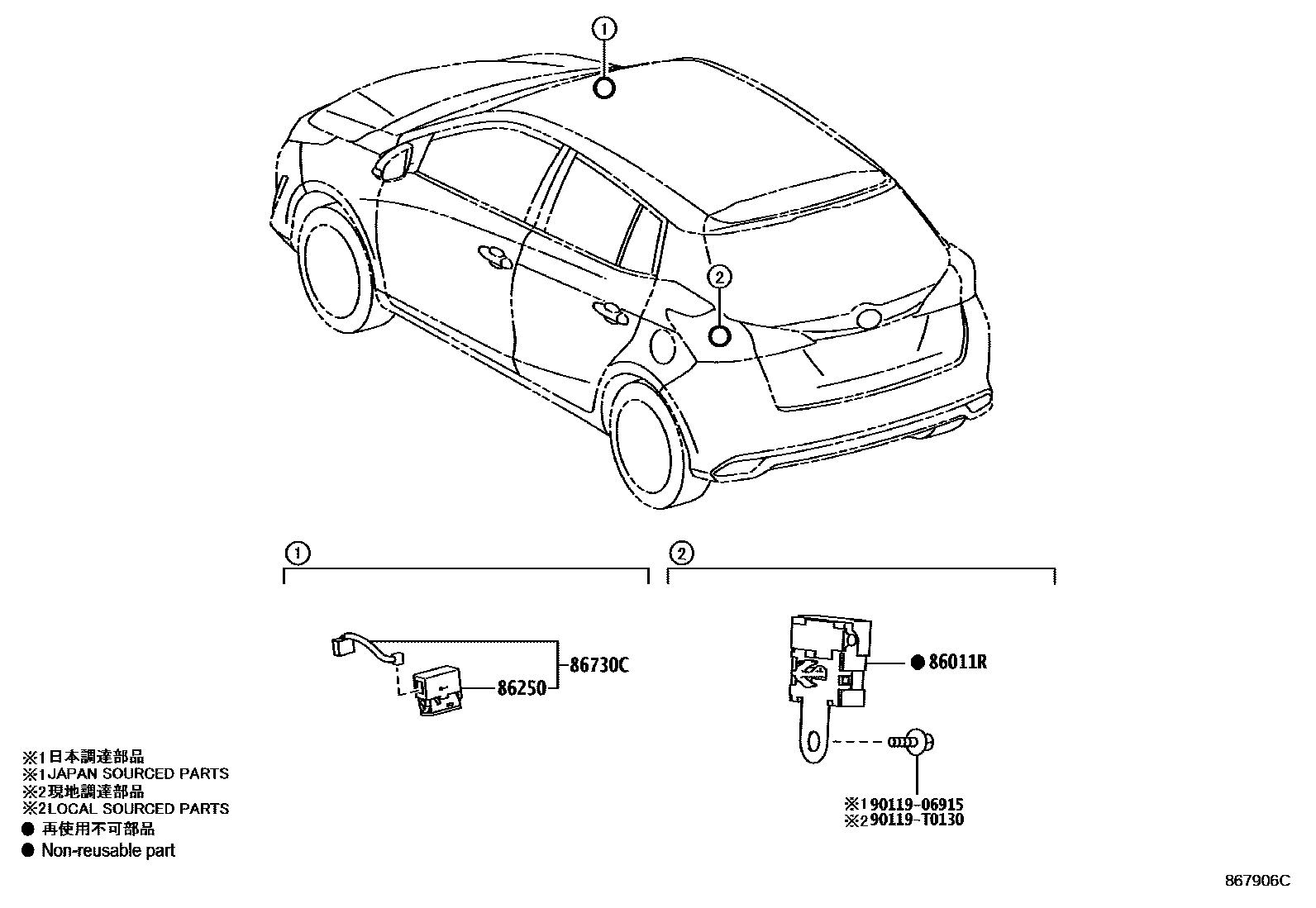

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 867906C
收音机、放大器和冷凝器 — 867906C (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Rradio settings phase modulator90980-04189
86120Radio assembly86120-0DA70 · 86120-0DA80 · 86120-0DB80
86211No. 1 radio bracket86211-0D360 · 86211-0D430
86212No. 2 radio bracket86212-0D340 · 86212-0D410
86250amplifier loudspeaker assembly86250-52030
86730CTelephone amplifier assembly86730-52020 · 86730-52070
