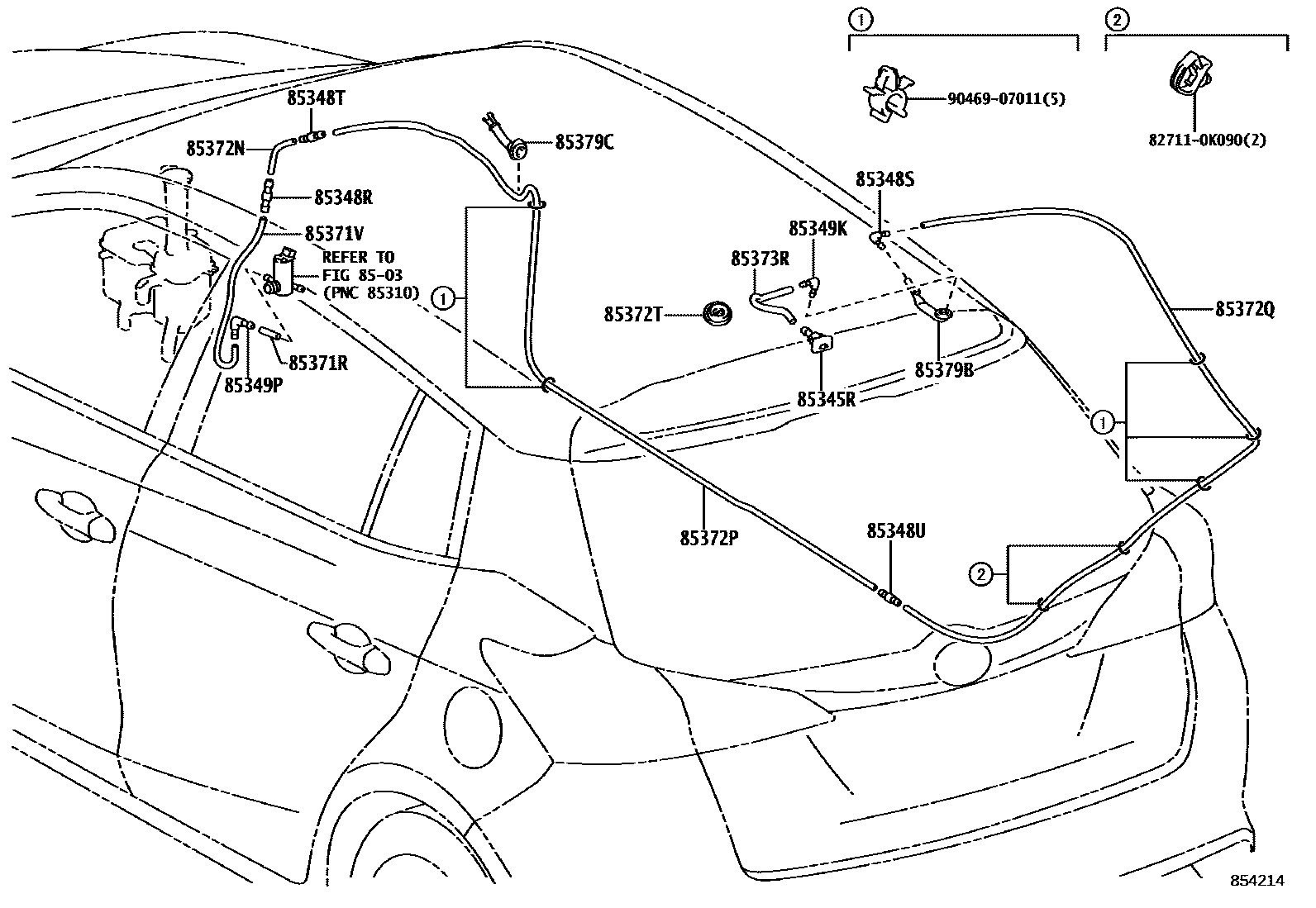

Toyota YARIS 后清洗器 — Figure 8504
Toyota YARIS EPC diagram 8504, 后清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-0D060 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85377-0D040 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-33120 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-59154 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90068-59168 |
| 85372T | Cleaner seal | 85372-20020 |
| 85379B | Cleaner seal A | 85373-12030 |
| 85379C | No. 1 rear washer hose seal | 85379-52530 |
