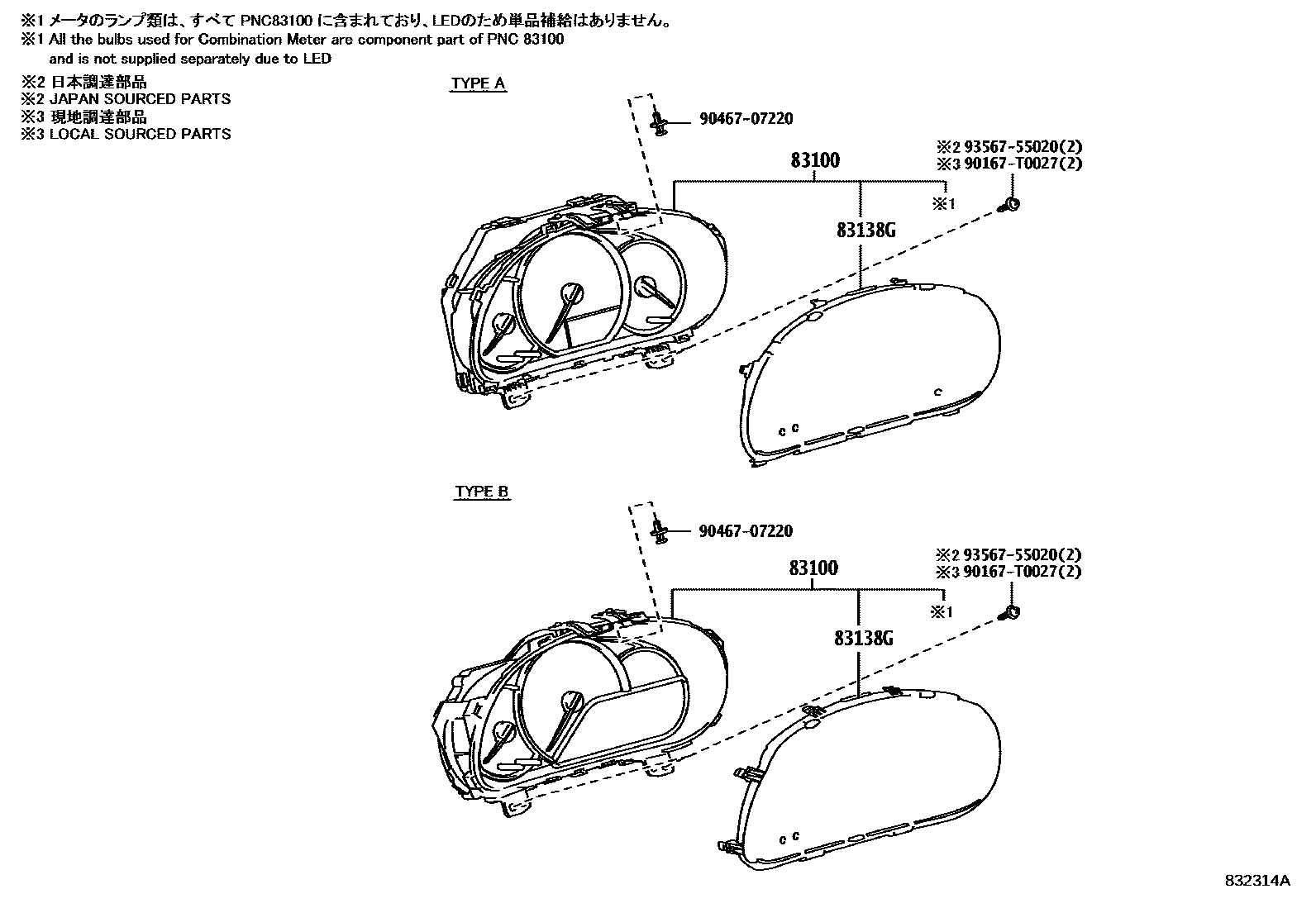

Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0UZ01 · 83800-0UZ21 · 83800-F5120 · 83800-F5130 · 83800-F5140 · 83800-F5150 · 83800-F5E30 · 83800-F5J70 · 83800-F5J80 · 83800-F5J90 · 83800-F5K00 · 83800-F5K10 · 83800-F5K20 · 83800-F5K30 · 83800-F5K60 |
| 83138G | Instrument cluster glass | 83852-0UZ00 · 83852-F5120 |
