Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201

Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 2 PNC and OE references.

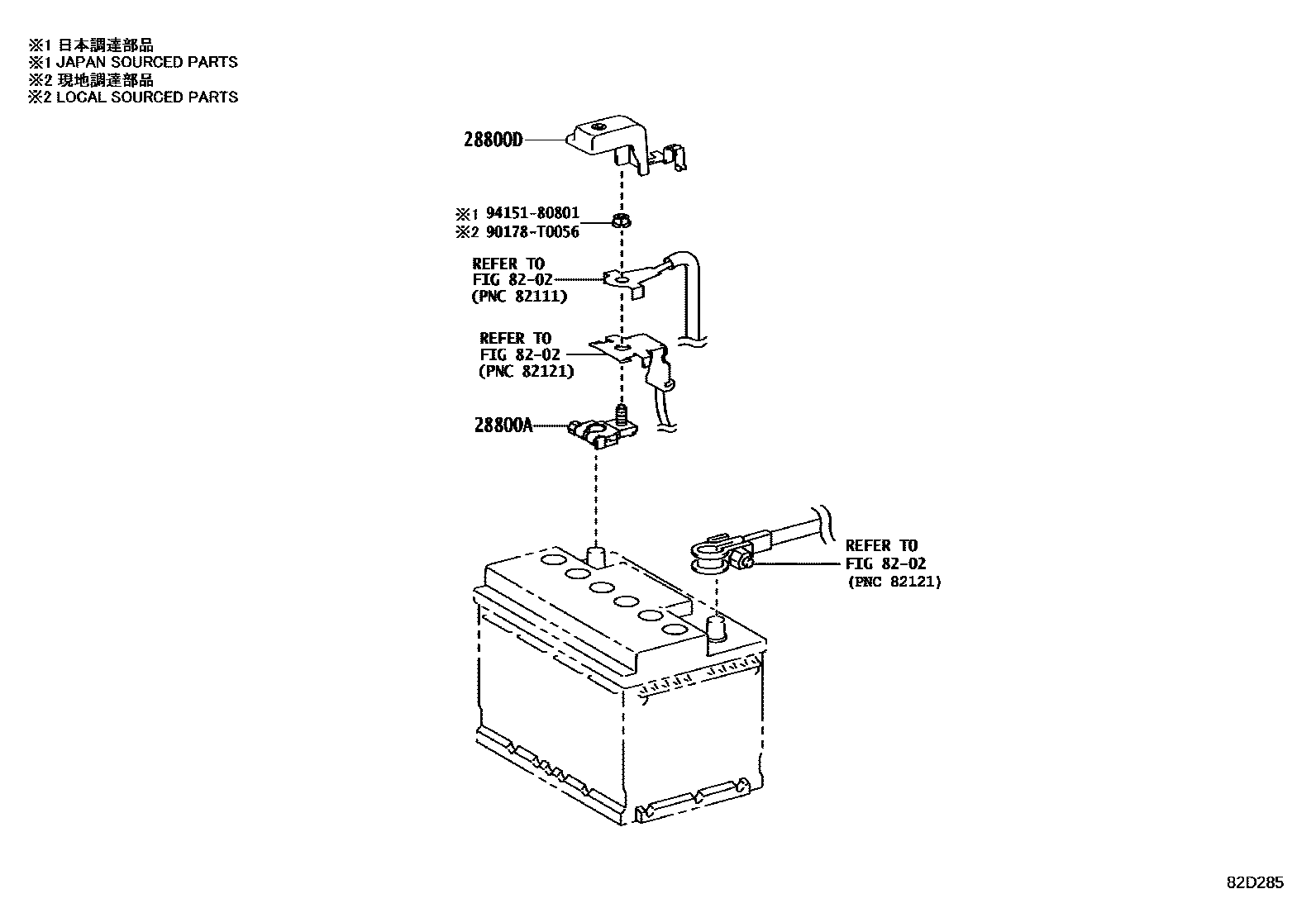

Toyota YARIS 蓄电池和蓄电池电缆 EPC diagram — 82D285
蓄电池和蓄电池电缆 — 82D285 (201911 – 999999)

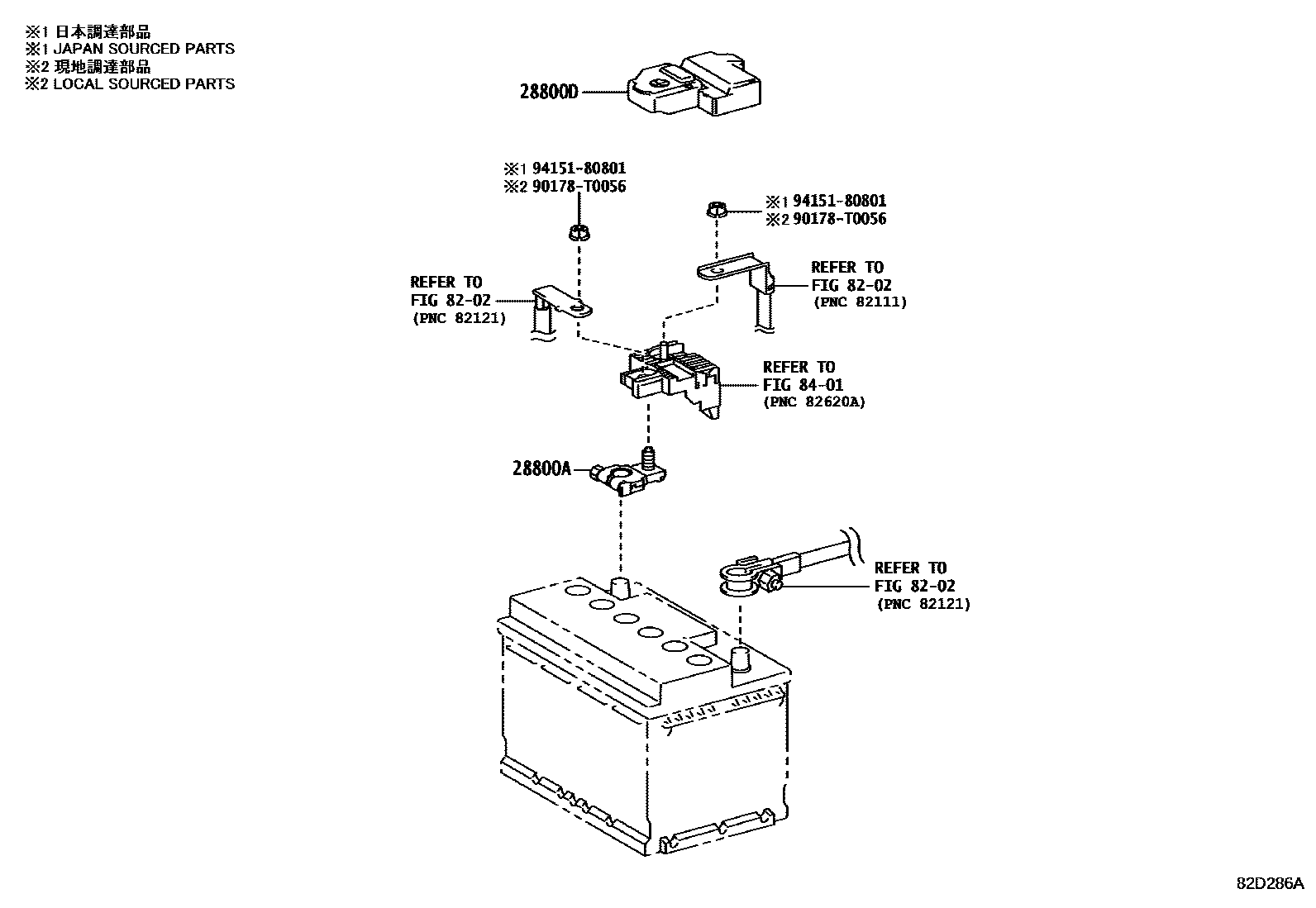

Toyota YARIS 蓄电池和蓄电池电缆 EPC diagram — 82D286A
蓄电池和蓄电池电缆 — 82D286A (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05061
28800DConnector cover (for battery terminals)82621-52160 · 82821-12490
