Toyota YARIS 日间行车照明灯或照明灯 — Figure 8119

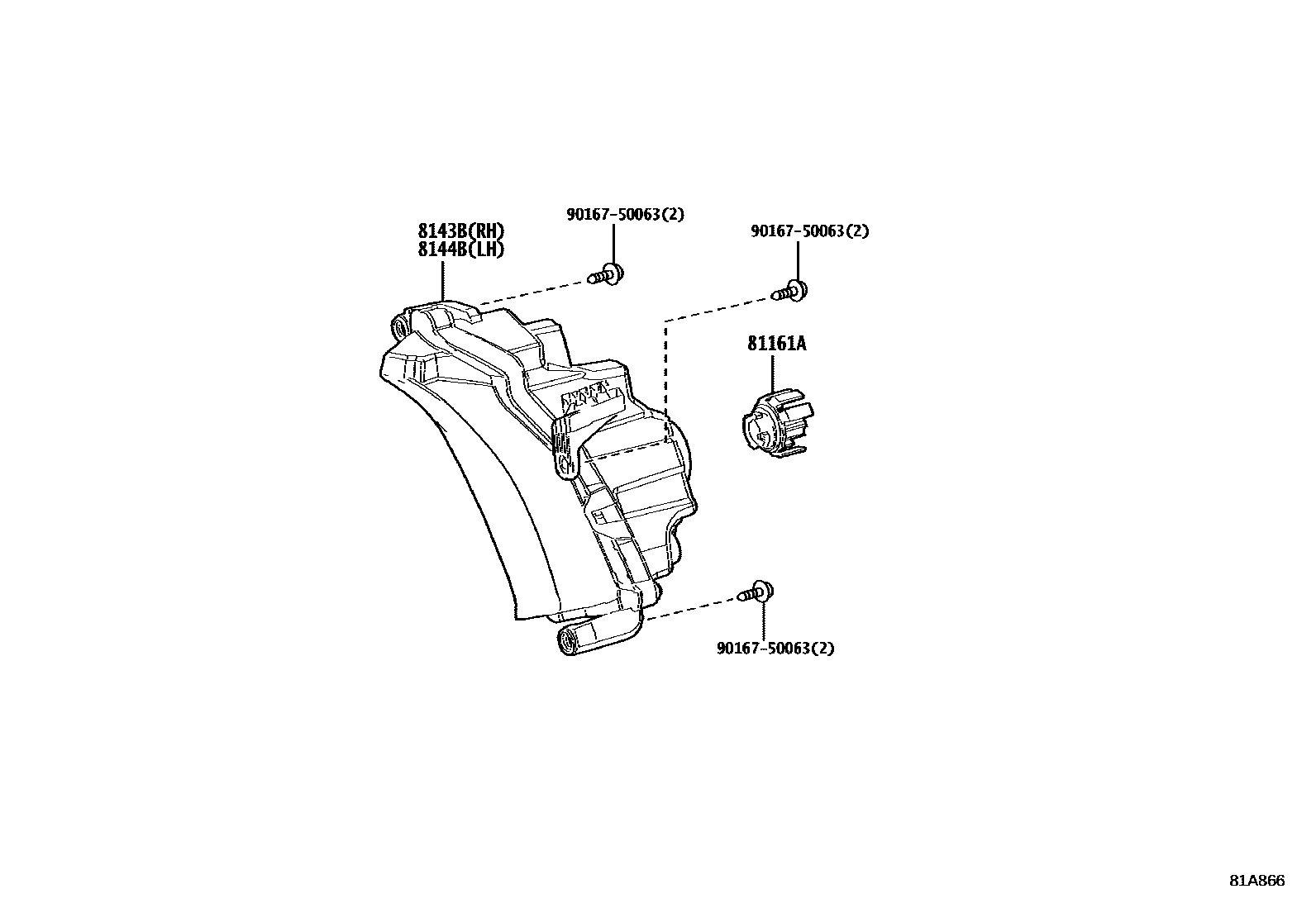

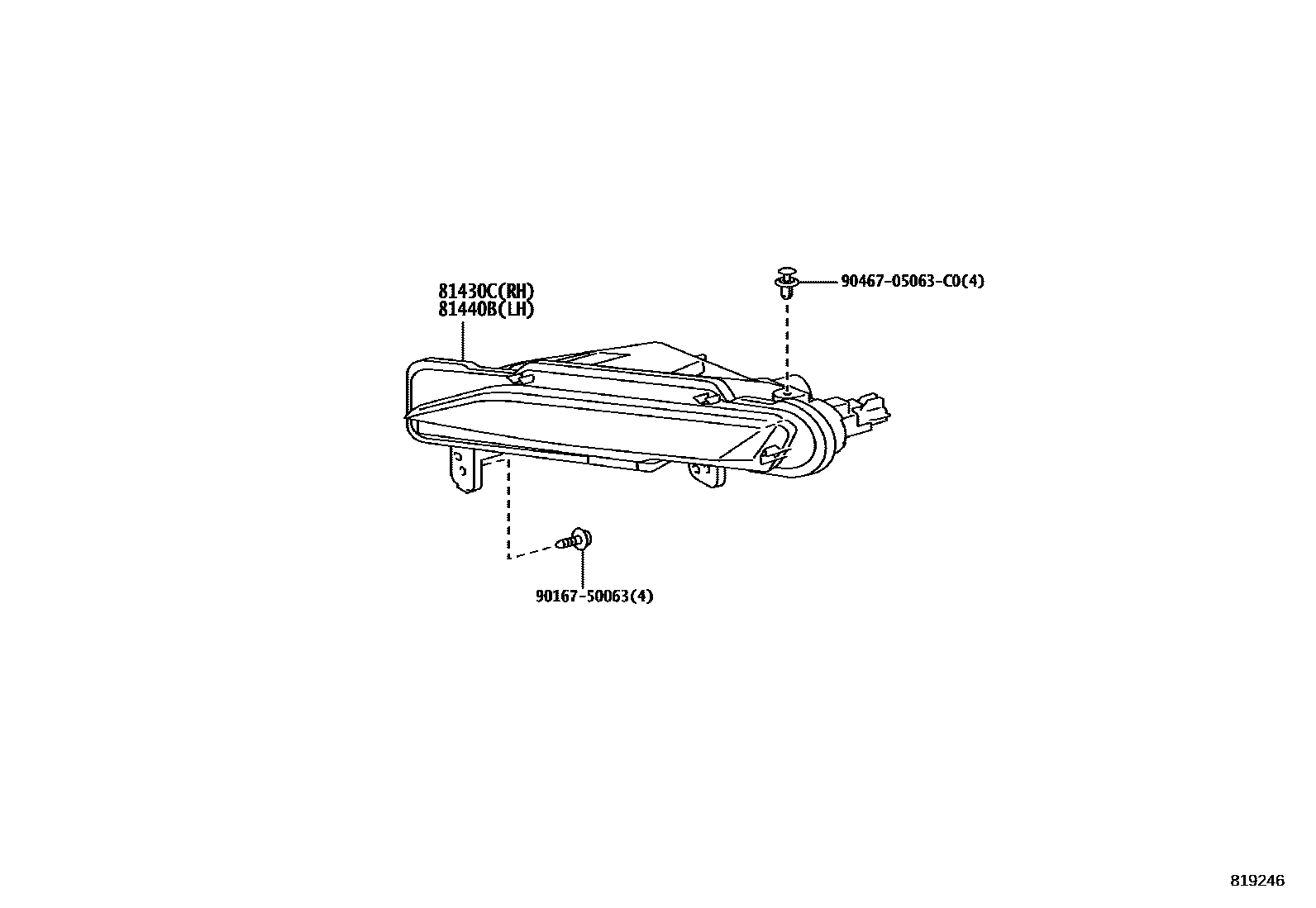

Toyota YARIS EPC diagram 8119, 日间行车照明灯或照明灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81161A | Daytime running LED lights | 8158A-12260 |
| 81430C | Right daytime running light assembly | 81430-0D060 |
| 8143B | Right daytime running light lampshade and lamp body | 8143B-YP030 |
| 81440B | Left side daytime running light assembly | 81440-0D060 |
| 8144B | Left side daytime running light housing and reflector body | 8144B-YP030 |
