Toyota YARIS 后组合灯 — Figure 8111

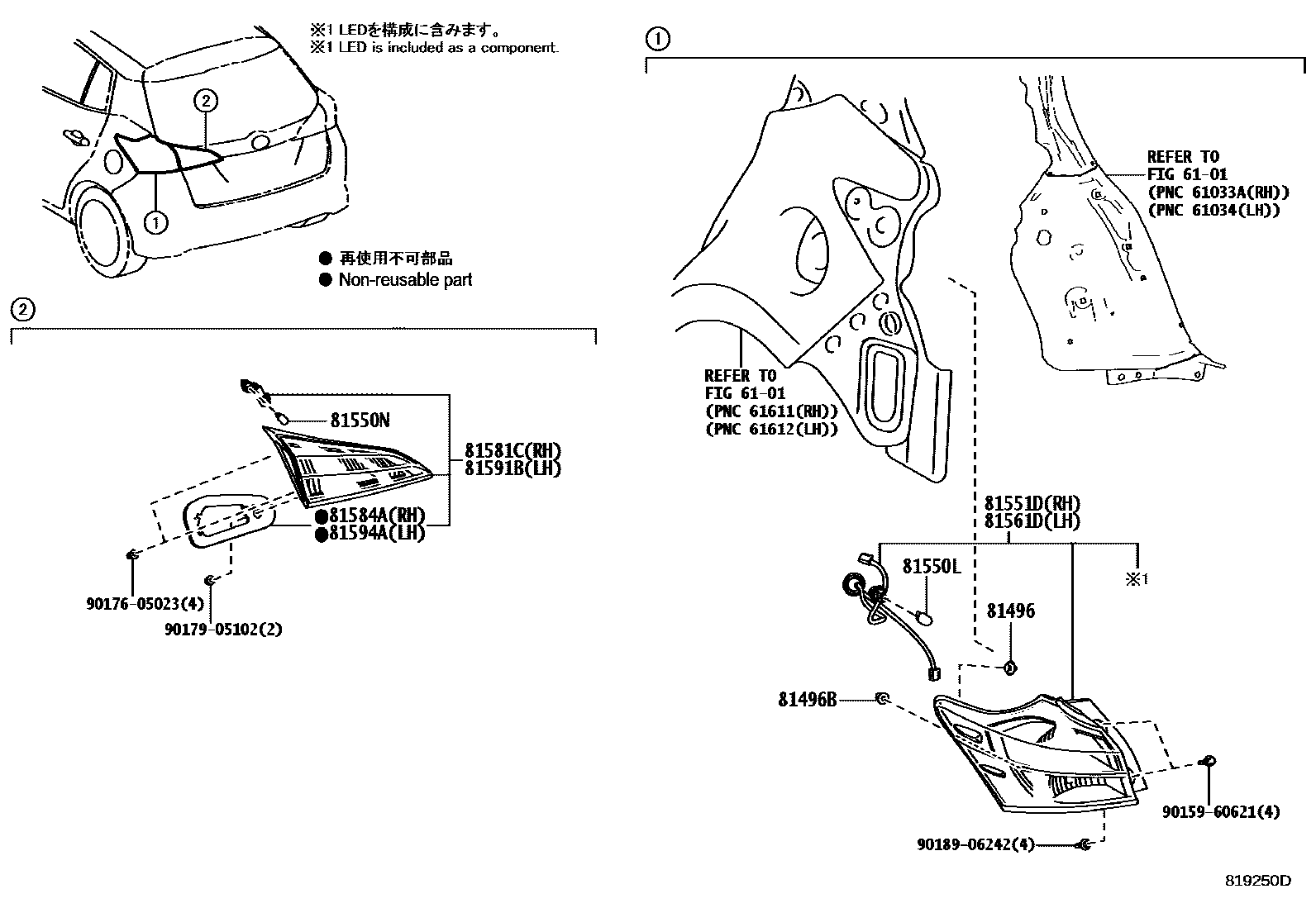

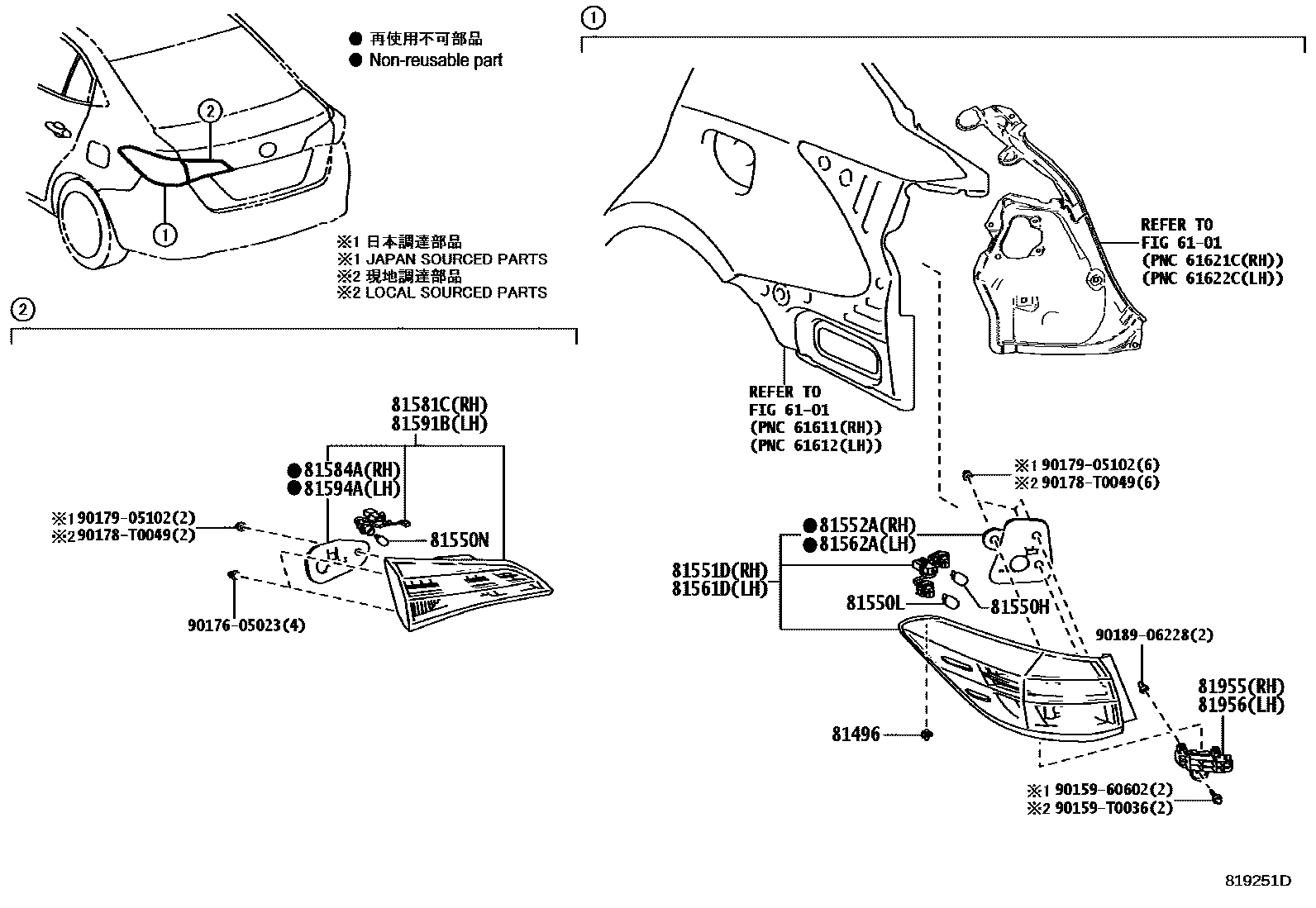

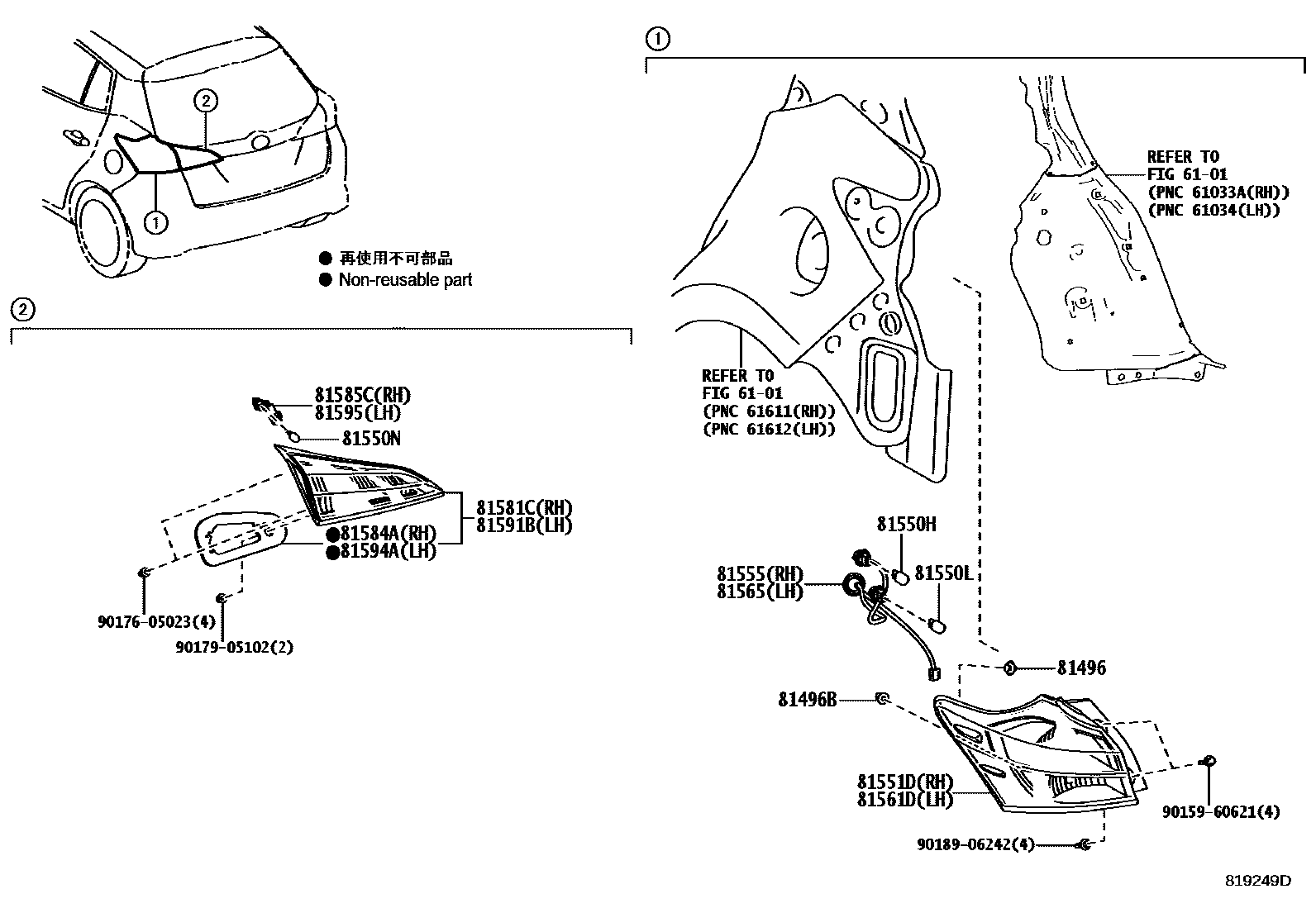

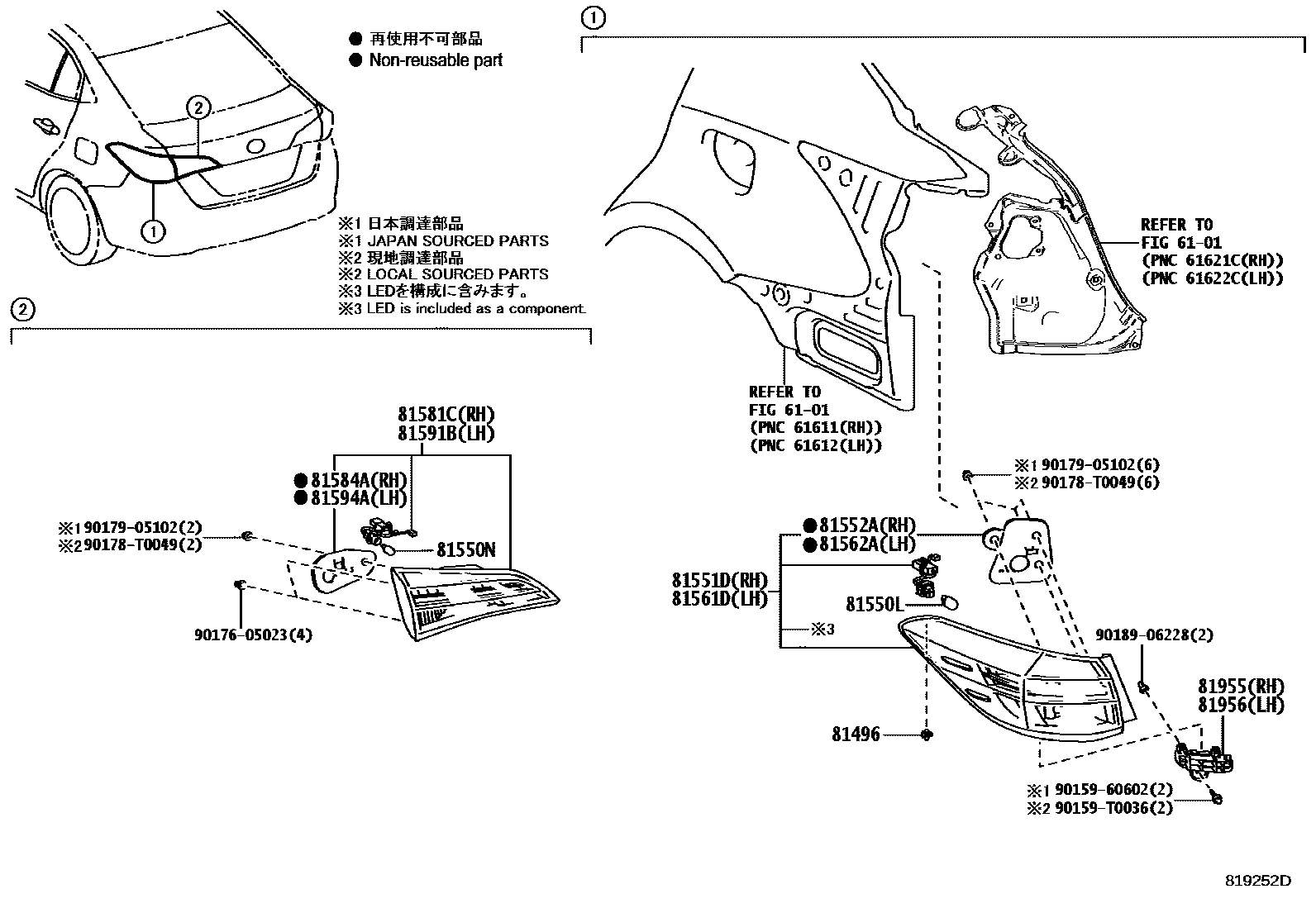

Toyota YARIS EPC diagram 8111, 后组合灯, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496B | Rear light guide block | 81496-52020 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15011 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0DA00 · 81551-0DA10 · 81551-0DB00 · 81551-0DB10 |
| 81552A | Right rear combination light gasket | 81552-0DB00 · 81552-0DB10 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0DA00 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0DA00 · 81561-0DA10 · 81561-0DB00 · 81561-0DB10 |
| 81562A | Left rear combination light gasket | 81562-0DB00 · 81562-0DB10 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0DA00 |
| 81581C | Right rear light lampshade and lamp body | 81581-0D450 · 81581-0D451 · 81581-0D460 · 81581-0D461 · 81581-0D550 · 81581-0D560 |
| 81584A | Right rear light gasket | 81582-0D450 · 81582-0D550 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-0D450 |
| 81591B | Left rear light shade and body | 81591-0D450 · 81591-0D451 · 81591-0D460 · 81591-0D461 · 81591-0D550 · 81591-0D560 |
| 81594A | Left rear light gasket | 81592-0D450 · 81592-0D550 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-0D450 |
| 81955 | Right rear combination light fixture | 52562-0D160 |
| 81956 | Left rear combination light fixture | 52563-0D160 |
