Toyota YARIS Headlamp — Figure 8101

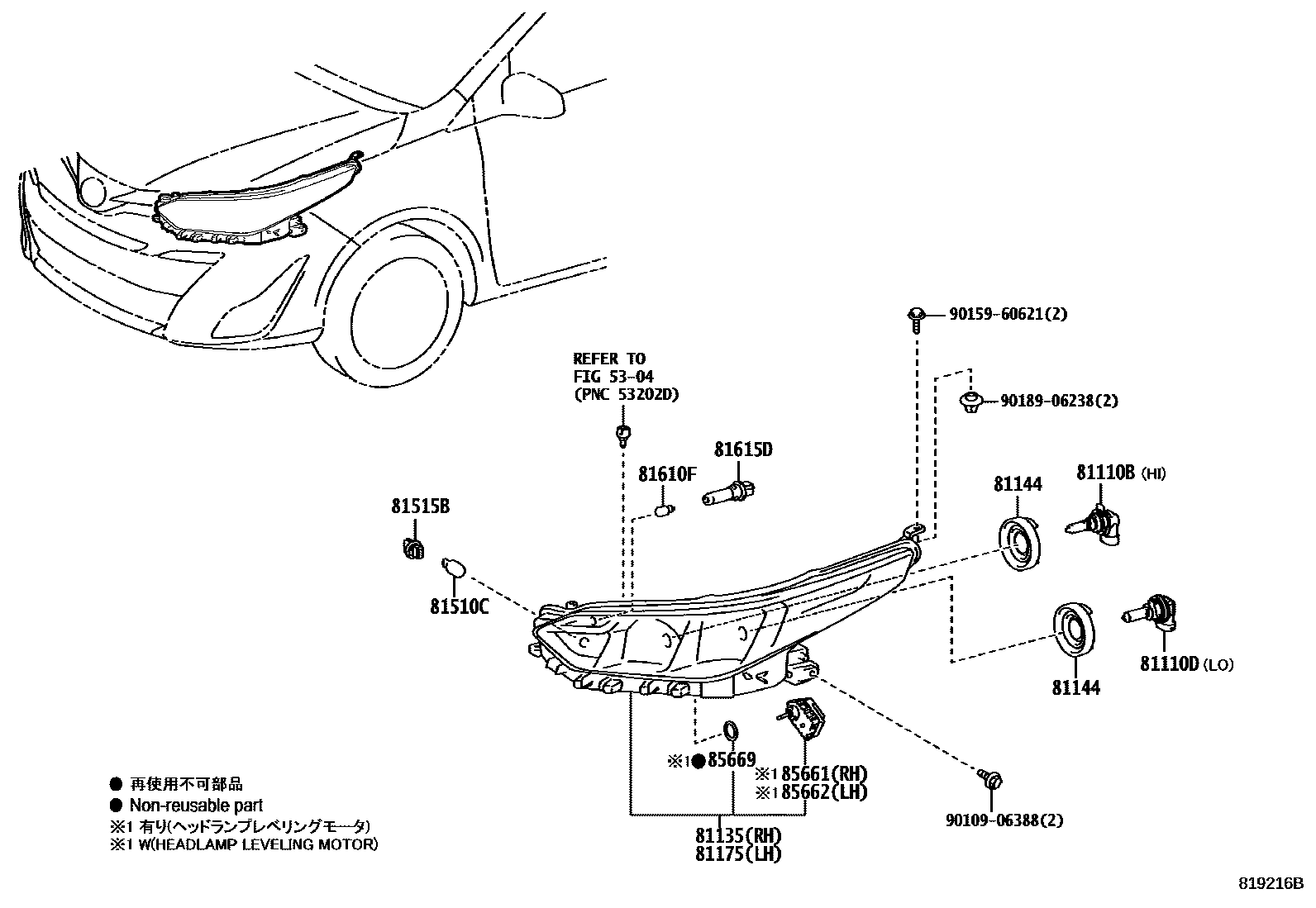

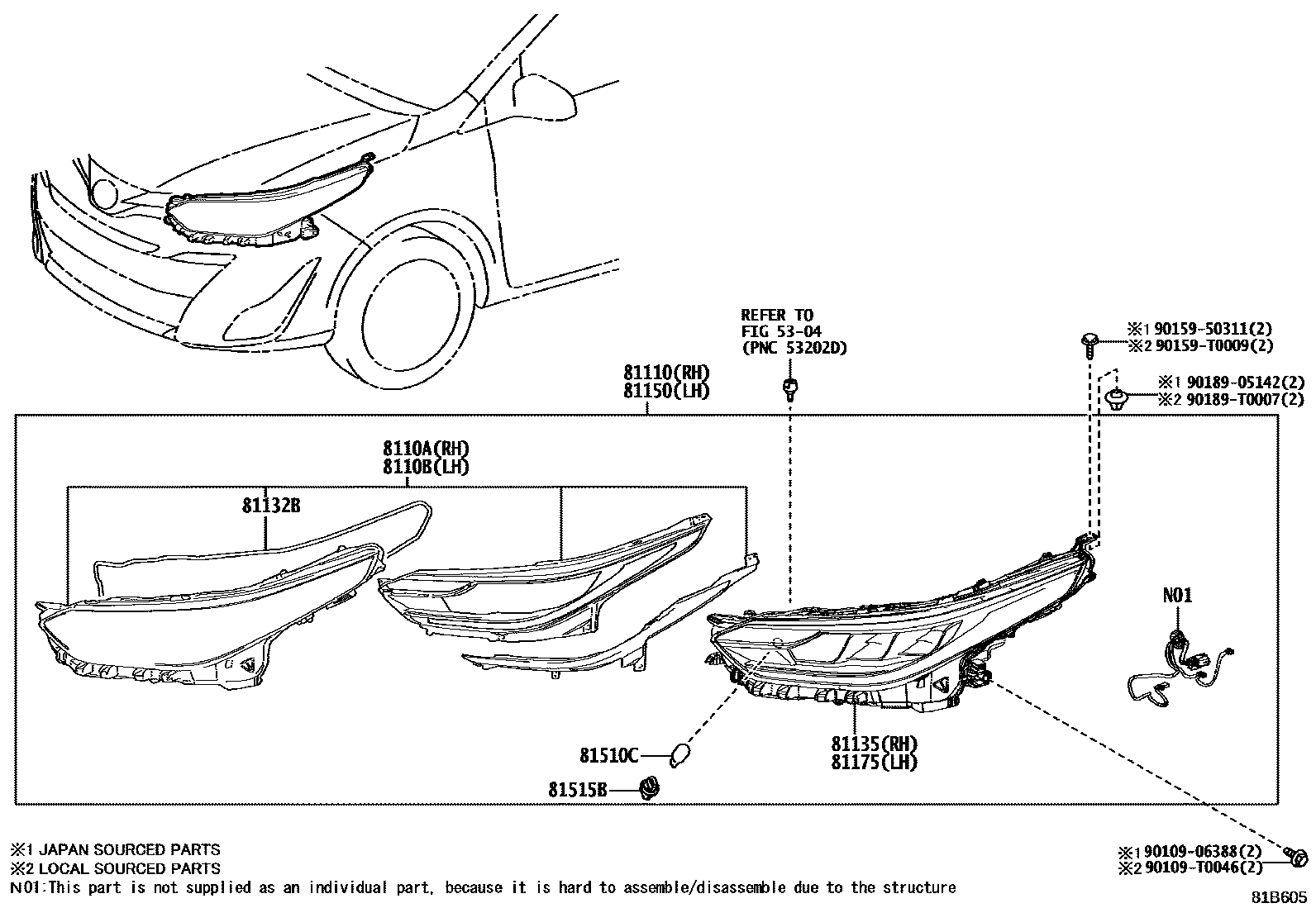

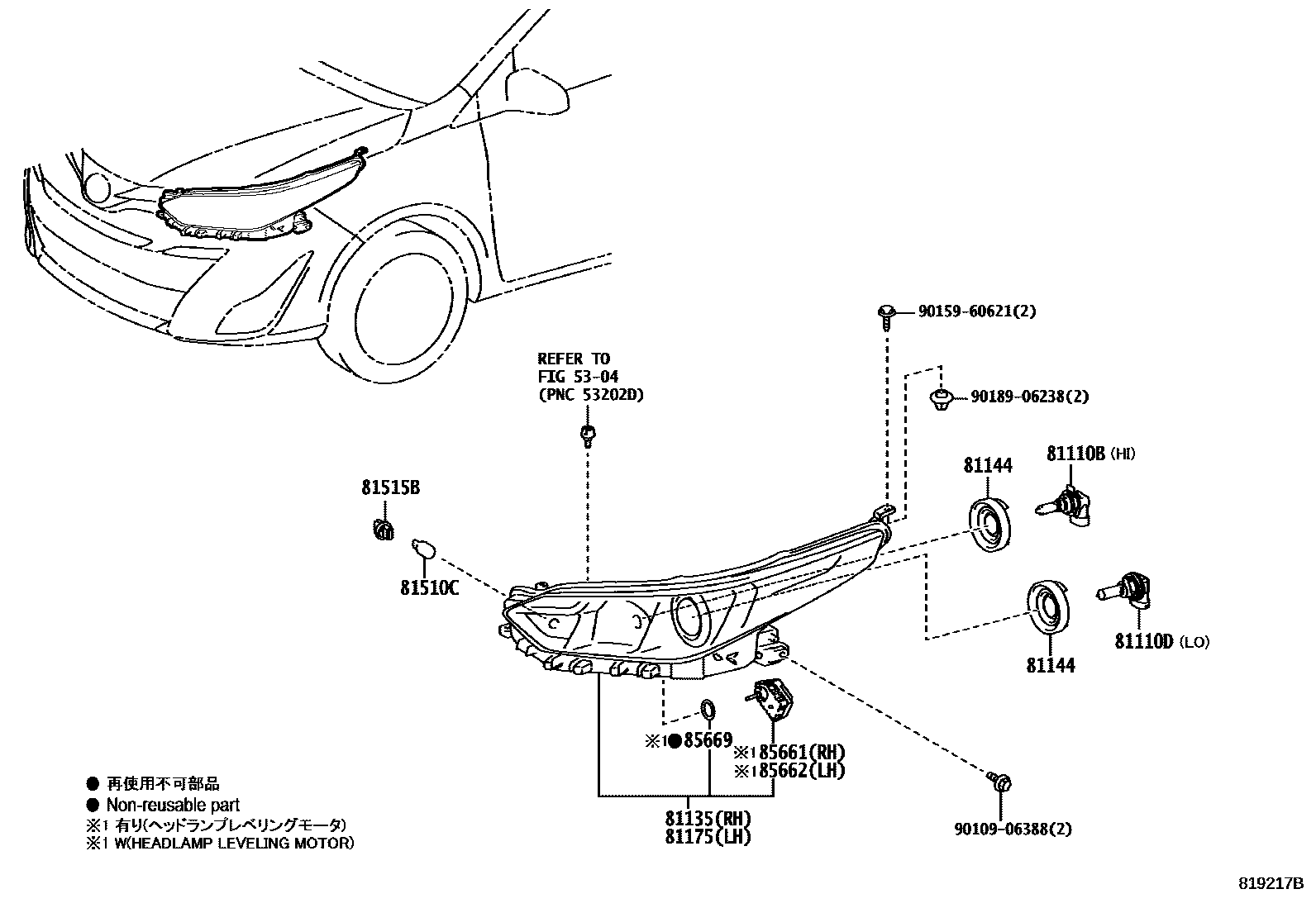

Toyota YARIS EPC diagram 8101, Headlamp, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-YP200 |
| 8110B | Left headlight cover sub-assembly | 8110B-YP200 |
| 81110 | Right headlight assembly | 81110-YP210 · 81110-YP211 · 81110-YP230 · 81110-YP231 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 · 90981-13099 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly assembly | 81130-0DJ00 · 81130-0DJ10 · 81130-0DJ20 · 81130-0DL00 · 81130-0DL20 · 81130-0DQ70 · 81140-YP210 · 81140-YP211 · 81140-YP230 · 81140-YP231 |
| 81144 | No. 1 headlight cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-YP210 · 81150-YP211 · 81150-YP230 · 81150-YP231 |
| 81175 | Left headlight assembly assembly | 81070-YP210 · 81070-YP211 · 81070-YP230 · 81070-YP231 · 81170-0DJ00 · 81170-0DJ10 · 81170-0DJ20 · 81170-0DL00 · 81170-0DL20 · 81170-0DQ60 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
