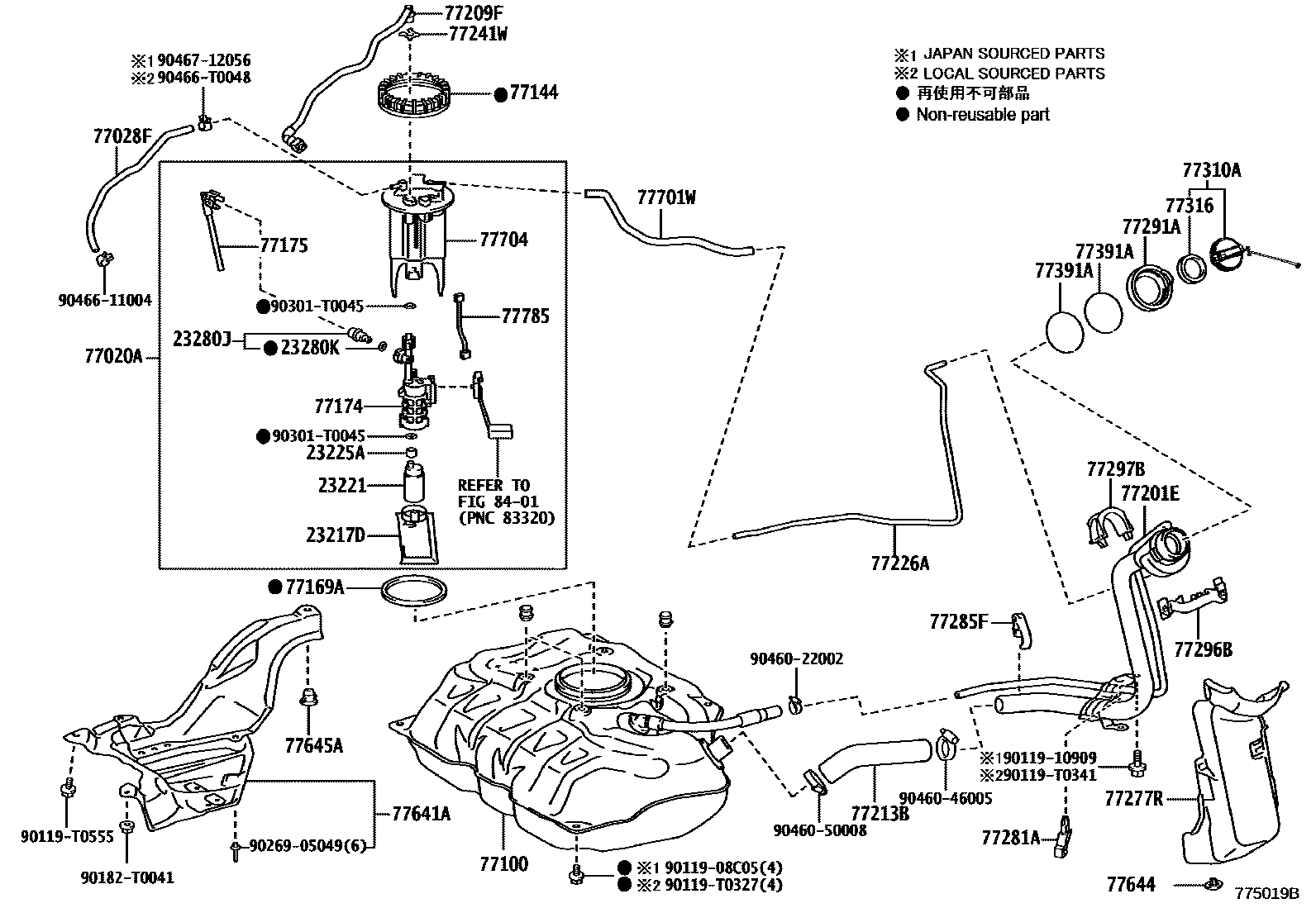

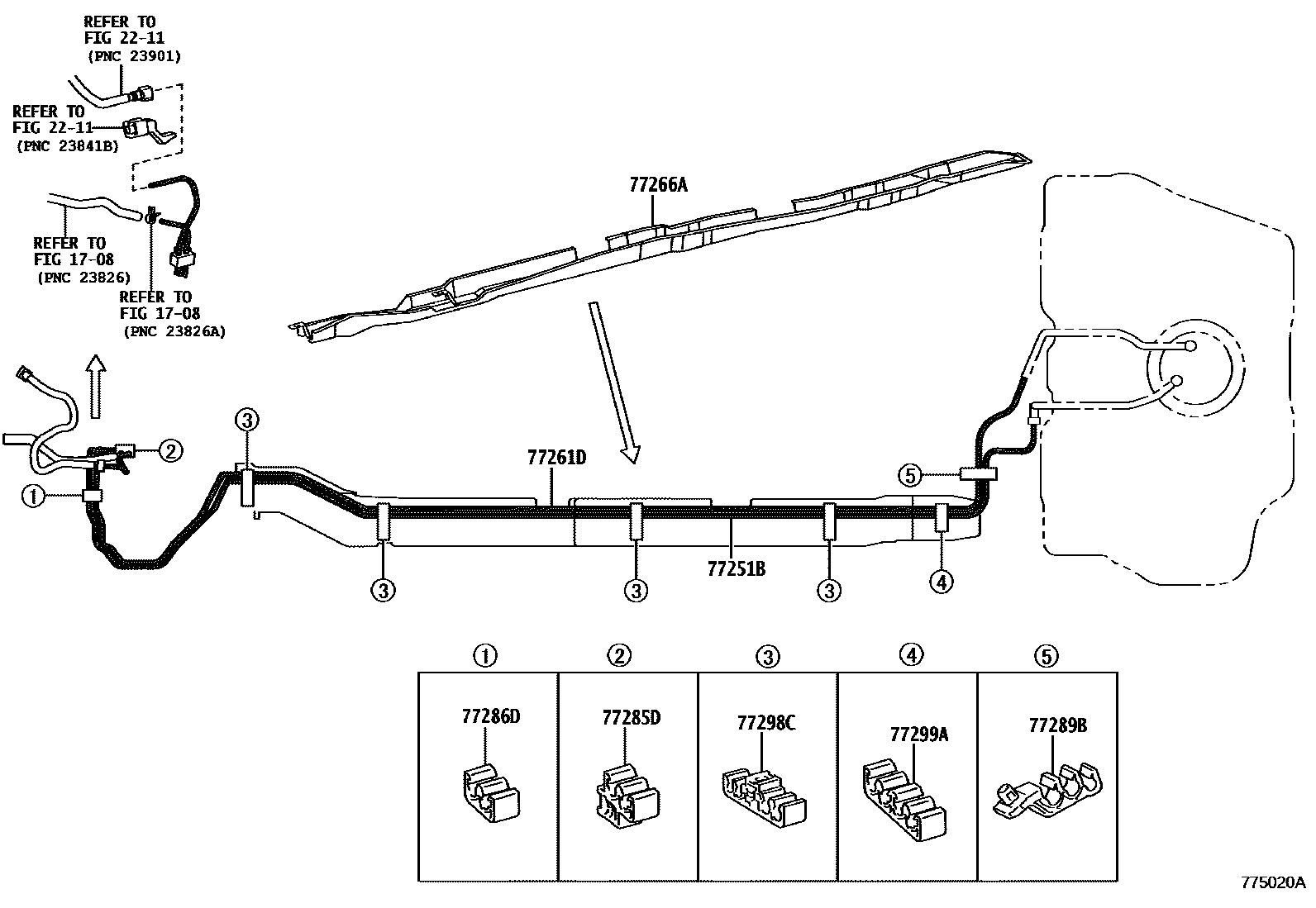

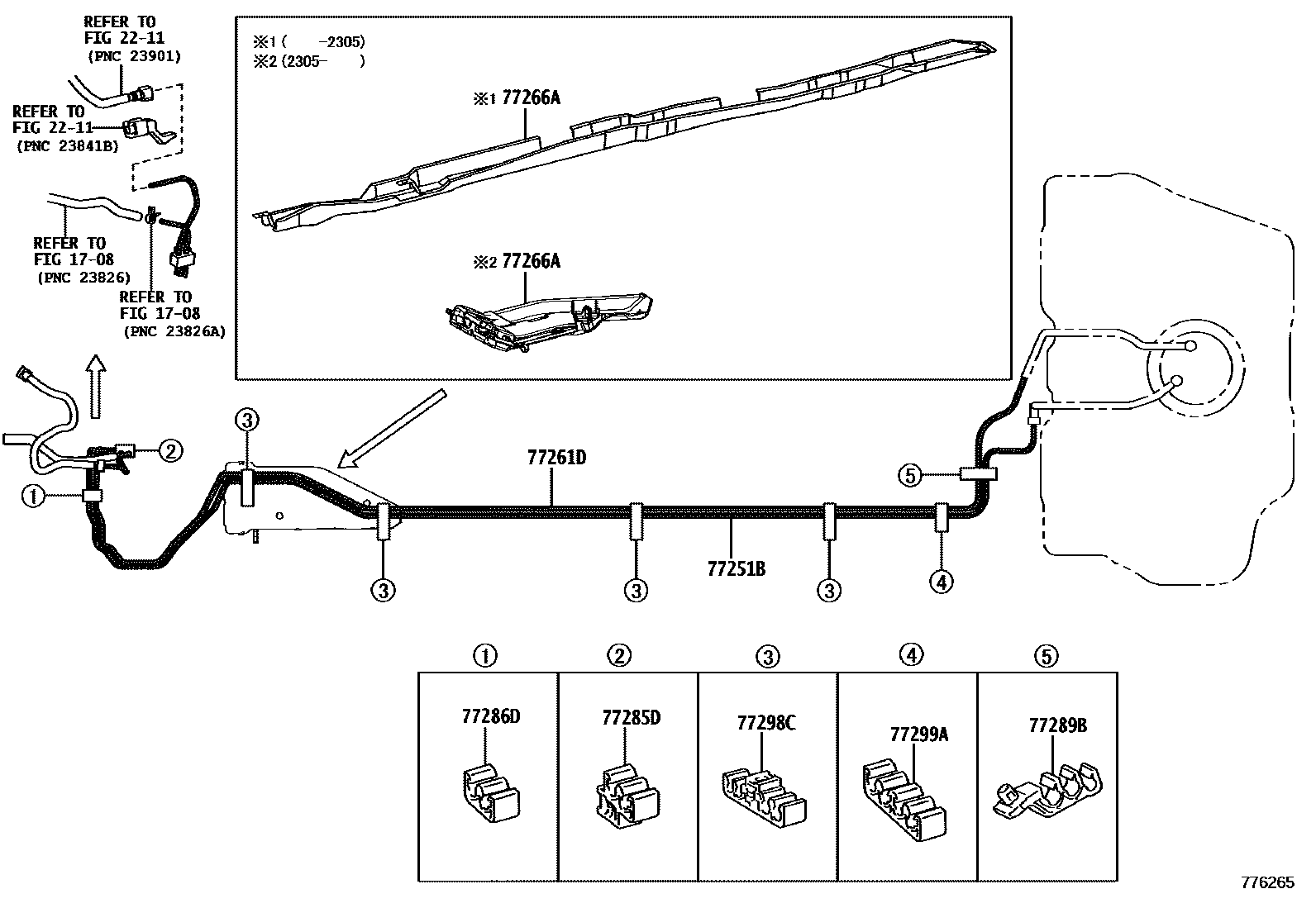

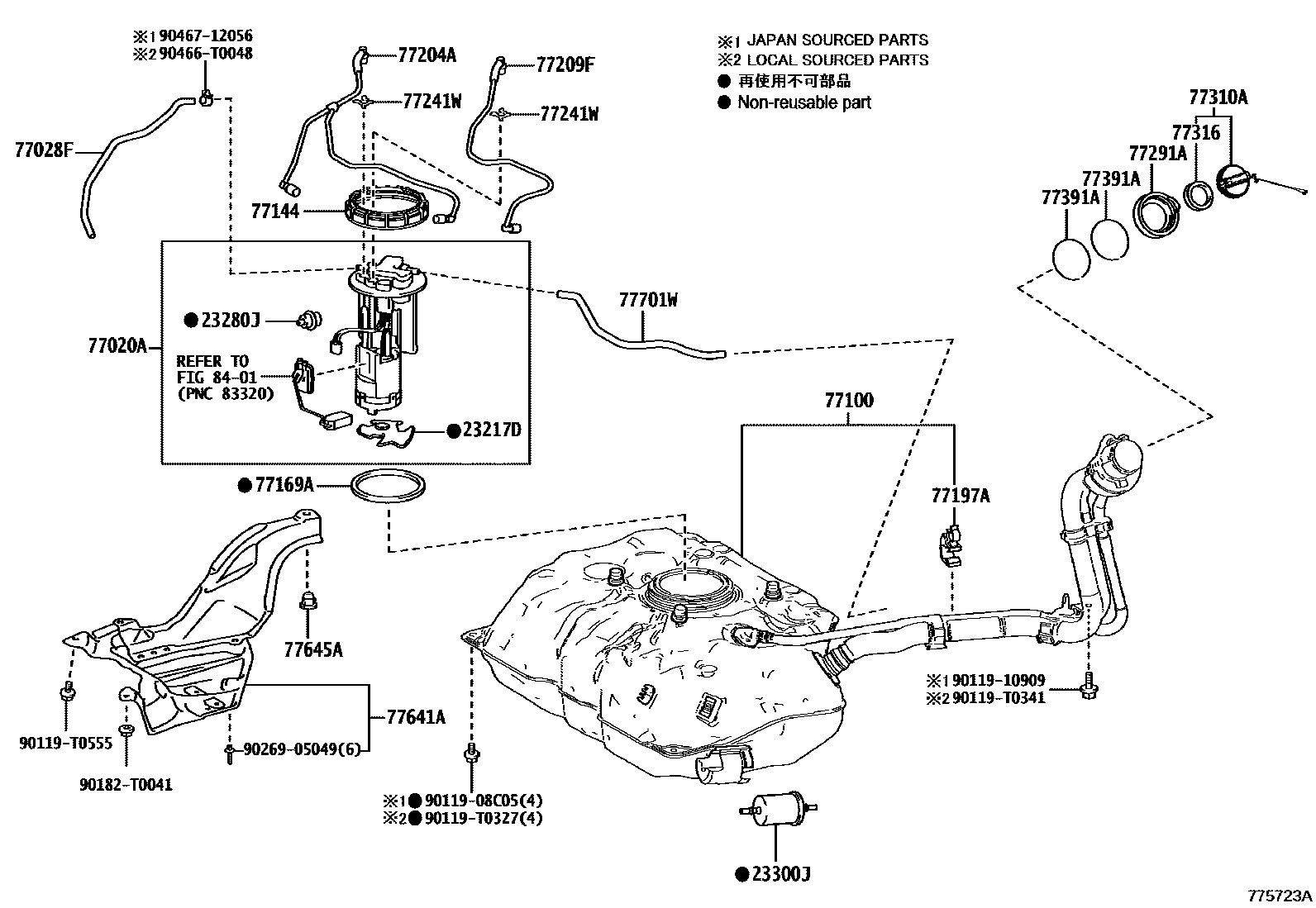

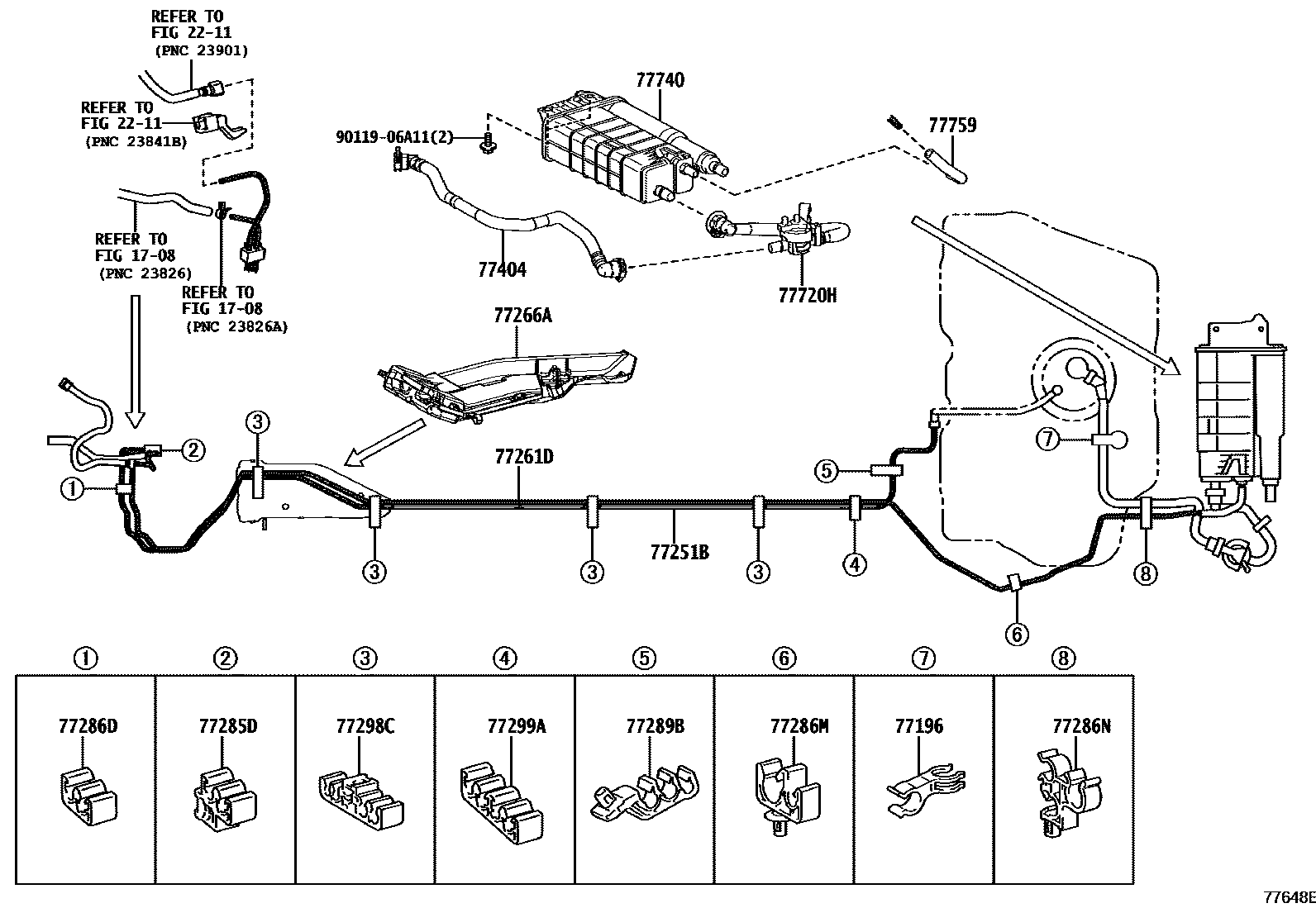

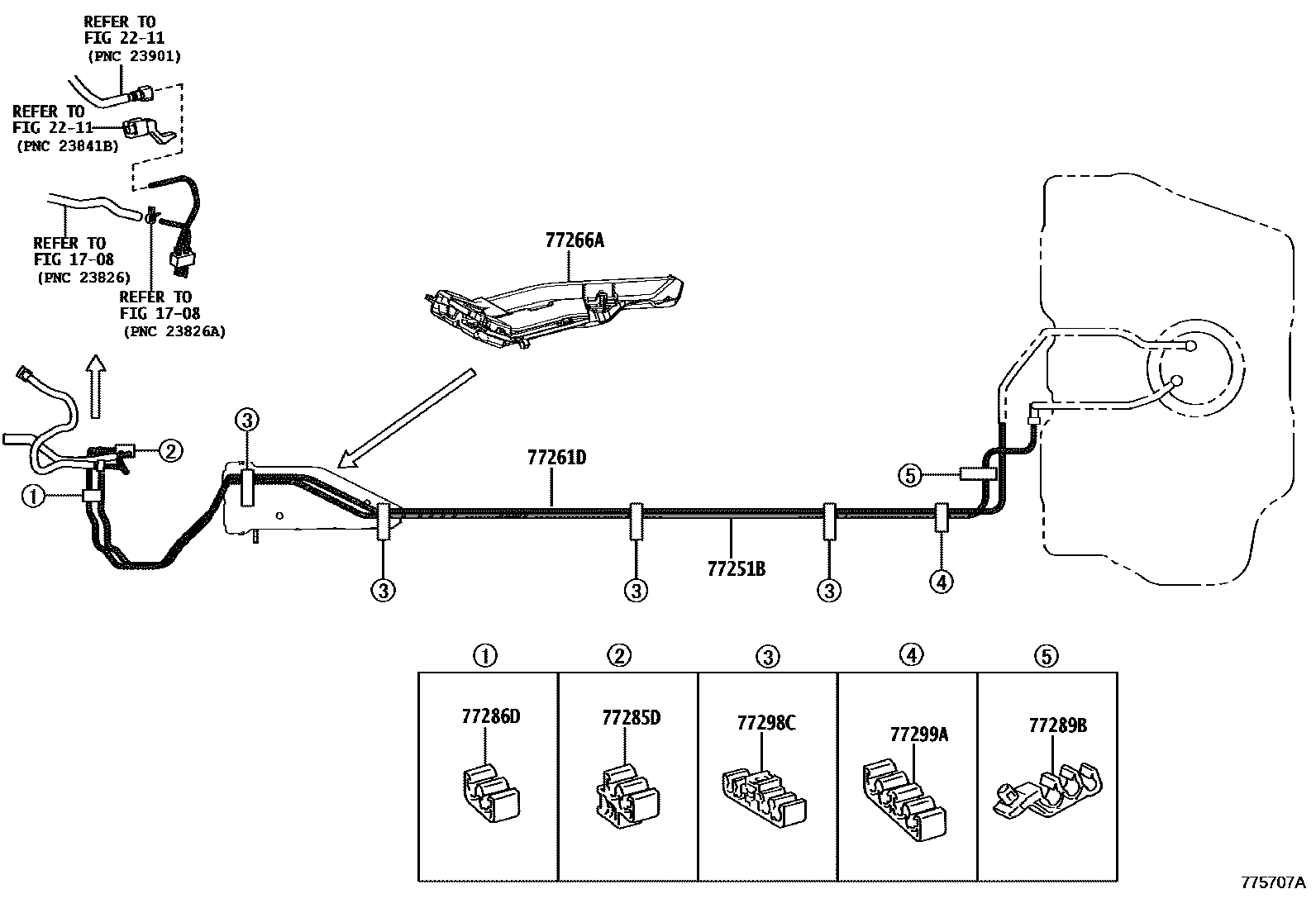

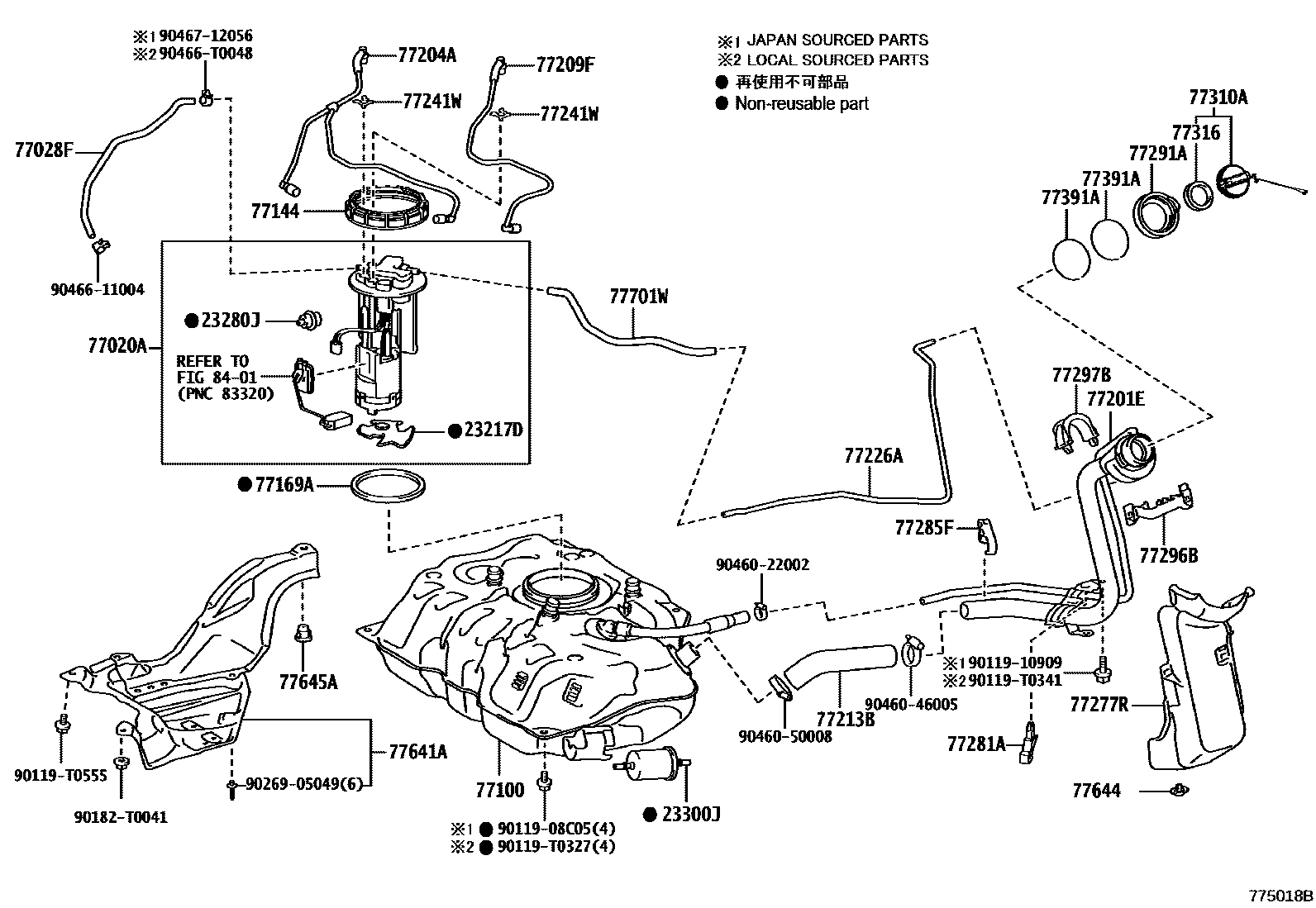

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 9 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0Y030 · 23217-0Y050 |
| 23221 | fuel pump | 23221-0Y040 |
| 23225A | fuel pump septum | 23225-0Y010 |
| 23280J | Fuel pressure regulator assembly | 23280-0D010 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23300J | fuel filter assembly | 23300-0D100 |
| 64648A | Trunk door lock opener seal | 64648-0D020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D200 · 77020-0D260 · 77020-0D370 · 77020-0D371 |
| 77028F | No. 2 fuel drain pipe sub-assembly | 77028-0D170 · 77028-0D180 · 77028-0D240 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D600 · 77035-0D620 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-T0001 |
| 77100 | fuel tank assembly | 77001-0D380 · 77001-0D390 · 77001-0D391 · 77001-0D530 · 77001-0D560 |
| 77144 | Fuel pump instrument fixture | 77144-0D050 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D070 · 77169-0D120 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D110 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0D070 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-0D030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-12080 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0D400 |
| 77204A | fuel tank return pipe | 77204-0D080 · 77204-0D081 · 77204-0D110 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0D220 · 77209-0D221 · 77209-0D230 · 77209-0D370 |
| 77213B | Fuel tank to filler pipe hose | 77213-0D170 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0D180 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-0D590 · 77251-0D690 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D520 · 77261-0D600 · 77261-0D620 |
| 77266A | No. 1 fuel line protection device | 77266-0D130 · 77267-0D040 · 77267-0D100 |
| 77277R | Fuel tank filler pipe protection device | 77277-0D130 |
| 77281A | Fuel filler pipe clamp | 77229-0D010 |
| 77285D | No. 1 fuel pipe clamp | 77285-0D290 · 77285-0D300 |
| 77285F | No. 1 fuel pipe clamp | 77285-0D040 |
| 77286D | No. 2 fuel pipe clamp | 77286-0D230 · 77286-0D250 |
| 77286M | No. 6 fuel pipe clamp | 77286-0D260 |
| 77286N | No. 7 fuel pipe clamp | 77299-0D200 |
| 77289B | No. 3 fuel pipe clamp | 77289-0D080 · 77289-0D190 |
| 77291A | Fuel tank filler pipe cover | 77291-0D280 |
| 77296B | No. 1 fuel line protector bracket | 77296-0D010 |
| 77297B | Fuel pipe protection device No. 2 bracket | 77297-0D010 |
| 77298C | No. 4 fuel pipe clamp | 77298-0D200 · 77298-0D220 |
| 77299A | No. 5 fuel pipe clamp | 77299-0D180 · 77299-0D190 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-0D130 · 77306-0D070 |
| 77310A | Fuel tank cap assembly | 77300-0K010 · 77300-12020 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-0K020 · 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0D190 · 77350-0D240 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77367A | No. 1 fuel filler cap pin clip | 77367-0D010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D080 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-0D010 |
| 77391A | fuel inlet ring | 77391-02020 · 77391-12020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0D011 |
| 77641A | No. 1 fuel tank protective shell | 77606-0D130 |
| 77644 | fuel tank bolt | 77644-0K010 |
| 77645A | Fuel tank protective shell fixings | 77645-52040 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-0D150 · 77701-0D160 |
| 77704 | Carbon canister sub-assembly | 77704-0D110 |
| 77720H | Fuel delivery valve assembly | 77720-0D070 · 77720-0D080 |
| 77740 | Carbon canister assembly | 77740-0D080 |
| 77759 | Carbon canister hose | 77759-0D010 |
| 77785 | fuel pump wiring harness | 77785-0D130 |
