Toyota YARIS 后防护条 — Figure 7504

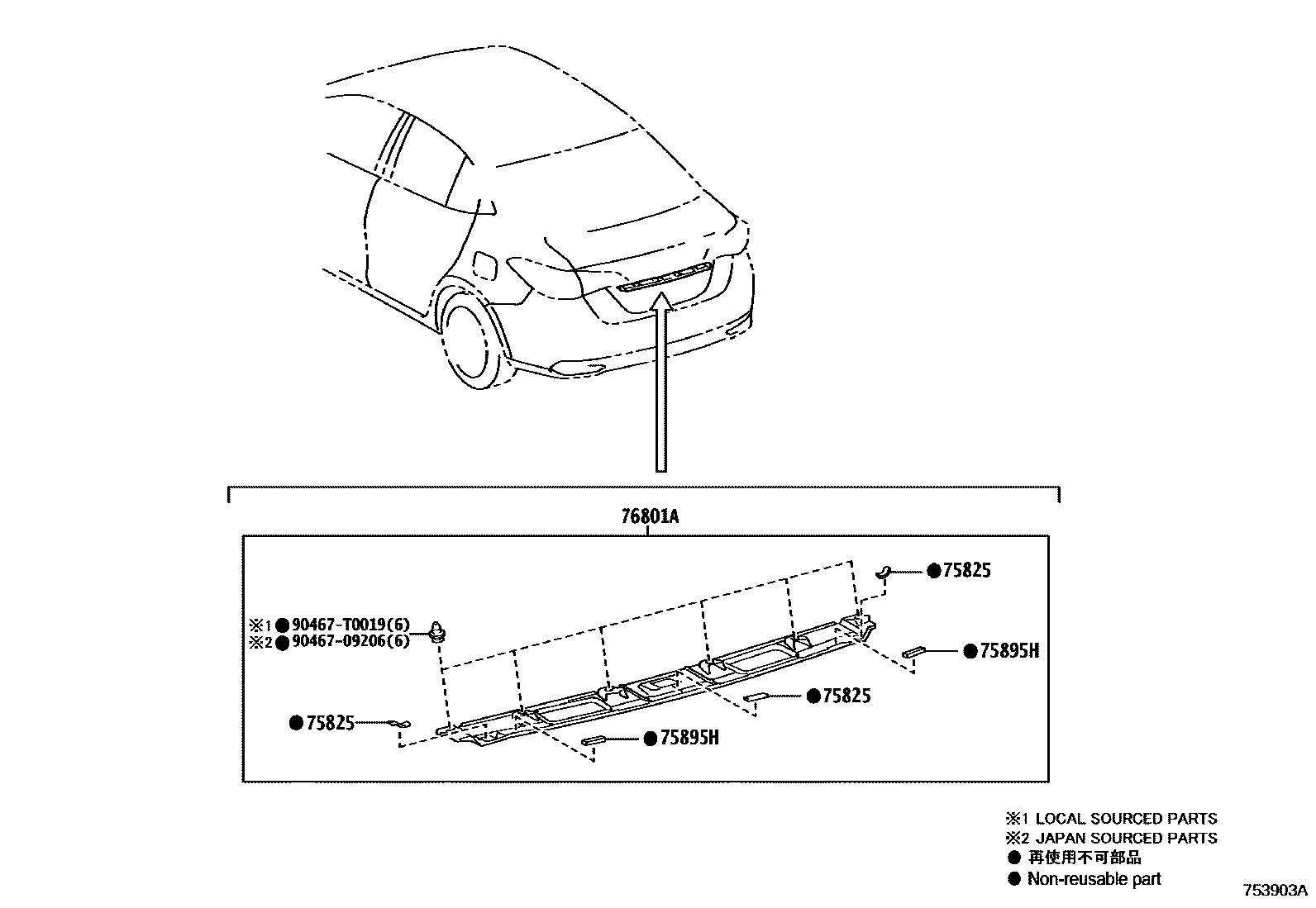

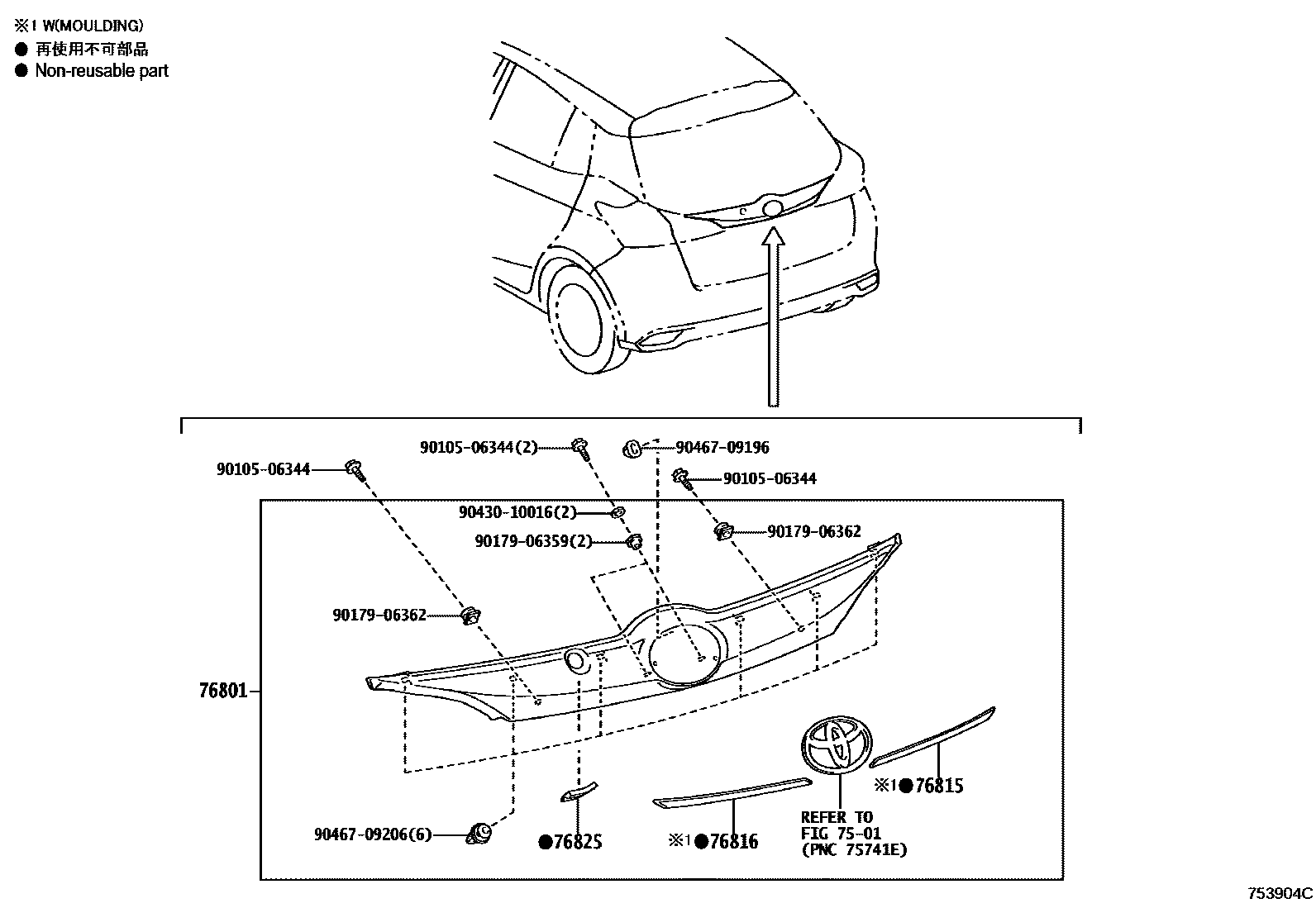

Toyota YARIS EPC diagram 7504, 后防护条, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75825 | Trunk door protective strip lining | 75825-0D090 |
| 75895H | No. 1 protective strip tape | 75895-0D230 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0DA80 · 76801-0DB70 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-0DA20 · 76801-0DA30 |
| 76815 | Lower right decorative strip outside the back door | 76815-0D040 |
| 76816 | Lower left decorative strip outside the back door | 76816-0D040 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D270 |
