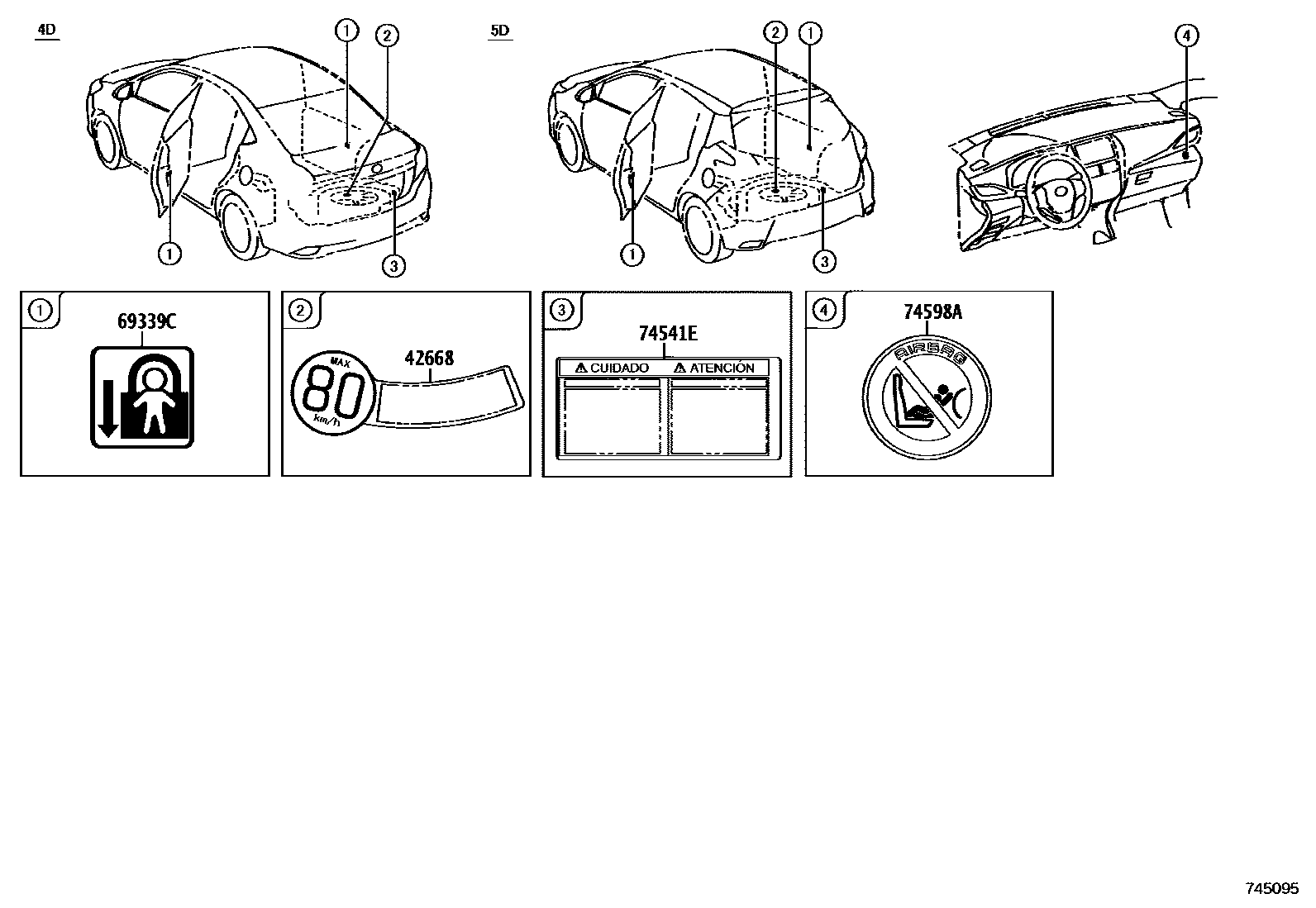

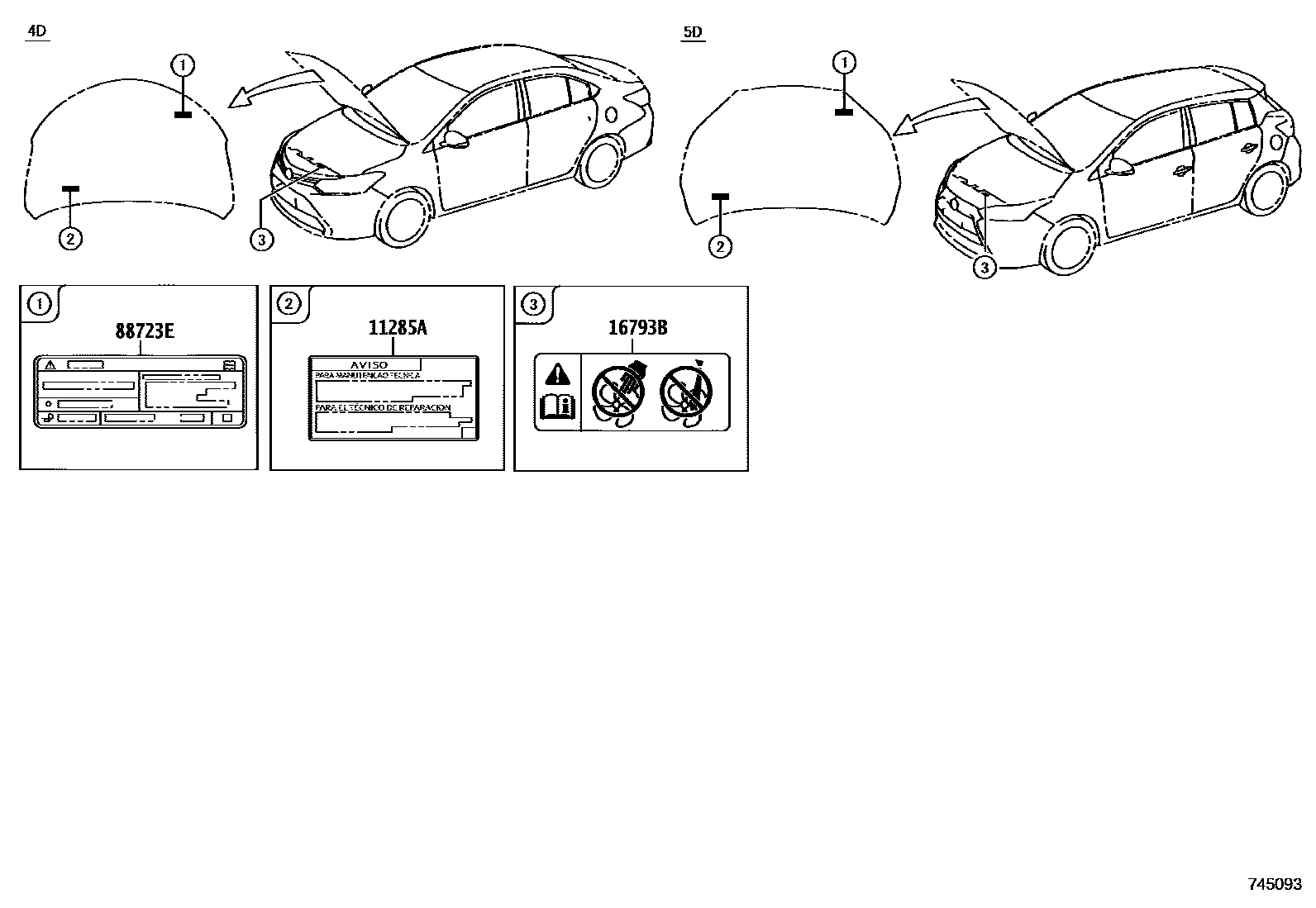

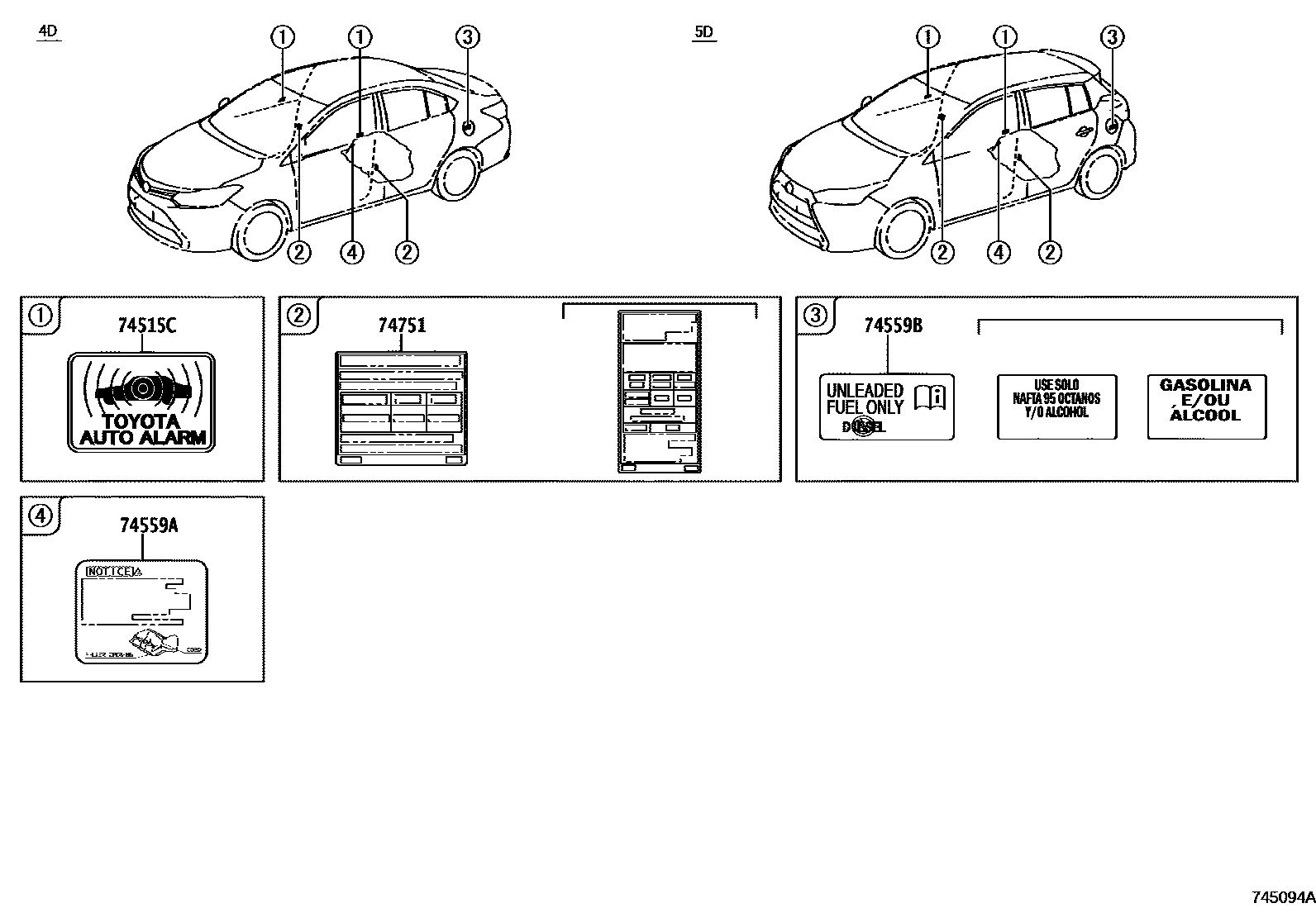

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0Y031 |
| 16793B | Cooling fan information label | 16793-36030 |
| 42668 | Small spare tire warning label | 42668-0D050 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74515C | Anti-theft warning information label | 74515-02030 |
| 74541E | Small spare tire warning plate | 42668-0D120 |
| 74559A | Fuel warning plate | 74559-0D070 |
| 74559B | fuel information label | 11287-0Y010 · 74559-02040 · 74559-20140 |
| 74598A | Passenger air bag warning label | 74598-02030 |
| 74751 | tire pressure information label | 42661-0DA30 · 42661-0DB70 · 42661-0DB80 · 42661-0DC40 |
| 88723E | Cooler maintenance warning label | 88723-0D280 |
