Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

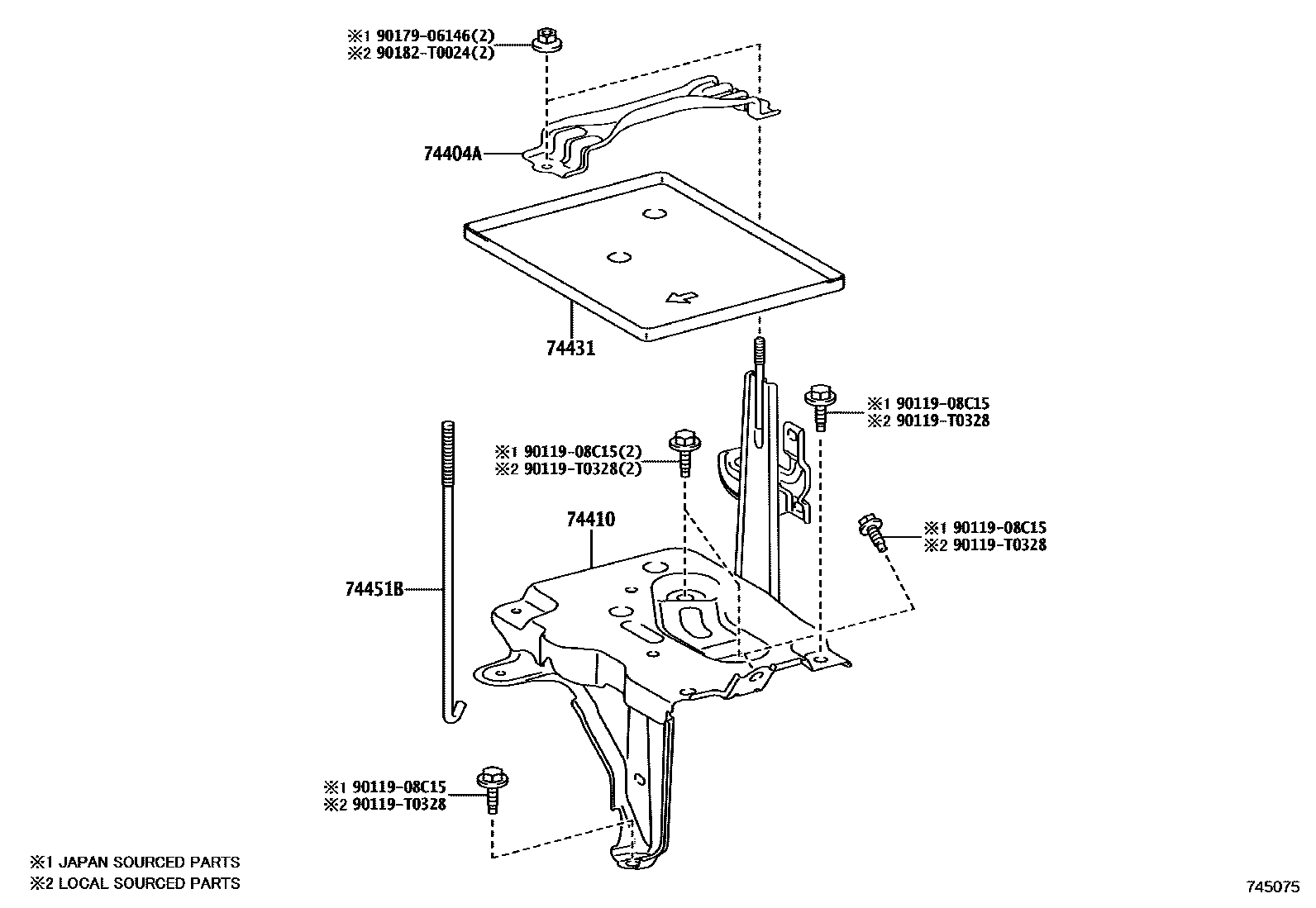

Toyota YARIS battery holder EPC diagram — 745075
battery holder — 745075 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74481-0D090
74410Battery bracket assembly74410-0D290
74431battery tray74431-0D130
74451BBattery clamp bolt74451-0D070
