Toyota YARIS 扶手和遮阳板 — Figure 7401
Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

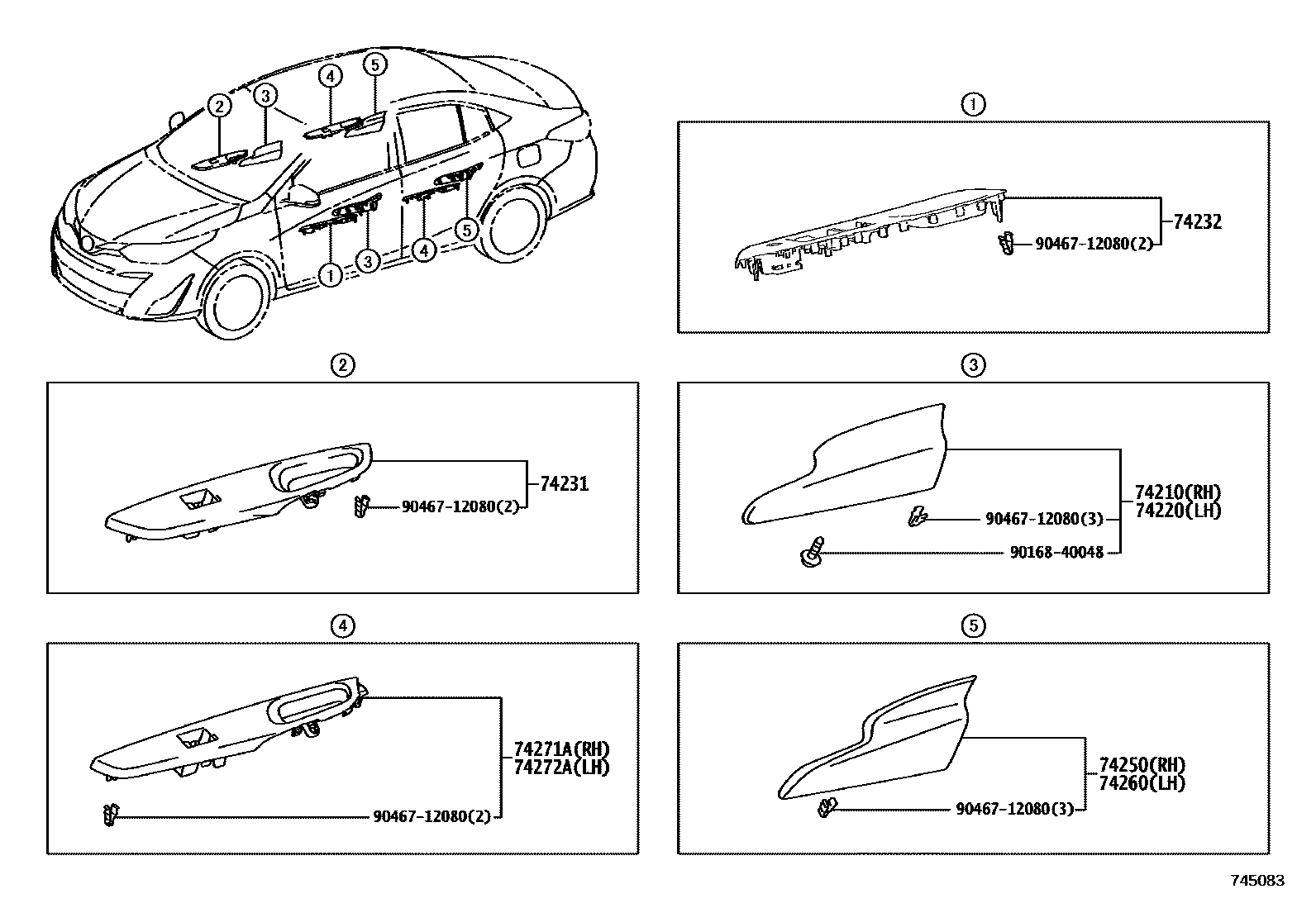

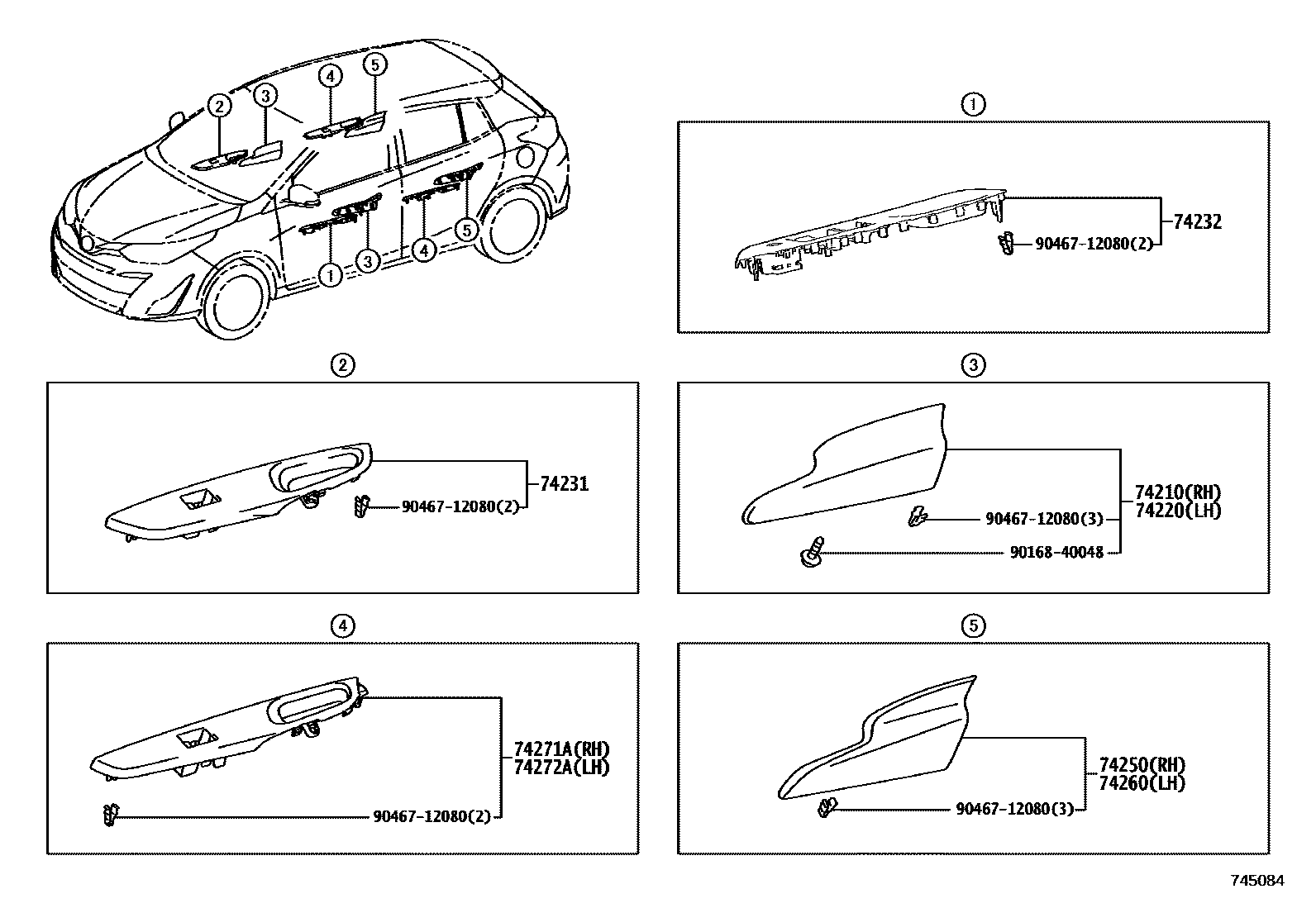

| 74231 | Right front armrest upper panel | 74231-0DD20 · 74231-0DD40 · 74231-0DD41 |
| 74232 | Left front armrest upper panel | 74232-0DD40 · 74232-0DD60 · 74232-0DD61 |
| 74271A | Right rear door armrest upper panel | 74271-0D640 · 74271-0D650 · 74271-0D651 |
| 74272A | Left rear door armrest upper panel | 74272-0D640 · 74272-0D650 · 74272-0D651 |
| 74710 | Fire extinguisher assembly | 74710-02010 |
| 74711 | Fire extinguisher bracket sub-assembly | 74702-02020 |

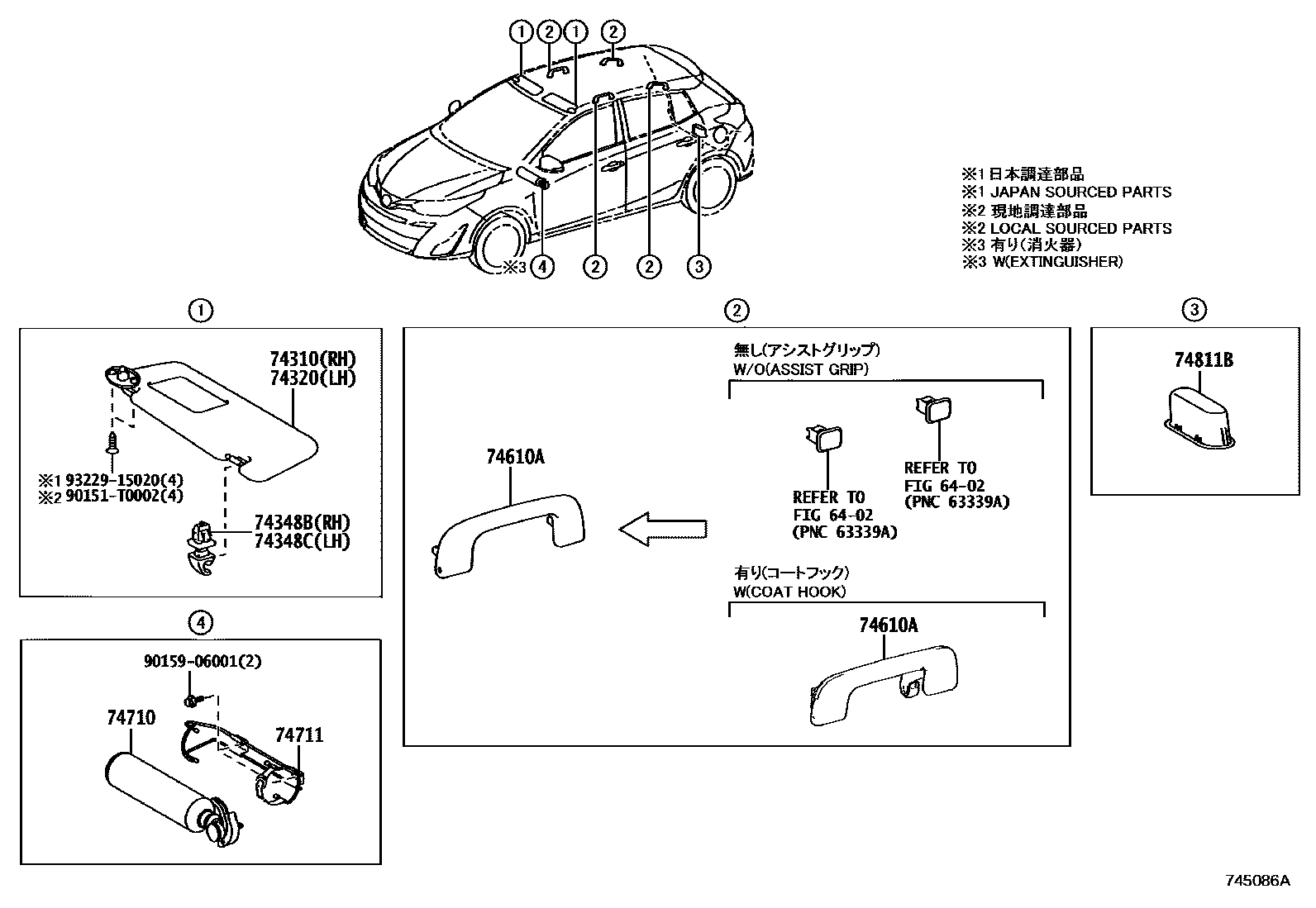

| 74811B | door handle | 69285-0D060 |
