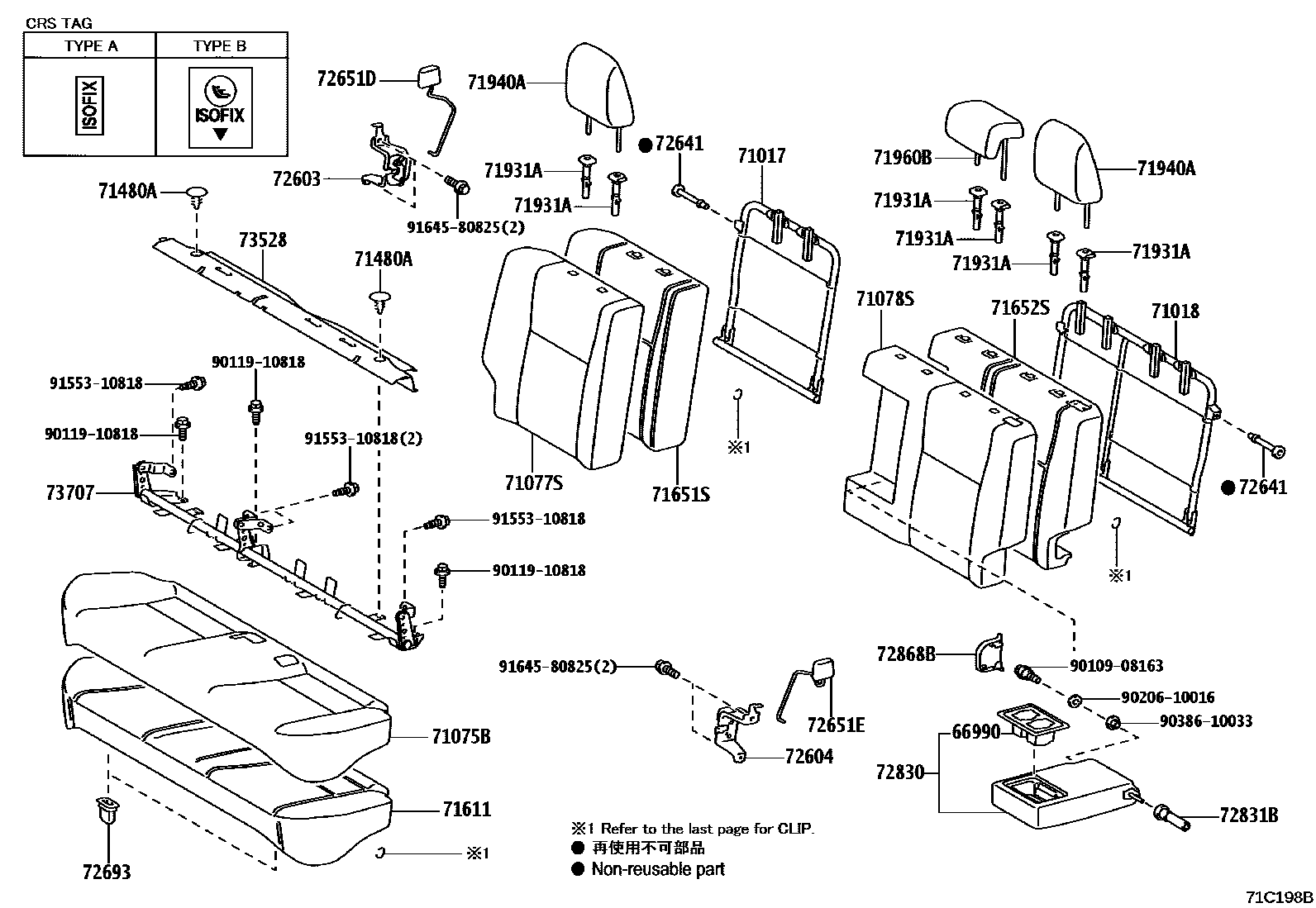

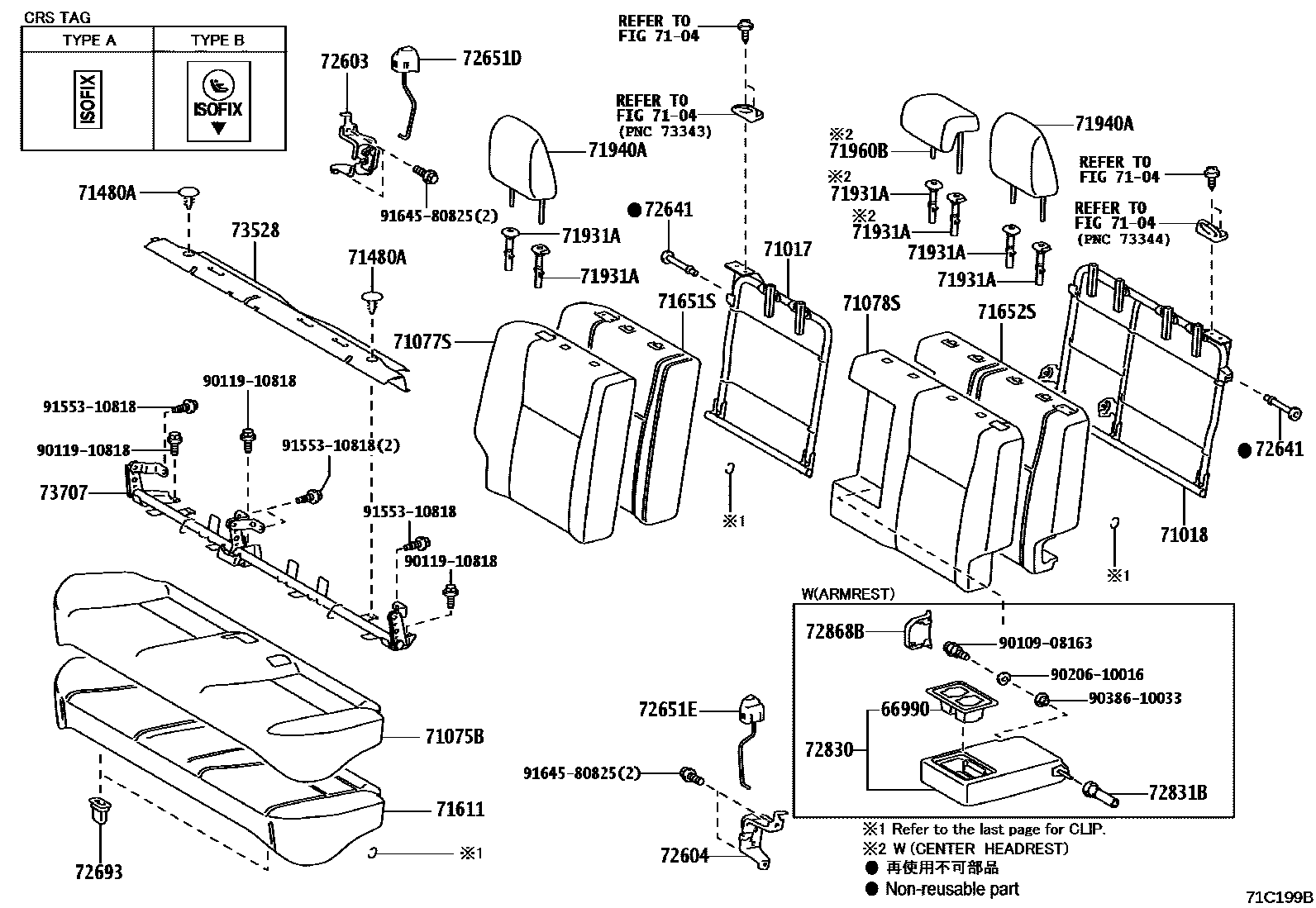

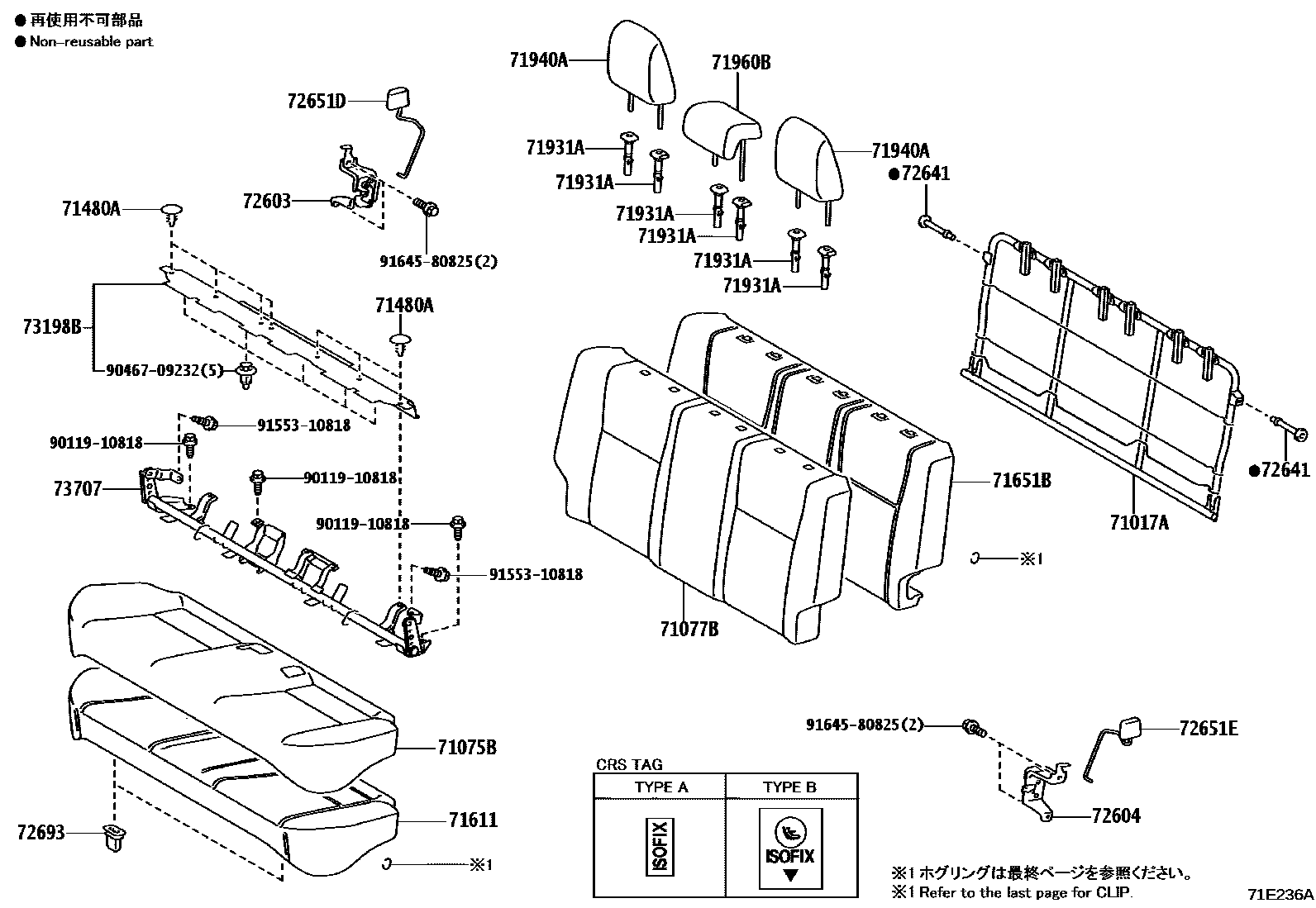

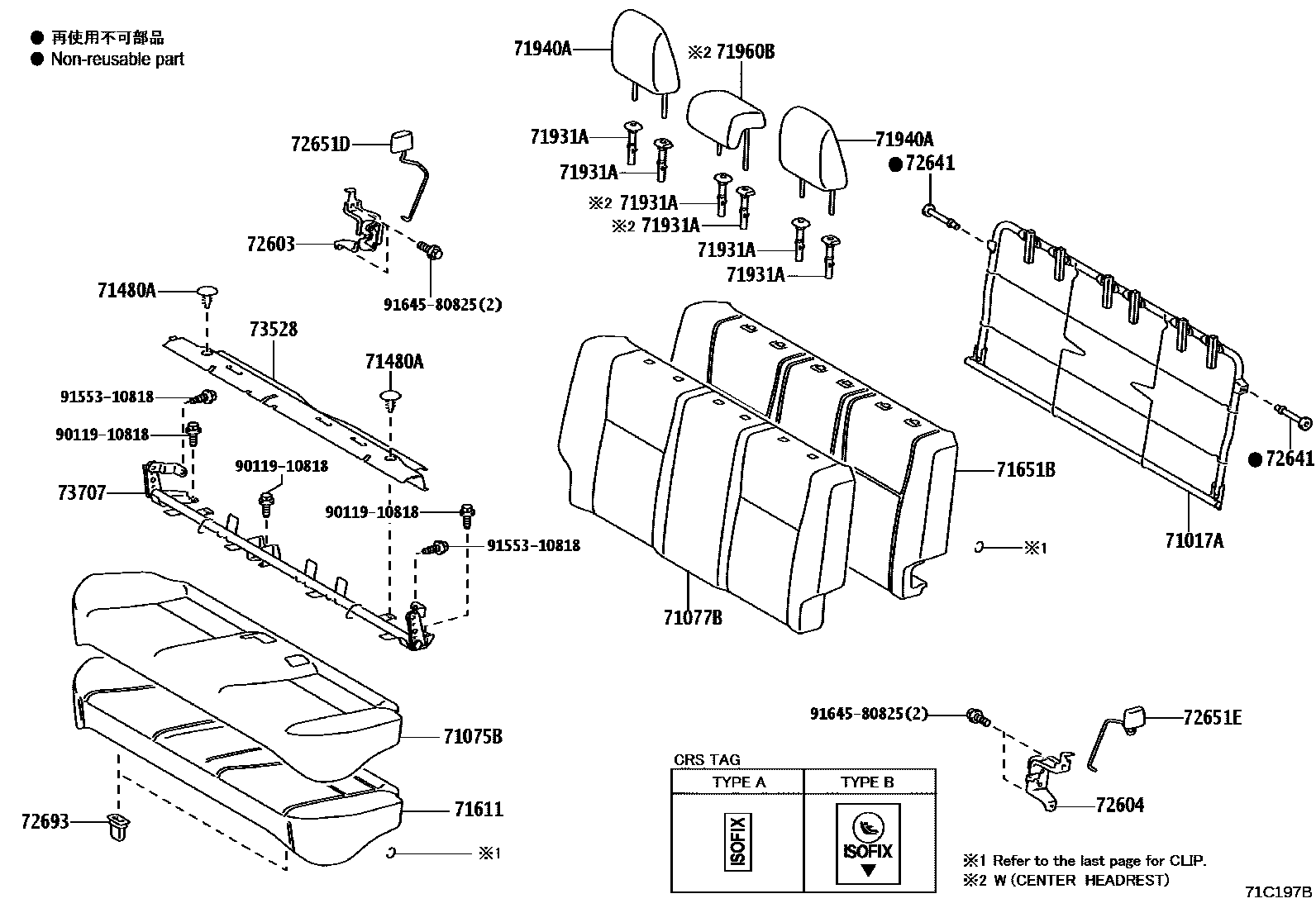

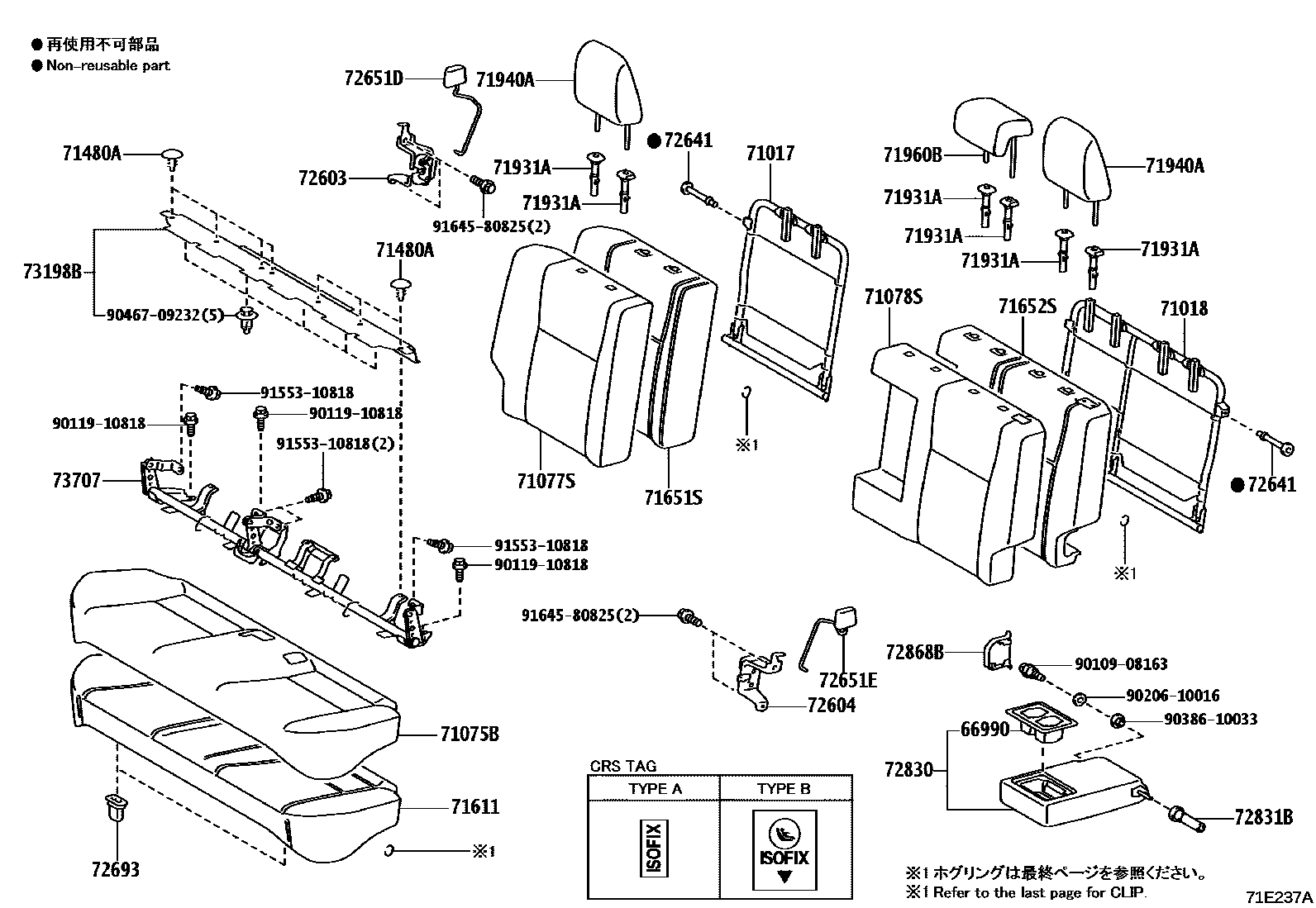

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0D700 · 71017-0D710 · 71017-0D830 |
| 71017A | Rear seat back frame sub-assembly | 71017-0D720 · 71017-0D820 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D410 · 71018-0D420 · 71018-0D430 · 71018-0D500 |
| 71611 | Rear seat cushion cushion | 71503-0D570 · 71503-0D590 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-0DA00 · 71651-0DA80 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0D880 · 71651-0D890 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0D470 · 71652-0D480 · 71652-0D490 |
| 72603 | Rear right seat back lock sub-assembly | 72630-0D080 |
| 72604 | Rear left seat back lock sub-assembly | 72640-0D080 |
| 72641 | Rear seat back lock pin | 72641-0D120 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72831B | No. 1 rear seat center armrest panel | 72831-47010 |
| 73198B | Rear seat bracket cover | 73198-0D030 |
| 73707 | Child restraint seat inner anchor bracket sub-assembly | 73705-0D500 · 73705-0D501 · 73705-0D520 · 73705-0D521 · 73705-0D640 · 73705-0D650 |
