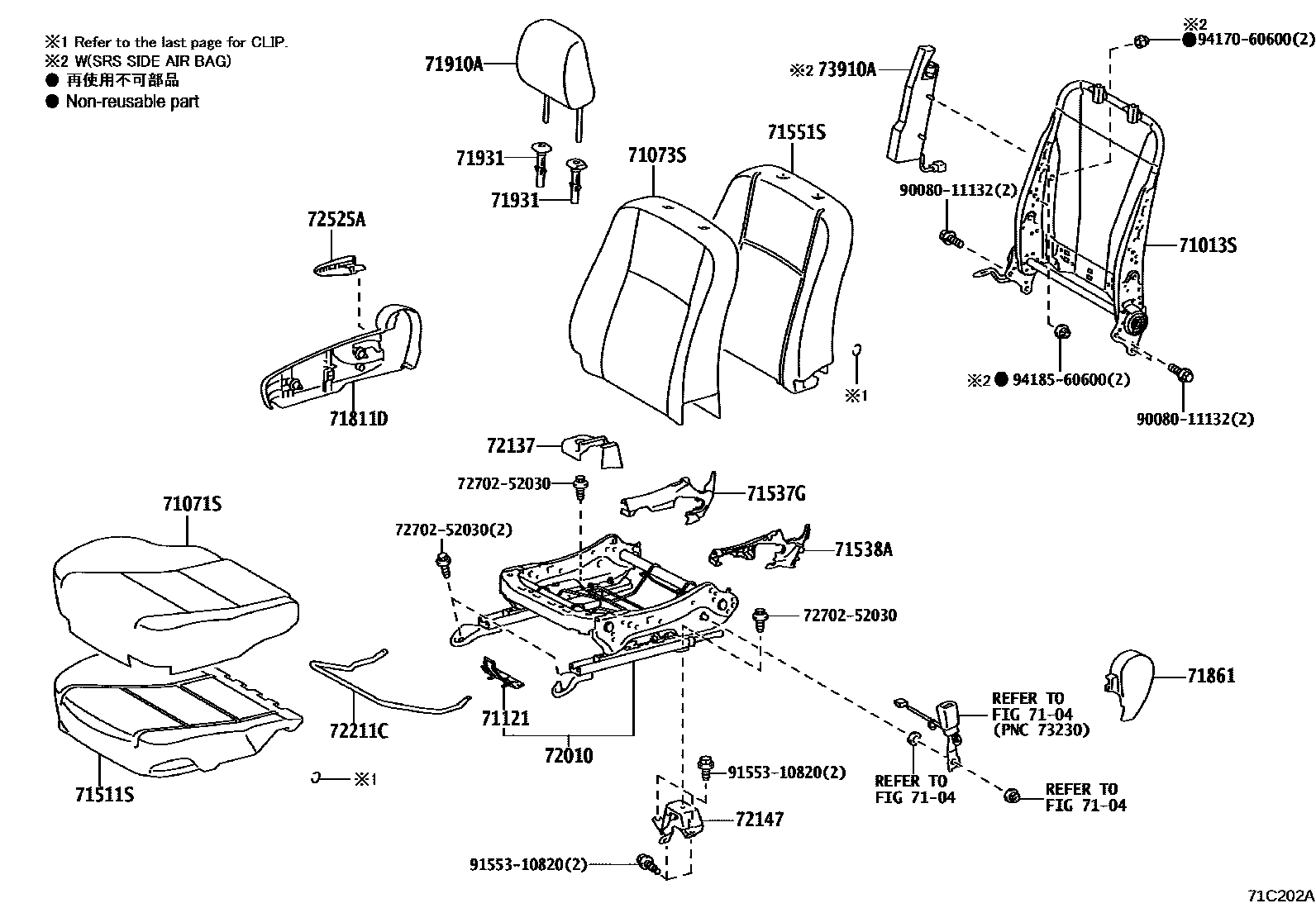

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0D350 · 71013-0D360 |
| 71014S | Front left seat back frame sub-assembly | 71014-0D310 · 71014-0D320 |
| 71121 | Front right seat cushion bracket | 71121-0D010 |
| 71122 | Front left seat cushion bracket | 71122-0D030 · 71122-0D180 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-0D100 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0D750 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D790 · 71551-0D800 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D710 · 71552-0D720 |
| 72010 | Front right seat adjuster assembly | 71011-0D220 |
| 72020 | Front left seat adjuster assembly | 72020-0D741 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D170 · 72147-0D171 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D180 · 72148-0D181 |
| 72211C | Seat slide adjustment handle | 72211-0D240 |
| 73910A | Front right seat airbag assembly | 73910-0D100 |
| 73920A | Front left seat airbag assembly | 73920-0D100 |
