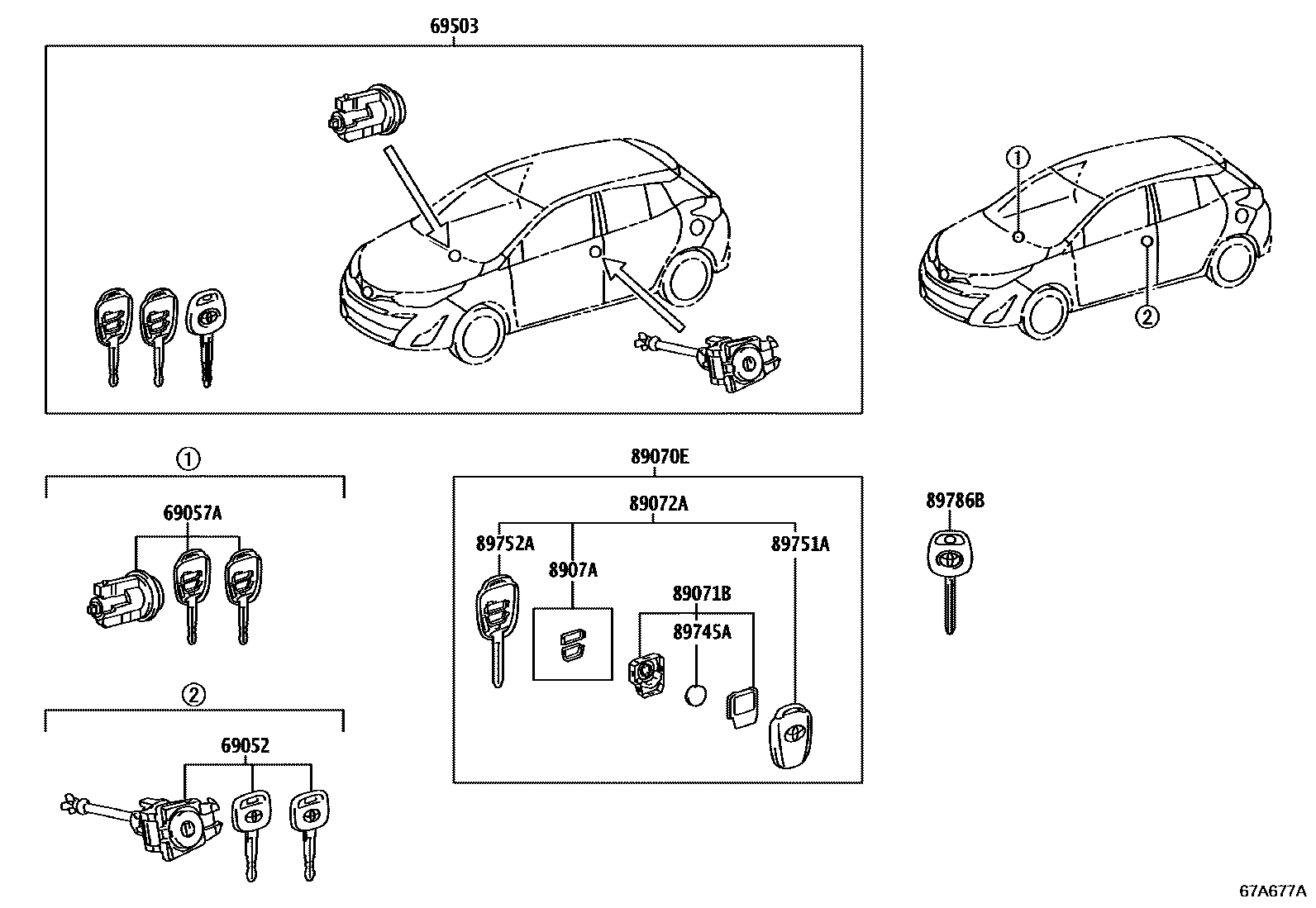

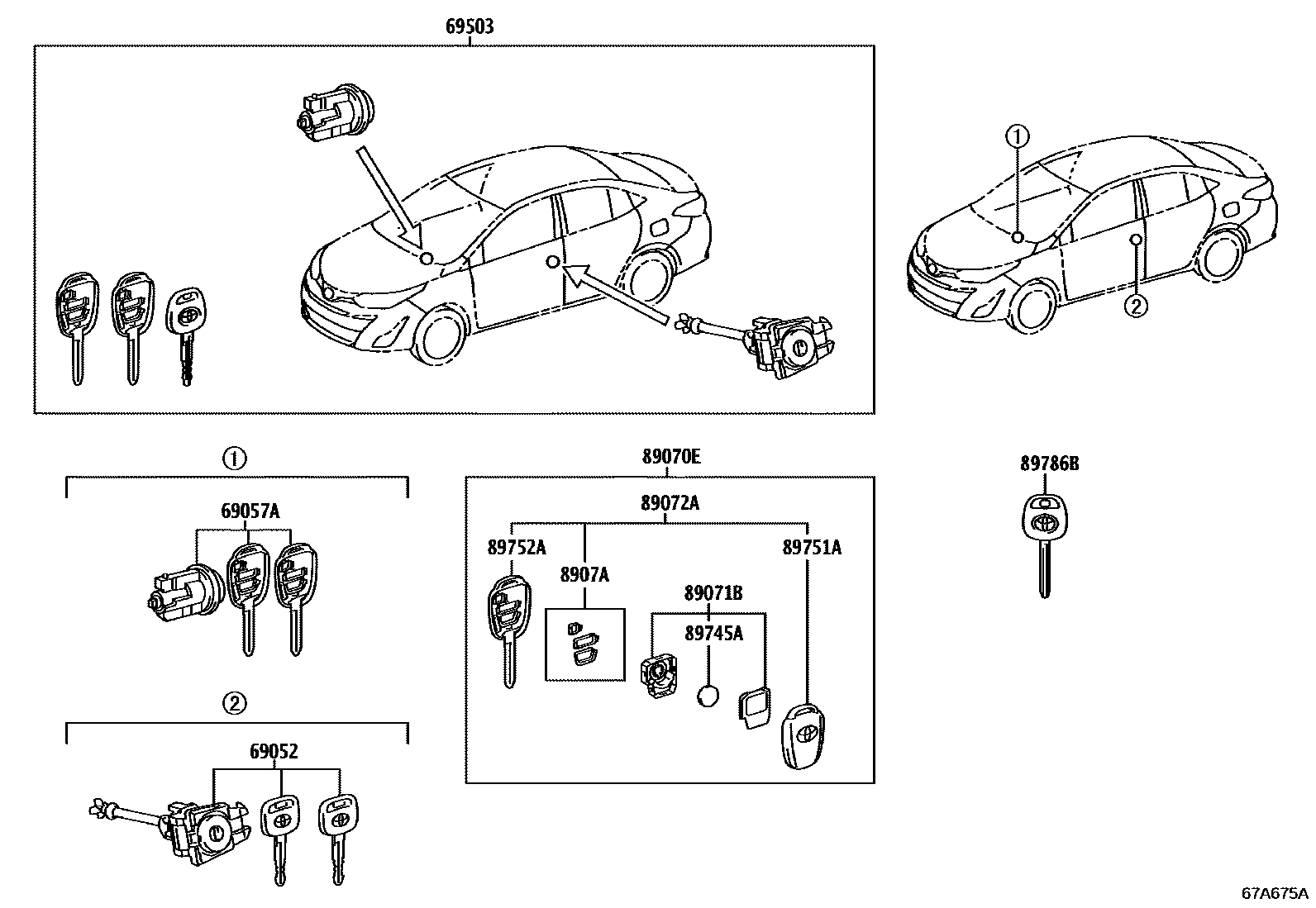

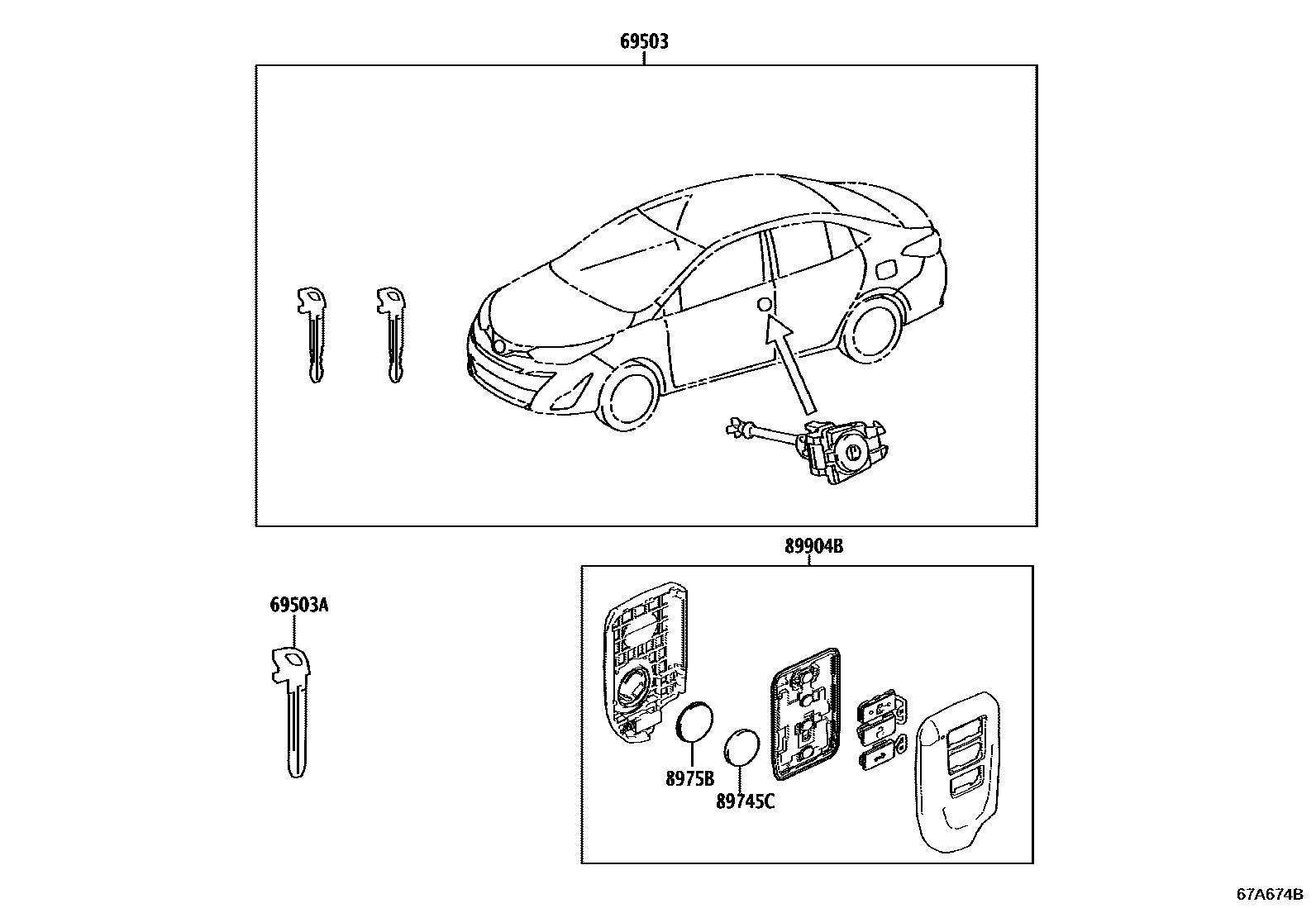

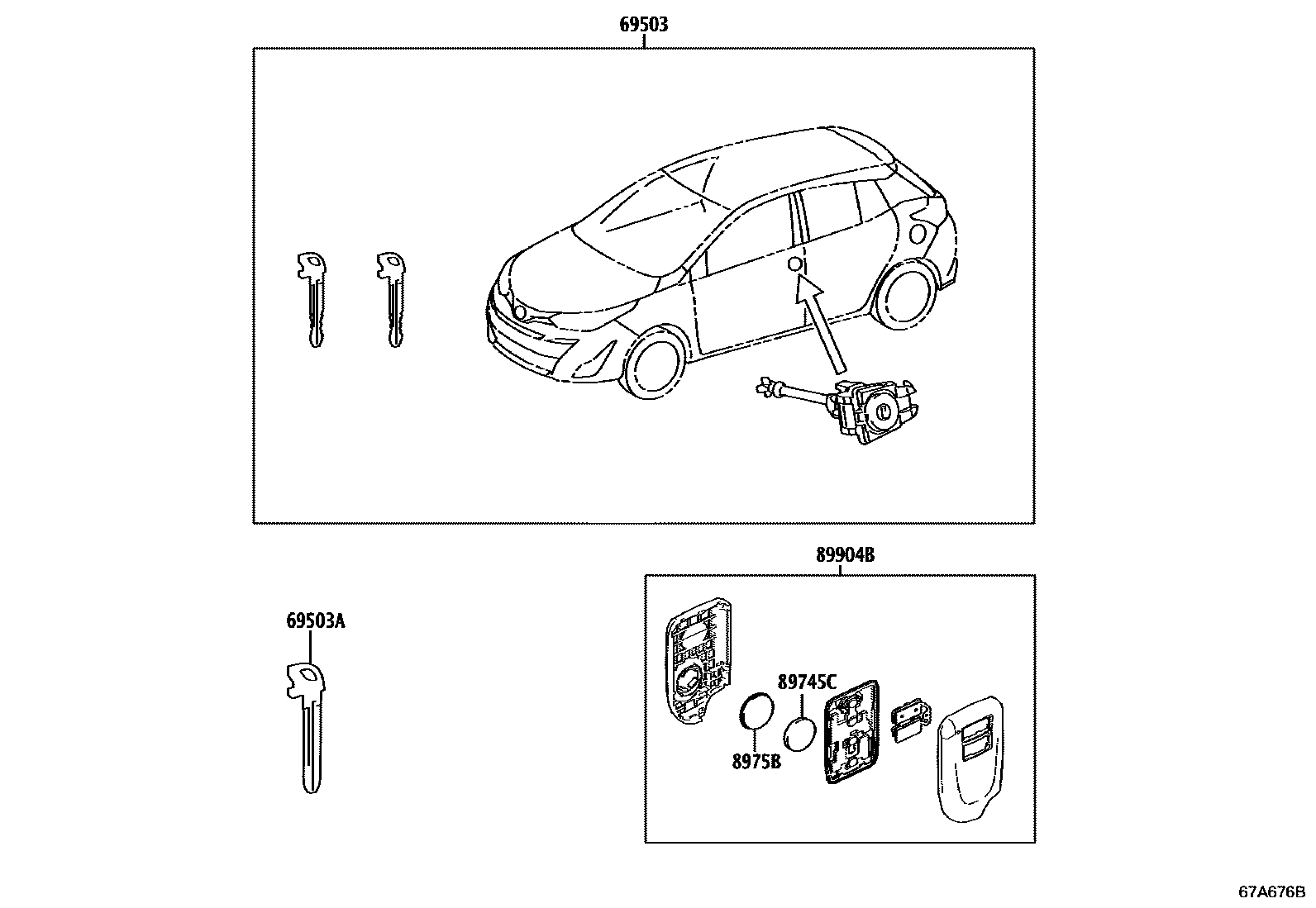

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0D340 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0DB20 · 69057-0DB30 |
| 69503 | Door lock cylinder components | 69005-0DJ20 · 69005-0DL80 · 69005-0DL90 |
| 69503A | external tooth key | 69515-52180 |
| 89070E | Remote key assembly | 89070-0DB90 · 89070-0DC11 |
| 89071B | Remote key sub-assembly module assembly | 89071-0D071 · 89071-0D200 |
| 89072A | Remote key shell assembly | 89072-0D680 · 89072-0D700 |
| 8907A | Transmitter switch assembly | 8907A-22010 · 8907A-52010 |
| 89745A | Transmitter battery | 89745-0D040 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751A | Transmitter housing cover | 89751-0D150 |
| 89752A | transmitter housing | 89752-0D120 · 89752-0D310 |
| 8975B | Remote control battery case cover | 8975B-0D010 |
| 89786B | transceiver key secondary transmitter | 89786-08040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D160 · 89904-0D200 · 89904-0D240 · 89904-0D250 |
