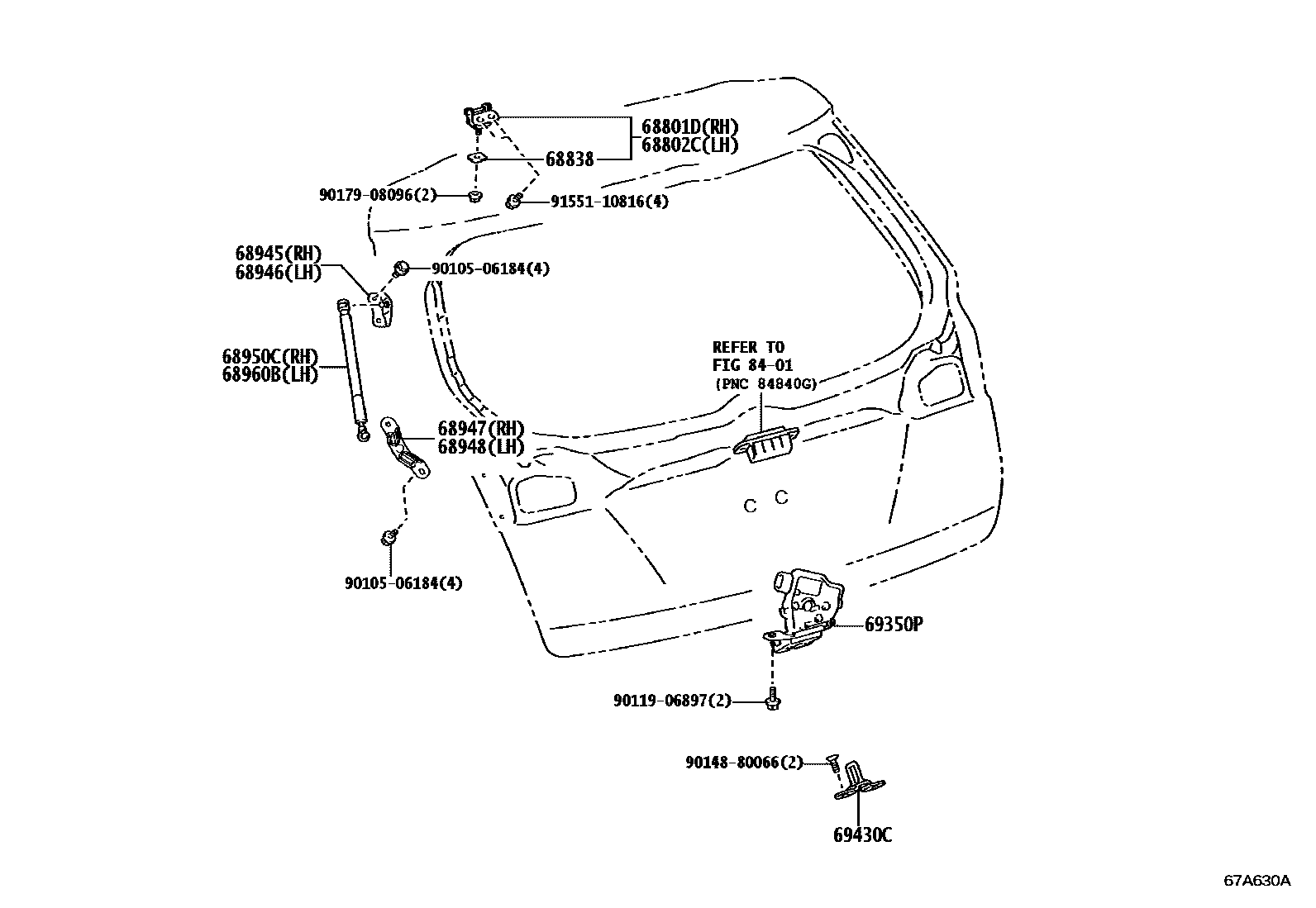

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801D | Back door right hinge sub-assembly | 68801-0D150 |
| 68802C | Back door left hinge sub-assembly | 68801-0D150 |
| 68838 | Back door hinge No. 1 gasket | 68838-0D310 · 68838-0D320 · 68838-0D330 |
| 68945 | Back door right damping stay upper bracket | 68945-0D130 |
| 68946 | Rear door left damping strut upper bracket | 68945-0D130 |
| 68947 | Back door right damping strut lower bracket | 68947-0D100 |
| 68948 | Rear door left damping strut lower bracket | 68947-0D100 |
| 68950C | Back door right support rod assembly | 68950-0D250 |
| 68960B | Back door left support rod assembly | 68960-0D210 |
| 69350P | Back door with door control light switch lock assembly | 69350-0D180 |
| 69430C | Back door lock assembly | 69430-52050 |
