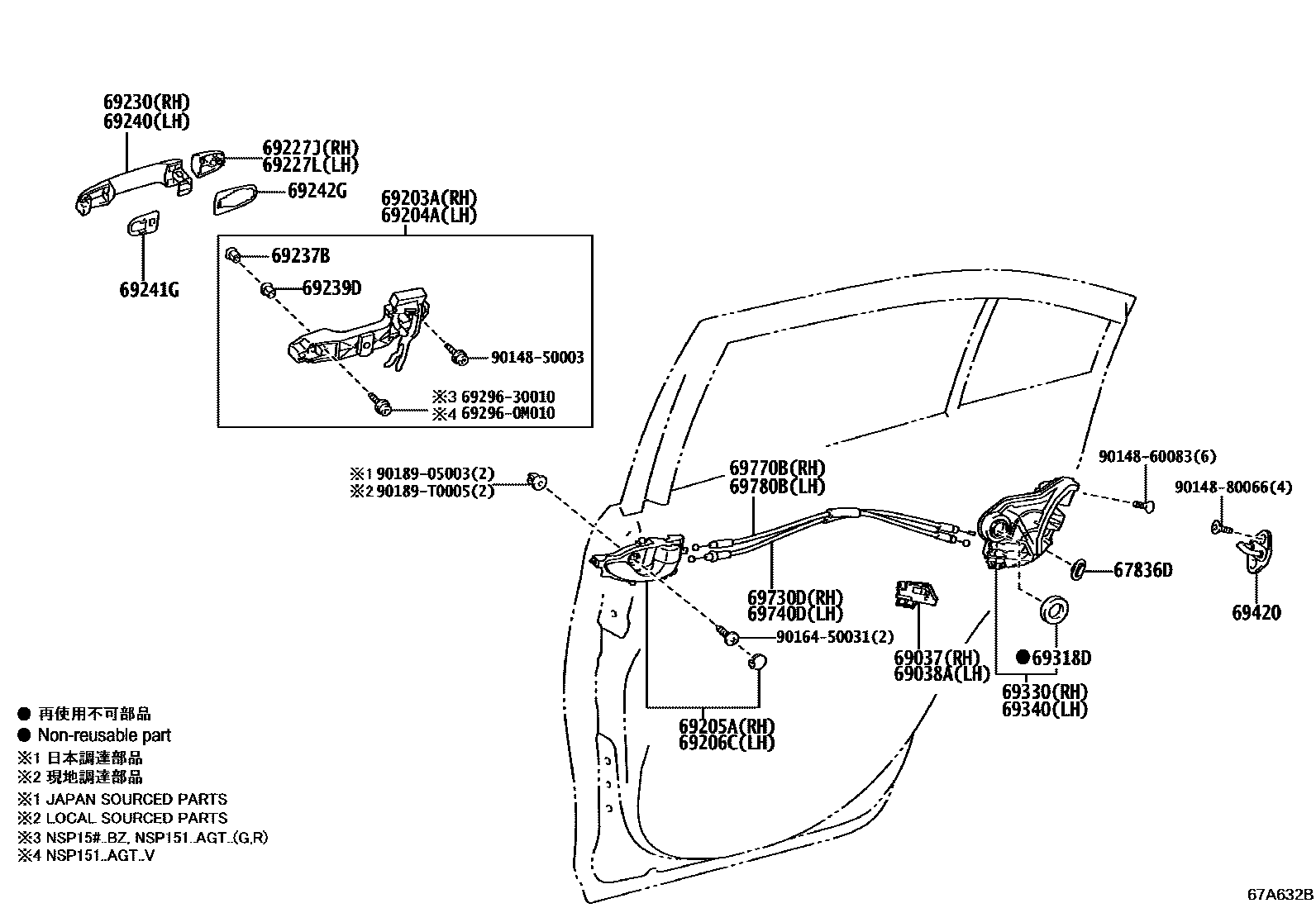

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-02030 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02010 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02010 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0D210 · 69203-0D240 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0D210 · 69204-0D240 |
| 69227J | Right rear door outer handle cover | 69227-0K200 · 69227-0K907 |
| 69227L | Left rear door outer handle cover | 69227-0K200 · 69227-0K907 |
| 69230 | Right rear door outer handle assembly | 69210-0K200 · 69210-0K903 |
| 69237B | Rear door handle nut | 69237-0K040 · 69237-0K070 |
| 69239D | Rear door handle bushing | 69239-0K070 · 69239-0K080 |
| 69240 | Left rear door outer handle assembly | 69210-0K200 · 69210-0K903 |
| 69241G | Rear door front exterior handle pad | 69241-0K060 |
| 69242G | Rear door rear outer handle pad | 69242-0K050 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-02400 |
| 69340 | Left rear door lock assembly | 69060-02400 |
| 69420 | Rear door lock plate assembly | 69410-02090 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0D310 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0D310 |
| 69770B | Right rear door inner lock cable assembly | 69770-0D250 |
| 69780B | Left rear door inner lock cable assembly | 69770-0D250 |
