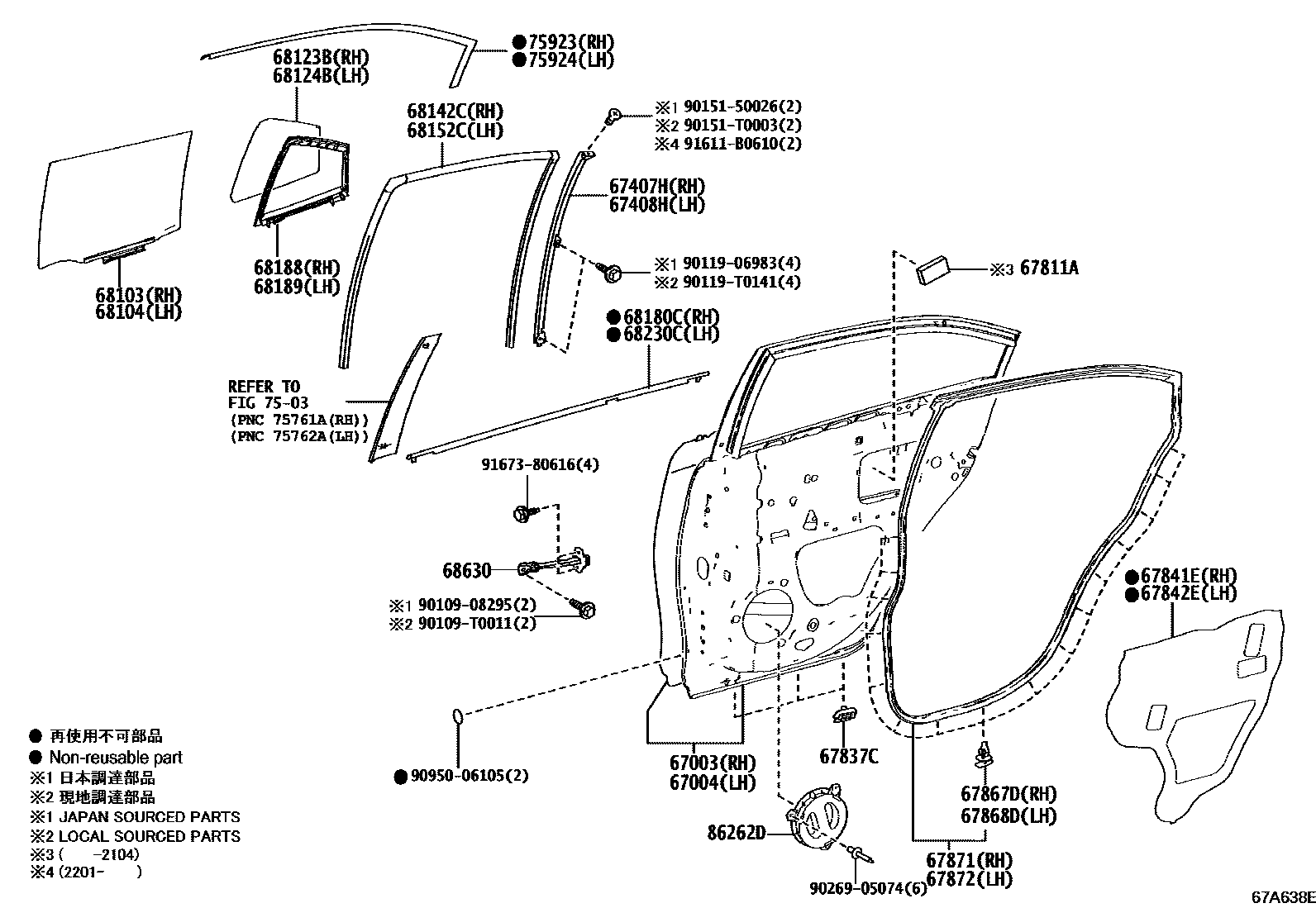

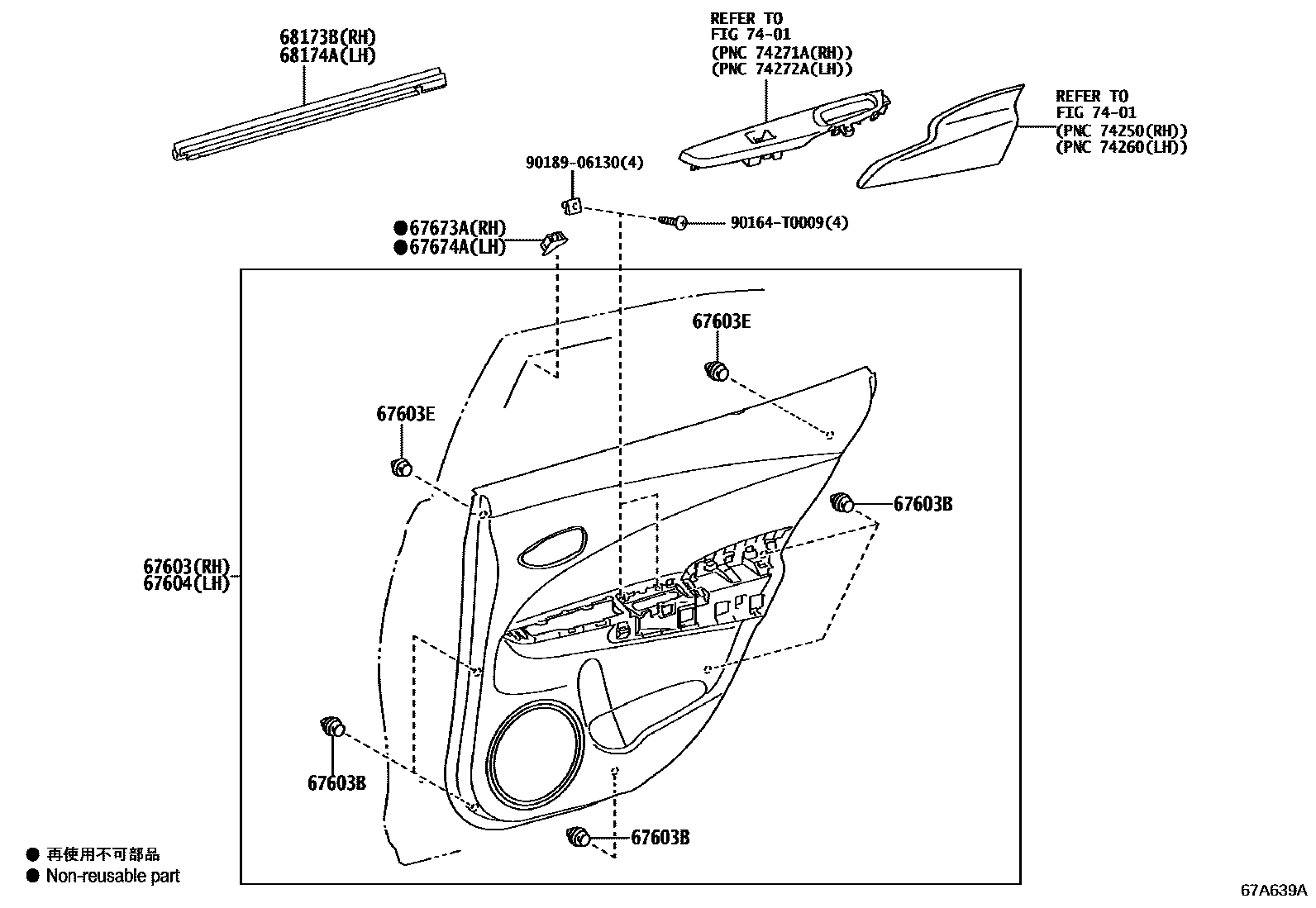

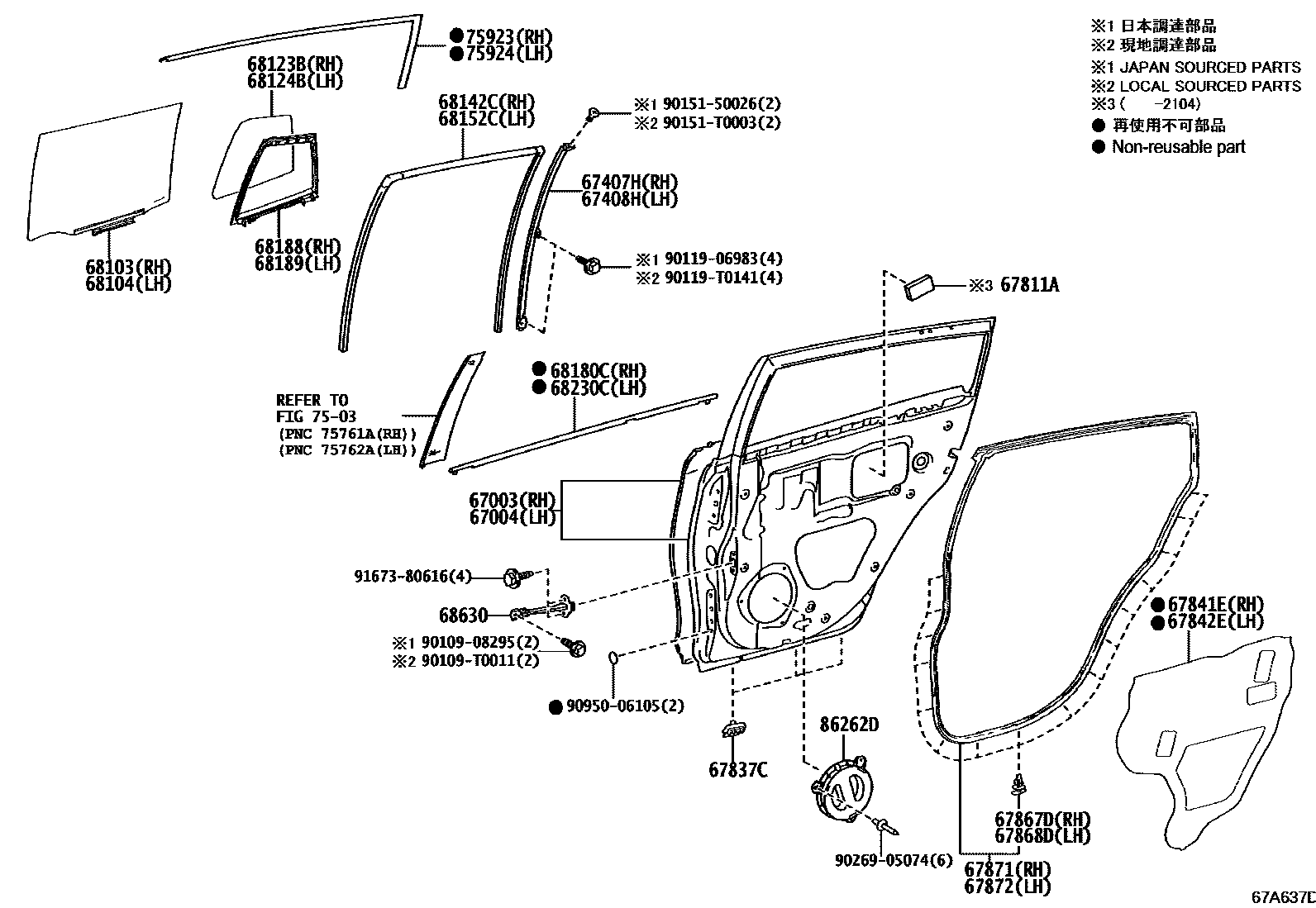

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0D450 · 67003-0D510 |
| 67004 | Left rear door panel sub-assembly | 67004-0D450 · 67004-0D510 |
| 67407H | Right sliding door window divider sub-assembly | 67407-0D270 · 67407-0D320 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-0D270 · 67408-0D320 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67603E | Catch (for rear door trim panel) | 90467-10161 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67811A | Rear door silencer pad | 67811-02380 |
| 67837C | Rear door dust seal retainer | 67837-0K092 |
| 67841E | Right rear door access hole cover | 67841-0D480 · 67841-0D520 |
| 67842E | Left rear door access hole cover | 67842-0D480 · 67842-0D520 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-0D290 · 67871-0D330 |
| 67872 | Left rear door sealing strip | 67872-0D290 · 67872-0D330 |
| 68103 | Right rear door glass sub-assembly | 68130-0D510 · 68130-0D511 · 68130-0D560 · 68130-0D561 |
| 68104 | Left rear door glass sub-assembly | 68140-0D510 · 68140-0D511 · 68140-0D560 · 68140-0D561 |
| 68123B | Right rear door corner window glass | 68123-0D370 · 68123-0D371 · 68123-0D420 · 68123-0D421 |
| 68124B | Left rear door corner window glass | 68124-0D370 · 68124-0D371 · 68124-0D420 · 68124-0D421 |
| 68142C | Right rear door glass lift slot | 68142-0D330 · 68142-0D390 |
| 68152C | Left rear door glass lift slot | 68152-0D290 · 68152-0D350 |
| 68173B | Right rear door glass inner sealing strip | 68173-0D290 |
| 68174A | Left rear door glass inner sealing strip | 68174-0D290 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-0D460 |
| 68188 | Right rear door corner window seal | 68188-0D280 · 68188-0D330 |
| 68189 | Left rear door corner window seal | 68189-0D280 · 68189-0D330 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-0D460 |
| 68630 | Rear door opening limiter assembly | 68630-0D170 |
| 75923 | No. 2 right side light-shielding film | 75923-0D330 · 75923-0D370 |
| 75924 | No. 2 left shading film | 75924-0D330 · 75924-0D370 |
| 86262D | Rear door speaker cover | 86262-12030 |
