Toyota YARIS 前门锁和车门把手 — Figure 6703

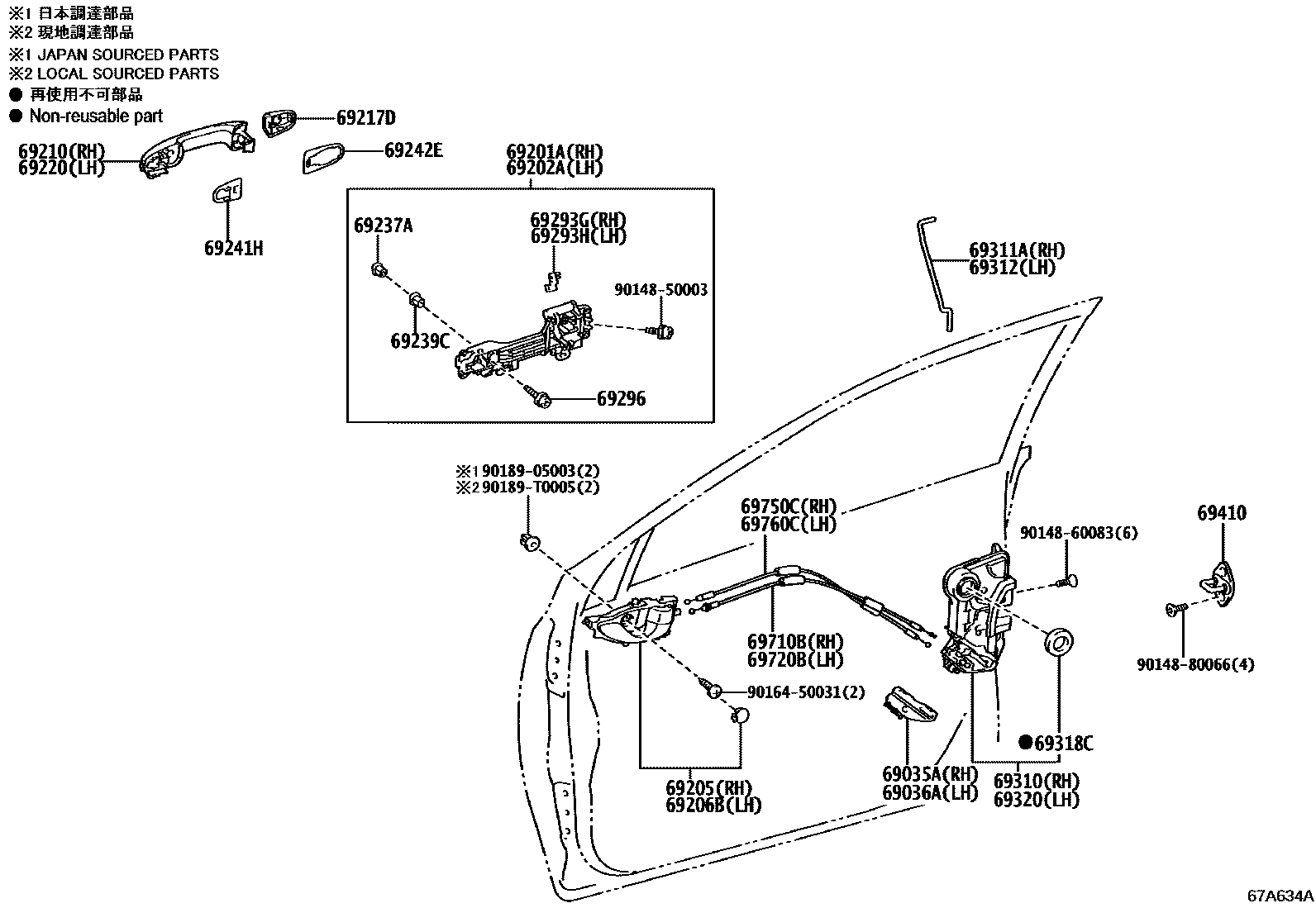

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69035A | Right front door lock cover sub-assembly | 69035-02010 |
| 69036A | Left front door lock cover sub-assembly | 69036-02010 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0K061 · 69201-0K080 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0K061 · 69202-0K080 |
| 69210 | Right front door outer handle assembly | 69210-0K200 · 69210-0K903 |
| 69217D | Front door outer handle cover | 69217-0K370 · 69217-0K380 · 69217-0K909 · 69217-0K913 · 69217-0K914 · 69217-0K919 |
| 69220 | Left front door outer handle assembly | 69210-0D140 · 69210-0K903 |
| 69237A | Front door handle nut | 69237-0K040 · 69237-0K070 |
| 69239C | Front door handle bushing | 69239-0K070 · 69239-0K080 |
| 69241H | Front door exterior handle pad | 69241-0K060 |
| 69242E | Front door rear outer handle pad | 69242-0K050 |
| 69293G | Right front door outer handle buckle | 69293-12030 · 69293-33010 |
| 69293H | Left front door outer handle buckle | 69293-12040 · 69293-33020 |
| 69296 | Car door inner handle screws | 69296-0M010 · 69296-30010 |
| 69310 | Right front door lock assembly | 69030-02530 |
| 69311A | Right front door lock opening lever | 69311-0D270 |
| 69312 | Left front door lock opening lever | 69312-0D270 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02510 |
| 69410 | Front door lock plate assembly | 69410-02090 |
| 69710B | Right front door lock remote control cable assembly | 69710-0D320 |
| 69720B | Left front door lock remote control cable assembly | 69710-0D320 |
| 69750C | Right front door inner lock cable assembly | 69750-0D260 |
| 69760C | Left front door inner lock cable assembly | 69750-0D260 |
