Toyota YARIS 底板和底板装饰罩 — Figure 6404

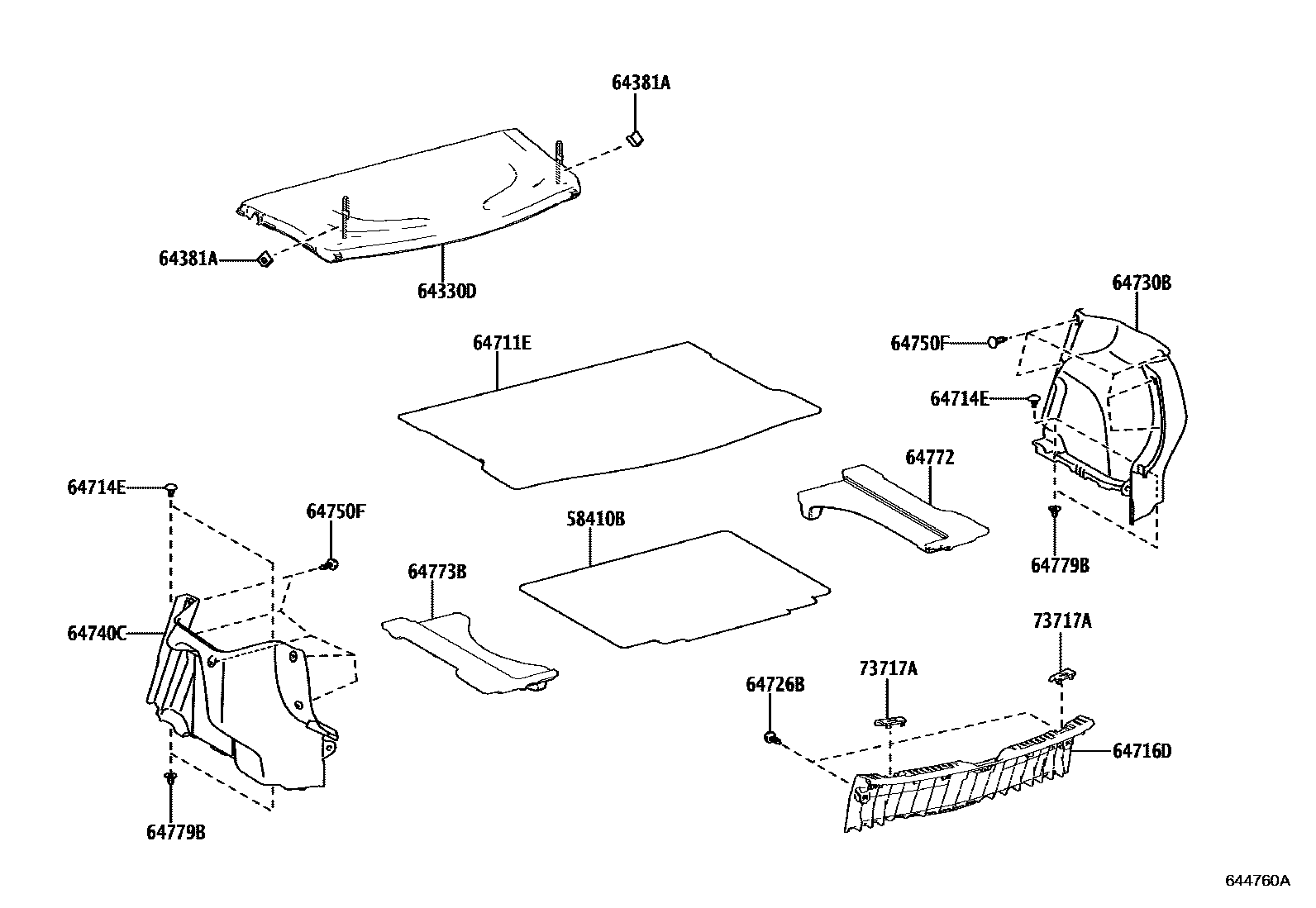

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58410B | Base plate assembly | 58410-0D160 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64714E | Clip (for bottom panel side decorative cover) | 64726-0D020 |
| 64716D | Rear floor decorative cover | 64716-0D260 |
| 64772 | Spare tire cover liner | 64772-0D170 · 64772-0D190 |
| 64773B | No. 2 spare tire cover liner | 64773-0D110 · 64773-0D130 |
| 64779B | Spare tire cover stop | 64779-0D050 |
| 73717A | Child restraint seat tether anchor cover | 73717-0D110 · 73717-0D111 · 73717-0D120 · 73717-0D121 |
