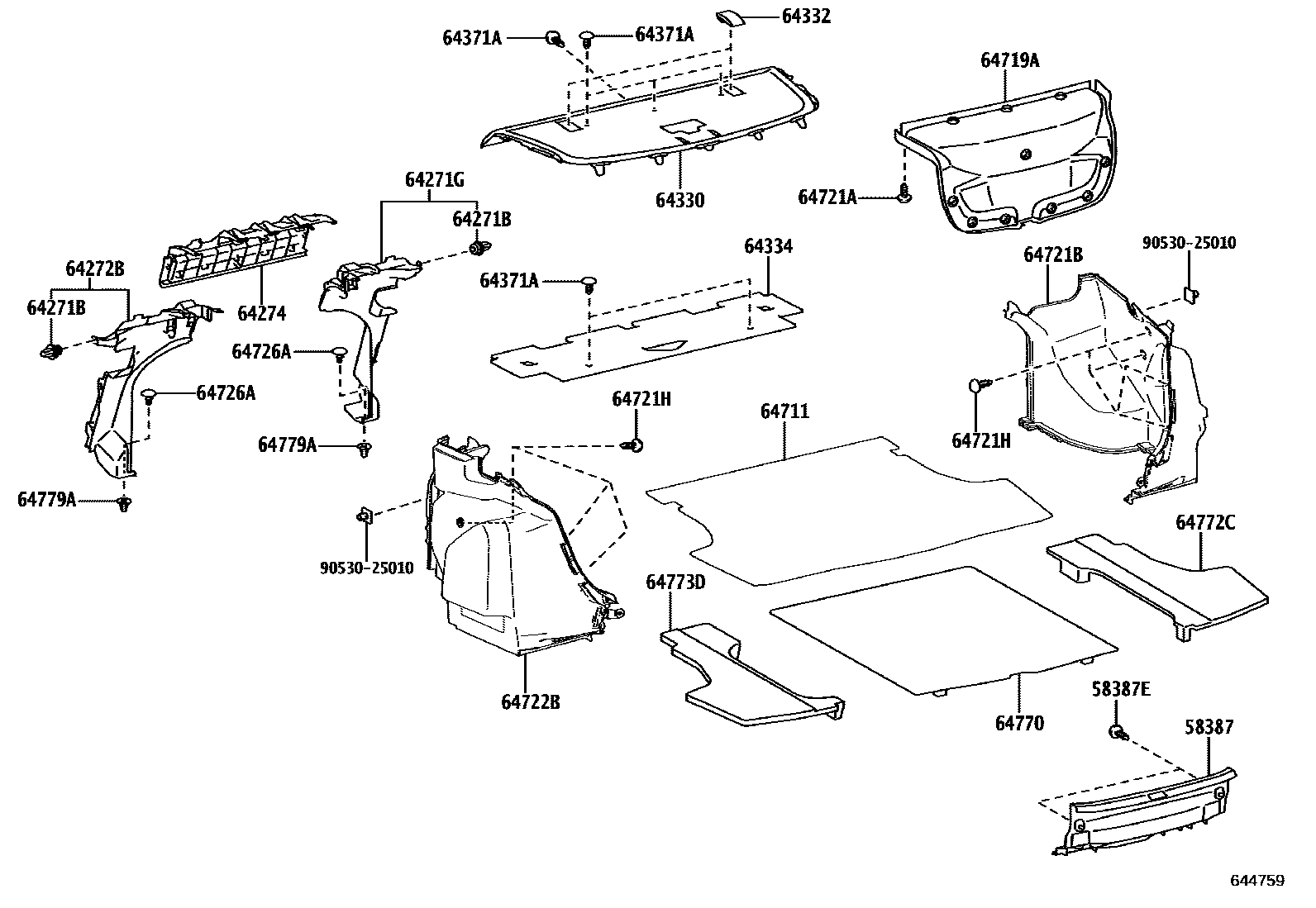

Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403
Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-0D240 |
| 64271B | Clip (for compartment partition) | 90467-10161 |
| 64271G | Right compartment partition | 64271-0D120 |
| 64272B | Left compartment partition | 64272-0D110 |
| 64274 | Car Partition Decorative Mat No. 1 | 64275-0D250 |
| 64334 | Glove box decorative panel muffler pad | 64334-0D390 · 64334-0D500 |
| 64726A | Luggage rear trim clip | 64726-0D020 |
| 64770 | Spare tire cover assembly | 64770-0D370 |
| 64772C | Spare tire cover liner | 64772-0D180 |
| 64773D | No. 2 spare tire cover | 64773-0D120 |
| 64779A | Spare tire cover stop | 64779-0D050 |
