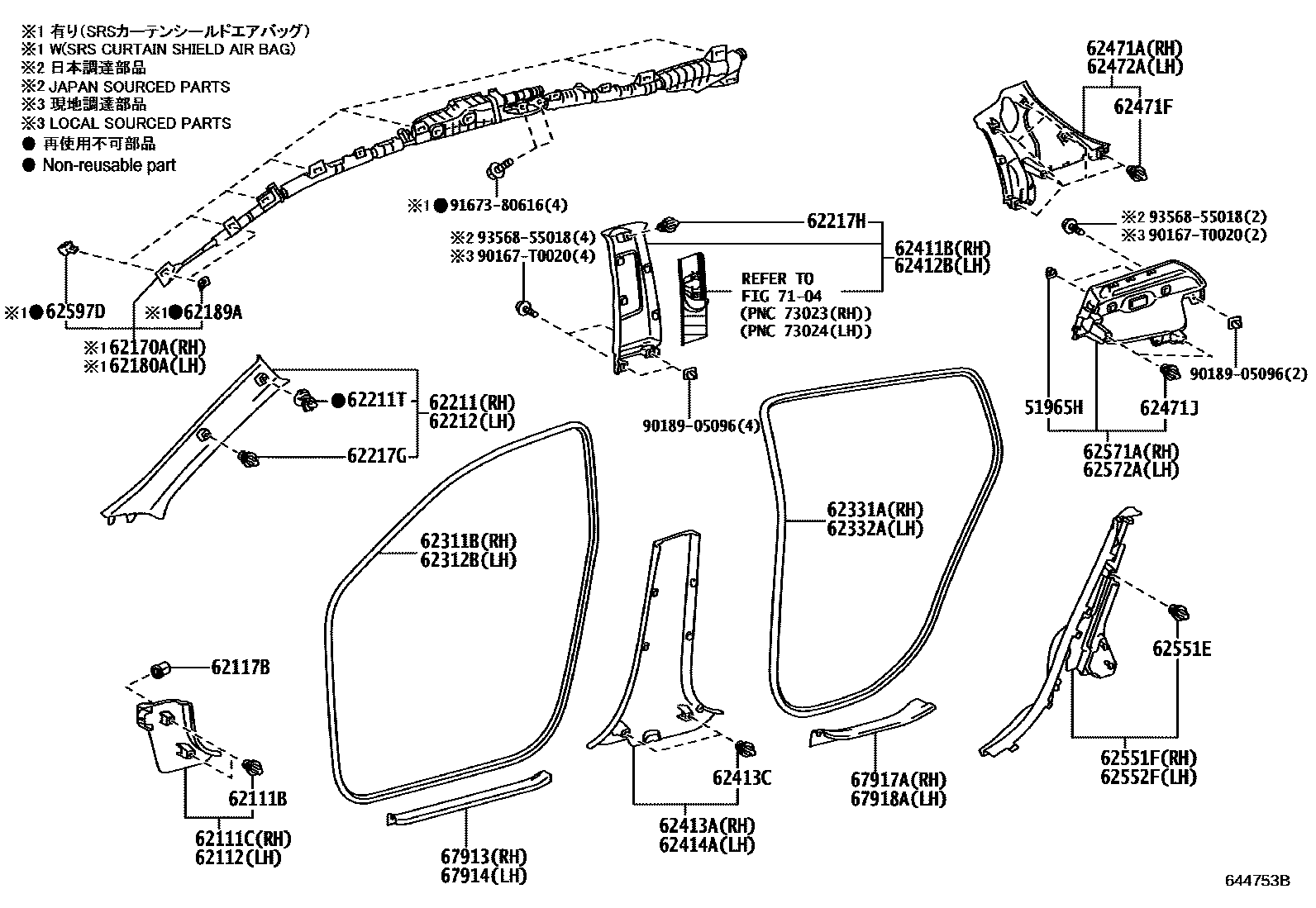

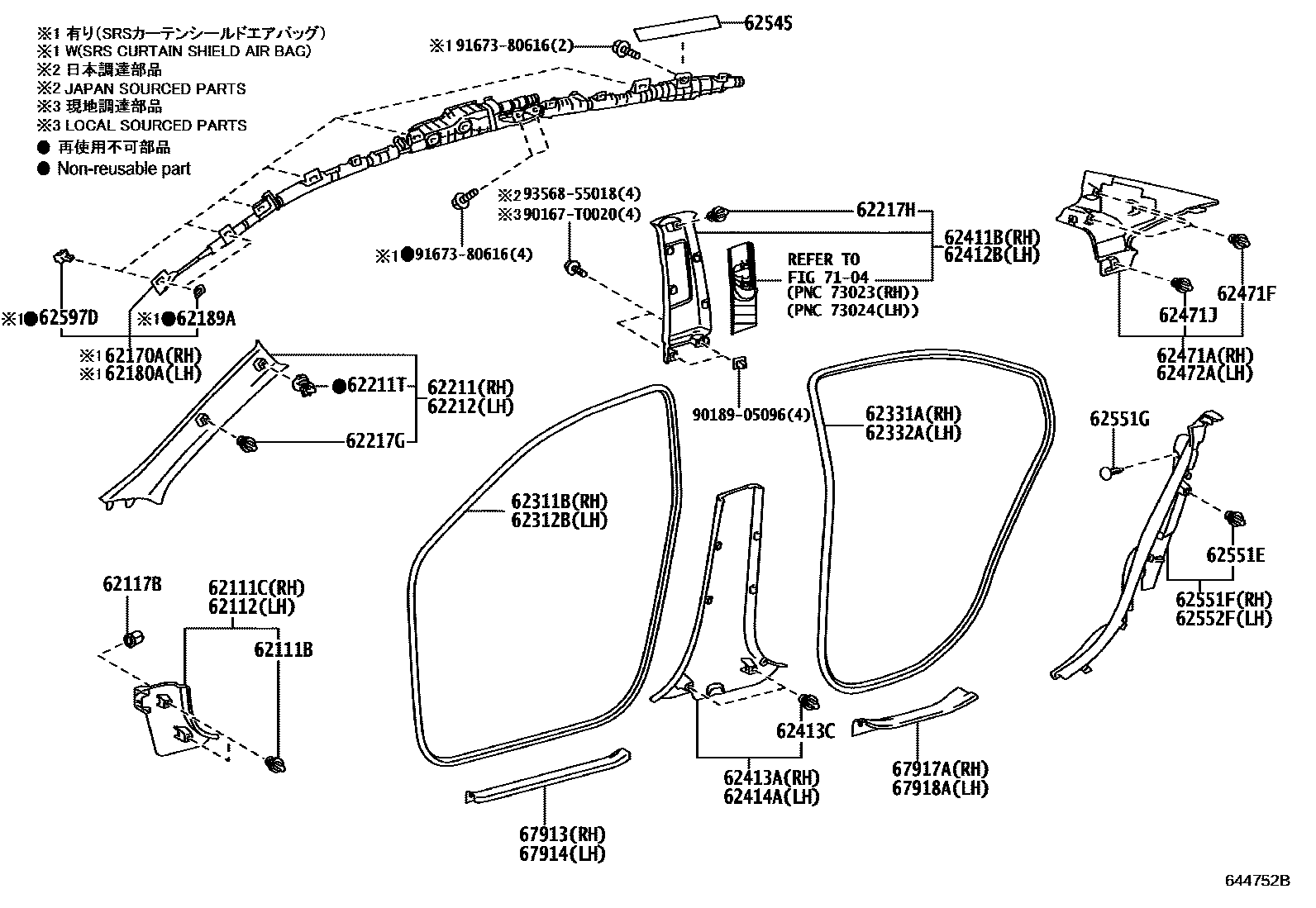

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 62489-0E010 · 90467-10161 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-0D080 · 62170-0D090 |
| 62180A | Left curtain air bag assembly | 62180-0D080 · 62180-0D090 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211T | Clip (for front pillar decorative panel) | 62217-52120 · 62489-0E010 |
| 62217G | Front pillar decorative plate clip | 62489-0E010 |
| 62217H | Center pillar decorative plate clip | 90467-10188 |
| 62311B | Right front door opening waterproof tape | 62311-0D340 · 62311-0D360 |
| 62312B | Left front door opening waterproof tape | 62312-0D320 · 62312-0D430 |
| 62331A | Right rear door opening waterproof tape | 62331-0D410 · 62331-0D420 · 62331-0D430 · 62331-0D440 |
| 62332A | Left rear door opening waterproof tape | 62332-0D410 · 62332-0D420 · 62332-0D430 · 62332-0D440 |
| 62413C | Clip (for the decorative panel under the center pillar) | 62489-0E010 · 90467-10161 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 62489-0E010 · 90467-10161 · 90467-10167 |
| 62545 | No. 1 side decorative part muffler part | 62545-0D010 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10188 |
| 62597D | clip | 90467-18017 |
