Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

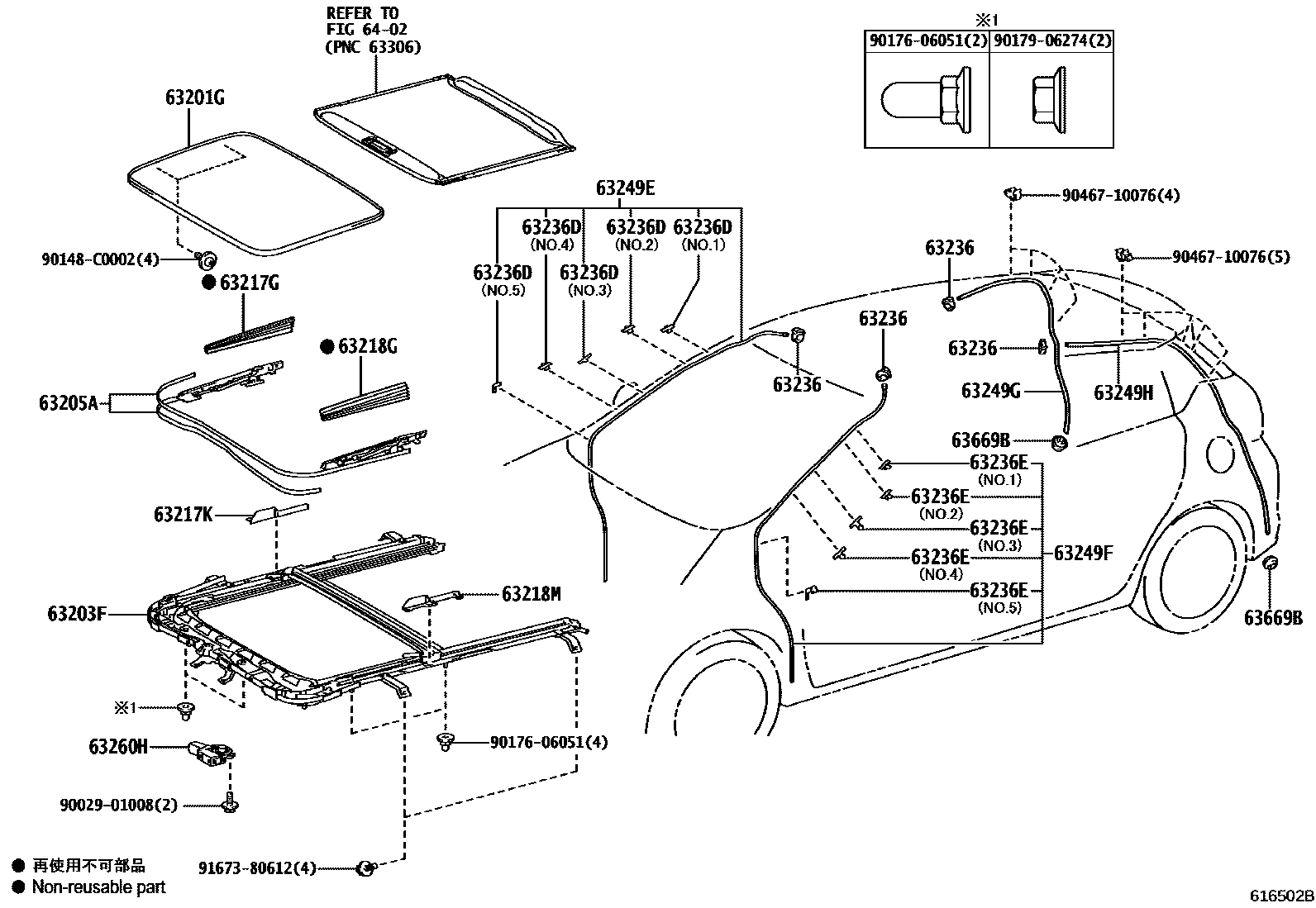

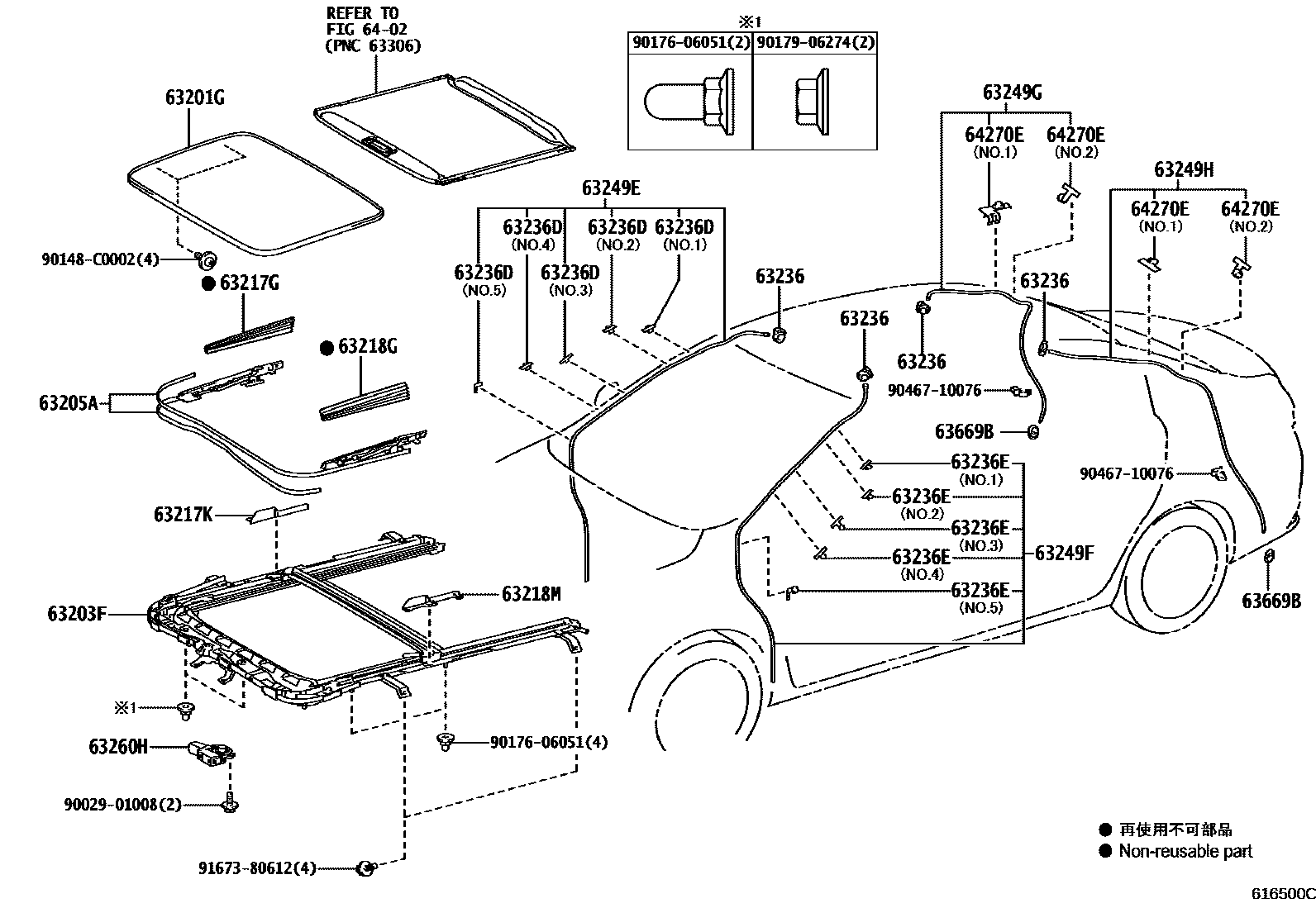

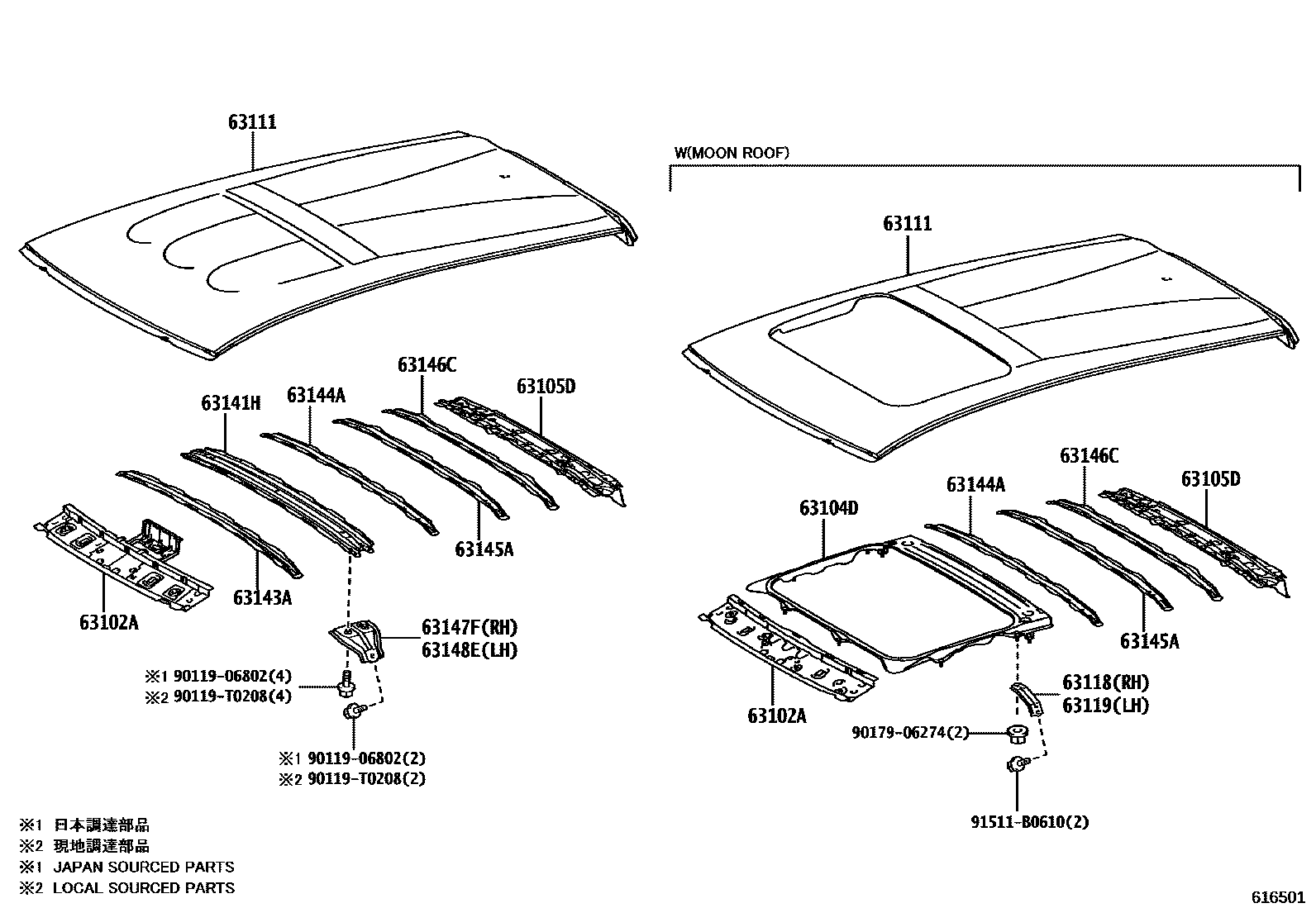

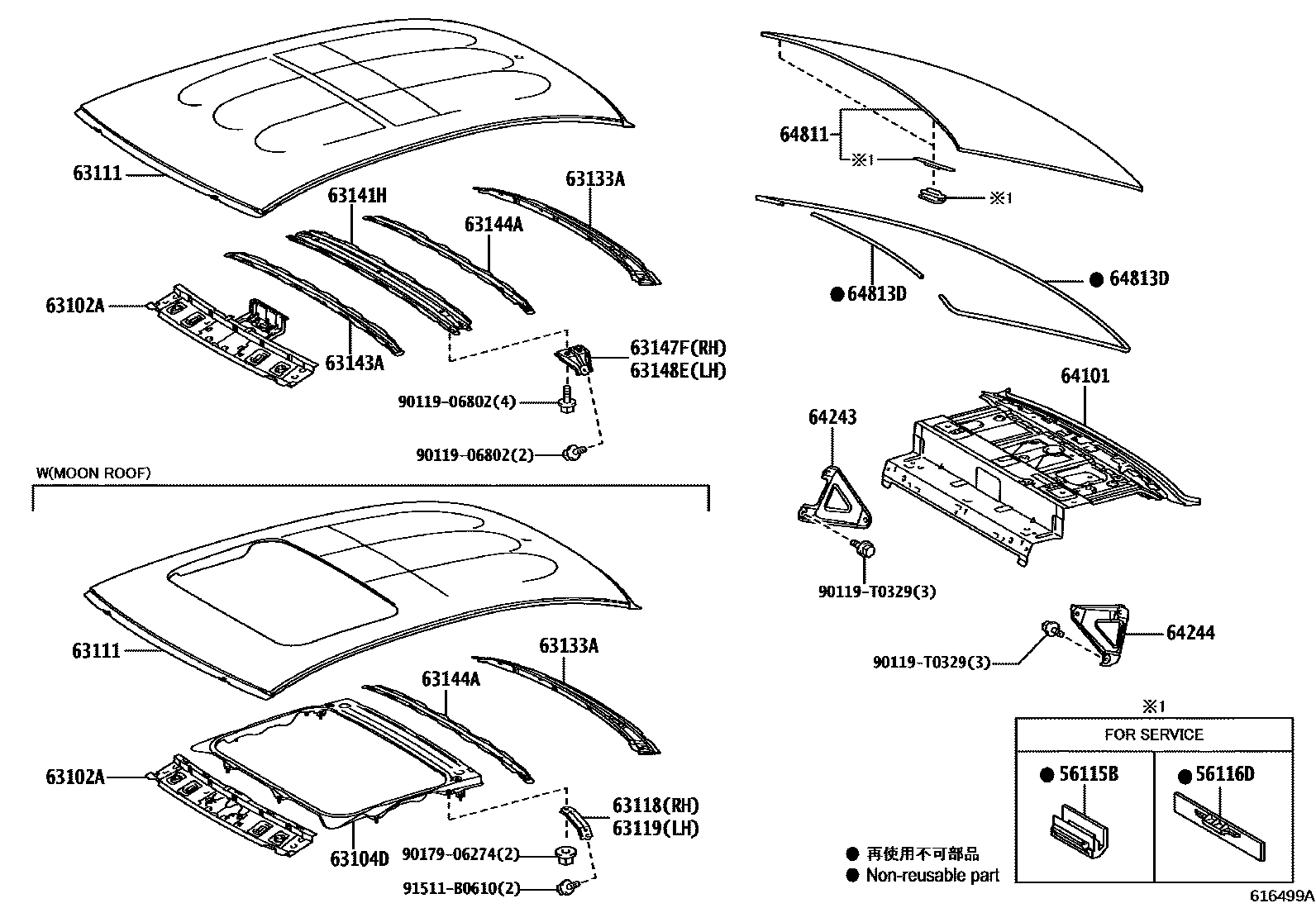

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-0D260 · 63132-0D250 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-0D060 |
| 63105D | Rear window upper frame sub-assembly | 63105-0D190 |
| 63111 | roof panel | 63111-K0090 · 63111-K0110 · 63111-K0120 · 63111-K0140 |
| 63118 | Right roof panel bracket | 63118-0D030 |
| 63119 | Left roof panel bracket | 63118-0D030 |
| 63133A | upper frame of back window | 63133-0D170 |
| 63141H | Center roof panel reinforcement | 63141-0D240 |
| 63143A | Roof panel reinforcement | 63143-0D220 |
| 63144A | No. 4 roof panel reinforcement | 63144-0D200 · 63144-0D230 |
| 63145A | No. 5 roof panel reinforcement | 63145-0D130 |
| 63146C | No. 6 roof panel reinforcement sub-assembly | 63148-0D080 |
| 63147F | Right roof panel reinforcement bracket | 63147-0D130 |
| 63148E | Left roof panel reinforcement bracket | 63147-0D130 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0D050 · 63201-0D051 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0D040 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-0D031 |
| 63217G | Right sliding sunroof trim | 63217-30100 |
| 63217K | Right sliding sunroof trim | 63217-0D030 |
| 63218G | Sliding sunroof trim, left | 63217-30100 |
| 63218M | Sliding sunroof trim, left | 63218-0D010 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-33030 |
| 63236D | Sliding skylight drain hose clamp | 63236-12010 · 82711-1E450 · 82711-34470 |
| 63236E | Sliding skylight drain hose clamp | 63236-12010 · 82711-1E450 · 82711-34480 · 82711-48220 |
| 63249E | Sliding skylight drain hose | 63249-52170 |
| 63249F | Sliding skylight drain hose | 63249-52220 |
| 63249G | Sliding skylight drain hose | 63249-52230 · 63249-52250 |
| 63249H | Sliding skylight drain hose | 63249-52240 · 63249-52250 |
| 63260H | Sliding sunroof driving gear assembly | 63260-0D060 |
| 63669B | Sliding skylight drain seal | 90480-01695 · 90480-26020 |
| 64101 | Upper back panel sub-assembly | 64101-0D250 |
| 64243 | No. 2 right compartment partition | 64243-0D050 |
| 64244 | No. 2 left compartment partition | 64244-0D050 |
| 64270E | clip | 63236-12010 · 82711-44050 · 82711-47080 |
| 64811 | back window glass | 64801-0D310 · 64801-0D311 |
| 64813D | Back window glass adhesive seal | 56117-64010 |
