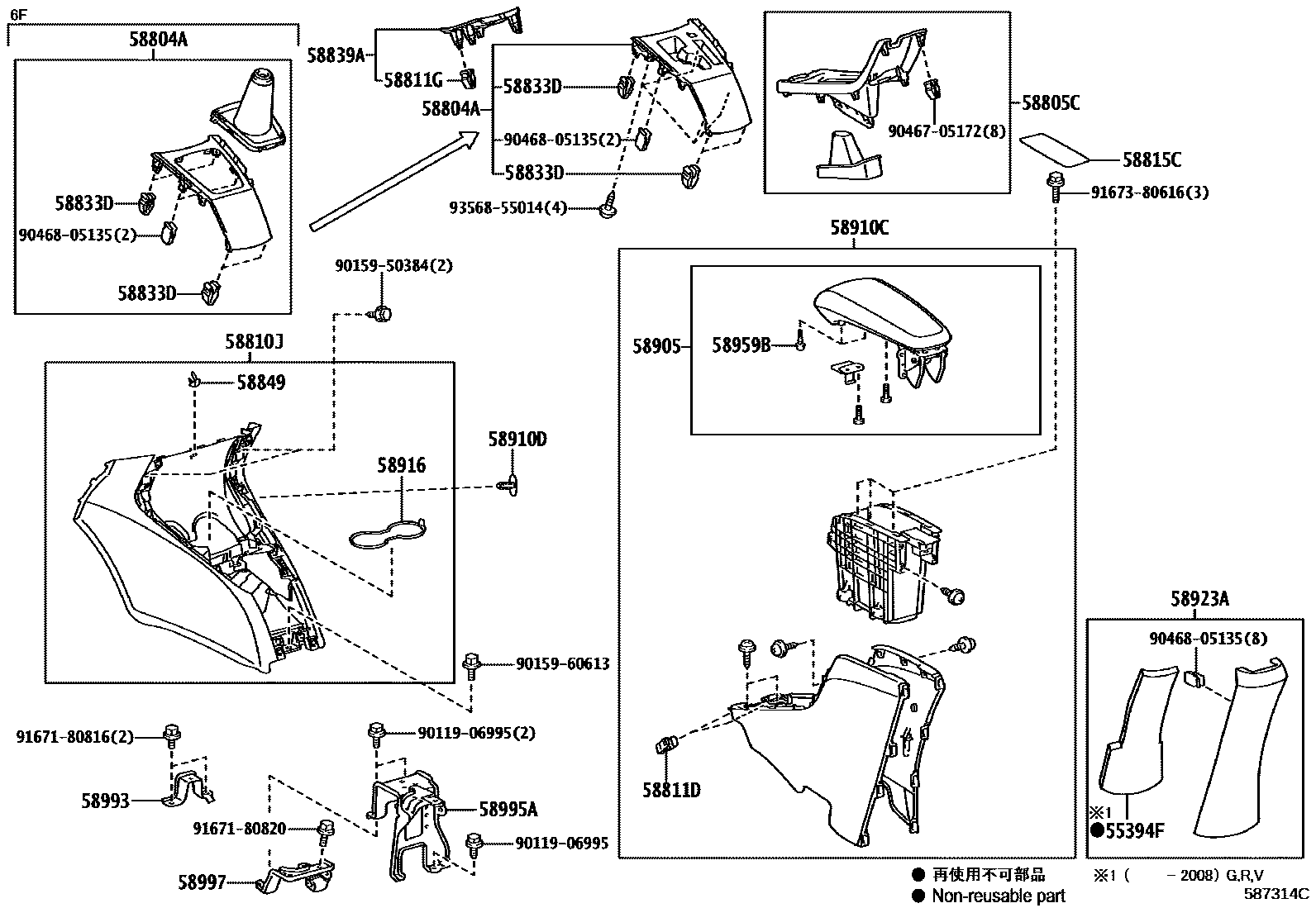

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55394F | Under-dash cushion | 55394-0D160 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0D620 · 58804-0D621 · 58804-0D630 · 58804-0D631 · 58804-0D650 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58811G | Clip (armrest box) | 90467-05172 |
| 58815C | Armrest box felt pad | 58815-0D380 |
| 58833D | Clip (for armrest box cover) | 90467-05172 |
| 58916 | Armrest box bottom pad | 58916-0D170 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58993 | Armrest box rear mounting bracket | 58993-0D030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-0D190 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-0D110 |
