Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

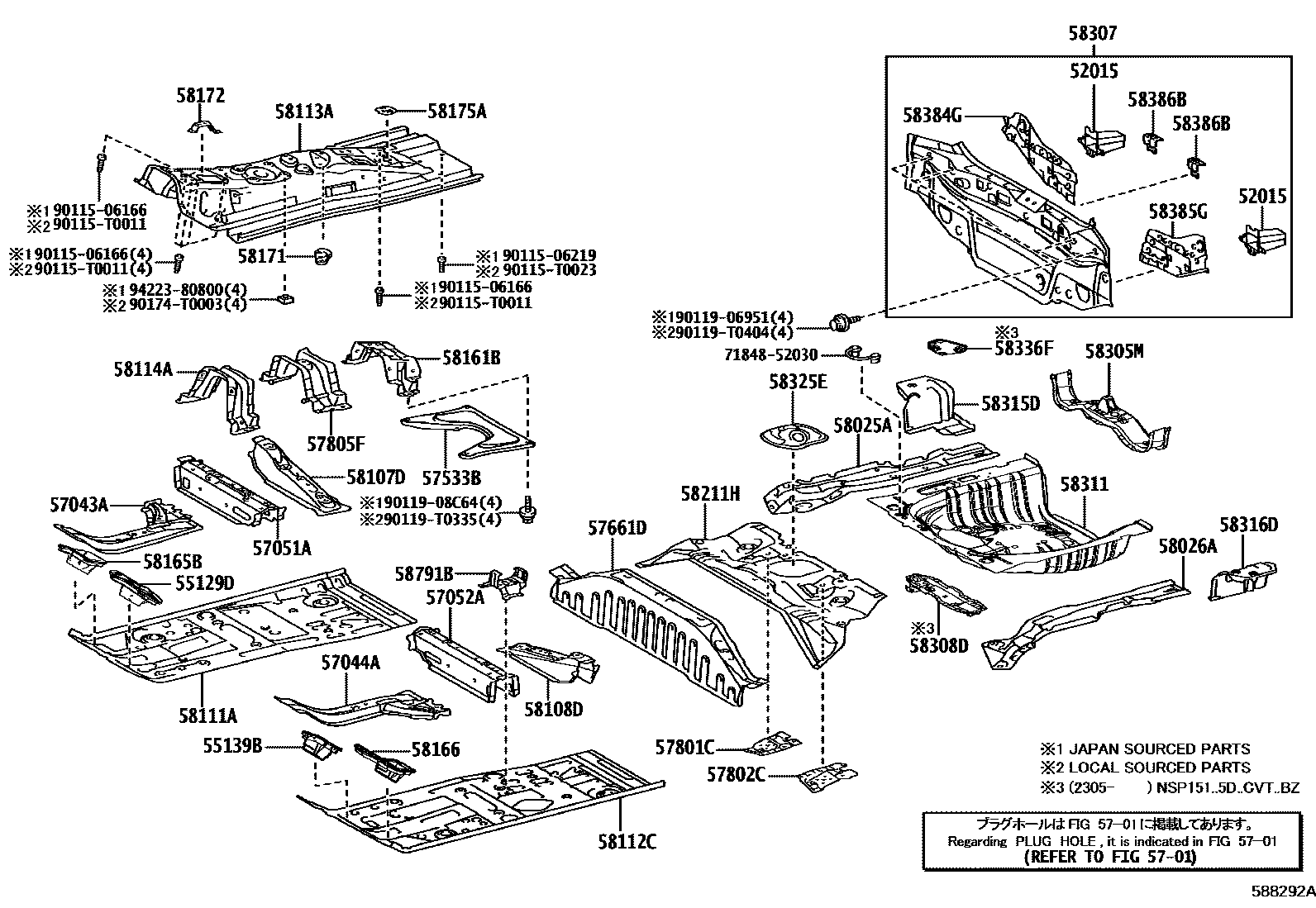

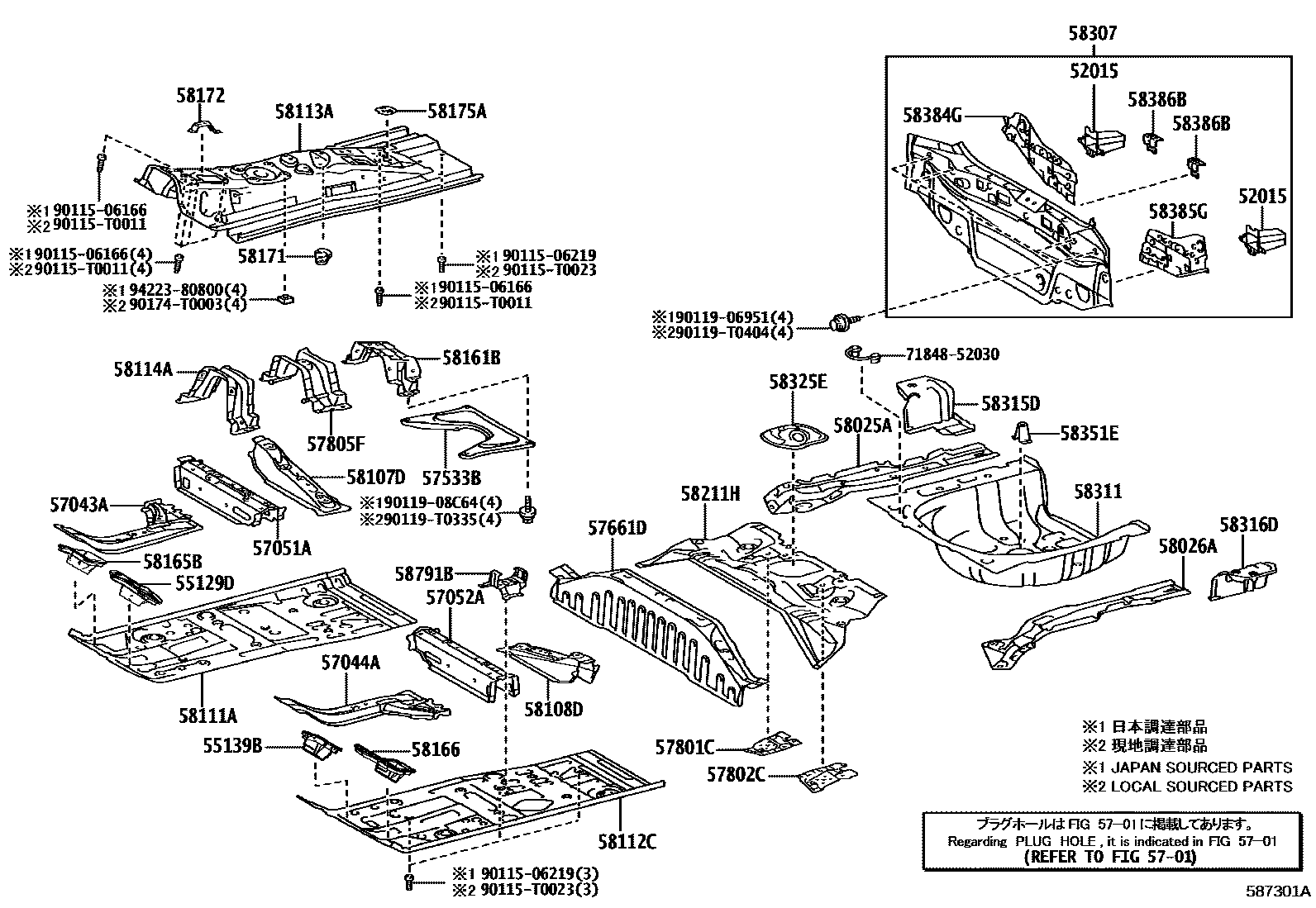

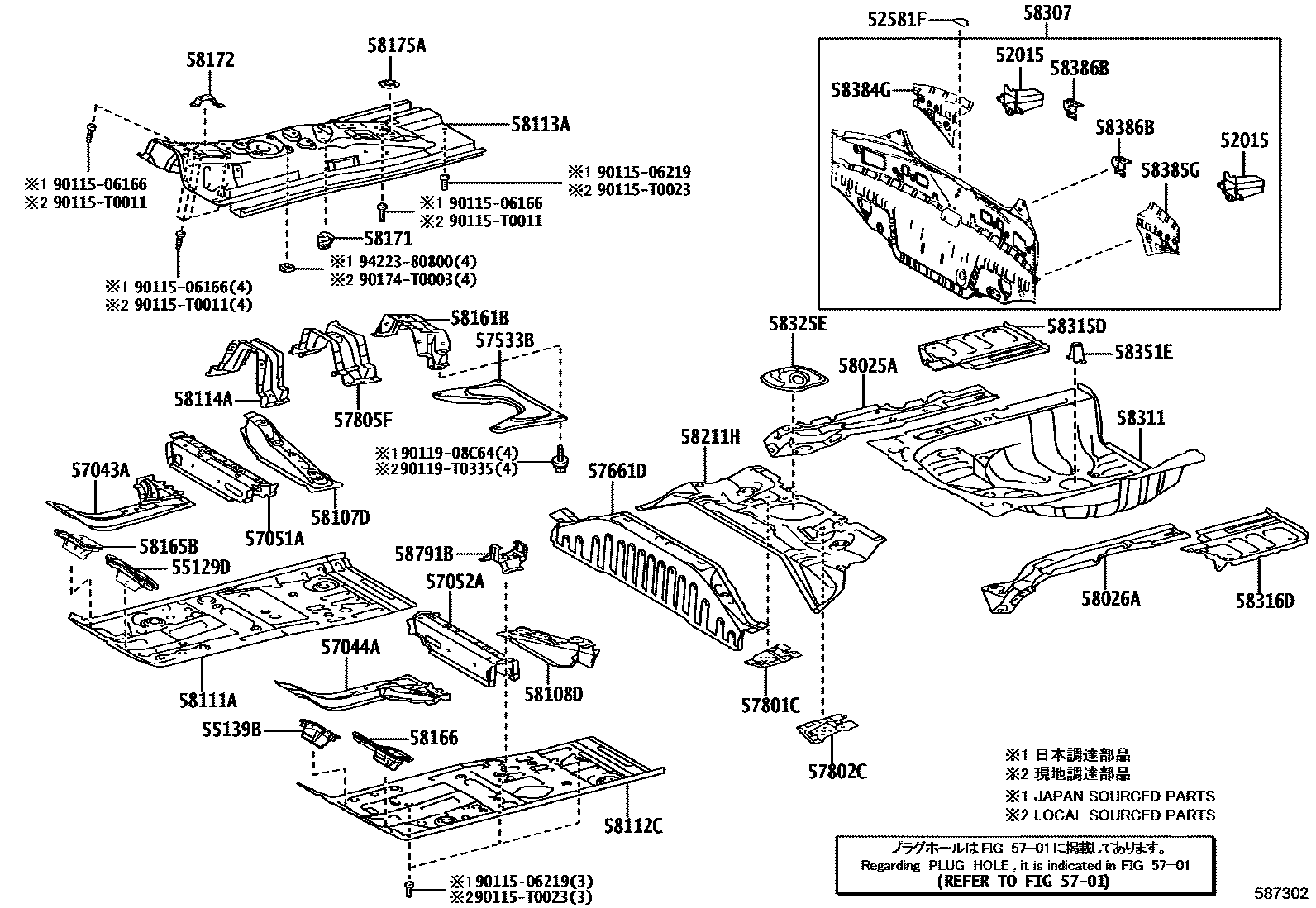

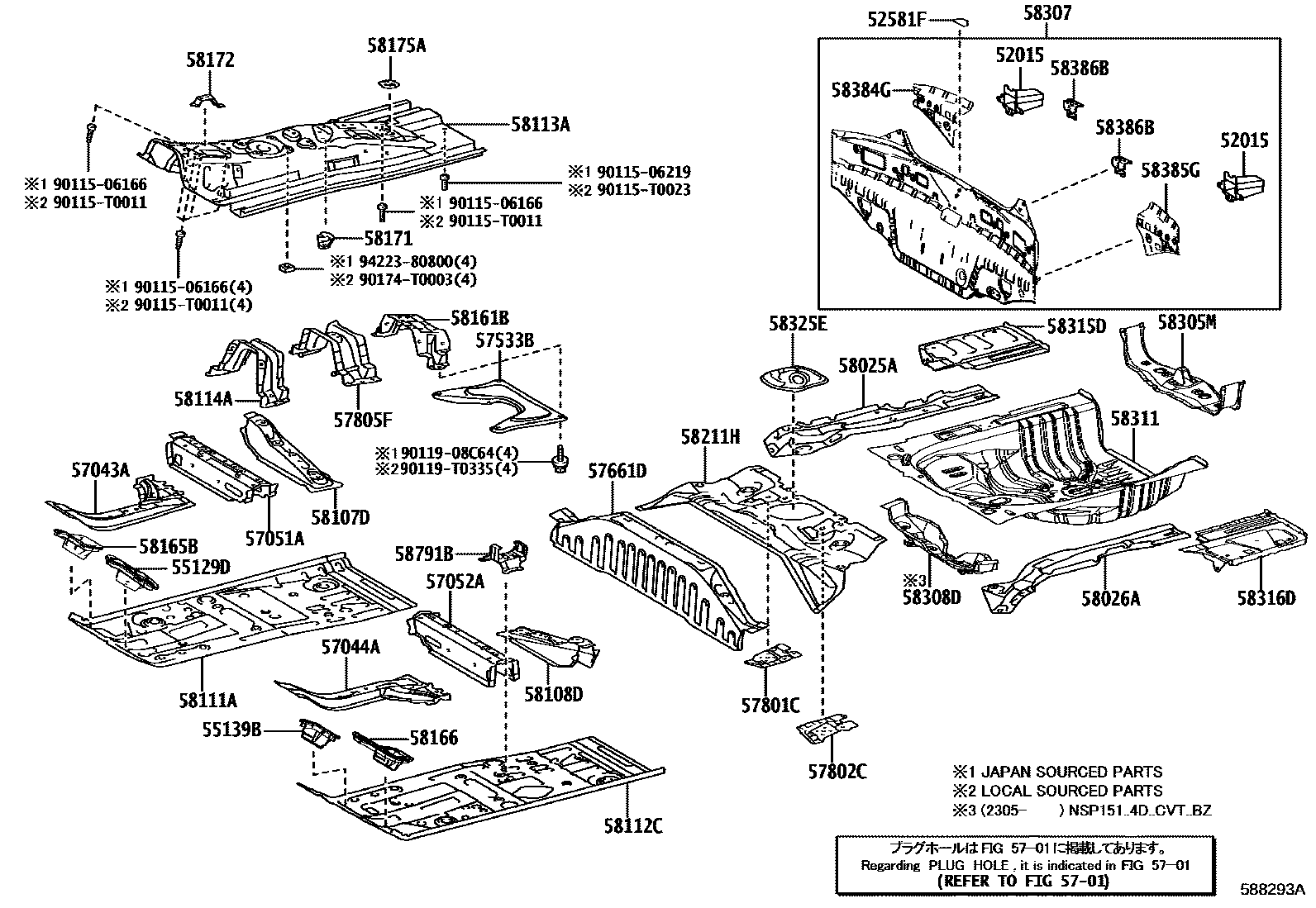

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 4 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015 | Rear bumper arm sub-assembly | 52015-0D240 · 52015-0D250 |
| 52581F | rear bumper protector | 52581-0D090 |
| 55129D | Right front panel hole cover | 55129-0D150 |
| 55139B | Left front panel hole cover | 55139-0D070 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-0D100 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-0D130 |
| 57051A | Front floor right cross member sub-assembly | 57051-0D110 |
| 57052A | Front floor left cross member sub-assembly | 57052-0D110 |
| 57533B | Front floor center bracket | 57533-0D110 |
| 57661D | rear floor front cross member | 57661-0D150 |
| 57801C | Seat belt anchor No. 1 right side reinforcement sub-assembly | 57801-0D170 |
| 57802C | Seat belt anchor No. 1 left reinforcement sub-assembly | 57802-0D160 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-0D140 |
| 58025A | Front floor right longitudinal beam plate sub-assembly | 58025-0D140 |
| 58026A | Front floor left longitudinal beam plate sub-assembly | 58026-0D120 |
| 58107D | Front cross member to front panel right reinforcement sub-assembly | 58107-0D140 |
| 58108D | Left front cross member to front panel reinforcement sub-assembly | 58108-0D110 |
| 58111A | Front floor right bottom panel | 58111-0D280 |
| 58112C | Front floor left bottom panel | 58112-0D916 |
| 58113A | front floor center panel | 58113-0D924 |
| 58114A | front floor reinforcement | 58114-0D151 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-0D180 |
| 58165B | Front floor right cover | 58165-0D090 |
| 58166 | Front floor left cover | 58166-0D080 |
| 58171 | Parking brake base reinforcement | 58171-0D110 |
| 58172 | No. 3 ECU mounting bracket | 58172-0D050 |
| 58175A | No. 1 parking brake base reinforcement | 58175-0D060 |
| 58211H | central floor base | 58211-0D210 |
| 58305M | Spare tire rack reinforcement sub-assembly | 58305-0D080 · 58305-0D090 |
| 58307 | Body lower back panel sub-assembly | 58307-0D440 · 58307-0D530 |
| 58308D | Rear floor cross member bracket sub-assembly | 58308-0D010 · 58308-0D020 |
| 58311 | rear floor pan | 58311-0D260 · 58311-0D270 · 58311-0D300 |
| 58315D | Rear floor pan right extension | 58315-0D160 · 58315-0D170 |
| 58316D | Rear floor pan left extension | 58316-0D160 · 58316-0D170 |
| 58325E | Rear floor access hole cover | 58325-0D160 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-0D020 |
| 58351E | Spare tire clip bracket | 58351-0D060 |
| 58384G | Body lower back panel upper right corner panel | 58384-0D290 · 58384-0D350 |
| 58385G | Body lower back panel upper left corner panel | 58385-0D220 · 58385-0D280 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-0D190 |
| 58791B | jack bracket | 58791-0D160 |
