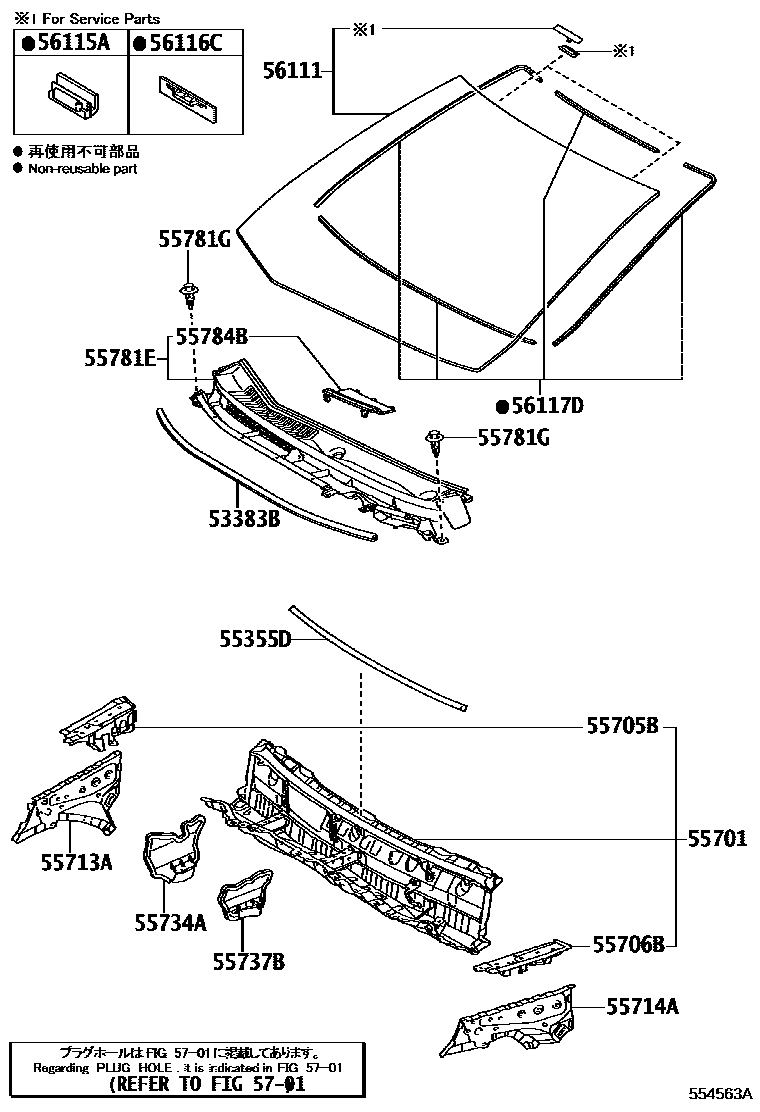

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0D230 |
| 55355D | Dashboard No. 1 Cushion Pad | 55355-0D390 |
| 55701 | Front apron sub-assembly | 55700-0D410 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0D180 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0D180 |
| 55713A | Right front wall upper side panel | 55713-0D170 |
| 55714A | Left front wall upper side panel | 55714-0D170 |
| 55734A | Right waterproof cover | 55734-0D130 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0D290 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0D430 |
| 55781G | Ventilation grille clips on front apron | 52161-0K040 · 52161-16010 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-0D170 |
| 56111 | windshield | 56101-0D740 · 56101-0D741 · 56101-0D760 · 56101-0D761 · 56101-0D770 · 56101-0D771 · 56101-0D780 · 56101-0DD70 · 56101-0DD71 · 56101-0DD80 · 56101-0DD81 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
