Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

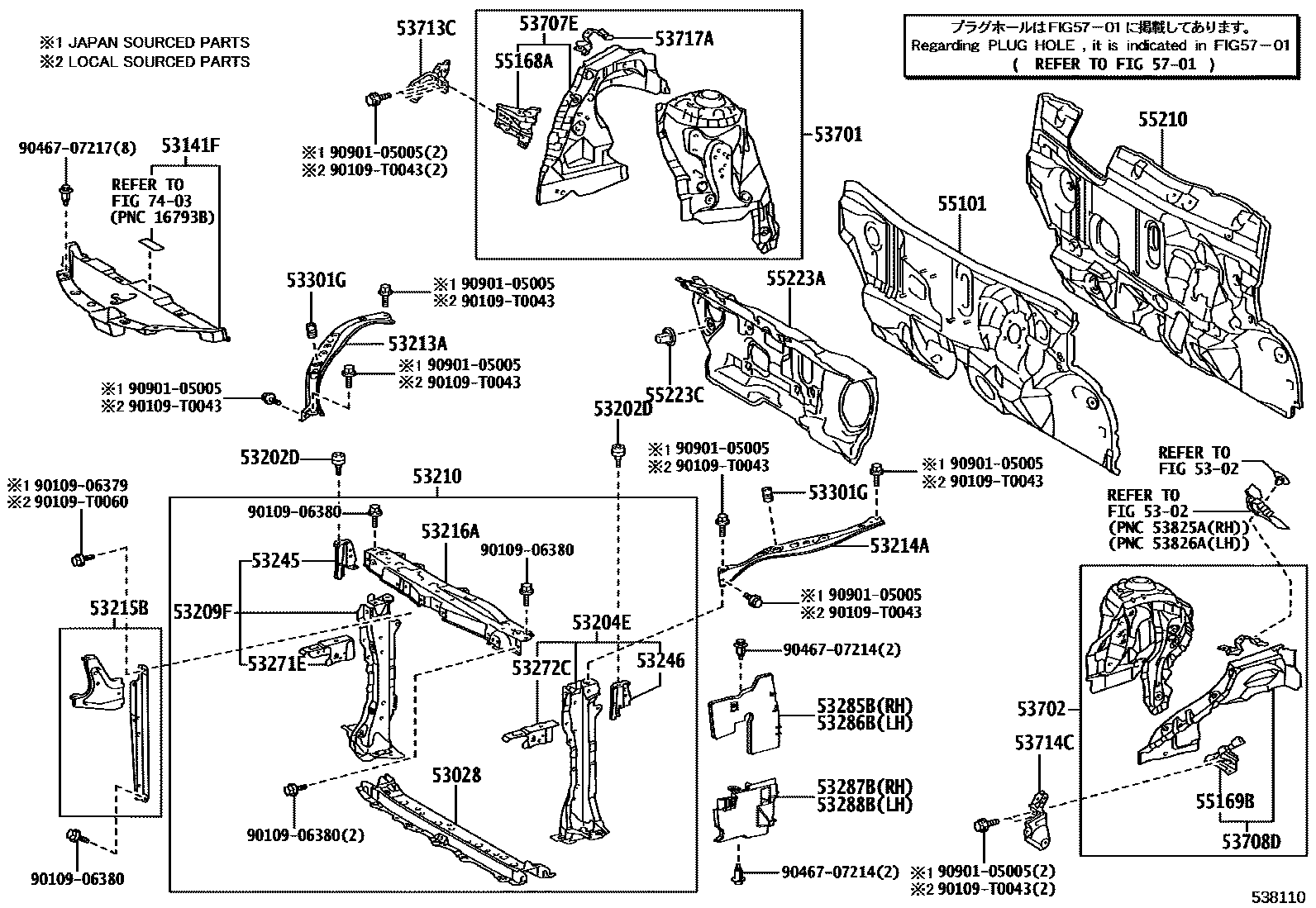

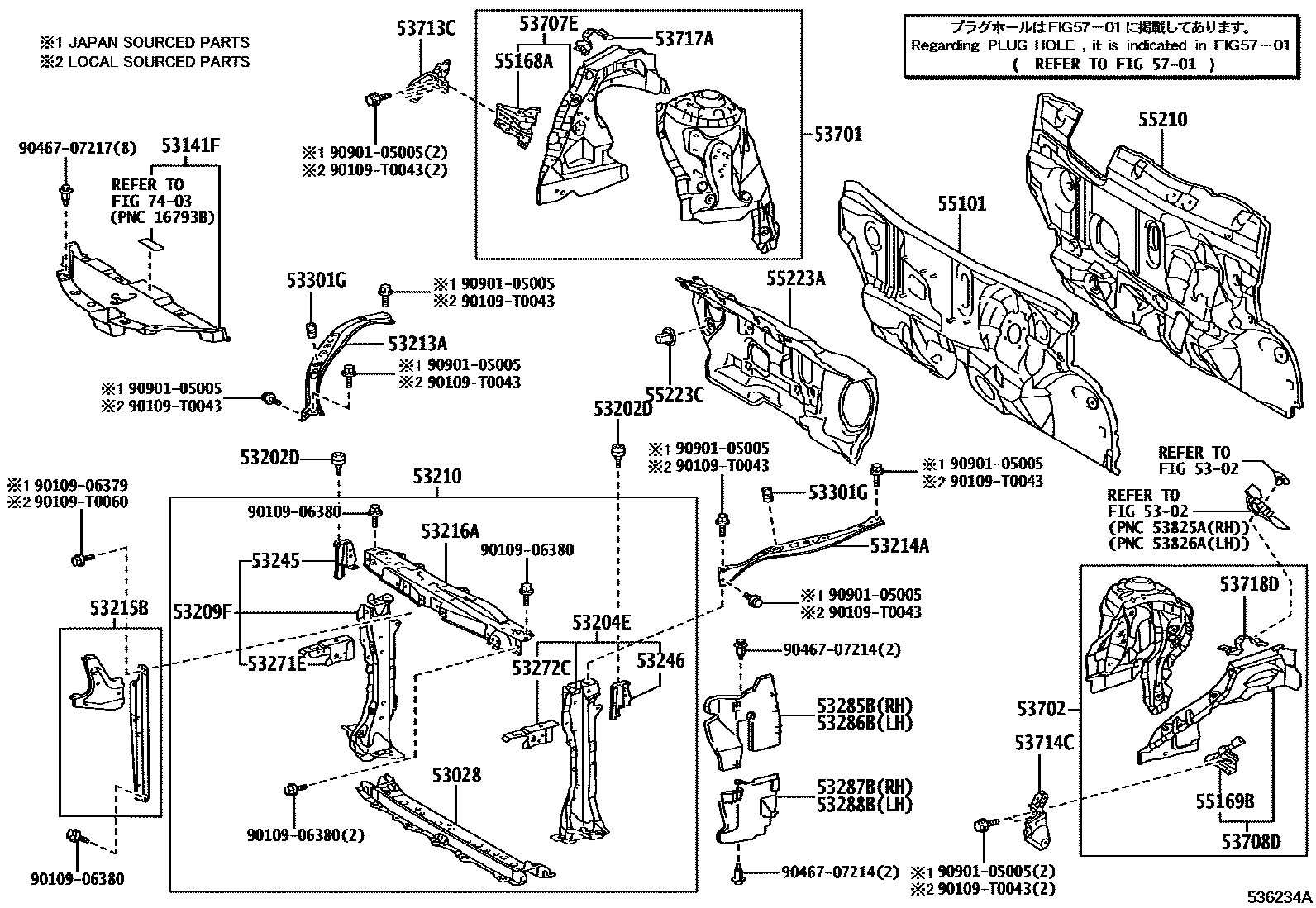

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53028 | Radiator lower bracket sub-assembly | 53028-0D120 |
| 53141F | radiator cap | 53141-0D190 · 53289-0D250 |
| 53202D | Radiator bracket cushion | 53119-12150 |
| 53204E | Radiator left bracket to cross beam bracket sub-assembly | 53204-0D901 · 53204-0D990 |
| 53209F | Radiator right side bracket to cross beam bracket sub-assembly | 53209-0D901 · 53209-0D902 |
| 53210 | Radiator bracket assembly | 53210-0D926 · 53210-0D927 |
| 53213A | Radiator upper right bracket | 53213-0D210 |
| 53214A | Radiator upper left bracket | 53214-0D210 |
| 53215B | Engine hood lock support | 53215-0D901 |
| 53216A | Radiator upper bracket | 53216-0D190 |
| 53245 | Right headlight bracket | 53245-0D100 |
| 53246 | Left headlight bracket | 53246-0D100 |
| 53271E | Right headlight mounting bracket | 53271-0D100 |
| 53272C | Left headlight mounting bracket | 53272-0D100 |
| 53285B | Radiator side 1 air seal | 53285-0D300 · 53285-0D430 · 53285-YP080 |
| 53286B | Radiator No. 2 side air seal | 53286-0D300 · 53286-0D430 · 53286-YP080 |
| 53287B | Radiator right side bracket extension | 53287-0D090 · 53287-0D300 · 53287-YP080 |
| 53288B | Radiator left bracket extension | 53288-0D080 · 53288-0D300 · 53288-YP080 |
| 53301G | engine cover cushion | 90541-15111 |
| 53701 | Right front fender fender sub-assembly | 53701-0D340 |
| 53702 | Left front fender fender sub-assembly | 53702-0D330 |
| 53707E | Fender right fender sub-assembly | 53707-0D050 |
| 53708D | Fender left fender sub-assembly | 53708-0D050 |
| 53713C | Right front fender fender front extension | 53713-0D210 |
| 53714C | Left front fender fender front extension | 53714-0D210 |
| 53717A | fender fender | 53717-0D220 |
| 53718D | Left fender fender corner panel | 53718-0D190 |
| 55101 | Front apron sub-assembly | 55101-0D800 · 55101-0D810 |
| 55168A | Right front fender mounting bracket | 55168-0D090 |
| 55169B | Left front fender mounting bracket | 55169-0D090 |
| 55210 | Front wall insulation pad assembly | 55210-0D830 |
| 55223A | Front wall outer heat insulation pad | 55223-0D430 |
| 55223C | clip | 90467-06197 · 90467-T0032 |
