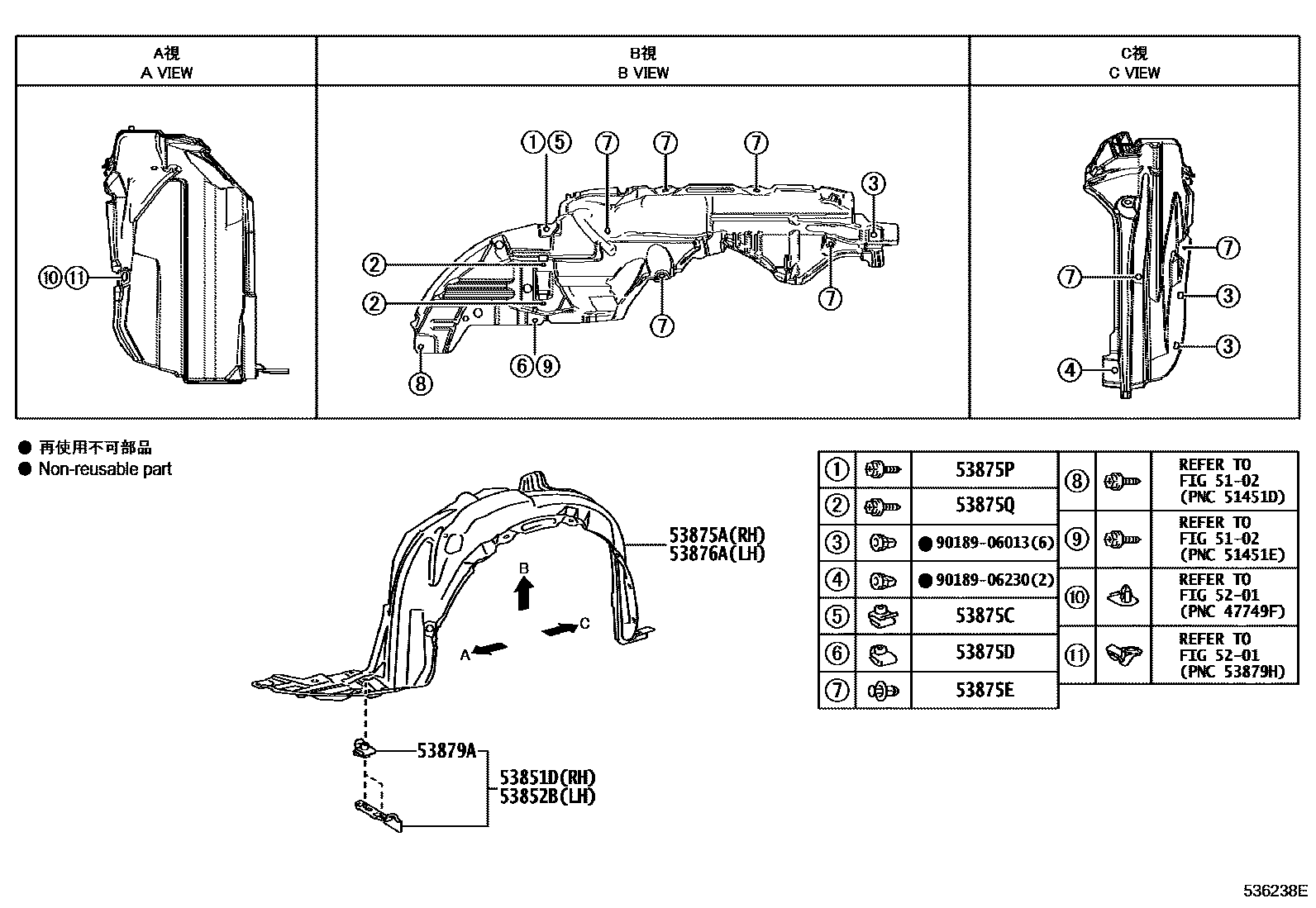

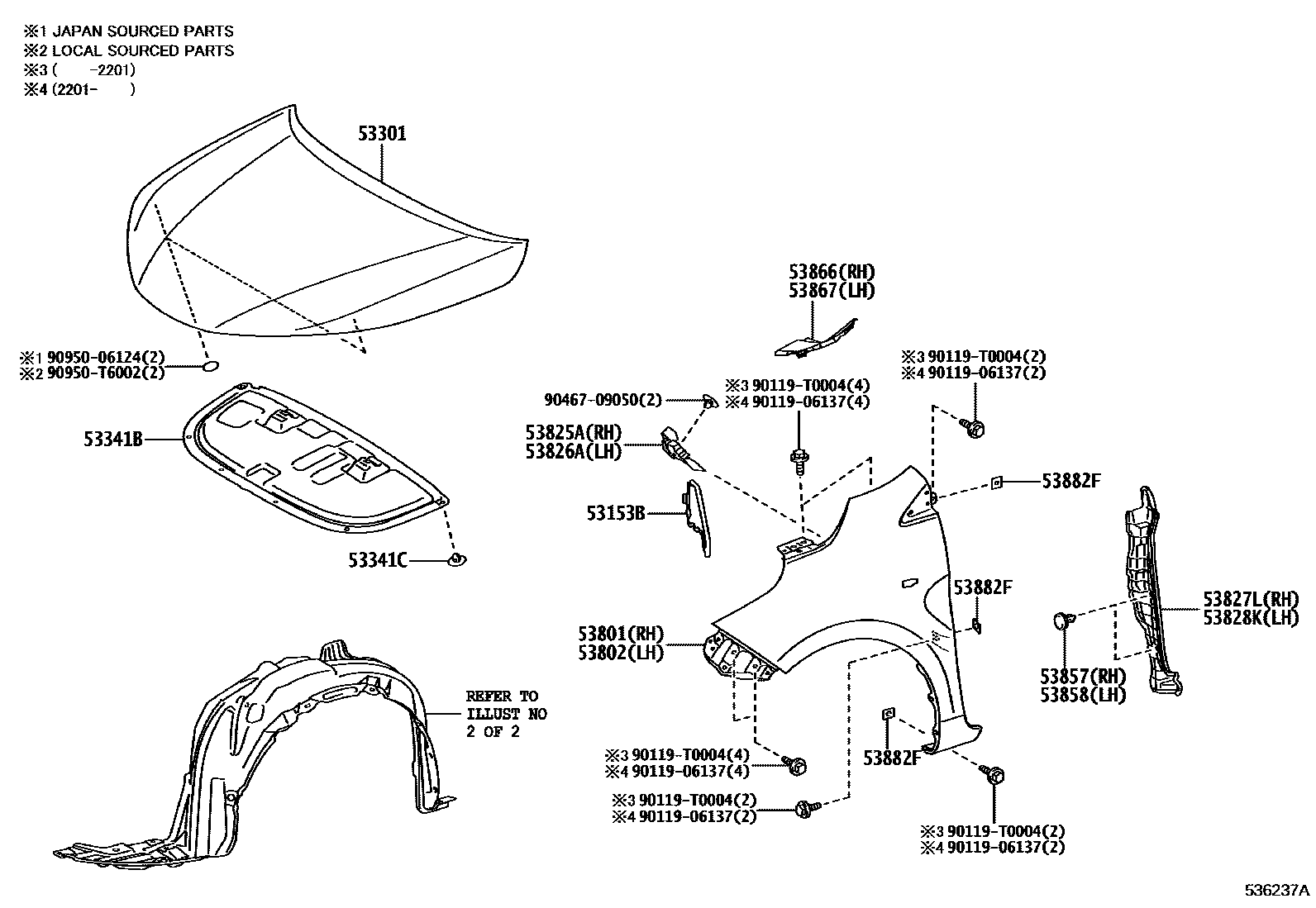

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-0D070 |
| 53301 | Engine cover sub-assembly | 53301-0D330 |
| 53341B | engine cover gasket | 53341-0D360 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53801 | Right front fender sub-assembly | 53801-0D240 |
| 53802 | Left front fender sub-assembly | 53802-0D240 |
| 53825A | Right front fender protection piece | 53825-0D090 |
| 53826A | Protection piece on left front fender | 53826-0D090 |
| 53827L | Right front fender side panel protector | 53827-0D260 |
| 53828K | Left front fender side panel protector | 53828-0D260 |
| 53851D | Right front fender outer panel pad | 53851-0D200 |
| 53852B | Left front fender exterior panel pad | 53852-0D120 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53866 | Right front fender to cowl side seal | 53866-0D270 |
| 53867 | Left front fender to cowl side seal | 53867-0D270 |
| 53875A | Right front fender lining | 53875-0D640 · 53875-0D650 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875D | No. 2 front fender lining clip | 90467-05128 |
| 53875E | No. 3 front fender lining clip | 90467-07214 |
| 53875P | Screw No. 1 | 90159-60488 |
| 53875Q | No. 2 screw | 90159-60488 |
| 53876A | Left front fender lining | 53876-0D640 · 53876-0D650 |
| 53879A | Front fender lining fixing parts | 53879-17020 |
| 53882F | front fender seal | 53882-33060 |
