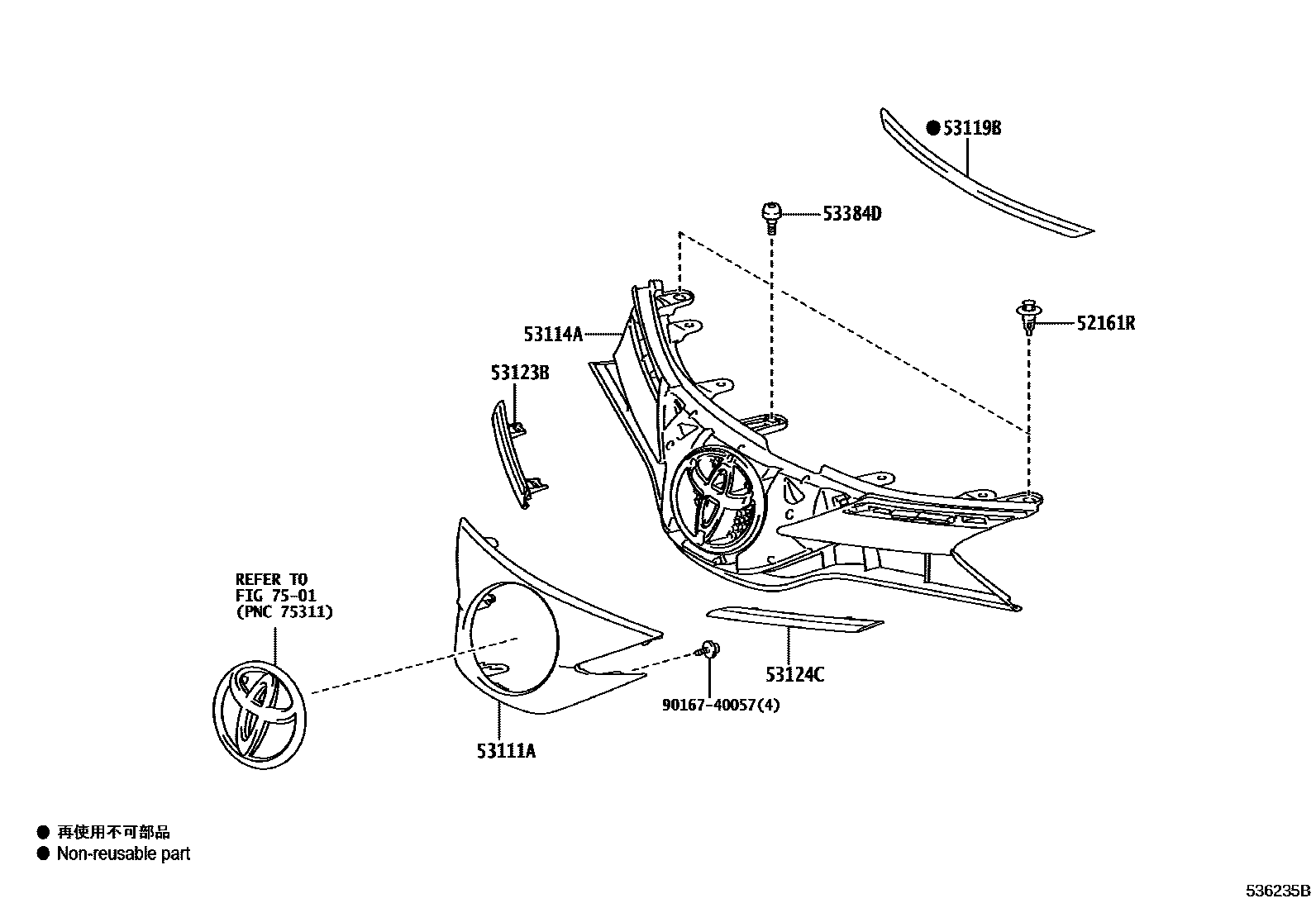

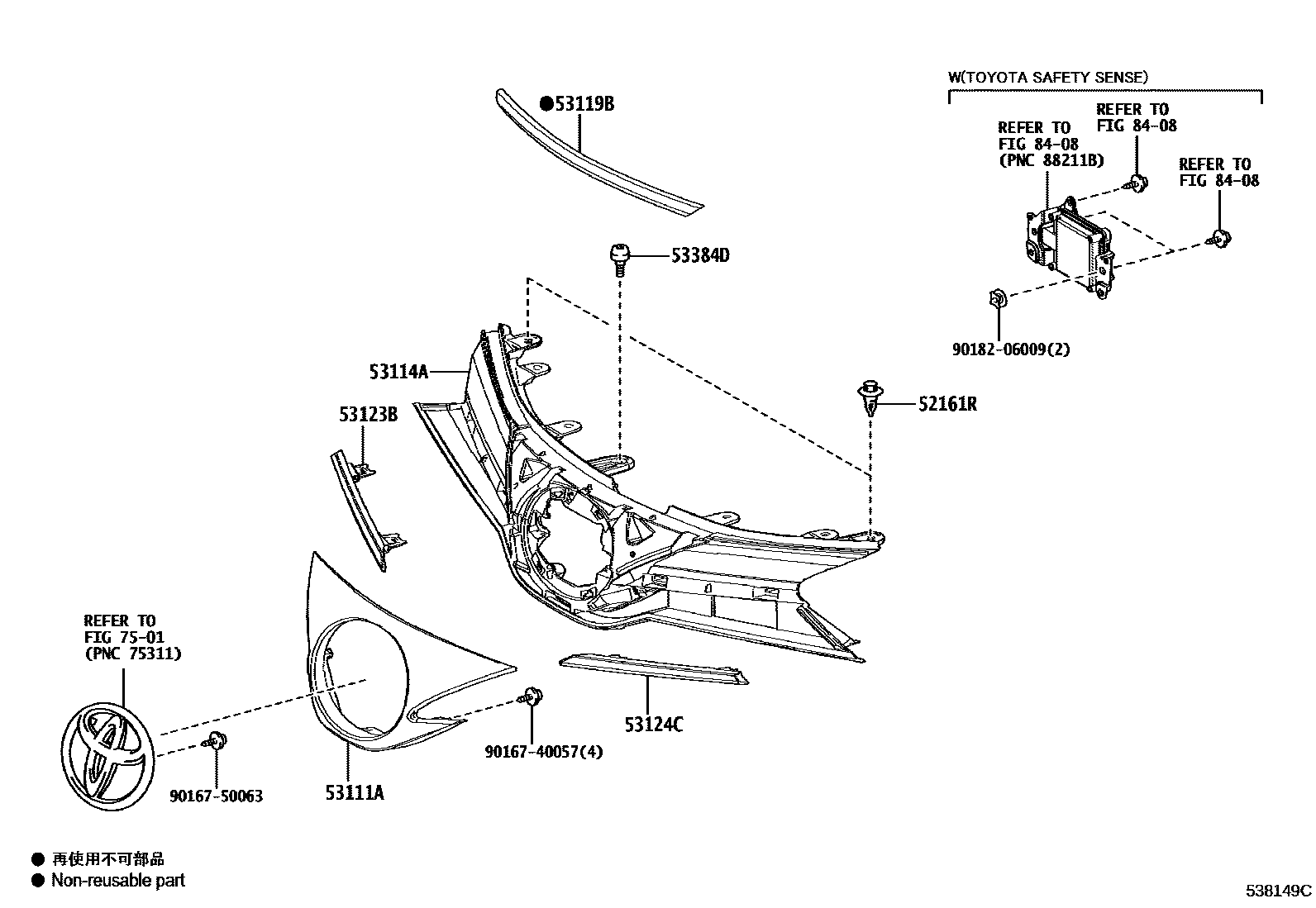

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-0K040 · 52161-16010 |
| 53111A | Radiator grille outside | 53111-0D919 · 53111-YP908 |
| 53114A | inner radiator grille | 53114-0D110 · 53114-YP140 · 53114-YP150 |
| 53119B | Radiator grille protector | 53119-0D060 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-0D190 · 53123-0D200 · 53123-0D360 · 53123-YP270 · 53123-YP280 |
| 53124C | Radiator grille upper left protective strip | 53124-0D310 · 53124-0D320 · 53124-0D480 · 53124-YP270 · 53124-YP280 |
| 53384D | Engine cover center cushion | 53119-12150 |
